Overview

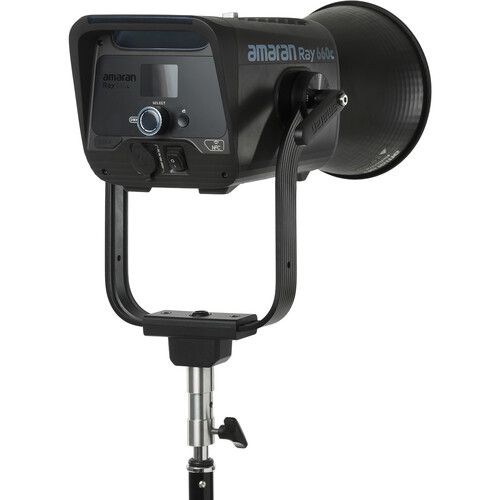

Designed for studio creators, the amaran Ray 660c is a 660W full-colour COB light with integrated AC power. It features a streamlined, monolight-style design powered by a single AC cable, making it the first full-colour COB in its power class. The light engine offers enhanced colour spectrum with expanded red and blue ranges for cleaner whites, truer skin tones, and more accurate colour. With up to 38,500 lux output at 1m, it is the highest-output amaran COB light available.
The amaran Ray 660c also offers DMX control via USB-C, IP54 weather-resistant design, adaptive control with FlowTurn knob, and instant pairing to the amaran app via built-in NFC. It has a wide adjustable colour temperature range, green-magenta adjustment for colour-accurate skin tones, and full colour control with HSI and RGB modes. The light is compatible with Bowens Mount modifiers, features a yoke design for precise rotation, and offers 12 lighting FX modes. With a simplified menu screen and wireless app control, the amaran Ray 660c is ideal for home studios and on-location spaces that require powerful, studio-quality lighting.
Included in box
1x amaran Ray 660c
1x amaran Reflector
1x amaran AC Power Cable (5m)
1x amaran Blue Bowens Mount Protection Cover
1x amaran Ray 660c EPP Carrying Case
About the Amaran Ray 660c – EU Plug
Designed for home studios and on-location spaces that need more punch, the amaran Ray 660c is a 660W full-colour point-source LED light powered by the OmniColour light engine – delivering true-to-life colour and powerful, studio-quality output in a streamlined, monolight design that runs on a single AC cable. With DMX control via USB-C and an IP54-rated build for real-world shoots, the amaran Ray 660c keeps setups simple and efficient – from larger studios to expansive outdoor spaces.
All-in-one design for studio simplicity.
The amaran Ray 660c is the first full-colour COB in its power class to integrate the power supply directly into the light, so you can start creating faster with just a single AC cable. With fewer components to carry, store, and mount – and eliminating bulky external power bricks to manage – this all-in-one, monolight design keeps your setup efficient and clutter-free.
True-to-life colour with OmniColour.
Powered by the OmniColour light engine, the amaran Ray 660c reproduces light that looks true-to-life – both on camera and to the eye. Building on amaran’s previous full-colour chipset, OmniColour expands the red and blue ranges to deliver a fuller, more balanced spectrum of light – achieving SSI scores of 87 (Tungsten) and 80 (D56). What you see is what you capture: cleaner whites, truer skin tones, and more accurate colour that stays consistent on camera.
Powerful, studio-quality output for larger spaces.
Whether lighting subjects or filling expansive studios, the amaran Ray 660c delivers up to 38,500 lux at 1m without accessories – the highest-output amaran COB light to date – giving you flexibility to light farther back, use larger softboxes, and fill wider frames. Boost your output with the included Reflector, extend your throw with the optional Fresnel, or soften your light with optional Bowens Mount softboxes.
DMX control via USB-C for advanced workflows.
From podcasts to music video sets, add DMX control via the optional USB-C to 5-Pin DMX In & Out Adapter¹ to integrate the amaran Ray 660c with industry-standard consoles and software. Whether programming precise cues, syncing multi-light looks, or triggering repeatable scenes, DMX control via USB-C lets you scale into advanced studio workflows when needed.
Instant, effortless controls.
When you need quick, hands-on control, the amaran Ray 660c makes setup and adjustments faster – on the light or in the amaran app. Use the FlowTurn knob to fine-tune one step at a time when you need precision or spin quickly to accelerate through settings when efficiency is key. In the amaran app, pair your amaran Ray 660c or multiple lights in the Ray family with just a tap via built-in NFC – even before turning it on.
CCT
Standard: 2,300K – 10,000K
Expanded (CCT+): 1,800K – 20,000K
CRI: 95+
TLCI: 95+
SSI (Tungsten): 87
SSI (D56): 80
TM-30 Rg (Average): 100
TM-30 Rf (Average): 94
Max Power Output: 660W
Max Power Consumption: 750W
Color Chipset: OmniColor
Lumens: 45,904 lumens
Weather Resistance Rating: IP54
Beam Angle
No Reflector: 70°
Reflector: 45°
Operating Voltage: AC 100V – 240V / 50–60Hz
Max Noise Level: 28dBA (30°C / 86°F)
Operating Temperature: –10°C – 40°C / 14°F – 104°F
Storage Temperature: –20°C – 80°C / –4°F – 176°F
Control Methods: On-board, amaran App, DMX²
Firmware Upgradeable: amaran App, USB-C
Wireless Operating Range: ≤80m / ≤262.5ft (Bluetooth)
Screen Type: TFT
Cooling Method: Active Cooling
660W output full colour COB light with integrated AC power
All-in-one design for studio creators: Streamlined, monolight-style design powered by a single AC cable – first full-colour COB in its power class
True-to-life, OmniColour light engine: Enhanced, fuller colour spectrum with expanded red and blue ranges for cleaner whites, truer skin tones, and more accurate colour
Powerful, studio-quality output: Up to 38,500 lux @ 1m (bare) – highest-output amaran COB light to date
DMX control via USB-C: Integrate into industry-standard consoles and software with optional USB-C to DMX Adapter¹
IP54 weather-resistant design: Dust & splash resistant – ideal for wind, light rain, sand, or humidity
Adaptive control with FlowTurn knob: Tactile feedback when adjusting lighting settings with speed or precision
Instant, one-tap pairing to the amaran app via built-in NFC: Streamline multi-light setups in advance or before rigging overhead – even before powering on
2,300K to 10,000K ultra-wide adjustable colour temperature (1,800K to 20,000K CCT with CCT+ Mode)
Green-magenta adjustment for colour-accurate skin tones
Recreate any colour with 360° full colour control: HSI (hue, saturation, intensity) and RGB colour modes
Colour accurate light: CRI: 95+, TLCI: 95+, TM-30 Rg: 100, TM-30 Rf: 94, SSI (Tungsten): 87, SSI (D56): 80
Metal, full-size Bowens Mount compatible with included Reflector, optional Fresnel, and other Bowens Mount modifiers

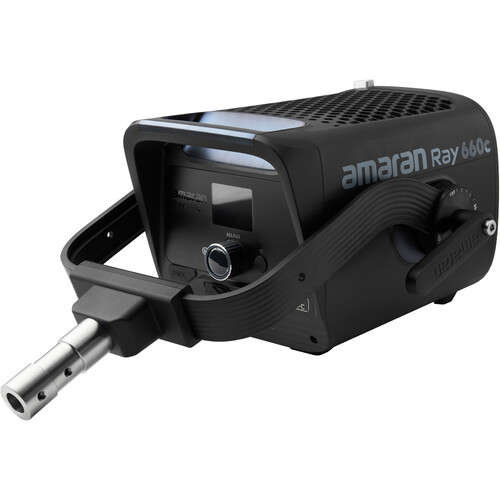

Yoke design for precise rotation of lamp head with dual junior / baby pin receiver for easy mounting to light stands
Built-in safety chain bracket for added security and protection
Instantly adjust light settings in Quick Operation Mode
Long press and double click Custom Shortcuts
High-Speed Photography Mode and Studio Mode
0–100% stepless brightness control
12 lighting FX: Fireworks, Faulty Bulb, Lightning, TV, Pulsing, Strobe, Explosion, Fire, Paparazzi, Welding, Cop Car, Party Lights
Adjustable Silent or Smart fan mode
Low fan noise: Max 28dBA at max output
Simplified, coloured menu screen for easy operation
Light effortlessly with wireless amaran app control
1 amaran USB-C to 5-Pin DMX In & Out Adapter sold separately
