Overview
The INFINIBAR PB6 8-Light Kit includes eight 2ft (60cm) full-color LED pixel bars, each with 48 independent pixels and an infinite blending design. It also comes with 10 splicing connectors for creative designs and the ability to share AC power between multiple lights. The kit includes a flight case, light control grids, and a power adapter with 8-way splitters for simultaneous charging. The INFINIBAR PB6 offers advanced connectivity options and customizable lighting effects, with a wide CCT range of 2,000K-10,000K and high color accuracy.
The INFINIBAR PB6s lightweight and durable design allows for easy mounting, either individually or linked together with magnets and clamps. Its built-in battery provides 100 minutes of operation at maximum output, making it a versatile and compact lighting option. With its advanced features and high-quality color reproduction, the INFINIBAR PB6 is a valuable tool for creating unique and dynamic lighting setups.
Included in box
8 x INFINIBAR PB6
8 x 48W DC Power Adapter (3m)
1 x AC Locking Power Cable (4m)
8 x AC Locking Power Cable (1.5m)
1 x 330W Power Adapter with 8-Way Splitters
16 x Magnetic Spacer
8 x INFINIBAR Clamp to Baby Pin Adapter
8 x INFINIBAR Straight Connector
1 x 5mm Hex Wrench
8 x INFINIBAR PB6 45o Light Control Grid
1 x Flight Case
About the Aputure INFINIBAR PB6 8-Light Kit – EU
The INFINIBAR PB6 8-Light Kit includes eight of Aputure’s first 2-foot(60cm) full-color LED pixel bars. Featuring 48 pixels, intuitive mounting andconnecting options with an infinite blending design, an integrated battery,and advanced connectivity methods, the INFINIBAR PB6 excels inconstructing unique, colorful designs that bring scenes to life in new andexciting ways.

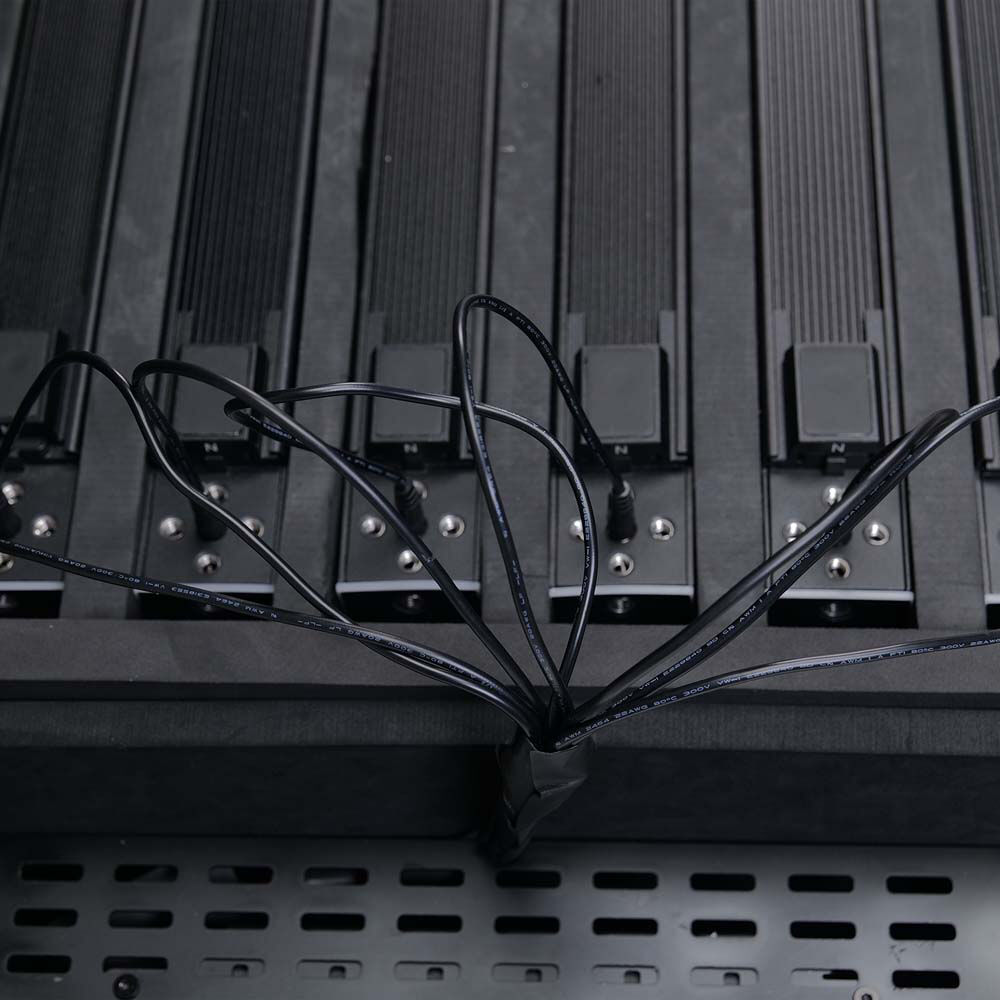

The 8-Light Kit expands this mid-sized multitool’s capabilities, with not onlyeight times the available light, but also additional power cables, adapters,and light control grids in a sturdy flight case to extend your creativepossibilities. And in addition to charging each light individually, the 8-LightKit is equipped with a 330W Power Adapter with 8-Way Splitters that cansimultaneously charge all fixtures.
The INFINIBAR’s most unique feature is the ability to link multiple 1ft, 2ft, or4ft INFINIBARs together using 10 differently-shaped connectors* to designcreative shapes and effects. Users can operate multiple INFINIBARs usingone power supply when linked by the power-sharing connectors or usetheir internal batteries for greater versatility. The pixel bar’s infiniteblending design also eliminates visible gaps between fixtures to createseamless pixelated effects using the PB6’s 48 RGB pixels.
Featuring advanced wireless connectivity, the INFINIBAR PB6’s 48 pixelscan be grouped and controlled via Sidus Link, LumenRadio CRMX, orthrough wired DMX using Aputure’s USB-C to DMX Adapter.**It also incorporates critical color controls (including advanced HSI with white-point adjustability, RGB, and xy) for full creative freedom. Toggle between 9 built-in System FX and 7 built-in Pixel FX, or save up to 20 Custom FX in theSidus Link app for easy access to different light modes.
The INFINIBAR PB6’s proprietary RGBWW chipset produces stunning colorquality throughout its wide CCT range of 2,000K to 10,000K with fullgreen-magenta adjustment, and can reproduce >90% of colors within theRec.2020 Color Space. Matching Aputure’s high standards for color, theINFINIBAR PB6 also produces accurate skin tones, measuring scores of CRI:96+, TLCI: 98+, SSI (D56): 74, and SSI (Tungsten): 85.
With its lightweight yet durable aluminum housing, the INFINIBAR PB6provides ultimate flexibility across all shooting environments. Whetherlinked together or used independently, the INFINIBAR’s built-in magnets,INFINIBAR Rail and Baby Pin Clamp system, and two 1⁄4-20in threads allowthe PB6 to be mounted with ease. And with its built-in 29.6Wh Lithiumbattery, the INFINIBAR PB6 can operate at its 14W max output for 100minutes, making it a versatile and compact fixture for your lighting toolkit.
* INFINIBAR Includes 8 Straight Connectors. Remaining 9 Connectors Sold Separately
** Aputure Active USB-C to 5-Pin DMX In & Out Adapter Sold Separately
