Overview

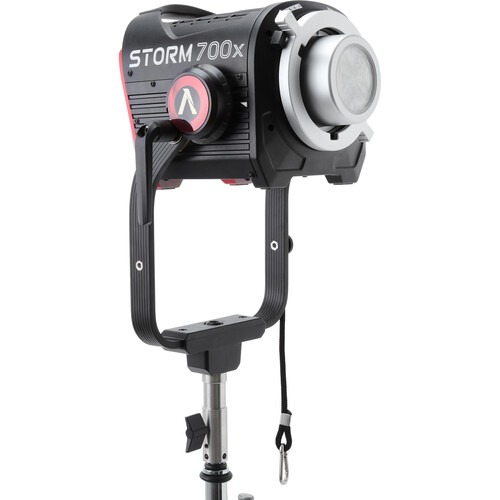

Bring high output anywhere with this portable, powerful 700W lamp featuring breakthrough white light fidelity and color capabilities. The Aputure STORM 700x utilizes the BLAIR light engine, delivering the highest quality white light and greatest +/- green adjustability of any LED technology. The STORM 700x is brighter than any other point source LED light in its power range, weighs just 5.15kg, and can mount on either a baby or junior stand.
The revolutionary BLAIR light engine can output saturated colours across more than 70% of Rec.2020 colour space using Limited HSIC+ and x,y control modes. The STORM 700x features wireless control with Sidus Bluetooth Mesh, CRMX, and 5-Pin DMX for use with professional lighting control software. With IP65 dust and weather protection, this lamp can work in extreme environments, making it a versatile and reliable lighting solution.

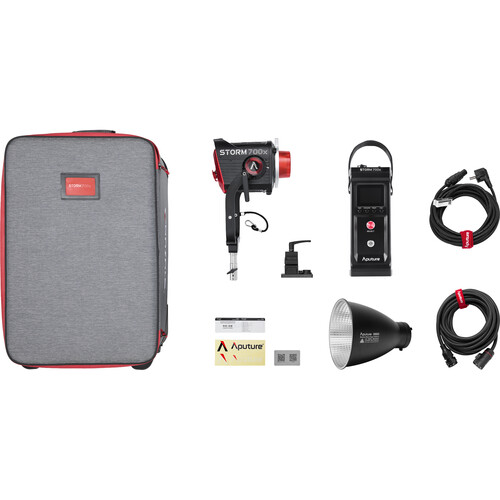

Included in box
1x STORM 700x Lamp Head
1x STORM 700x Control Box
1x Lightning Clamp
1x BM6835 35º Angle Hyper Reflector
1x STORM 700x Head Cable (5m)
1x AC Power Cable (6m)
1x Bowens Mount Protection Cover
1x Soft Rolling Case
About the Aputure Storm 700x – UK
Bring high output anywhere with this portable, powerful 700W lamp featuring breakthrough white light fidelity and color capabilities.
BLAIR: The Best Tuneable White Light
The Aputure STORM 700x utilizes the BLAIR (Blue/Lime/Amber/Indigo/Red) light engine, delivering the highest quality white light and greatest +/- green adjustability of any LED technology. The BLAIR light engine’s indigo emitters enhance fluorescing materials like natural daylight and tungsten sources.
The STORM 700x is brighter than any other point source LED light in its power range, weighs just 5.15kg, and can mount on either a baby or junior stand.
Colour Tuning Control
The revolutionary BLAIR light engine can also output saturated colours across more than 70% of Rec.2020 colour space using Limited HSIC+ and x,y control modes. Achieve deep crimson sunsets, rich sodium vapor ambers, and subtle colour effects without gels.
Bring High Output Anywhere
The STORM 700x is brighter than any other point source LED light in its power range while weighing just 5.15kg, and can mount on either a baby or junior stand. Pair with the CF10 Fresnel lens for output over 19,000 lux at 3m.
ProLock Locking Bowens Mount
The ProLock Locking Bowens Mount holds modifiers and optics rigidly in place. On STORM lamps, even the heaviest modifiers stay secure and properly aligned.
Professional Control Options
The STORM 700x features wireless control with Sidus Bluetooth Mesh, CRMX, and 5-Pin DMX for use with professional lighting control software.
IP65 Weather Protection
Head-to-toe IP65 dust and weather protection means the STORM 700x can work in extreme environments. Seals on every connector and around components allow not only the lamphead but also the control box and cabling to be used outside in the rain.
COLOUR SPECIFICATIONS
LED Chipset BLAIR
CCT 2,500K – 10,000K
Green-Magenta Adjustment Range ±G 100% (Full ASC MITC Range)
CRI ≥95
TLCI ≥95
SSI (Tungsten) 87
SSI (D56) 87
TM-30 RF (Average) 95
TM-30 RG (Average) 100
POWER SPECIFICATIONS
Max Power Consumption 850 W
Max Power Output 700 W
Operating Voltage 100 V ~ 240 V / 50–60 Hz
USB-A Power Port Specifications Out 5 V / 0.5 A
OPTICAL SPECIFICATIONS
Native COB Beam Angle 58°
Included Reflector Beam Angle 35°
ENVIRONMENTAL SPECIFICATIONS
Weather Resistance Rating IP65
Operating Temperature -20 °C ~ 45 °C / -4 °F ~ 113 °F
Storage Temperature -40 °C ~ 80 °C / -40 °F ~ 176 °F
Cooling Method Active air cooling
Lamp Head Fan Noise Levels (at 1m) Smart Mode 32 dBA
Lamp Head Fan Noise Levels (at 1m) High Mode 36.9 dBA
Lamp Head Fan Noise Levels (at 1m) Medium Mode 31.8 dBA
Lamp Head Fan Noise Levels (at 1m) Silent Mode 0 dBA
CONTROL AND FIRMWARE
Control Methods On-board, Sidus Link App, Sidus Link Pro App, DMX/RDM, CRMX
Data Ports 1x 5-Pin DMX In, 1x 5-Pin DMX Out
CRMX Chip Built-in TimoTwo module
Firmware Upgradeable Sidus Link, Sidus Link Pro, USB-A Drive
Wireless Range Sidus Bluetooth ≤100 m / ≤262.5 ft
Wireless Range CRMX (TimoTwo) ≤100 m / ≤262.5 ft
DIMENSIONS
Fully Built Lamp Head (Lamp Head, CF10, CF10 Barndoors, Skid) 60.9 x 35.9 x 35.1 cm
24.0 x 14.1 x 13.8 in
Control Box 12.3 x 15.4 x 31.4 cm
4.8 x 6.1 x 12.4 in
WEIGHT
Fully Built Lamp Head (Lamp Head, CF10, CF10 Barndoors, Skid) 9.45 kg
20.83 lbs
Lamp Head With Yoke 5.15 kg
11.35 lbs
CF10 Fresnel 2.10 kg
4.63 lbs
CF10 Barn Doors 1.40 kg
3.09 lbs
STORM 700x Skid 0.80 kg
1.76 lbs
Control Box 4.10 kg
9.04 lbs
AC Power Cable 0.60 kg
1.32 lbs
Head Cable 1.06 kg
2.34 lbs
BM6835 35° Reflector 0.35 kg
0.77 lbs
Lightning Clamp 0.65 kg
1.32 lbs
700W tuneable-white compact point source fixture
Advanced white point control with green/magenta colour correction (±G 100% full ASC MITC range)
CCT range of 2,500K-10,000K
Groundbreaking proprietary LED chipset: Blue, Lime, Amber, Indigo, Red (BLAIR)
Advanced diode colour mixing allows fixture to more effectively utilize each diode’s light output
16,730 lux @3m (5600K) when using included 35o reflector
Ultra-high colour accuracy: CRI≥95, TLCI≥95,, SSI [P3200]: 87, SSI [CIE D5600]: 87, TM-30 Rf (average) 95, TM-30 Rg (average) 100
70%+ coverage of Rec. 2020 colour gamut
Robust ProLock Locking Bowens Mount design allows for more secure and optically aligned modifier accessory connection
IP65 weather resistance
Smooth 0.1-100% stepless dimming
Multiple control methods: Sidus Link and Sidus Link Pro App, LumenRadio CRMX, 16-bit 5-Pin DMX512 in & out
Supports firmware batch-updates via Sidus Link, Sidus Link Pro, and USB-A
Dual output modes: Max and Constant
High-Speed Photography, Lead-Follow, and Studio Modes
4 fan modes: Smart, High, Medium, Silent
12 DMX control profiles with multiple DMX dimming modes and customizable DMX signal loss behaviours
4 dimming curves: Linear, Exponential, Logarithmic, S-Shaped
9 light effects: Paparazzi, Fireworks, Flickering Bulb, Cannon, Lightning, TV, Pulse, Flash, Explosion, Flame
10 saveable presets
