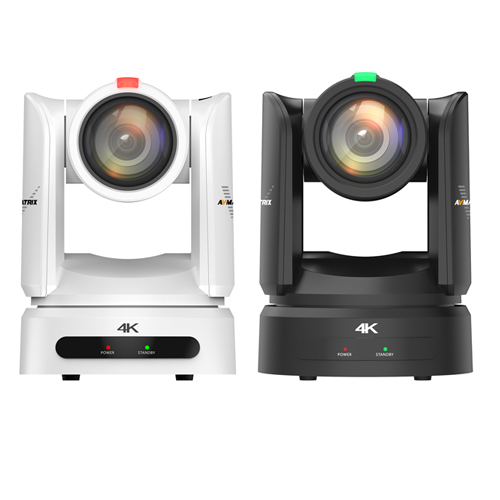

AVMatrix EAGLE P20-12G-NDI PTZ Camera
The AVMatrix EAGLE P20-12G-NDI PTZ Camera is a professional-grade device ideal for live streaming, broadcasting, and video production. It features a 1/1.8 CMOS sensor, 20X optical zoom, and 12X digital zoom, delivering stunning 4K UHD resolution.
With multiple video output options including HDMI 2.0, dual 12G-SDI, USB 3.0, and RJ45 (NDIHX3 support), the EAGLE P20 is compatible with various production setups. It also includes advanced imaging features like 2D/3D noise reduction and dynamic picture adjustment for optimal performance in diverse lighting conditions.
Key Features
High-Quality Sensor: 1/1.8 CMOS sensor with 8.3 MP for exceptional clarity.
4K UHD Output: Supports 2160p at up to 59.94 fps.
Zoom Capability: 20X optical and 12X digital zoom.
Image Enhancements: 2D/3D noise reduction and auto/manual focus.
Versatile Outputs: HDMI 2.0, dual 12G-SDI, USB 3.0, RJ45.
NDIHX3 Support: Advanced video-over-IP protocol.
Wide Rotation Range: Pan -175 to +175, tilt -30 to +90, with 255 presets.
Durable Build: Operates in -10C to +50C.
Low Light Performance: Minimum illumination of 0.05 lux.
Applications
Ideal for live events, worship services, conference recordings, online education, and professional studios.
Specifications
Weight: 2970g (net)
Power Consumption: 15W max
Interfaces: RS232, RS422, ONVIF, VISCA, Pelco protocol support
Rotation Speeds: Pan up to 100/s, tilt up to 80/s
Type of Product PTZ Camera
CMOS Sensor 8 MP
CMOS Sensor 4K (3840 x 2160) QFHD
Video Resolution 4K
Optical Zoom 20x
Digital Zoom 12x
Video Interface USB 3.0
Video Interface 12G-SDI
Video Interface HDMI
IP Video NDI HX3
Control Protocol VISCA
Control Protocol RS-232
Control Protocol Pelco-D
Angle Of View 90 Degree
