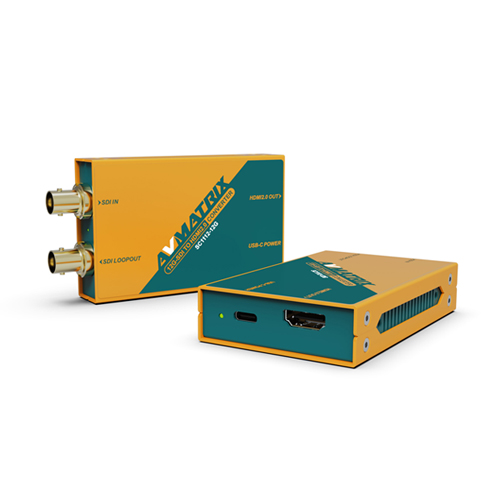

AVMATRIX SC1112-12G 12G-SDI TO HDMI 2.0 4K BROADCAST CONVERTER
The AVMATRIX is a SC1112-12G is an exquisite and portable 12G-SDI to HDMI2.0 converter. With USB Tpye-C power supply, SC1112-12G is the best choice for outdoors and indoors. With 12G-SDI input and 12G-SDI loop-out, SC1112-12G can auto detect HD/3G/6G/12G-SDI signal up to 4K@60, and support both Level A and Level B. HDMI output is compatible for more consumer electronics such as HDMI Television, projector, VCR, etc.
KEY FEATURES SC1112-12G
12G-SDI TO HDMI2.0
12G-SDI Loop-out
Up to 4K60 resolution
USB Type-C Power
SDl with Equalization and Re-clock
Video & power signal LED indicators
Equipped with detachable bracket (Optional)
SPECIFICATIONS SC1112-12G
INPUT
SDl Video Input HD/3G/6G/12G-SDIx1
OUTPUT
SDI Video Loop Output HD/3G/6G/12G-SDIx1
HDMl Video Output HDMI2.0x1
SDI FORMATS
SDl Input Fomat (12G) 4096x2160p 60/59.94/50
(12G) 3840x2160p 60/59.94/50
(6G) 4096x2160p 30/29.97/25/24/23.98
(6G) 3840x2160p 30/29.97/25/24/23.98
(3G level-A) 1920x1080p 60/59.94/50
(3G level-B) 1920x1080p 60/59.94/50
(HD) 1920x1080p 30/29.97/25/24/23.98
(HD) 1920x1080i 60/59.94/50
(HD) 1920x1080Psf 30/29.97/25/24/23.98
(HD) 1280x720p 60/59.94/50/30/29.97/25/24/23.98
SDI Video Rate HD/3G/6G/12G-SDI
SDl Compliance SMPTE ST-2081, SMPTE ST-2082, SMPTE 292M, SMPTE 296M
SMPTE 424M-B, SMPTE 274M, SMPTE 425M
SDl Color Space and Precision YCbCr 4:2:2 10bit
SDl Auto Switching Auto selects HD/3G/6G/12G-SDl input
HDMI FORMATS
HDMl Output Fomat (4K) 4096x2160p 60/59.94/50/30/29.97/25/24/23.98
(4K) 3840x2160p 60/59.94/50/30/29.97/25/24/23.98
(HD) 1920x1080p 60/59.94/50/30/29.97/25/24/23.98
(HD) 1920x1080i 60/59.94/50/48/47.98
(HD) 1280x720p 60/59.94/50/30/29.97/25/24/23.98
HDMl Color Space and Precision RGB 8bit, YCbCr 4:2:2 8bit,10bit, 12bit, YCbCr 4:4:4 8bit
HDMI Compliance CTA-861-G
POWER
Power USB Type-C
Power Consumption ≤4.5W(5V 0.9A)
Voitage Range 5V
OTHER
Dimension (LWD) 107.6x58x19mm
Weight 235g
Operatng Temperature 0-60°C
Storage Temperature -20~70°C
Relative Humidity 0%~90% non-condensing
