The AVMATRIX UC2018 is an SDI/HDMI to USB 3.1 video capture device. The US2018 will automatically detect the input video formats. Powered by USB with input and output video signals up to 1080p60.
Features:
Plug-and-Play, driver free & power free
HDMI or SDI in, and USB 3.1 Gen1(USB3.0) out
Automatic input signal detection, up to 1080p60
Uncompressed transmission rate up to 200MB/s via USB 3.1 Gen1
Comply with UVC video capture and YUY2 video output
Comply with UAC audio out from SDI/HDMI embedded audio or line in
Compatible with Windows, Linux, macOS
Compatible with OBS, ZOOM, Teams & Twitch, etc.
Specifications:
Connection

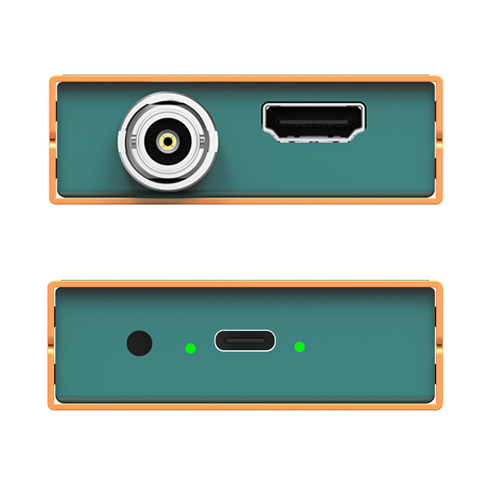

Input Interface:
– 1x HDMI 1.4a
– 1x SD/HD/3G-SDI
– 1x 3.5mm stereo audio (line in)
Output Interface: 1x USB-C 3.1 GEN1(up to 200MB/s)
Format
SDI Input Format:
– 1080p 60/59.94/50/30/29.97/25/24/23.98
– 1080PsF 30/29.97/25/24/23.98
– 1080i 50/59.94/60
– 720p 60/59.94/50/30/29.97/25/24/23.98
– 625i 50/525i 59.94
HDMI Input:
– 1080p 60/59.94/50/30/29.97/25/24/23.98
– 1080i 50/59.94/60
– 720p 60/59.94/50/30/29.97/25/24/23.98
– 576p 50/576i50, 480i 59.94/60
– 480p 59.94/60
USB Output Format: 1920×1200, 19201080, 1680×1050 1600×1200, 1440×900, 1368×768, 1280×1024, 1280×960, 1280×800, 1280×720, 1024×768, 1024×576, 960×540, 856×480, 768×576, 720×576, 720×840, 640×480, 640×360
Video & Audio Capture: UVC (USB Video Class) & UAC (USB Audio Class) Standard
Audio Codec: 2-Channel – 16 bit PCM, 48kHz, 1536kbps
Video Color Space
Others
Supported OS: Windows 7/8/10, Linux (Kernel version 2.6.38 and above), macOS (10.8 & above)
Software Compatibility: OBS (Windows), Skype, ZOOM, Teams Google Meet, Youtube Live, QuickTime Player, FaceTime, Wirecast, CAMTASIA, Ecamm.Live, Twitch.TV, etc.
Compatible SDK: DirectShow (Windows), DirectSound (Windows)
Dimensions: 3.62″ x 2.28″ x 0.74″ (92mm x 58mm x 19mm)
Weight:0.66lbs (300g)
Power Consumption: 3.5W
Operating Temperature: -4°F – 140°F (-20°C – 60°C)
Storage Temperature: -22°F – 158°F (-30°C – 70°C)
Relative Humidity: 20% to 90% RH, non-condensing
