Overview

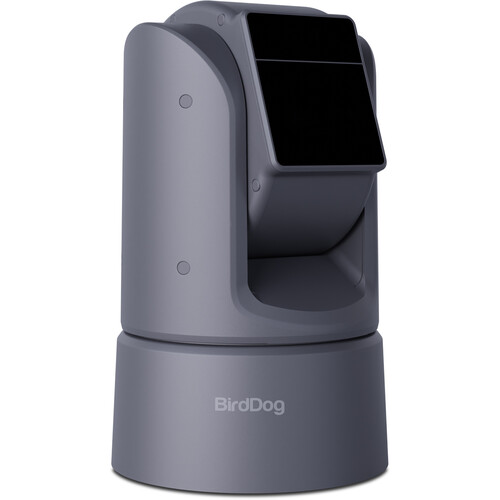

BirdDog O4 Outdoor PTZ in Grey is designed for permanent outdoor deployment, with features such as IP66 weatherproofing, -40°C to +60°C tolerance, 30x optical zoom (60x in HD), 500m infrared night vision, and 4K60 video capabilities. It captures broadcast-quality video with a large CMOS sensor and offers control over color, gamma, exposure, and dynamic range, making it suitable for various applications including sports facilities, smart cities, houses of worship, and security.
The O4 PTZ camera is built to withstand harsh weather conditions, with a fully sealed housing, heater to prevent condensation, and advanced lens coatings. It simplifies installation with concealed I/O connections, PoE++ power delivery, and AI tracking capabilities. The camera eliminates the need for wipers with hydrophobic glass, offers maximum workflow flexibility with NDI streaming options, and integrates seamlessly with BirdDogs software and control systems for reliable performance in any environment.
About the BirdDog O4 Outdoor PTZ – Grey
Built for the Wild. Ready for the world.
BirdDog O4 is a purpose-built outdoor PTZ engineered for permanent deployment. With IP66 weatherproofing, –40 °C to +60 °C tolerance, 30× optical zoom (60× in HD), 500 m infrared night vision, and 4K60 video, O4 delivers reliable coverage where other PTZs fail.
Broadcast-Quality Video, Anywhere.
O4 captures sharp, color-accurate 4K60 video using a large 1/1.8″ CMOS sensor with multi-exposure HDR. With fine control over color, gamma, exposure, and dynamic range, it matches the look of higher-end production cameras — making it ideal for mixed workflows across AV and broadcast. From sports facilities to smart cities, transport, houses of worship, large-scale events, and security, O4 is built to produce exceptional content anywhere.
See Further. Even at Night.
The 30× optical zoom lens (60× in HD) lets you frame subjects clearly from a distance, without relying on digital tricks. For low-light or no-light conditions, O4 deploys a precision 500 m infrared laser emitter, paired with IR cut filters and a black-and-white mode that adapts automatically to changing light. The result is visibility you can count on, day or night.
All-Weather Warrior.
O4 operates from –40 °C to +60 °C and is protected by a fully sealed IP66-rated housing. A built-in heater keeps frost from condensation, and cutting-edge lens coatings keep optics clean. The result is a PTZ you can trust year-round, in any condition.
Installation Made Simple.

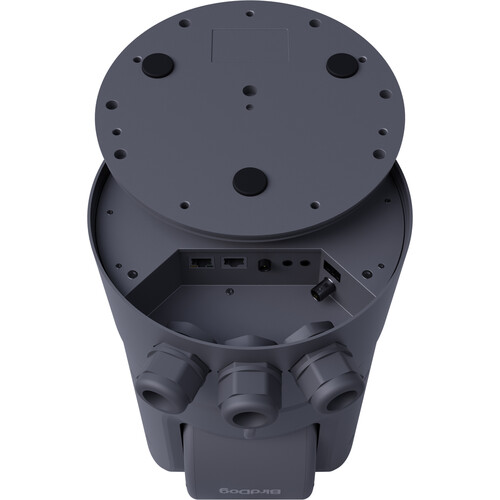

Unlike typical outdoor PTZs that create cable management headaches, O4 is designed with installers in mind. All I/O connections live in a concealed, weather-sealed undercarriage with three flanges and built-in strain relief for clean, reliable setups. Power can be delivered over PoE++ for single-cable simplicity or via standard DC for flexibility. And if you need O4 indoors, simply remove the panel and mount it like any standard PTZ.
AI Tracking That Moves With Purpose.
O4 features BirdDog’s next-generation AI tracking engine with fully adjustable movement profiles. Whether you need fast, responsive tracking for sports or smooth, cinematic motion for worship and live events, O4 adapts to your environment. For security and monitoring, its human-like precision ensures subjects are always in frame.
No Wipers. No Worries.
O4 is built for unforgiving outdoor conditions, so we eliminated the weakest point: the wiper. Instead, its aircraft-grade, hydrophobic glass repels water, dust, and grime to keep the lens clear. The result? No moving parts that wear, no sensors, and no extra maintenance. Rain or shine, O4 delivers consistent visibility and reliable performance year-round.
Mount Like You Mean It.
The optional O4 Mount system transforms your install into a clean, architectural feature. It hides cables, hugs the surface, and keeps the camera flush-mounted. It looks more like a purpose-built outdoor appliance than a repurposed CCTV box.
Maximum Workflow Flexibility.
O4 is built for almost any workflow. Stream in Full NDI® and NDI® HX3 at the same time, or output NDI alongside SRT, RTMP, or RTSP. With native 12G-SDI and fiber via SFP+, O4 is built to deliver broadcast results in any environment. O4 integrates effortlessly into IP hybrid, or traditional baseband setups. PoE++ keeps installs simple and scalable, while dual-streaming support ensures you can deliver in multiple formats at once.
BirdDog DNA. Field Ready.
O4 is powered by BirdDog’s most refined next-gen software, control it through BirdUI, API, or third-party systems. It integrates seamlessly with KBD, CamControl, and other BirdDog tools.
IMAGING
Imaging Sensor Sony 1/1.8″ CMOS – ULTRA HD
Lens f=6.9mm–215mm
Optical Zoom Optical 30x (4k) – 60x (HD), 8x Digital
Video Format 2160p @ 60/59.94/50/30/29.97/25fps; 1080p @ 60/59.94/50/30/29.97/25fps; 1080i @ 60/59.94/50fps; 720p @ 30/29.97/25fps
Horizontal angle of view 60°–2°
Vertical angle of view 34°–1.1°
Diagonal angle of view 67°–2.3°
Aperture f1.35–f4.6
Focus Auto (Global/Centre/Upper/Lower/Left/Right), Manual
Exposure Auto, Manual, Shutter Priority, Iris Priority, Brightness Priority
Exposure Metering Average, Centre, Top, Bottom, Left, Right
Backlight Compensation Yes
Exposure Compensation Yes
Flicker Reduction Outdoor / 50Hz / 60Hz
White Balance Auto / One Push / Indoor / Outdoor / Manual / Color Temperature
Digital Noise Reduction 2D/3D Noise Reduction
SNR >50dB
Effective Pixels 8.4 MP
HDR Supported, REC.2020 Colour Space
MECHANICAL
Pan/Tilt Rotation ±170°, –30° – +90°
Pan Control Speed 0.05–90°/sec
Tilt Control Speed 0.05–90°/sec
Preset Number 255 Presets
IR Laser Included, 500m illumination distance
FreeD Support Included, UDP and Embedded in NDI Stream
Integrated Heater Included
Glass Coating High-strength Aerospace/Marine grade Hydrophobic, Anti-mildew, Anti-fouling coating
AI FUNCTIONS
AI Auto Tracking Area Management, Framing Adjustment, Sensitivity Adjustment, Auto Framing, Stage Tracking, Zone Tracking
AI Gesture Control Supported
I/O INTERFACE
Video Output Interfaces 12G–SDI, RJ-45
Video Compression Formats h.264, h.265, NDI High Bandwidth
Audio I/O Stereo Unbalanced 1/4″ TRS Input/Output
Network Interface SFP+, Fibre Optic, RJ45 1GbBaseT adaptive Ethernet port: PoE++
Encoder Network Protocols NDI®-HX2, NDI®-HX3, High Bandwidth NDI, RTSP, RTMP, SRT, Dante AV–H (unlocked via Dante Activator)
Control Interfaces Ethernet, Serial
Control Protocols NDI, VISCA–IP
API Control BirdDog RESTful API 2.0
GENERAL
Input Voltage DC 24V, PoE++
Input Current 2.1A
Power Consumption 40W Max.
Operating Temperature –40°C – +60°C
IP Rating IP66
Dimensions (W×H×D) 200×330×220mm
Weight 7.6kg
IP66 weatherproof housing with –40 °C to +60 °C operating range and built-in heater.
Hydrophobic, smudge-resistant front glass for clear optics without wipers.
30× optical zoom (60× in HD) for long-range framing.
500 m infrared laser night vision with automatic B/W mode and IR cut filters.
1/1.8″” CMOS sensor capturing 4K60 with wide dynamic range.
Simultaneous Full NDI® and NDI® HX3 streaming.
Dual streaming options: deliver NDI plus SRT/RTMP/RTSP concurrently.
12G-SDI, HDMI, and SFP+ (fiber) for IP, hybrid, and baseband installs.

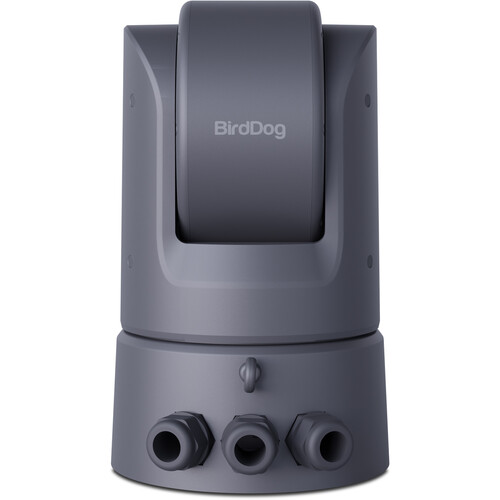

Sealed undercarriage cabling with three weatherproof flanges and strain relief; PoE++ or DC power.
Adjustable AI autotracking (fast for sports, smooth for events) via BirdUI
