Overview
The X4E Advantage. All Performance, No Compromise.
The X4E is a state-of-the-art 4K60 camera delivering the same stunning BirdDog image quality, precision robotics, and advanced AI automation as X4 Ultra — now in a wired-first design. Featuring NDI® | HX3, a Sony 1/1.8″” sensor, HALO Tally, E-Ink Display, and flexible connectivity via SDI, HDMI, USB-C, and IP, X4E brings professional-grade performance to every installation. Powered through PoE or DC, it’s engineered for reliability, longevity, and seamless integration into any production workflow.
HALO Tally. Clarity Meets Control.
Professional results need professional tools. The X4E features BirdDog’s HALO Tally system — the most visible and intuitive tally solution available. Surrounding the lens with a bright, daylight-visible border, HALO ensures your talent always knows which camera is live. It’s instant feedback that keeps your production sharp and your audience engaged.
Summary
Focal Length: 125mm
Lens Zoom: 20x Optical Zoom
Resolution and Frame Rate: 2160p @ 60fps
Sensor: 1/1.8in CMOS
Video Outputs: HDMI
Weight: 2.0kg
Included in box
3x BirdDog X4E Ultra UHD PTZ Camera – Black

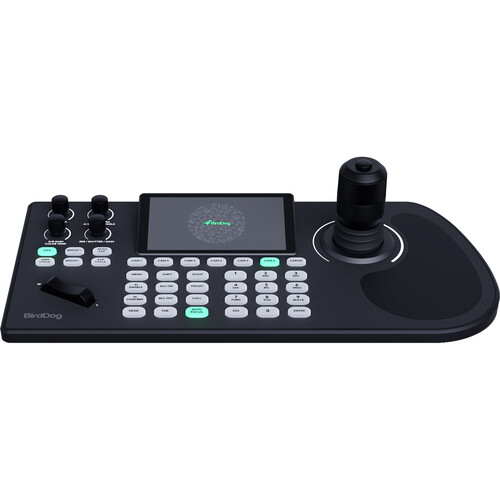

1x KBD Controller
About the BirdDog X4E Ultra UHD PTZ Camera Bundle – Black
The X4E Advantage. All Performance, No Compromise.
The X4E is a state-of-the-art 4K60 camera delivering the same stunning BirdDog image quality, precision robotics, and advanced AI automation as X4 Ultra — now in a wired-first design. Featuring NDI® | HX3, a Sony 1/1.8″” sensor, HALO Tally, E-Ink Display, and flexible connectivity via SDI, HDMI, USB-C, and IP, X4E brings professional-grade performance to every installation. Powered through PoE or DC, it’s engineered for reliability, longevity, and seamless integration into any production workflow.
HALO Tally. Clarity Meets Control.
Professional results need professional tools. The X4E features BirdDog’s HALO Tally system — the most visible and intuitive tally solution available. Surrounding the lens with a bright, daylight-visible border, HALO ensures your talent always knows which camera is live. It’s instant feedback that keeps your production sharp and your audience engaged.
AI Tracking. Precision That Learns.
The X4E’s AI controls deliver smooth, intelligent camera movements that lock onto your subject with precision. Designed for consistency, the AI adapts to your workflow — whether you’re streaming a live event, teaching in a lecture hall, or broadcasting from a fixed studio. As your needs evolve, so does X4E.
NDI® | HX3. Network Efficiency Without Compromise.
Built on BirdDog’s industry-leading implementation of NDI® | HX3, the X4E delivers exceptional image quality with ultra-low latency and minimal network impact. It’s performance you can count on — even in demanding IP environments. BirdDog’s NDI® | HX3 goes beyond certification standards to ensure stable, high-quality 4K60 streaming, every time.
Power Made Simple. PoE and DC.
The X4E is designed for reliability and simplicity. Power it directly via PoE or DC input, eliminating the need for internal batteries while reducing complexity and maintenance. Fewer moving parts, fewer variables — just dependable, professional performance hour after hour.
E-Ink Display. Always On. Always Clear.
The always-on E-Ink Display makes setup and management effortless. From instantly visible IP addresses to customizable labels*, you’ll always know which camera is which — even when powered off. A small but mighty detail that keeps your workflow organized and your team in sync.
The Perfect Partner for X4 Ultra.
X4E and X4 Ultra share the same DNA — and they’re built to work together. Use X4 Ultra where mobility matters and X4E where reliability rules. Mix and match both models for the ultimate production ecosystem.
Image Sensor Sony 1 / 1.8” CMOS – ULTRA HD
Effective Pixels 8.42 MP
Lens f = 6.25 – 125mm
Optical Zoom 20×
Aperture F1.58 (W) – F3.95 (T)
Focus Auto, Manual
Exposure Modes Auto, Shutter Priority, Iris Priority, Manual
Shutter Speed 1/1 – 1/10000s
Backlight Compensation Yes
Digital Noise Reduction 3D Noise Reduction
SNR ≥45 dB
Field of View
Horizontal Angle of View 60° (W) – 3.5° (T)
Vertical Angle of View 35° (W) – 2.0° (T)
Diagonal Angle of View 66.6° (W) – 4.0° (T)
Video Format
2160p @ 60 / 59.94 / 50 / 30 / 29.97 / 25 fps
1080p @ 60 / 59.94 / 50 / 30 / 29.97 / 25 fps
1080i @ 59.94 / 50 fps
720p @ 60 / 59.94 fps
Video Compression Formats H.264, H.265
AI Tracking Presenter Tracking, Zone Tracking
Mechanical
Pan/Tilt Rotation ±170°, -30° ~ +90°
Pan Control Speed 1.7–80°/sec
Tilt Control Speed 1.7–60°/sec
Preset Number 255 presets
Integrated Tally Light HALO tally + rear number tally system
Display e-Ink 2.13” customizable logo
I/O Interface
Video Output Interfaces 3G-SDI, HDMI, USB-C (UVC), Network
Network Interfaces 1 Gbps adaptive Ethernet port; PoE IEEE 802.3at; Wi-Fi 6 (2×2 MIMO)
Optional Base Station 1 Gbps adaptive Ethernet port; PoE IEEE 802.3at
Encoder Network Protocols NDI® HX2, NDI® HX3, RTSP, RTMP, SRT
Control Interfaces 1 Gbps Ethernet, USB-C, RS-232
Control Protocols VISCA (Baud Rate: 38400 / 9600 / 4800 / 2400), VISCA-IP, NDI®, ONVIF
Analogue Audio 3.5 mm TRS Line Input / Mic Input
Power & Environmental
Input Voltage DC 12V, PoE IEEE 802.3at
Input Current 5.0 A (Max)
Battery Capacity 9450 mAh (Optional)
Battery Operating Time Up to 6 hours (usage dependent)
Environmental Operation Internal
Working Temperature 0°C – +40°C
Working Humidity 20% – 80%
Dimensions & Weight
Dimensions (W × H × D) mm 140.2 × 188.9 × 203.2 mm (unit) / 295 × 245 × 254 mm (packaged)
Dimensions (W × H × D) in 5.5 × 7.43 × 8.0 in (unit) / 11.6 × 9.6 × 10.0 in (packaged)
Net Weight 2.19 kg
4K60 PTZ Camera featuring NDI ® | HX3, 3G-SDI, HDMI, e-ink label and HALO Tally
4K Brilliance: X4E features superior image quality with the latest Sony image sensor. Boasting enhanced low-light performance and High Frame rates up to 4k60p performance
Halo Tally: X4E sports the most visible and effective Tally system available. Surrounding the lens with a large, daylight-visible border, it keeps your talent looking directly at the camera. On the back we have our unique rubber-insert numbering sytem for easy camera identification
AI Tracking: X4E gives you remarkable control of AI tracking and auto-framing – enabling you up to produce your finest work
NDI® | HX3: X4E has the highest possible NDI® HX3 performance, even in 4K60. Superior image quality and low latency are guaranteed
Always-on e-ink label: Featuring a QR code for easy navigation to camera WebUI Controls, all the important information, always displayed… even when the camera is turned off!
Dual Network Output: X4E combines NDI HX and SRT/RTMP/RTSP protocols for seamless, on-premises and remote/CDN connectivity, offering ultimate flexibility in both streaming set-ups and video distribution
Serial Control: Take control effortlessly with older control protocols, seamlessly integrating with your existing infrastructure
USB Webcam: X4E features USB-C for connecting directly to Zoom, Teams, and most apps that support a USB UVC input
Control support. The X4E ships with its own IR remote, plus hardware control support for BirdDog KBD, Skaarhoj, and more
BirdDog Apps. X4E is compatible with BirdDog Central and BirdDog Connect
