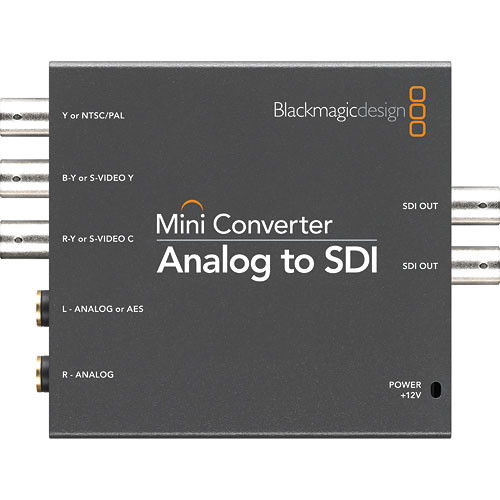

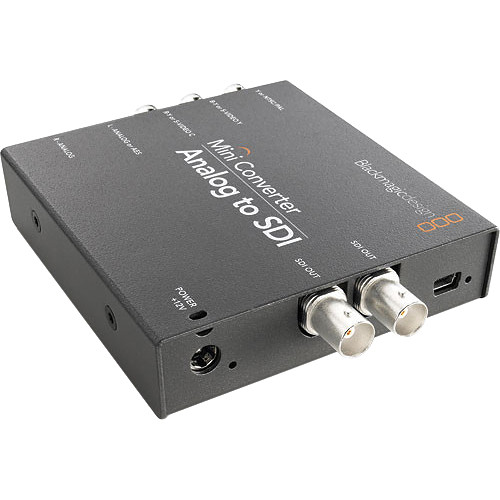

Blackmagic Analogue to SDI Mini Converter

Overview
The Mini Converter Analogue to SDI is a versatile device that allows for the conversion of analogue video to SDI video, with the option to embed SDI audio from balanced AES/EBU or analogue audio inputs. This makes it perfect for converting various analogue devices such as Betacam SP, VHS, Set top boxs, and HDV cameras to SDI video. It also features auto switching between SD and HD formats, supporting a wide range of video standards including NTSC, PAL, and various HD formats. The Mini Converter also has a redundant SDI input for critical tasks, as well as a loop-thru SDI output for connecting to other devices. It utilizes the latest 3 Gb/s SDI technology and has built-in jacks for balanced analogue or AES/EBU audio, making it a high-quality and versatile option for both analogue and digital audio needs.

Additionally, the Mini Converter is built to the highest quality standards with low SDI jitter and multiple internal power supplies for ultra-low noise broadcast quality. It comes with a universal power supply and international socket adapters, making it suitable for use in any location. Changing settings is as simple as using a pen, and with the SDI to HDMI Mini Converter, it is possible to use a HDMI television for budget-friendly client monitoring. The SDI video can also be connected over long distances, up to 100m, using simple BNC coax cables. Overall, the Mini Converter is a reliable and industry-standard option for converting and monitoring SDI video.

Included in box
1x Mini Converter Analog to SDI
1x 12V AC adapter with international socket adapters for all countries.

About the Blackmagic Analogue to SDI Mini Converter
Mini Converter Analogue to SDI is perfect for converting from analogue video in HD/SD component, NTSC, PAL or S-Video to SDI video with the choice to embed SDI audio from balanced AES/EBU or analogue audio inputs. Now you can convert analogue devices such as Betacam SP, VHS, Set top box’s and HDV cameras to SDI video.

Auto Switching SD and HD
Mini Converters instantly switch between standard definition and high definition video formats and change over is automatic when the video input changes. A huge range of video standards are supported including, NTSC, PAL, 1080i/59.94, 1080i/50, 1080psf/23.98, 1080psf/24, 720p/59.94 and 720p/50 formats, plus new formats can be added via USB.

Redundant SDI Input
Mini Converters feature a unique redundant input for mission critical tasks such as broadcast or live events. You can connect a redundant cable to the second input, so if the main input is lost due to cable damage or any other cause, Mini Converter will automatically switch over to the redundant input cable. This lets you use Mini Converters in locations where crowds or the environment might cause cable damage, or lets you place Mini Converters in hard to reach locations such as roof mounted video projectors etc. A loop though SDI output is also provided for connecting to other devices. A loop-thru SDI connection is also great if you need more than 2 audio channels, as you can connect the loop-thru to another Mini Converter to de-embedd extra audio channels!

New 3 Gb/s SDI Technology
Only Mini Converters include the latest 3 Gb/s SDI technology and upgrades can be loaded via the built in USB connection for future video format compatibility. 3 Gb/s SDI is also fully compatible with all your standard definition and high definition SDI equipment.

Built in AES/EBU or Analogue Audio
Standard 1/4 inch jacks are built in for balanced analogue or AES/EBU audio. Because Mini Converters use standard 1/4 inch jack connectors for all audio connections, you can use standard cables commonly avalible from any pro audio store. Unlike other converters, Mini Converters don’t need custom cables, as any balanced 1/4 inch jack cable can be used. Mini Converters are also unique as the same 1/4 inch jack connections can be switched between professional balanced analogue audio, or AES/EBU digital audio. This means you only need one model of Mini Converter for both analogue and digital audio. You can select the type of audio from one of the mini switches on the side of the Mini Converter unit. On modes with AES/EBU digital audio in, a sample rate converter lets you connect to any AES/EBU source, either synchronized, or un-syncronised. On HDMI models, you also have full access to the HDMI audio embedded in the HDMI video connection.

High Quality
Mini Converters are built to highest quality standards with low SDI jitter so you get the longest SDI cable lengths combined with multiple internal power supplies for ultra low noise broadcast quality analogue video and audio. Unlike other converters, Mini Converters don’t use “low grade” video electronics just to save cost. Mini Converters feature the highest grade broadcast quality analogue audio and video electronics. In fact, Mini Converters uses the same analogue video design as our most expensive and award winning Multibridge Eclipse! That means you get the highest quality, all in a very affordable and incredibly compact unit.

International Power Supply
Unlike other converters, a universal power supply is included with international socket adapters for all countries. This lets you take Mini Converters with you to any location worldwide, and plug directly into the local power sockets. To stop power accidentally being disconnected, a cable tie point is included to lock down the power connection tight.

Changing Settings
With Blackmagic Design’s Mini Converters, it’s as simple as using a pen to change settings. Settings vary between models, and include settings such as AES/EBU or analog audio, analog video connections, and more.

Cinema Style Monitoring
With the Blackmagic Design SDI to HDMI Mini Converter you can utilize a HDMI Television for budget sensitive client monitoring. Simply connect your SDI signal into the SDI to HDMI Mini Converter and then plug your HDMI cable to either a big screen HDMI television or video projector. Can you just imagine how incredible it would be having a massive 60 inch flat screen TV for your client monitoring.

Go the Distance
SDI video connects long distances up to 100m, so you can connect everyone together in your facility. Cables are simple BNC coax cables so you can easily make cables to the perfect length for your needs.

Industry Standard Format
Connect to any SDI deck for all industry tape formats, from DV, Digital Betacamâ„¢, D1, up to HDCAM SRâ„¢ and HD D-5. Using capture cards such as Blackmagic Design’s DeckLink, you can capture to formats such as JPEG, DV to uncompressed 8 bit, 10 bit or RGB 10 bit.
Blackmagic Design Mini Converters

Uncompressed Video Quality
SDI uses a higher data rate than DV, so its got the speed to handle full resolution video in standard definition or high definition completely uncompressed. That means you can preserve video quality until you need to compress the video – such as the final compression pass for streaming or broadcast.

Connections
SDI Video Outputs 2 x SDI Video Outputs.
Analog Video Inputs NTSC, PAL, S‑Video and Component SD/HD input.
Analog Audio Inputs 2 channels of balanced analog audio.
Digital Audio Inputs 2 channels of balanced AES/EBU audio.
Multi Rate Support Auto detection of SD or HD.
Updates and Configuration Via USB 2.0 high speed. (480 Mb/s)
Reclocking Yes
Standards
SD Video Standards 525i59.94 NTSC, 625i50 PAL
HD Video Standards 720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, ITU‑R BT.656 and ITU‑R BT.601.
SDI Video Sampling 4:2:2
SDI Audio Sampling Television standard sample rate of 48 kHz and 24 bit.
SDI Colour Precision 4:2:2
SDI Colour Space YUV
SDI Auto Switching Automatically follows format of analog input.
Analog Color Space YUV
Analog Colour Precision 4:2:2
Software
Software Control Mac and Windows software upgrade via USB.
Internal Software Upgrade Via included updater application.
Power Requirements
Power Supply +12V universal power supply included with international socket adapters for most countries. Cable tie point.
Power Consumption 6.50 Watts
Operational Voltage Range 12 ‑ 31V DC
Settings Control Mini Switches or USB software.
Operating Systems Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.
Windows 10, 64-bit.
Physical Specifications
L x W x H (in) 4.84 x 0.90 x 3.63
Weight 0.237kg
Environmental Specifications
Operating temperature 0° to 40° C (32° to 104° F)
Storage temperature -20° to 45° C (-4° to 113° F)
Relative Humidity 0% to 90% non‑condensing
Warranty 3 Year Limited Manufacturer’s Warranty.
