Overview
The SDI Audio de-embedder is a versatile device that allows you to extract 4 channels of analogue audio or 8 channels of AES/EBU digital audio from any SDI video connection. It is equipped with 3 Gb/s SDI technology and has built-in AES/EBU or analogue audio capabilities. Additionally, it features a redundant SDI input for mission critical tasks and can automatically switch between standard and high definition video formats.
The Mini Converters are built with high-quality standards, ensuring low SDI jitter and long cable lengths. They also have multiple internal power supplies for ultra-low noise broadcast quality analogue video and audio. Furthermore, they come with a universal power supply and international socket adapters, making them suitable for use in any country. With its convenient features and reliable performance, the SDI Audio de-embedder is a must-have for any professional audio setup.
Included in box
1x Mini Converter SDI to Audio
1x 12V universal power supply with international socket adapters
About the Blackmagic SDI to Audio converter
Includes everything you need to de-embed 4 channels of analogue audio or 8 channels of AES/EBU digital audio from any SDI video connection. Now you can easily access the audio in any SDI video connection for output to audio equipment such as audio mixers, analogue broadcast decks, audio monitors and more!
Built in AES/EBU or Analogue Audio

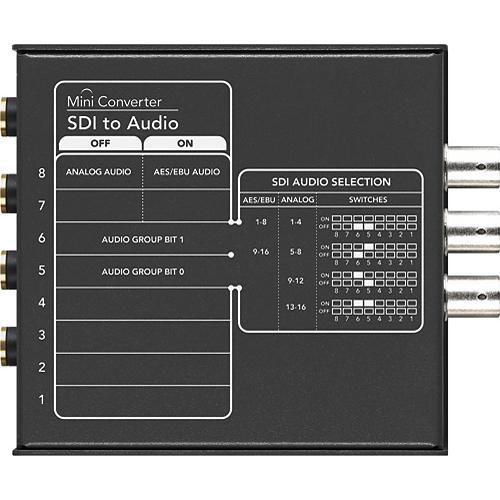

Standard 1/4 inch jacks are built in for balanced analogue or AES/EBU audio. Because Mini Converters use standard 1/4 inch jack connectors for all audio connections, you can use standard cables commonly avalible from any pro audio store. Unlike other converters, Mini Converters don’t need custom cables, as any balanced 1/4 inch jack cable can be used. Mini Converters are also unique as the same 1/4 inch jack connections can be switched between professional balanced analogue audio, or AES/EBU digital audio. This means you only need one model of Mini Converter for both analogue and digital audio. You can select the type of audio from one of the mini switches on the side of the Mini Converter unit. On modes with AES/EBU digital audio in, a sample rate converter lets you connect to any AES/EBU source, either synchronised, or un-syncronised. On HDMI models, you also have full access to the HDMI audio embedded in the HDMI video connection.
Redundant SDI Input
Mini Converters feature a unique redundant input for mission critical tasks such as broadcast or live events. You can connect a redundant cable to the second input, so if the main input is lost due to cable damage or any other cause, Mini Converter will automatically switch over to the redundant input cable. This lets you use Mini Converters in locations where crowds or the environment might cause cable damage, or lets you place Mini Converters in hard to reach locations such as roof mounted video projectors etc. A loop though SDI output is also provided for connecting to other devices. A loop-thru SDI connection is also great if you need more than 2 audio channels, as you can connect the loop-thru to another Mini Converter to de-embedd extra audio channels!
Auto Switching SD and HD
Mini Converters instantly switch between standard definition and high definition video formats and change over is automatic when the video input changes. A huge range of video standards are supported including, NTSC, PAL, 1080i/59.94, 1080i/50, 1080psf/23.98, 1080psf/24, 720p/59.94 and 720p/50 formats, plus new formats can be added via USB.
New 3 Gb/s SDI Technology
Only Mini Converters include the latest 3 Gb/s SDI technology and upgrades can be loaded via the built in USB connection for future video format compatibility. 3 Gb/s SDI is also fully compatible with all your standard definition and high definition SDI equipment.
High Quality
Mini Converters are built to highest quality standards with low SDI jitter so you get the longest SDI cable lengths combined with multiple internal power supplies for ultra low noise broadcast quality analogue video and audio. Unlike other converters, Mini Converters don’t use “low grade” video electronics just to save cost. Mini Converters feature the highest grade broadcast quality analogue audio and video electronics.
International Power Supply
Unlike other converters, a universal power supply is included with international socket adapters for all countries. This lets you take Mini Converters with you to any location worldwide, and plug directly into the local power sockets. To stop power accidentally being disconnected, a cable tie point is included to lock down the power connection tight.
Connections
SDI Video Input Switchable between SD, HD and 3Gb/s SDI
SDI Redundant Input Automatically switches over if main SDI input is lost
SDI Video Outputs Automatically mathces the SD, HD and 3Gb/s SDI video input
Mutli Rate Support Auto detection of HD or SD SDI inputs
Updates/Configuration Via USB 2.0
Re-Clocking Yes
Analog Audio 4 channels of professional balanced analog audio with standard 1/4 inch jack connections
AES/EBU Digital Audio 8 channels of professional balanced digital with standard 1/4 inch jack connections
HDMI None
Analog Video None
Standards
SDI Format Support 625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60
SDI Video Sampling 4:2:2
SDI Colour Precision YUV
SDI Audio Sampling Television standard sample rate of 48KHz and 24 bit
Extras
Software Control MAC OS X and Windows software upgrades via USB
Settings Control Mini Switches or USB software
Power Supply 12v UPS included
Product Warranty 3 Year Limited Manufacturer’s Warranty
