Overview

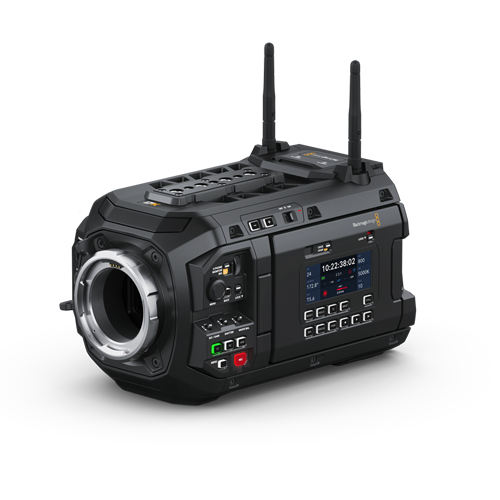

Blackmagic URSA Cine 17K 65 is a revolution in digital film with an extremely large format 17520 x 8040 65mm RGBW sensor with larger photo-sites for 16 stops of dynamic range. The URSA Cine 17K 65 Body model is ideal when you have existing camera accessories that you want to use to create your own camera rig. It excludes top handle, baseplate, power supply, battery plate and LPL lens mount. It does come with an interchangeable PL lens mount, a dedicated assist station with a second 5″ HDR LCD touchscreen and industry standard Lemo and Fischer connections.
Blackmagic URSA Cine 17K 65 Body also includes an 8TB media module, high speed 10G Ethernet and WiFi for fast media upload and syncing to Blackmagic Cloud.
Included in box
1x Blackmagic URSA Cine 17K 65 camera with PL lens mount
1x Blackmagic Media Module 8TB
1x Blackmagic URSA Cine Rubber Caps for connectors
1x Blackmagic URSA Cine WiFi Antennas
1x Blackmagic PL Body Cap
1x DaVinci Resolve Studio with activation key
1x Welcome wallet with QR code for software download
About the Blackmagic URSA CINE 17K 65 Body Only
Blackmagic URSA Cine 17K 65 is a revolution in digital film with an extremely large format 17520 x 8040 65mm RGBW sensor with larger photo-sites for 16 stops of dynamic range. The URSA Cine 17K 65 Body model is ideal when you have existing camera accessories that you want to use to create your own camera rig. It excludes top handle, baseplate, power supply, battery plate and LPL lens mount. It does come with an interchangeable PL lens mount, a dedicated assist station with a second 5″ HDR LCD touchscreen and industry standard Lemo and Fischer connections. Blackmagic URSA Cine 17K 65 Body also includes an 8TB media module, high speed 10G Ethernet and WiFi for fast media upload and syncing to Blackmagic Cloud.
Camera Features
Effective Sensor Size 50.81 mm x 23.32 mm (65mm Format)
Pixel Pitch 2.9 microns
Lens Mount PL mount. Interchangeable with optional URSA Cine Mounts, LPL, EF and HC
Lens Control Lens data from compatible PL or LPL lenses and control of some PL lenses. Lens control of compatible EF lenses
Dynamic Range 16 Stops
Shooting Formats
17,520 x 8040 17K 2.2:1 open gate
16,128 x 8040 17K 2:1
15,360 x 8040 17K 17:9
14,304 x 8040 17K 16:9
17,520 x 7296 17K 2.4:1
12,288 x 8040 12K 3:2
12,288 x 6912 12K 16:9
12,288 x 6480 12K 17:9
12,288 x 5112 12K 2.4:1
9648 x 8040 12K 6:5
11,680 x 5360 8K 2.2:1 open gate
10,752 x 5360 8K 2:1 full height
8192 x 5360 8K 3:2
8192 x 4608 8K 16:9
8192 x 4320 8K 17:9
8192 x 3408 8K 2.4:1
5840 x 2680 4K 2.2:1 open gate
5376 x 2680 4K 2:1 full height
4096 x 2680 4K 3:2
4096 x 2304 4K 16:9
4096 x 2160 4K 17:9
4096 x 1704 4K 2.4:1
Frame Rates
Project Frame Rates 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
High Speed Frame Rates
17K 2.2:1 up to 60 fps
12K 2.4:1 up to 90 fps
8K 2.2:1 up to 100 fps
8K 2.4:1 up to 170 fps
Built-in ND Filters None
Focus Peaking and auto focus with compatible lenses
Iris Control Manual iris and auto iris
Screens
Monitoring Screens 2
Camera Status Screen 1
Screen Size 5 inch
Screen Resolution 1920 x 1080
Screen Brightness 1500 nits
Screen Type LCD capacitive touchscreen
Metadata Support Automatic with i/Technology and electronic EF/HC lenses
Controls Touchscreen menus, push buttons, 7 shortcut keys, 6 viewfinder shortcut keys
Timecode Clock <1 frame drift every 8 hours
Connections
Total Video Outputs 2
SDI Rates 1.5G, 3G, 6G, 12G
Analog Audio Inputs 2 x XLR (mic/line/AES), phantom power
Analog Audio Output 1 x 3.5mm headphone
Reference Inputs Tri-Sync/Black Burst and Timecode
Viewfinder 1 x USB-C
Monitor Outputs 2 x USB-C
Accessories 1 x 7-pin Lemo EXT, 1 x 3-pin Fischer RS
Computer Interface 2 x USB-C
Ethernet 1 x 10Gb/s RJ45
Audio
Microphone Integrated stereo
Speaker 1 x mono
Standards
HD Video Standards 1080p and 1080i
Ultra HD Standards 2160p
SDI Compliance SMPTE 292M, 424 Level B, 2081-1, 2082-1
SDI Audio Sampling 48 kHz, 24-bit
Media
Media 1 x Blackmagic Media Module
Format Blackmagic
Supported Codecs
Blackmagic RAW 3:1, 5:1, 8:1, 12:1, 18:1, Q0, Q1, Q3, Q5
Proxy H.264 1920 x 1080 8-bit 4:2:0
Control
External Control EVF buttons, REST API, WiFi, Serial, 3-pin/7-pin Lemo, iPad, Bluetooth
Streaming SRT, RTMP, Ethernet, WiFi, USB-C
Network Management NTP, FTP, Web Media Manager, SMB
Storage
Storage Type 1 x 8TB Blackmagic Media Module
Storage Rates (at 24fps)
17K 3:1 1,700 MB/s
17K 8:1 637 MB/s
17K 12:1 425 MB/s
17K 18:1 283 MB/s
17K Q0 425 to 2,040 MB/s
17K Q1 255 to 1,020 MB/s
17K Q3 170 to 425 MB/s
17K Q5 127 to 319 MB/s
12K 3:1 1,194 MB/s
12K 8:1 448 MB/s
12K 12:1 298 MB/s
12K 18:1 199 MB/s
12K Q0 298 to 1,432 MB/s
12K Q1 179 to 716 MB/s
12K Q3 119 to 298 MB/s
12K Q5 90 to 224 MB/s
8K 3:1 533 MB/s
8K 5:1 320 MB/s
8K 8:1 200 MB/s
8K 12:1 133 MB/s
8K Q0 133 to 319 MB/s
8K Q1 80 to 200 MB/s
8K Q3 53 to 133 MB/s
8K Q5 40 to 100 MB/s
4K 3:1 135 MB/s
4K 4:1 101 MB/s
4K 5:1 81 MB/s
4K 6:1 68 MB/s
4K Q0 34 to 81 MB/s
4K Q1 20 to 50 MB/s
4K Q3 13 to 34 MB/s
4K Q5 10 to 25 MB/s
Recording Formats Blackmagic RAW (all ratios and qualities) + simultaneous H.264 proxies
Software Included
OS URSA Cine Blackmagic OS
DaVinci Resolve Studio with activation key
Utilities Camera Setup, RAW Player, QuickLook Plugin, RAW SDK
Power Requirements
Power Supply +24V DC, 100–240V AC
Power Input 1 x 8-pin Lemo
Battery Mount B-Mount
Power Output 7-pin Lemo, 3-pin Fischer, 2-pin regulated +12V
Optional Accessories
Viewfinder URSA Cine EVF
Monitor PYXIS
Mounts PL, EF (limited), HC
Baseplates 15, 19
Grips URSA Cine Grips
Battery Plates B, V-Lock, Gold
Sunshade 5" LCD
Dock Media Dock
Storage 8TB Media Module
Streaming ATEM Streaming Bridge
Environmental
Operating Temp 0°C to 40°C
Storage Temp -20°C to 45°C
Manufacturer Warranty 1 Year Limited Warranty
