Overview
Dynamic Shooting – Seamlessly swap between DJI gimbals and Manfrotto tripods with our Universal Dovetail. Clean Rigging – The dedicated Front NATO Top Plate for the ETERNA gives you a range of accessory mounting options. Light Weight Support – Mount industry-standard accessories such as follow-focus wheels and matte boxes via the included support rods: set to the 15mm LWS standard height. Hand Grip Support – The ETERNA Rod Bracket also features dual ARRI rosettes for mounting side handles and hand grips. Practical and Lightweight – The ETERNA Base Kit is low-profile yet durable, for consistent performance in any shooting scenario.
Be ready for anything with the Bright Tangerine Fujifilm GFX ETERNA Base Kit: designed to give you freedom and function in equal measure. Based on the Universal Dovetail ecosystem, you can effortlessly transition your rig from DJI gimbals or Manfrotto tripods without changing any part of your rig. Lightweight and low-profile, the ETERNA Base Kit is the best cage for any Fuji filmmaker.

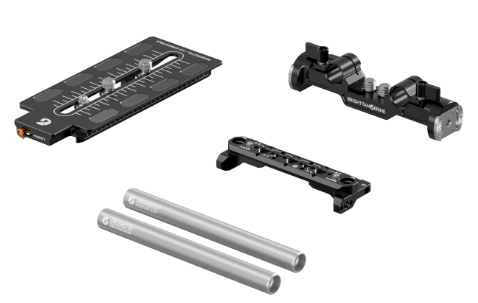

Included in box
1x B4009.1003 – Fujifilm GFX ETERNA NATO Top Plate (Front)
1x B4013.1014 – Universal Dovetail for Manfrotto & DJI RS 4
1x B4009.1001 – Fujifilm GFX ETERNA 15mm LWS Rod & Rosette Bracket
2x B1252.1032 – Drumstix Structural Alloy Threaded 15mm Rod – 6″” (15.2cm)
About the Bright Tangerine GFX Eterna Base Kit
Be ready for anything with the Bright Tangerine Fujifilm GFX ETERNA Base Kit: designed to give you freedom and function in equal measure. Based on the Universal Dovetail ecosystem, you can effortlessly transition your rig from DJI gimbals or Manfrotto tripods without changing any part of your rig. And for handheld shooting, the Base Kit features dual ARRI rosettes for your choice of hand grips.
Lightweight and low-profile, the ETERNA Base Kit is the best cage for any Fuji filmmaker.
Dovetail Design
The ETERNA Base Kit is built around the Universal Dovetail: a dual-purpose dovetail that is compatible with both DJI and Manfrotto mounts – even with the gear rack mechanism on some DJI gimbals. The dovetail is easy to mount to your camera and even easier to balance on a compatible mount.
15mm LWS Support
Attached to the front of the dovetail is a 15mm Rod Bracket and Rosette Mount – which has been specifically designed for the GFX ETERNA. The Rod Brackets are set to the 15mm LWS standard height below the ETERNA’s optical centre, allowing you to mount matte boxes and other accessories at the industry standard height from the provided support rods.
Get a Grip
Additionally, you can mount compatible hand grips, like those in the KASBAH range, to your ETERNA setup via the dual ARRI rosettes. For convenient turning or adjusting of the camera on sticks, or for pairing with our Create Shoulder Rig, these precision-cut rosettes give you a convenient and comfortable rigging point.
Top Performance
Meanwhile, on top of your ETERNA, we’ve given you extra rigging freedom with a NATO Top Plate. Mounting cleanly to the top of your camera, the Top Plate provides a range of rigging options: from standard 1/4″ and 3/8” anti-twist points, as well as QD sockets and an integrated NATO rail. For mounting compatible NATO Top Handles, the Top Plate has a safety catch that will click into place, helping you balance your camera body.
The Perfect Foundation
From here, you are ready to start rigging your camera however you need. If you want to add extra mounting points to your camera real estate, we offer additional Top Plate options for seamless connection, as well as Side Plates for attaching extra components.
Instructions/Assembly
The Fujifilm GFX ETERNA Base Kit comes with all components and screws. You will require your own 4mm Hex Key, as well as a flathead screwdriver, in order to install it.
Top Plate to Camera
1. Align the Top Plate’s captive screws with the two 3/8” screw threads on the ETERNA.
2. Use a 4mm Hex Key to secure the Top Plate to the camera.
Universal Dovetail to Camera
1. Align the captive 1/4″ and 3/8” screws with threads on the base of the ETERNA. The screws can slide along the length of the dovetail to help balance larger lenses.
2. Use a flathead screwdriver to attach the Dovetail to the camera.
Rod and Rosette Bracket to Dovetail
1. Align the two 3/8” screws on the top of the Bracket with the threads on the base of the Universal Dovetail.
2. Use a 4mm Hex Key to tighten both screws into place.
Compatibility
The Fujifilm GFX ETERNA Base Kit has been designed to work with the Fujifilm GFX ETERNA. The Top Plate mounts directly to the camera body, and the Rod and Rosette Bracket has been designed to set support rods to the 15mm LWS height below the camera. The Universal Dovetail, however, is designed to be used with any camera and can be repurposed for different camera configurations.
Part of the Fujifilm System
Bright Tangerine’s range of accessories for the Fujifilm GFX ETERNA are precision-engineered to maximise freedom and minimise downtime. Wear and corrosion-resistant; each accessory is made by a combination of expert designers, engineers and – of course – filmmakers.
Zero Compromises
Based in the UK, Bright Tangerine’s products are designed and manufactured to the highest standards of quality. Built as practical solutions to filmmaking problems, each accessory is tested rigorously to meet the standards of some of the largest productions in the world.
Manufacturer Warranty
24 months
Dimensions 230x140x100mm
Weight 498g
Dynamic Shooting – Seamlessly swap between DJI gimbals and Manfrotto tripods with our Universal Dovetail.
Clean Rigging – The dedicated Front NATO Top Plate for the ETERNA gives you a range of accessory mounting options.
Light Weight Support – Mount industry-standard accessories such as follow-focus wheels and matte boxes via the included support rods: set to the 15mm LWS standard height.
Hand Grip Support – The ETERNA Rod Bracket also features dual ARRI rosettes for mounting side handles and hand grips.
Practical and Lightweight – The ETERNA Base Kit is low-profile yet durable, for consistent performance in any shooting scenario.
