Overview
Canon has announced the development of their newest flagship camera, the EOS R1. This full frame camera is the first of its kind for the EOS R SYSTEM and is designed with high performance in mind. It will feature a newly developed image processor, DIGIC Accelerator, along with DIGIC X and a new sensor, allowing for high speed data processing and improved image quality.
The EOS R1 is being developed to meet the demanding needs of professionals. It will have the ability to persistently track subjects in fast-paced sport scenarios, even when they are temporarily hidden from view. This is made possible by the newly developed Action Priority function, which can detect and focus on the main subject performing a specific action. With the combination of advanced technology and deep learning, the EOS R1 is sure to be a game changer in the world of professional photography.
Summary
Lens Mount: Canon RF
Audio Inputs: 1 x 3.5mm Mic Input
Image Stabilisation: Yes
Battery Mount / Type: Canon LP
Media Type: CFexpress Type B
Photo Resolution: 24.2 megapixels
Sensor: CMOS
Video Outputs:
HDMI
RJ-45
Weight: 0-2kg
Wi-Fi: Yes
Included in box
1x EOS R1 Body
1x Eyecup ER-i
1x Shoe Cover ER-SC3
1x Camera Cover R-F-5
1x Strap ER-L1
1x Battery Charger LC-E19
1x Battery Pack LP-E19
1x Battery Pack Cover
1x Power Cable
1x Interface Cable IFC-100U
1x EOS R1 Cable Protector
1x User Manual
About the Canon EOS R1
For sports, news and action photographers, looking to shoot career-defining work, Canon developed the EOS R1 – their flagship camera with speed and advanced technologies at its core.
Shoot career-defining images and video, even when the pressure is on, capturing transient moments at up to 40fps with exceptional image quality and AF. Game-changing speed and precision is backed up by a simple, reliable workflow that lets you get your work to the client fast. Seamless hybrid functionality lets you shoot superb 6K 60p video and even capture stills and video simultaneously.
The EOS R1 lets you capture fleeting moments and freeze action at 1/64,000sec, while Action Priority focus mode recognises and anticipates moments in key sports. A back-illuminated, stacked sensor offers incredible sensitivity and virtually no rolling-shutter distortion.
24.2 megapixel, back-illuminated, stacked sensor
The EOS R1 features a 24.2-megapixel full-frame sensor that uses a back-illuminated, stacked design to deliver superb sensitivity, brilliant resolution and incredible speed.
A low-pass filter has 16-point separation that effectively reduces false colour and moiré while preserving fine detail.
The EOS R1’s Dual Pixel Intelligent AF uses Cross-Type AF that is sensitive to both horizontal and vertical detail. These increases focusing accuracy and speed in low light and low-contrast conditions.
The speed you need
Capture fleeting moments with a customisable continuous shooting speed of up to 40fps, a 1/64,000 sec. top shutter speed and virtually zero rolling-shutter distortion. Pre-capture lets photographers capture moments before the shutter release is pressed.
Focusing on performance
Deep-learning and Cross-type AF identifies and tracks subjects with phenomenal accuracy. The DIGIC Accelerator processor powers Action Priority mode, which automatically determines the main subject in football, volleyball and basketball, moving AF areas accordingly.
Hybrid creativity
Shoot superb 6K video using frame rates up to 60p and using a wide variety of formats. Dual Shooting lets you cover the same event with Full HD video and 17-megapixel (16:9) photos – capturing stills and video separately and simultaneously.
Get home in first place
Win the race – getting photos and video back to your client right when they need them. Lightning-fast connectivity is easy to use when the pressure’s on. Wi-Fi 6E1 with MIMO antennas, and 2.5G BASE-T ethernet, deliver super-stable performance
The ultimate photographic assistant
Our flagship EOS is packed with advanced technology, including an 8.5-stop Image Stabilizer, a best-in-class 9.44m-dot electronic viewfinder, and in-camera image upscaling and noise reduction. Be inspired by the superb build quality that pros around the world have come to love.
DIGIC Accelerator
The EOS R1 sees DIGIC Accelerator and DIGIC X image processors working alongside each other for phenomenal performance.
AF tracking of people, animals and objects is improved – even objects that are momentarily obscured from view are tracked continuously and kept in sharp focus.
Action priority recognises key events in football, basketball and volleyball and moves the active AF area.
Stills and video can be captured simultaneously, thanks to the DIGIC Accelerator’s ability to process large volumes of data at speed.
Action Priority focus mode
When shooting photos with the EOS R1’s advanced electronic shutter, the camera’s DIGIC Accelerator processor lets it identify significant actions in three sports: football, basketball and volleyball. The camera automatically switches the active AF areas to a person performing the kind of a critical action that has traditionally been hard to shoot, such as a shot from a high-speed pass.
Go large, with In-camera upscaling
Deep-learning means that images can be upscaled in-camera by up to four times, generating high-resolution versions for cropping or printing at huge sizes. The same deep-learning capability delivers incredible noise reduction for smooth, detailed images at high ISO sensitivities
Advanced 9.44m-dot electronic viewfinder
The EOS R1’s electronic viewfinder (EVF) is superior to an optical viewfinder in many ways. It’s 9.44m-dot high resolution provides an exceptionally clear and detailed view of a scene, with blackout-free continuous shooting at up to 40fps. It’s comfortable for extended periods too, with variable magnification and a locking adjustable dioptre. A larger eyecup is available for complete immersion in the shooting experience.
Next-generation Eye Control AF
Select an AF point, or a subject to track, simply by looking at it. The use of newly developed optics and a revised line-of-sight algorithm enhances the accuracy of the system, compared with the EOS R3, and broadens the angle over which the system is effective, for a more natural experience.
Creativity through technology
Since 1989, Canon EOS-1 series cameras have led the way for professional sports, news and action photographers. As the result of 35 years of evolution the EOS R1 looks to the future as our flagship EOS camera.
Autofocus powered by deep learning
The EOS R1 harnesses the power of deep-learning to identify subjects, while its DIGIC Accelerator processor tracks and captures them more accurately than ever. Action Priority mode can even identify the subject based on the action, helping you predict what is coming next.
Dual Pixel Intelligent AF with Cross-type AF points
EOS R1 has Cross-type AF that is sensitive to horizontal and vertical detail. This gives more sensitivity and precision, especially in low light and low-contrast conditions.
Jaw-dropping image quality
A new 24-megapixel sensor delivers incredible results. A lightning-fast, stacked CMOS design is sensitive in low light. A low-pass filter with 16 point separation reduces moiré and false colour while still capturing very detailed resolution.
Stills and video. Separately and simultaneously
Designed for professional hybrid shooters covering events. With the EOS R1’s Dual Shooting function switched on, a press of the shutter-release button while shooting Full HD video captures 5616×3168 pixel (17MP) JPG photos at up to 10fps using the same shutter speed – all without interrupting video capture.
Extraordinary Performance – Now as standard
Freeze fleeting moments in time like never before: 40 frames per second continuous shooting pairs with a lightning-fast 1/64,000 sec electronic shutter and minimal rolling shutter distortion for incredible results.
Go back in time with continuous shooting
Half press the shutter release button to begin continuously buffering 20 frames. At the moment you take the shot, these ‘pre-captured’ frames are stored too. At EOS R1’s maximum 40fps shooting speed, this means you’ll record the half-second before you pressed the shutter release. At slower shooting speeds, the pre-capture time gets longer, giving you even more flexibility.
Image Sensor
Type 36 x 24 mm Full Frame back-illuminated stacked CMOS sensor
Effective Pixels Approx. 24.2 megapixels
Total Pixels Approx. 26.7 megapixels
Aspect Ratio 0.13
Low-Pass Filter Built-in/Fixed
Sensor Cleaning EOS integrated cleaning system
Colour Filter Type RGB Primary Colour
Sensor Shift-IS Yes, up to 8.5-Stops advantage at the center and 7.5-stops peripheral depending on the lens used1
IMAGE PROCESSOR
Type DIGIC Accelerator and DIGIC X
LENS
Lens Mount RF/RF-S (EF and EF-S lenses can be attached using EF TO EOS R ADAPTER,
EF TO EOS R ADAPTER WITH CONTROL RING, EF TO EOS R Drop in filter ADAPTER, EF-M lenses not compatible)
Focal Length Equivalent to 1.0x the focal length of the lens with RF and EF lenses, 1.6x with EF-S and RF-S lenses.
FOCUSING
Type Dual Pixel Intelligent AF
AF System/Points Cross-type AF2 with area 100% horizontal and 100% vertical possible depending on the lens attached.
AF Working Range EV -7.5 – 21 (at 23°C & ISO100)3
AF Modes One Shot
Servo AF
AF Point Selection Automatic selection: 1053 (975 Movies) Available AF areas when automatically selected
Manual selection: Spot AF
Manual selection: 1-point AF (AF frame size can be changed) 4368 AF positions available stills (3354 Movies)
Manual selection: AF point Expansion 4 points (up, down, left, right)
Manual selection: AF point Expansion surrounding
Manual selection: Flexible Zone AF 1-3 (all AF points divided into minimum 9 to 999 maximum
focusing zones, where the width and height is also adjustable)
Manual selection: Whole area AF
Manual selection: Spot AF (Whole area tracking servo AF OFF)
Manual selection: 1-point AF (Whole area tracking servo AF OFF)
Manual selection: AF point Expansion 4 points (up, down, left, right) (Whole area tracking servo AF OFF)
Manual selection: AF point Expansion surrounding (Whole area tracking servo AF OFF)
AF Tracking Humans (Eyes, Face, Head, Upper half of body, Body), Animals (Dogs, Cats, Birds and Horses) or Vehicles
(Racing cars or Motor bikes, Airplanes and Trains), Register People Priority
(up to 10 x 10 registered people), Action Priority4 Football, Basketball, Volleyball
Supported actions –
Football: Shoot, header, short pass, long pass, dribble, clear, place kick, save by keeper, throw in, sliding tackle
Basketball: Shoot, rebound, pass, dribble, free throw, jump ball
Volleyball: Spike, toss, receive, serve
AF Lock Locked when shutter button is pressed halfway or AF ON is pressed in One Shot AF mode. Using customised button set to AF stop in AI
servo 5
AF Assist Beam Emitted by built in LED or optional dedicated Speedlite (flash)
Manual Focus Selected on lens
EXPOSURE CONTROL
Metering Modes Real-time with image sensor, 6144-zone metering.
1.Evaluative metering (linked to All AF points)
2.Partial metering (Approx. 10% of screen at centre)
3.Spot metering: Centre spot metering (Approx. 5% screen at centre) AF point-linked spot metering not provided
4.Centre weighted average metering
Metering Brightness Range EV -3 – 20 (at 23°C, ISO100, with evaluative metering)
AE Lock Auto: AE lock takes effect when focus is achieved
Manual: By AE lock button in P, Av, Fv, Tv and M modes
Exposure Compensation +/-3 EV in 1/3 or 1/2 stop increments (can be combined with AEB)
AEB +/-3 EV in 1/3 or 1/2 stop increments
Anti-Flicker Shooting Yes. Flicker detected at a frequency of 100 Hz or 120 Hz.
Maximum continuous shooting speed may decrease available with both electronic and mechanical shutter
High Frequency anti flicker shooting for M and TV modes
Electronic 1st-curtain: 1/50.0 to 1/2048.0 sec.
Electronic shutter: 1/50.0 to 1/8192.0 sec.
Movie recording: 1/50.0 to 1/8192.0 sec. (NTSC/PAL)
Maximum continuous shooting speed may decrease.
ISO Sensitivity Auto 100-102400 (in 1/3-stop or whole stop increments)
ISO can be expanded to L:50, H1:204800, H2:4096006
SHUTTER
Type Electronically controlled focal-plane shutter and Electronic shutter function in sensor
Speed Mechanical / Electronic 1st-curtain: 30-1/8000 sec (1/2 or 1/3 stop increments), Bulb
Electronic: 30-1/64000 (1/2 or 1/3 stop increments up to 1/16000 then 1 stop until 1/64000), Bulb
(Total shutter speed range. Available range varies by shooting mode)
Shutter Release Soft touch electromagnetic release
WHITE BALANCE
Type Auto white balance with the imaging sensor supported by deep learning technology
AWB (Ambience priority/White priority), Daylight, Shade, Cloudy, Tungsten light, White Fluorescent light, Flash, Custom, Colour Temperature
Setting
Settings White balance compensation:
1. Blue/Amber +/-9
2. Magenta/Green +/-9
Custom White Balance Yes, 5 setting can be registered
WB Bracketing +/-3 levels in single level increments
3, 2, 5 or 7 bracketed images per shutter release
Selectable Blue/Amber bias or Magenta/Green bias
VIEWFINDER
Type 0.64-inch OLED colour EVF
Dot Count 9.44 million dots (2048×1536)
Coverage (Vertical/Horizontal) Approx. 100%
Magnification Adjustable Standard: Approx. 0.9×7 / Reduce 1: Approx. 0.8x/ Reduce 2: Approx. 0.7x
Eyepoint Approx. 25mm (from eyepiece lens centre)
Dioptre Correction -4 to +2 m-1 (dioptre)
Display performance Power saving: 59.94 fps Smooth 119.98 fps ,
suppress low frame rate 60 -119.8fps8 (7 level of brightness)
Viewfinder Information AF point information, Eye Control pointer, Exposure level indicator, Shooting mode,
ISO speed, Shutter speed, Aperture, Number of remaining multiple exposures, Exposure compensation, HDR shooting,
Highlight tone priority, Multiple-exposure shooting, Multi Shot Noise Reduction, Number of self-timer shooting,
Digital Lens Optimizer, Maximum burst, AF method, Battery level, Battery level (%) display,
Card free space (%) display, AF operation, Exposure simulation, Drive mode, AEB, Metering mode, FEB,
Anti-flicker shooting, Still photo cropping, Aspect ratio, Auto Lighting Optimizer, AE lock, Picture Style,
Flash-ready, White balance, Flash off, White balance correction, FE lock, Image Quality, High-speed sync,
Bluetooth function, Wi-Fi function, Multi-function lock warning, Histogram, Electronic level,
Lens information, focus distance scale, vertical exposure scale, Grid, Time
Depth of Field Preview Yes, via customised button
LCD MONITOR
Type 8.0 cm (3.2″) TFT colour LCD, Approx. 2.1 million dots
Coverage Approx. 100%
Viewing Angle Horizontally/Vertically Approx. 170° vertically and horizontally
Coating Anti-smudge
Brightness Adjustment Manual: Adjustable to one of seven levels
Colour Tone Adjustment: 4 settings
Touch-Screen Operations Capacitive method with menu functions, Quick Control settings,
playback operations, and magnified display. AF point selection in still and Movies,
touch shutter is possible in still photo shooting.
Display Options 1.Basic Camera settings
2. Advance Camera settings
3. Camera settings plus histogram and dual level display
4. No info
5. Quick Control Screen
6. Display off
FLASH
Modes E-TTL II Auto Flash, Metered Manual
X-Sync When [Cropping/aspect ratio: Full-frame/1:1/4:3/16:9] is set:
1/200 sec mechanical shutter / 1/320 electronic 1st curtain, 1/400 sec Electronic shutter
When [Cropping/aspect ratio: 1.6x (crop)] is set:
1/250 sec mechanical shutter / 1/400 electronic 1st curtain, 1/500 sec Electronic shutter9
Flash Exposure Compensation +/- 3EV in 1/3 increments with EX and EL series Speedlite flashes
Flash Exposure Bracketing Yes, with compatible External Flash
Flash Exposure Lock Yes
Second Curtain Synchronisation Yes, via Speedlite
Multi-Function shoe/Hot Shoe/PC Terminal Yes/Yes/Yes
External Flash Compatibility E-TTL II with EX/EL series Speedlite, wireless multi-flash support
External Flash Control via camera menu screen
SHOOTING
Modes Stills; Flexible priority AE, Program AE, Shutter priority AE, Aperture priority AE, Manual, Bulb and Custom (x3)
Movie: Program AE, Shutter priority AE, Aperture priority AE, Manual, and Custom (x3)
Picture Styles Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, User Defined (x3)
Colour Space SDR: sRGB and Adobe RGB HDR PQ: BT.2020
Highlight Tone Priority (3 settings)
Auto Lighting Optimizer (4 settings)
Long exposure noise reduction
Clarity
High ISO speed noise reduction (4 settings) (still and video)
Lens optical correction:
– Peripheral illumination correction, Chromatic aberration correction Distortion correction (during/after still photo shooting, during video only)
– Focus breathing correction(during video only)
– Diffraction correction,
– Digital Lens Optimizer (during/after still photo shooting)
Image Processing Resize to M, S1, S2
Cropping: JPEG images can be cropped (Aspect ratios 3:2, 4:3, 16:9, 1:1)
Cropping of images
– Switch between vertical and horizontal cropping orientation
– Image straightening
– Cropping frame can be moved using touch screen operation
– Neural Network Upscaling
RAW image processing
Neural Network Noise Reduction
Multiple exposure
HDR
HEIF to Jpeg conversion (inc Batch conversion)
Focus Bracketing and in camera composition
Drive Modes Single, Continuous High+, Continuous High, Continuous Low, Customisable Continuous shooting speeds,
Self-timer (2s+remote, 10s+remote, continuous)
Continuous Shooting Max. Approx. 12 fps. with Mechanical shutter/1st curtain electronic speed maintained
for 1000+ JPEG or 1000+ RAW images or 40 FPS with electronic shutter speed maintained for 500 JPEG or 230 RAW images10.
Custom Continuous shooting speed with Electronic shutter selectable options
40 / 30 / 20 / 15 / 12 / 10 / 7.5 / 5 / 3 / 2 / 1 FPS depending on the drive mode.
Pre-Continuous shooting is possible from 20 shots before the shutter button is
fully pressed when the AF is on for 20 shots or more.
Interval Timer Built in
FILE TYPE – STILLS
Still Image Type RAW 14 bit: RAW and C-RAW (Canon original RAW 3rd edition)
JPEG 8 bit: 10 compression options
HEIF 10 bit: 10 compression options
Complies with Exif 2.31 and Design rule for Camera File system 2.0
Complies with Digital Print Order Format [DPOF] Version 1.1
RAW+JPEG/HEIF Simultaneous Recording Yes, any combination of RAW + JPEG or RAW + HEIF possible
Image Size RAW/ C-RAW:
3:2 ratio 6000×4000, 1.6x (crop) 3744×2496
JPEG/ HEIF:
3:2 ratio (L) 6000×4000, (M) 3984×2656, (S1) 2976×1984, (S2) 2400×1600
1.6x (crop) (L) 3744×2496, (S2) 2400×1600
4:3 ratio (L) 5328×4000, (M) 3552×2664, (S1) 2656×1992, (S2) 2112×1600
16:9 ratio (L) 6000×3368, (M) 3984×2240, (S1) 2976×1680, (S2) 2400×1344
1:1 ratio (L) 4000×4000, (M) 2656×2656, (S1) 1984×1984, (S2) 1600×1600
In-camera Neural Network Upscaling up to 12000×8000 (96MP)11
Folders New folders can be manually created, named and selected
Movie folder structure is adopting the XF-HEVC S / XF-AVC S format
File Numbering 1.Consecutive numbering
2. Auto-reset
3. Manual reset
File Naming Still –
Preset code Unique 4-digit character string + 4-digit file number
2 User Presets
Movie –
Adopting the XF-HEVC S / XF-AVC S format
Camera index, Reel number, Clip number, Codec type, Shooting start date,
Shooting start time, Random ID, User defined 5 characters, Stream number, (Proxy)
EOS MOVIE
Movie Type MP4 Video: 4K DCI/ UHD (17:9 / 16:9), Full HD (16:9)
4K/ Full HD: HEVC S/H.265, Audio: Linear PCM / AAC
4K/ Full HD: MPEG-4 AVC S/H.264, Audio: Linear PCM / AAC
6K RAW: 12-bit CRM Audio: Linear PCM / AAC
Movie Size 6K DCI (17:9) 6000 x 3164 (59.94, 50, 29.97, 25, 24, 23.98 fps) RAW, Light RAW
4K DCI (17:9) 4096 x 2160 (59.94, 50, 29.97, 25, 24, 23.98 fps)
LGOP / High Quality intra frame / intra frame / light intra frame
4K UHD (16:9) 3840 x 2160 (119.88, 100, 59.94, 50, 29.97, 25, 23.98 fps)
LGOP / High Quality intra frame / intra frame / light intra frame12
2K DCI (17:9) 2048 x 1080 (239.76, 200, 119.88, 100, 59.94, 50, 29.97, 25, 24, 23.98 fps) LGOP / intra frame
Full HD (16:9) 1920 x 1080 (239.76, 200, 119.88, 100, 59.94, 50, 29.97, 25, 23.98 fps) LGOP / intra frame
Proxy recording:
XF-AVC S YCC420 8bit 2K-DCI or Full HD
(same angle of view and frame rate up to 100fps as main movie) Standard LGOP / Light LGOP
XF-HEVC S YCC420 10bit 2K-DCI or Full HD
(same angle of view and frame rate up to 100fps as main movie) Standard LGOP / Light LGOP
Colour Sampling (Internal recording) 6K RAW 12bit, 4K/2K/Full HD – YCbCr4:2:0 8-bit or YCbCr4:2:2 10bit
Canon Log Custom Picture –
C1: Canon 709
C2: Canon Log 2
C3: Canon Log 3
C4: PQ
C5: HLG
C6: BT.709 Standard
C7 – C20: User Defined
Picture Styles: Auto, Standard, Portrait, Landscape,
Fine Detail, Neutral, Faithful, Monochrome, User Defined (x3)
Movie Length Max duration 6 hours. (excluding High Frame Rate movies)
No 4 GB file limit with exFAT formatted card.13
High Frame Rate Movie MP4 Video –
4K – DCI 4096×2160 / UHD 3840×2160 at 119.9 / 100 fps
Full HD 1920 x1080 at 239.76 / 200fps14
Frame Grab 8.8-megapixel JPEG still image frame grab from 4K DCI movie possible
8.3-megapixel JPEG still image frame grab from 4K UHD movie possible
(HEIF only possible when HDR PQ is set)15
Dual Shooting (Still & Movie):16
Movie Output:
Main recording format: XF-AVC S YCC420 8bit
Movie recording size: Full HD (Normal) at 59.94p / 29.97p / 50p / 25p (LGOP)
Still Drive mode (JPEG only at the resolution of 17MP(5616×3168) and Aspect ratio: Approx. 16:9):
High speed (Max. approx. 10 shots/sec. (NTSC), Max. approx. 8.3 shots/sec. (PAL))
Low speed (Max. approx. 5.0 shots/sec. (NTSC), Max. approx. 4.1 shots/sec. (PAL))
Single shooting
Microphone Built-in mono microphone (48 KHz, 24 / 16-bit x 2 channels)
Audio format:
LPCM / 24 bit / 4CH
AAC / 16 bit / 2CH
Dual Card recording Yes (including Proxy recording)
HDMI Display Output to external monitor only
(output of images and shooting information, images are recorded to the card)
Camera screen and External Monitor output
(Simultaneous recording to camera and external recorder, camera screen shows images with shooting information)17
HDMI Output 4K (DCI) 59.94p / 50.00p/29.97p /25.00p/24.00p/ 23.98p
4K (UHD) 59.94p / 50.00p/ 29.97p / 25.00p / 23.98p
Full HD 59.94p / 60i / 59.94i, 50.00p / 50.00i, 24p
480p 59.94p
576p 50p
Uncompressed YCbCr 4:2:2, 10-bit, sound output via HDMI is also possible
Focusing Dual Pixel Intelligent AF with Eye/Face Detection and Tracking AF
(people, animals and vehicles) , Movie Servo AF, Manual Focus
ISO Auto: 100-32000, H: up to 204800 (when custom picture is off)
Manual: 100-32000, H: up to 204800 (when custom picture is off)
OTHER FEATURES
NETWORK OPTIONS Communication functions Via Wi-Fi: FTP, FTPS, SFTP, EOS Utility, image.canon,
Sync time between cameras, Camera Connect, Streaming services, Content Transfer Professional,
Linked shooting, Camera Control API
Via Bluetooth: Camera Connect, BR-E1
Via USB: EOS Utility, Camera Connect, Content Transfer Professional, Video calls/streaming (UVC/UAC)
Via Ethernet: FTP, FTPS, SFTP, EOS Utility, Sync time between cameras, Camera Control API
Simultaneous use of communication functions:
FTP (wireless LAN) + EOS Utility (wireless LAN)
FTP (wired LAN) + EOS Utility (wired LAN)
FTP (wireless LAN) + EOS Utility (USB)
FTP (wired LAN) + EOS Utility (USB)
Custom Functions
Metadata Tag User copyright information (can be set in camera)
Image rating (0-5 stars)
IPTC data (registered with EOS Utility)
IPTC data (via CTP app)
IPTC IIM (via CTP app)
NewsML-G2 (News Metadata) (via CTP app)
Image transfer with caption (Caption registered with EOS Utility)
Blur/Out-of-Focus image detection data18
LCD Panel/Illumination Yes/Yes
Water/Dust Resistance Yes19
Voice Memo Yes
Intelligent Orientation Sensor Yes
Playback Zoom 1.5x – 10x in 15 steps / on high resolution image (Upscaled image): 1.5x to 35x (22 levels)
Display Formats 1.Single image
2. Single image with information (2 levels)
Basic – Shooting information (shutter speed, aperture, ISO and Image quality)
Detailed – Shooting information (shutter speed, aperture, ISO, metering Image, quality and file size), Lens information,
Brightness and RGB histogram, White balance, Picture Style, Colour space and noise reduction,
Lens optical correction, GPS information, IPTC information
3. 4 image index
4. 9 image index
5. 36 image index
6. 100 image index
7. Jump Display (1, 10 or 100 images, start of burst sequence Date, Folder, Movies, Stills, Protected images, Rating)
8. Movie edit
9. RAW processing
10. Rating
Slide Show Image selection: All images, by Date, by Folder, Movies, Stills, Protected images or Rating
Playback time: 1/2/3/5/10 or 20 seconds
Repeat: On/Off
Histogram Brightness – Yes
RGB – Yes
Highlight Alert Yes
Image Erase Select and erase images / Select range / All images in folder /
All images on card / All found images (only during image search), Images transmitted via FTP
Image Erase Protection Erase protection of Select images / Select range / All images in folder /
Unprotect all images in folder / All images on card / Unprotect all images on card /
All found images / Unprotect all found images (only during image search)
Self Timer 2 or 10 sec.
Menu Categories 1. Shooting menu
2. AF Menu
3. Playback menu
4. Communication Function (Network)
5. Function settings (Setup menu)
6. Customize controls
7. Custom Functions menu
8. My Menu
Menu Languages 29 Languages
English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish,
Spanish, Greek, Russian, Polish, Czech, Hungarian, Vietnamese, Hindi, Romanian, Ukrainian,
Turkish, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean, Malay, Indonesia and Japanese
Firmware Update Update possible by the user using Camera Connect app or EOS Utility
(Camera, Lens, External Speedlite, BLE remote control, Lens adapter, Power zoom adapter,
multi-function shoe compatible accessories)

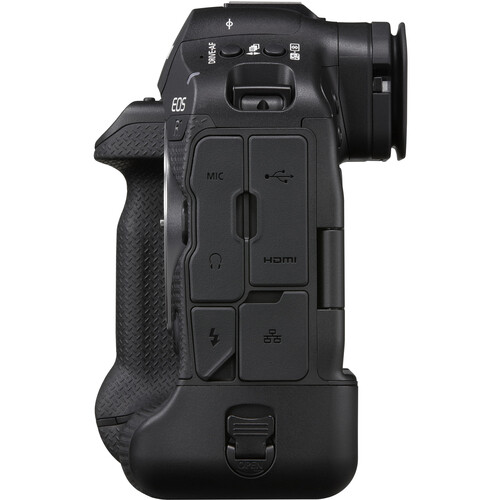

INTERFACE
Computer SuperSpeed Plus USB 3.2 Gen 2 USB Type-C® connector
Wi-Fi Wireless LAN (IEEE 802.11ax 2×2 MIMO) (6 GHz / 5 GHz / 2.4 GHz)20, with Bluetooth 5.3 support
Other HDMI out (Type A, HDMI-CEC not supported), RJ-45 Ethernet terminal for 2.5 GBASE-T wired LAN,
External Microphone In (Stereo mini jack), Headphone socket (Stereo mini jack),
N3-type terminal (remote control terminal), PC Sync terminal.
GPS:
GPS satellites (American)
GLONASS satellites (Russian)
MICHIBIKI Quasi-Zenith Satellites (Japanese)
DIRECT PRINT
PictBridge Not supported
STORAGE
Type 2x CFexpress type B maximum capacity 2TB (compatible with CFexpress 2.0 and VPG400)
SUPPORTED OPERATING SYSTEM
PC Windows 10 and Windows 11 (tablet mode not supported)
Macintosh macOS 12 / 13 /14
SOFTWARE
Image Processing Digital Photo Professional 4.19.30 or later
Digital Photo Professional Express mobile app 1.10.20 or later (iOS only)
Other EOS Utility 3.18.40 or later (incl. Remote Capture), Picture Style Editor,
EOS Lens Registration Tool, EOS Web Service Registration Tool,
Canon Camera connect app 3.2.30 or later (iOS/Android), Content Transfer Professional app (iOS/Android).
POWER SOURCE
Batteries Rechargeable Li-ion Battery LP-E19 (supplied)21
Battery Life With LCD Approx.1330 shots (at 23°C)
With Viewfinder Approx. 700 shots (at 23°C)22
Battery Indicator 6 levels + percentage
Power Saving Power turns off after 15 seconds, 30 seconds, 1, 3, 5, 10 or 30 mins
Power Supply & Battery Chargers Battery charger LC-E19E (supplied),
AC Adapter AC-E19 and DC Coupler DR-E19, PD-E2 USB power adapter,
PD-E1 USB power adapter23
ACCESSORIES
Wireless File Transmitter None
Lenses All RF and RF-S lenses (EF & EF-S via Lens adapters)
Lens Adapters EF TO EOS R ADAPTER, EF TO EOS R ADAPTER WITH CONTROL RING, EF TO EOS R Drop in filter ADAPTER
Flash Canon Speedlite (EL-124, EL-5 EL-100, 90EX, 220EX, 270EX, 270EX II, 320EX, 380EX, 420EX, 430EX,
430EX II, 430EX III 470EX-AI, 550EX, 580EX24, 580EX II24, 600EX24, 600EX-RT24, 600EX-II-RT24,
Macro-Ring-Lite MR-14EX, Macro Ring Lite MR-14EX II, Macro Twin Lite MT-24EX,
Macro Twin Lite MT-26EX Speedlite Transmitter ST-E2, Speedlite Transmitter ST-E3-RT24,
Speedlite Transmitter ST-E3-RT V224, Speedlite Transmitter ST- E10)
Remote Controller/Switch Remote Switch RS-80N3, Timer Remote Controller
TC-80N3, Remote control with N3 type socket, Speedlite 600EX-II-RT.
Speedlite EL-1 and BR-E1 Bluetooth remote
Other Eyecup ER-i, Eyecup ER-iE, Multi-Function Shoe Adapter AD- E1,
Multi-Function Shoe Directional Stereo Microphone DM-E1D (Mic),
Multi-Function Shoe Adapter for Smartphone Link AD-P1 for Android, Stereo Microphone DM-E1 / DM-E100,
Tascam CA-XLR2d-C XLR microphone adapter, Rain Cover small ERC-R5S, Rain Cover large ERC-R5L,
Protecting Cloth PC-E1, Hand Strap E2, Shoe cover ER-SC1, Shoe cover ER-SC2, Shoe cover ER-SC3
PHYSICAL SPECIFICATIONS
Body Materials Magnesium Alloy body and polycarbonate with glass fibre
Operating Environment 0 – 45 °C, 85% or less humidity
Dimensions (WxHxD) Approx. 157.6×149.5×87.3 mm25
Weight (body only) Approx. 920 g (1115g with card and battery)
24.2 megapixel back-illuminated stacked sensor: Superb resolution and speed
DIGIC Accelerator: Working with a DIGIC X processor for extraordinary performance
Up to 40 fps continuous shooting speed: To capture decisive moments
6K RAW video up to 60p: Using film-industry standards
All new Eye control AF: Select a subject by looking at it
Action-priority mode: Makes shooting selected sports easy
Cross-type AF: Greater precision and more accuracy
Advanced 9.44m-dot EVF: With adjustable magnification and dioptre
