Overview

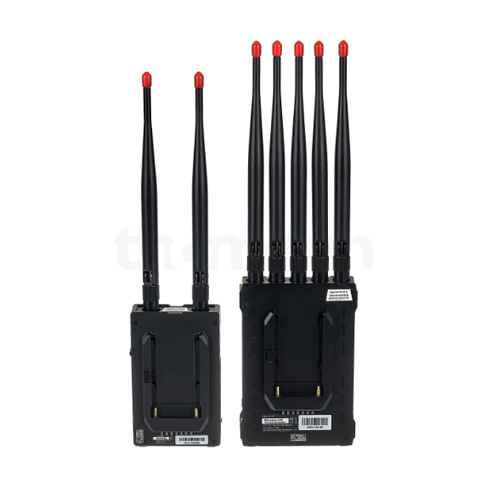

The Pro-Series from CVW offers real-time, zero latency wireless video transmission with a range of up to 200 metres in line of sight. This is made possible by its 5GHz operation and anti-interference algorithms, ensuring a clean and consistent signal. The series is available in three models – PRO-200, PRO-300P, and PRO-800 – with the number indicating the transmission distance. This plug and play setup makes it a convenient solution for wireless on-set monitoring, whether its for a camera on sticks, a crane, or a roaming Steadicam.
The Pro-Series also boasts SDI and HDMI inputs and outputs, supporting 1920x1080p at up to 60 frames per second. The transmitters and receivers are constructed with strong all-metal housings, making them durable yet lightweight. The package also includes antennas, D-Tap to LEMO power cables, 1/4″ mounts, and an AC adaptor, all conveniently stored in a bespoke foamed hard case for immediate deployment.
Included in box
1x 7051 TX
1x 3051 RX
7x Antenna
2x D-Tap to LEMO Power Cable
1x AC Adaptor
2x SDI Cable
2x Cold Shoe Mount
1x Foamed Hard Carry Case
About the CVW PRO-200
Pro-Series from CVW is available in three models; PRO-200, PRO-300P and PRO-800. Transmission distance is indicated in the model name, with PRO-200 capable of up-to 200 metres line of sight wireless operation. Signals are transmitted in real-time, with zero latency.
Operating on the 5GHz frequency range, CVW’s Unique anti-interreference algorithms ensure a clean and consistent signal at all times. The plug and play setup makes Pro-Series ideal for smaller teams and the go-to solution for wireless on-set monitoring, be it a camera on sticks, a crane or a roaming Steadicam.
SDI and HDMI are both available, as inputs to the transmitter and outputs from the receiver – fully-supporting 1920x1080p at up-to 60 frames per second. Transmitters and receivers are constructed with strong all-metal housings which are both durable and lightweight. Antennas, D-Tap to LEMO power cables, 1/4″ mounts and AC adaptor and are all provided together in a practical bespoke foamed hard case and ready to deploy immediately.
TX: Pro200
Antenna Mode External antenna
Frequency Free Frequency (EU): 5150 to 5250 MHz, 5725 to 5825 MHz
Free Frequency (USA): 5150 to 5250 MHz, 5725 to 5825 MHz
Free Frequency (JAP): 5150 to 5250 MHz
Transmission power 17dBm
Latency ≤ 1ms
Mechanical Interface 1/4 inch nut in bottom, SONY F-Type Battery Plate
Bandwidth 40MHz
Power consumption 7W
Transmission range open environment: up to 200m (3051)
External antenna: TX5dBi, RX2dBi
Temperature 0 ~ 40 C (Working); – 20 ~ 80 C (Storage)
Overvoltage Protection DC12V / 2A (7V ~ 36V)
Product Size 117.5 (L) x 72 (W) x 27.5 (H)
Audio Format PCM, DTS-HD, Dolby True HD
RX: Pro200
Receiving Sensitivity -70dBm
Frequency Free Frequency (EU): 5150 to 5250 MHz, 5725 to 5825 MHz
Free Frequency (USA): 5150 to 5250 MHz, 5725 to 5825 MHz
Free Frequency (JAP): 5150 to 5250 MHz
Antenna Mode External antenna
Mechanical Interface 1/4 inch nut in bottom, SONY F-Type Battery Plate
Waterproof grade IP54
Bandwidth 40MHz
Power consumption 5~6W
Transmission range open environment: up to 200m (7051)
External antenna: TX5dBi, RX2dBi
Overvoltage Protection DC12V / 2A (7V ~ 36V)
Product Size 144(L)×95(W)×27.5(H)
Audio Format PCM , DTS-HD, Dolby True HD
Temperature 0 ~ 40 C (Working); – 20 ~ 80 C (Storage)
Real-time, zero latency wireless video transmission
Up-to 200m line of sight operation
5GHz operation with anti-interference algorithms
SDI & HDMI inputs/outputs
