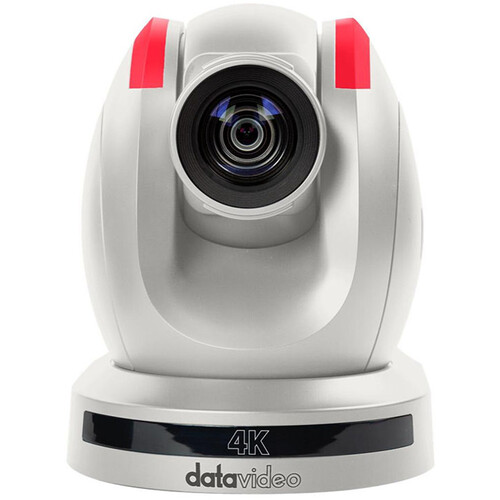

Datavideo PTC-325G PTZ Camera – White

Overview
Advanced 4K NDI PTZ Camera with 30x Zoom, 12G-SDI and Auto Tracking. High-Quality and Reliable Sony CMOS Sensor. Superior Optical Performance. Low Noise in Low Light. Multiple Simultaneous Video Outputs. Custom Auto Object Tracking. Smart PTZ Speed Adaptation. Multiple Network Protocol with Dual Stream Function. Supports H.264/H.265 Video Compression. Power over Ethernet. Tally Light. One Ethernet Cable with NDI® | HX Technology. Available in dark grey or white.

PTC-325G: Advanced 4K PTZ Camera with 30x Zoom, 12G-SDI, and Auto Tracking. The Datavideo PTC-325G is a 4K PTZ camera equipped with a 1/2.8-inch CMOS sensor, 30x optical zoom, and dual 4K 50/60p output via HDMI and 12G-SDI with YUV 4:2:2 color sampling. This setup delivers sharp, detailed images with accurate color reproduction, ideal for live events and professional broadcasts. The PTC-325G features built-in Auto Tracking to automatically follow the subject for hands-free operation. It supports NDI for low-latency video transmission over networks, making it suitable for live streaming and remote production. With dual power options (DC input and PoE) and advanced encoding, the PTC-325G ensures versatile performance. It supports dual streaming output to platforms like Facebook (RTMPS), YouTube, and dvCloud, and complies with the ONVIF Profile S standard for broad compatibility.

Summary
Lens Zoom: 30x Optical Zoom
Resolution and Frame Rate: 2160p @ 60fps
Sensor: CMOS
Video Outputs: SDI
Weight: 2-5kg
Included in box
1x PTC-325G White
1x RMC-1AT IR remote controller
1x Ceiling mount bracket-A
1x Ceiling mount bracket -B
6x Ceiling mount bracket screw M3*4mm
1x DC 12V Power Adaptor
1x Safety cable

About the Datavideo PTC-325G PTZ Camera – White
PTC-325G: Advanced 4K PTZ Camera with 30x Zoom, 12G-SDI, and Auto Tracking

The Datavideo PTC-325G is a 4K PTZ camera equipped with a 1/2.8-inch CMOS sensor, 30x optical zoom, and dual 4K 50/60p output via HDMI and 12G-SDI with YUV 4:2:2 color sampling. This setup delivers sharp, detailed images with accurate color reproduction, ideal for live events and professional broadcasts.

The PTC-325G features built-in Auto Tracking to automatically follow the subject for hands-free operation. It supports NDI for low-latency video transmission over networks, making it suitable for live streaming and remote production.

With dual power options (DC input and PoE) and advanced encoding, the PTC-325G ensures versatile performance. It supports dual streaming output to platforms like Facebook (RTMPS), YouTube, and dvCloud, and complies with the ONVIF Profile S standard for broad compatibility.

Simultaneous Outputs

With 12G-SDI connectivity, the PTC-325G allows you to connect to multiple devices in your workflow for maximum flexibility. All outputs are active simultaneously, ensuring seamless integration.

Adopts High-Quality and Reliable Sony CMOS Sensor

Datavideo PTZ cameras utilize high-quality Sony CMOS sensors to deliver exceptional image quality and reliability. Renowned for their performance in various lighting conditions, Sony CMOS sensors are widely used in broadcast, cinematic, and professional video cameras. Additionally, these sensors offer lower power consumption, which leads to reduced heat generation and a longer camera lifespan.

Broadcast Quality 4K Resolution

With built-in 1/2.8″ CMOS sensor, supports resolution up to 2160p 50/60.

Superior Optical Performance

The PTC-325G camera has 30x Optical Zoom and 16x Digital Zoom with the f1.8 wide open aperture.

Low Noise in Low Light

Advanced 3D noise reduction technology is also used to further reduce the noise while ensuring image sharpness.

Multiple Simultaneous Video Outputs

Supports simultaneous HDMI 2.0 and IP output up to 2160p 50/60 and also 12G-SDI output up to 2160p 60/50.

Quick Access to Camera’s Auto Tracking

You will be allowed direct access to auto tracking via various external controllers such as the supplied RMC-1AT remote control and DVIP controllers (RMC-300A, PTC View Assist, etc.)

In addition to camera controllers, you can also easily enable auto tracking on smart switchers which include iCAST mini, SHOWCAST 100, etc as well as complete solution systems like ZR-1 Hybrid Video Production Solution.

Custom Auto Object Tracking

If you are filming multiple people, you can designate a person for auto tracking. Once linked to the camera, only the designated person will be tracked, avoiding interferences such as the desks, people coming back and forth, large objects, etc.

Smart PTZ Speed Adaptation

The integrated PID algorithm is able to detect the movement speed of the identified object and automatically adjust the camera’s corresponding pan, tilt and zoom speeds in such a way that the lens movement will be smooth, avoiding common camera lens movement problems like jerky movements or unpredicted halts.

Talent Position: Center / Left Side / Right Side

The positioning of talent depends on the videographer’s creativity and intent rather than strict rules. Different positions can convey various emotions, messages, or visual effects. A centered composition provides a sense of stability and balance, suitable for scenes that require highlighting the main subject. Videographers may also place the talent on the left third or right third of the frame, leaving adequate space in the foreground to showcase the talent’s sight direction or potential future possibilities.

Quick Selection of Full Body / Half Body / Close-up

All of the PTC-325G camera series include RMC-1AT controller. User can quickly select full-body, half-body and close up framing, making it easy to change the shooting scene and framing requirements.

Simply Enable Auto Tracking with Your IR Remote Control

RMC-1AT PTZ Controller. All you need is a remote control to set and control all four cameras and save the four presets.

Multiple Network Protocol with Dual Stream Function

Support RTSP and RTMPS protocols, easy to stream directly to two different CDN platforms and Datavideo dvCloud as well.

Supports H.264/H.265 Video Compression

Support compression of resolution up to 3840×2160 with frame up to 59.94, 60fps and the second channel 720x480p compression. AAC, MP3 and PCM audio compression also supported.

Power over Ethernet

The PTC-325G supports PoE for easy installation. No need to find local power outlets or hire an electrician to install outlets wherever you want to mount your camera. Simply run a single CAT-6 cable to power your PTC-325G.

Tally Light

Green and red lights tally to show the preview and program status for broadcast applications.

Compatible with Various Controllers

Control real-time pan, tilt, and zoom camera movements with Datavideo SHOWCAST 100, PTZ View Assist APP, RMC-300A and RMC-180. With configurable preset positions supported.

RS-422, DVIP and Ethernet Camera Control

RS-422 and ethernet to use DVIP or VISCA over IP commands to integrate with larger control systems.

Compliant with the ONVIF Profile S Standard

The PTC-325G series cameras are compliant with the ONVIF Profile S standard, ensuring seamless integration and interoperability in network video systems.

The Benefits of Using NDI PTZ Cameras

NDI Pan Tilt Zoom cameras offer several advantages for various applications, particularly in the realm of video production, broadcasting, live streaming, and video conferencing. NDI, or Network Device Interface, is a technology developed by NewTek that allows video and audio to be transmitted over a network, making it easier to integrate and manage multiple devices.

With NDI PTZ cameras, you can easily set up a multi-camera production environment, enabling you to capture different angles and perspectives for more dynamic and engaging content. Here are some reasons why using NDI PTZ cameras can be beneficial:

High-Quality Transmission NDI PTZ cameras provide high-quality video and audio transmission over a network, enabling crisp and clear visuals for broadcasting, streaming, or video conferencing.
Integration & Scalability – NDI technology allows for easy setup and scalability, enabling you to add and manage multiple cameras seamlessly.
Reduced Cable Clutter – By utilizing a network for video and audio transmission, you reduce the need for multiple cables, simplifying the setup and reducing cable clutter in your workspace.
Remote Control NDI PTZ cameras are designed for remote control of pan, tilt, and zoom functions, offering flexibility in camera positioning and framing without physical intervention.
Interoperability & Compatibility – NDI is a widely adopted standard in the industry, ensuring compatibility with various video production and streaming systems. This interoperability enhances flexibility and options for integrating the cameras into your existing workflow.
Cost-Effective – NDI PTZ cameras can be a cost-effective solution, especially when considering the reduced cabling and infrastructure requirements. They also offer a versatile alternative to stationary cameras.
One Ethernet Cable with NDI® | HX Technology – There is no need for multiple cables and complicated setup. Single-wire concept helps you to transfer video, audio, power, tally, and control over only one Ethernet cable.

Model Number PTC-325G
Video format/Resolution HDMI:2160p60/59.94/50/30/29.97/25, 1080p60/59.94/50/30/29.97/25, 1080i60/59.94/50, 720p60/59.94/50, *2160p60/59.94/50 YUV 4:2:2
SDI:2160p 60/59.94/50/30/29.97/25, 1080p 60/59.94/50/30/29.97/25, 1080i 60/59.94/50, 720p 60/59.94/50
Image Sensor Sony 1/2.8″ CMOS
Effective Pixels (approx.) 8.46Mega Pixels
S/N Ratio ≥55dB
Min. Illumination 0.5 Lux @ (F1.8, AGC ON)
Electronic Shutter 1/30s ~ 1/10000s
Zoom Ratio 30x Optical, 16x Digital Zoom
Effective Zoom Ratio 30x
Gamma Control N/A
Iris Control Auto / Manual
Digital Noise Reductions 3D
On-Screen Display (OSD) English/Simplified Chinese/Traditional Chinese
White Balance Auto, Indoor, Outdoor, OnePush, Manual, VAR
AGC / Gain Control Yes
HDR/WDR N/A
Mirror / Flip Image Yes
Focus Mode Auto/Manual
Panning / Tilting Range Pan: 300°
Tilt: +130° to -15°
Panning / Tilting Speed Pan: 0.876°/s~43°/s
Tilt: 0.693°/s ~21.32°/s
Preset 255 Position
Focal Length 30x, f = 4.5mm ~135mm, F1.8 ~ F4.7
Field of View (Horizontal, Wide) 62.3°
Image Compensation Back light compensation
Video Output HDMI 2.0 x1
3G-SDI x1
12G-SDI x1
10/100/1000M RJ45 (PoE) x1
Audio Input 3.5 mm x1 (mic in/line in) switch from Web UI
Tally LED Yes
Lens Filter N/A
Control Protocol Pelco-D, Pelco-P, VISCA, VISCA over IP, DVIP, ONVIF, NDI
Remote Control Interface IR
Web GUI RS-422/RS-232
DVIP NDI
Video Compression Format H.264/H.265/MJPEG
Audio Compression Format AAC, G711
Audio Bitrate 96Kbps, 128Kbps,256Kbps
Streaming Protocols RTSP, RTMP(S), ONVIF, Multicast, SRT, NDI Hx3 (1080p)
First Stream Supported Resolution 3840×2160
1920×1080
1280×720
1024×576
960×540
640×480
640×360
Second Stream Supported Resolution 720×480
640×360
480×270
320×240
Video Bitrate 32Kbps ~ 50Mbps (Single Stream)
Video Bitrate Mode VBR, CBR
Encoding Frame rate 50Hz: 1-50fps
60Hz: 1-60fps
POE PoE++
IEEE 802.3at
F/W Update Via Web UI or USB 2.0
IR Control Yes
Camera Control Unit RMC-2P/RMC-180 series/RMC-300 series/PTZ View Assist APP
Tripod Mount 1/4-20 UNC
Optional Accessories WM-1/ WM-10/ WM-11
Colour Dark Blue/White
Dimension (LxWxH) 173 (W) x 219 (H) x 189.08 (D)
Weight 2.6 kg
Operating Temp. Range 0~40 °C
Power DC 12V/3A (26W)

Advanced 4K NDI PTZ Camera with 30x Zoom, 12G-SDI and Auto Tracking
High-Quality and Reliable Sony CMOS Sensor
Superior Optical Performance
Low Noise in Low Light
Multiple Simultaneous Video Outputs
Custom Auto Object Tracking
Smart PTZ Speed Adaptation
Multiple Network Protocol with Dual Stream Function
Supports H.264/H.265 Video Compression
Power over Ethernet
Tally Light
One Ethernet Cable with NDI® | HX Technology
Available in dark grey or white
