Overview
The Deity TC-SL1 is a revolutionary piece of technology that offers a variety of features to enhance your filming experience. Its standout feature is the super bright dot matrix timecode display, which supports all SMPTE formats and has less than 1 frame drift over 24 hours. The display is also flippable for tail slating, making it versatile and user-friendly.
In addition to its impressive display, the TC-SL1 also offers remote control capabilities via Bluetooth® through its free phone app, Sidus Audio. This allows for wireless syncing up to 250 feet away. The TC-SL1 also has dual TC I/O options, with 5-Pin LEMO® and 1/4” TRS compatibility, making it easy to use with existing timecode cables. It also has a dual battery bay that supports NP-F550 batteries and a USB-C charging port with 25 Watt support for added convenience.
Included in box
1 x Deity TC-SL1 Wireless Timecode Slate
2 x Deity NP-F550 7.4V 3500mAh Batteries
1 x 30W USB-C Charger
1 x Carrying Case
1 x Warranty Card and Manual
About the Deity TC-SL1 Timecode Slate
The Deity TC-SL1 is the world’s first Bluetooth® enabled smart slate. Wirelessly sync the TC-SL1 fromup to 250 feet away using its free phone app, Sidus Audio. You can also sync the TC-SL1 using yourTC-1 timecode boxes. Featuring both 5-Pin LEMO® and 1/4” TRS, the TC-SL1 will work with your existing timecode cables. And, with the flick of a switch, the TC-SL1 can accommodate tail slating. The two NP-F550s can be hot-swapped between each other and the USB-C port can support up to 25W charging.
Timecode SMPTE
Front Screen Dot Matrix
Rear Screen 1” OLED
Wireless Type 2.4G RF Sync Pulse
Bluetooth® 5.1LE
Wireless Range ≤ 30ft – 2.4G RF
≤ 250ft – BT 5.1LE
RF Wireless Channels 8
Timecode Accuracy ±0.5 ppm
Drift < 1 Frame/24Hrs
Frame Rates 23.98, 24, 25, 29,97, 29.97DF, 30
Timecode Input / Output 5-Pin LEMO® 1/4” TRS
Battery Life Up to 120Hrs
Battery Type NP-F550
Battery Capacity 2x 3500mAh
Charging Port USB-C
Charging Time 120 Minutes
Dimensions 231mm x 185mm x 41mm (9.1” x 7.3” x 1.6”)
Weight 1,04 kg (2.3lbs)
Super Bright Dot Matrix Timecode Display
Remote Control via Bluetooth® Phone App
Dual TC I/O; 5-Pin LEMO® , 1/4” TRS
Supports All SMPTE Formats, Less than 1 Frame Drift over 24 Hours

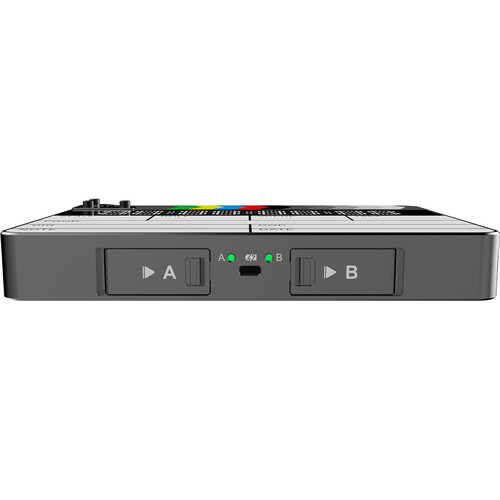

Dual Battery Bay; Supports NP-F550 Batteries
Features a Dimmable Backlight
USB-C Charging Port; 25 Watt
Flippable Timecode Display for Tail Slating
