Overview
Optical Reinvention for a New Visual Standard – Completely re-engineered optics with a constant T1.9 aperture across the range. Versatility Across the Spectrum of Vista Vision – The most compact T1.9 Vista Vision prime set on the market, covering 18mm, 24mm, 35mm, 50mm, 85mm, and 105mm.
Smart Integration for Effortless Workflow- Built -in Cooke /i protocol in an ultra-compact body, ensuring seamless compatibility with ARRI, RED, Blackmagic, Sony, and Canon systems. Lightweight Agility, Perfect for Diverse Setups – Weighing only around 800g with a balanced 80mm front diameter and body length, Vespid 2 is the smallest PL-mount Vista Vision high-speed prime available.
Focal Length: 18mm
Lens Format: Cine
Lens Mount: T1.9
Filter Thread: 300 degrees
Front Diameter: PL Mount
Included in box
1x DZOFILM Vespid Prime 2 18mm PL

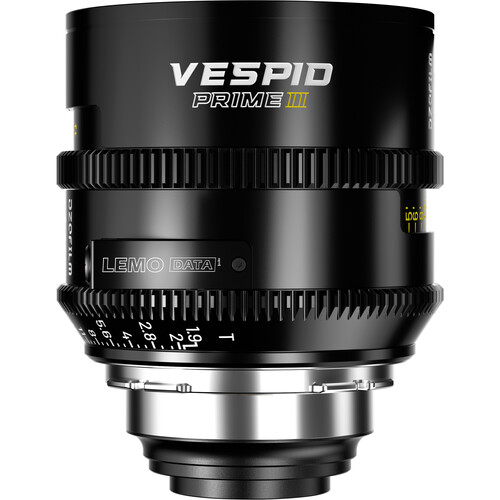

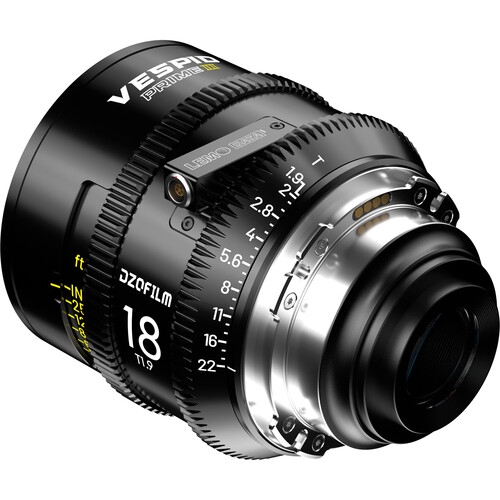

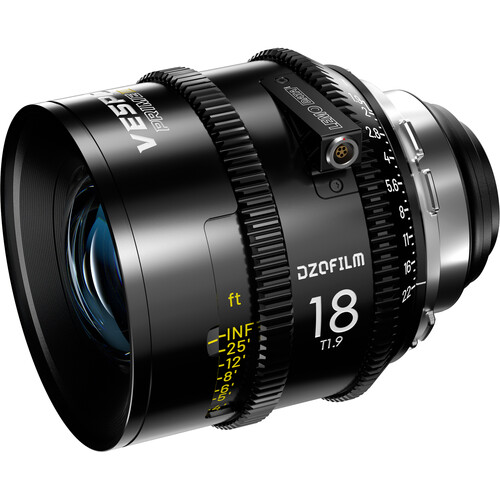

About the DZOFILM Vespid Prime 2 18mm PL
A New Benchmark in Optical Innovation
The Vespid 2 series redefines what’s possible in high-end cinematography. Each lens has been completely re-engineered with cutting-edge optics, delivering a constant T1.9 aperture across the range. Custom-designed aspherical elements with ultra-precise polishing ensure unrivaled sharpness, while advanced multi-layer nano-coatings and a finely tuned coating formula minimize reflections and suppress stray light for unmatched clarity and contrast.
Compact Power Across Vista Vision Coverage
As the most compact T1.9 Vista Vision prime set available, Vespid 2 covers focal lengths of 18mm, 24mm, 35mm, 50mm, 85mm, and 105mm. With image circle support up to 46.3mm, it’s fully compatible with leading cinema cameras such as the RED V-Raptor VV, ARRI Alexa LF, and Sony Venice. The wide-angle range from 18–50mm even extends to cover the immense Blackmagic 17K 65mm sensor, offering true versatility across the spectrum of modern digital cinema.
Seamless Integration for Smarter Workflows
Designed with efficiency in mind, Vespid 2 primes feature built-in Cooke /i technology, providing real-time lens metadata including aperture, focal length, and focus distance. Seamlessly compatible with ARRI, RED, Sony, Canon, and Blackmagic systems, this smart integration enhances on-set workflow while simplifying post-production tasks.
Lightweight Agility, Unlimited Creativity
Weighing only around 800g and featuring a consistent 80mm front diameter, Vespid 2 lenses are the smallest PL-mount Vista Vision high-speed primes in their class. Their compact design makes them ideal for gimbals, handheld rigs, drones, and sliders—delivering full-frame cinematic quality without compromise on agility.
Available Focal Lengths 18mm, 24mm, 35mm, 50mm, 85mm, 105mm
Mount PL Mount Only, applicable to Octopus Adapter
Aperture T1.9
Image Circle φ46.3
Construction of Optics 18mm – 15 Elements 12 Group
24mm – 14 E /13 G
35mm – 13 E /9 G
50mm – 12 E/ 9 G
85mm – 11 E/8 G
105mm – 12 E /8 G
Close Focus 18mm – 0.25m/0.8ft
24mm – 0.3m/1ft
35mm – 0.3m/1ft
50mm – 0.5m/1.6ft
85mm – 0.74m/2ft5in
105mm – 0.9m/3ft
Iris Control 18mm – Manual（68°）
24mm – Manual（66°）
35mm – Manual（66°）
50mm – Manual（65°）
85mm – Manual（65°）
105mm – Manual（65°）
Focus Control Manual 18mm – Manual（300°
24mm – Manual（300°
35mm – Manual（300°
50mm – Manual（300°
85mm – Manual（300°
105mm – Manual（300°）
Front Diameter φ80mm/3.15″
length 80mm/3.15″
Iris blade 10
Filter Size M77
Weight 18mm 766g
24mm 776g
35mm 800g
50mm 836g
85mm 865g
105mm 833g
Optical Reinvention for a New Visual Standard – Completely re-engineered optics with a constant T1.9 aperture across the range.
Versatility Across the Spectrum of Vista Vision – The most compact T1.9 Vista Vision prime set on the market, covering 18mm, 24mm, 35mm, 50mm, 85mm, and 105mm.
Smart Integration for Effortless Workflow- Built -in Cooke /i protocol in an ultra-compact body, ensuring seamless compatibility with ARRI, RED, Blackmagic, Sony, and Canon systems.
Lightweight Agility, Perfect for Diverse Setups – Weighing only around 800g with a balanced 80mm front diameter and body length, Vespid 2 is the smallest PL-mount Vista Vision high-speed prime available.
Designed for lightweight shooting systems, it integrates seamlessly with gimbals, handheld rigs, sliders, and drones.
