Edelkrone Focus/Zoom Module V1

£399.20 Ex VAT

SKU: EDE-81822

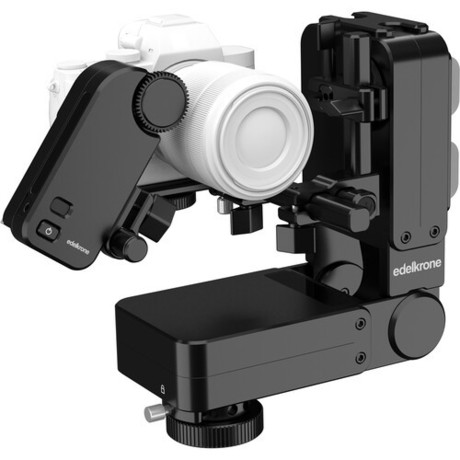

Focus/Zoom Module for HeadPLUS
Power up your HeadPLUS and take control of your lens

he ultimate addition to edelkrone hand-control ecosystem

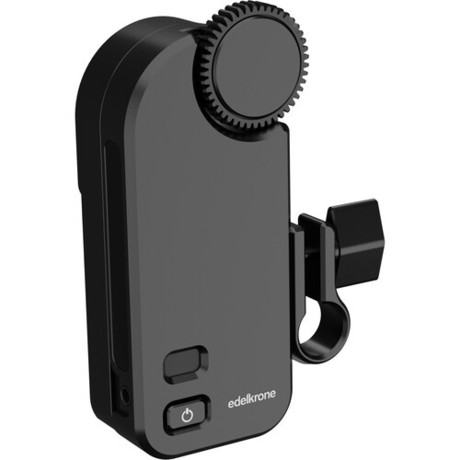

New Lens Controller allows you to control your lens position by hand, similar to adjusting pan & tilt angles and slide positions of other motion controllers in the edelkrone ecosystem. Just set your camera’s position by hand, focus on your object, and store that multi-axis keypose for later use!

Hassle-free control with the best edelkrone features!
Depending on your production needs, control Lens Controller through edelkrone App (6 independent keyposes) or edelkrone Controller (3 independent keyposes).A single LP-E6 battery can power Lens Controller for maximum portability or an external DC input can power Lens Controller for those long productions. Lens Controller even includes a Link port for future extensibility.

Ready for Pro Lenses -Lens Controller features an intelligent automatic torque control: Powerful to rotate bulky pro cinema lenses and gentle for delicate lens end-stops.
Super Accurate Gear Design with Ultra Quiet Motor -The unique brushless motor driving technology of Lens Controller offers a culmination of ultra-precise motor positioning ability and ultra-quiet operation. Its super accurate backlash-free gear design delivers perfectly repeatable, smooth motion for even the most demanding shots.

Size:
120 x 55 x 31mm / 4.72 x 2.16 x 1.22in
Weight:
261g / 0.57lbs
Gear Pitch:
Standard 0.8 mm pitch gear (all professional cinema lenses)
Lens Compatibility:
All lenses with the included edelkrone lens gear ring. Not compatible with servo lenses (focus by wire).
Number of Axes:
Single (Focus or Zoom)
Motor Type:
Brushless motor with ultra high-res encoder.
Power Input:
LP-E6 type battery (NOT included), AC/DC adapter (included)
Compatibility:
HeadPLUS also works as a stand alone device (connects directly to edelkrone App)
Materials:
CNC machined aluminum and stainless steel components.
Compatible Lenses:
Hard-stop lenses:Mechanical focusing with a hard stop on the ends of focus limits. Focus wheel rotates for approximately 30 seconds, or until it reaches a hard stop.

Infinity lenses:Mechanical focusing with no hard stops on the ends of focus limits. Focus wheel rotates infinitely without adjusting the lens elements.

*Lens Controller only works with hard-stop lenses and infinity lenses. Doesn’t work with Servo / Focus by wire lenses.

Focus/Zoom Module
15mm rod
15 mm rod clamp
19 mm rod clamp
lens calibration chart & stand
1 x lens gear
AC/DC Adapter

Brand

Edelkrone
