Fomex FC-1200 LED Light Kit

Overview
Flexcolor, a cutting-edge technology for color mixing, focuses on white lighting points by utilizing carefully selected LED light sources with multiple channels. This results in a wide range of precise and controllable light, including millions of saturated colors, pastels, and high-quality white light. Fomex, a leader in advanced technical ability, has revolutionized film and video light source technology. With their commitment to perfection, Fomex produces the highest quality of pure white light and delicate color expressions.

Their innovative approach includes a unique light distribution curve, utilizing the Constant Current Control method instead of the traditional PWM method. This ensures the best light quality without any flicker or color changes. Fomex’s skilled craftsmanship is evident in their high-quality design products, which do not compromise on quality for cost reduction. The Fomex FC RGBWW Mat offers various lighting modes, including CCT, RGB, HUE, GEL, and X-Y Coordinate, providing a perfect solution for different lighting directions.

The FC RGBWW LED lighting mat surpasses traditional lighting sources by offering CCT functionality, allowing for tuning of broadband light sources ranging from 2000k to 10000k. It also features industry-standard color gel preset mode, as well as HUE, RGB, and X/Y coordinate modes, catering to different user needs. The mat can be wirelessly controlled through the CRMX (DMX & RDM) system, utilizing the Lumen Radio CRMX Wireless Control System. This system has become the industry standard for wireless lighting control, providing high reliability and the ability to control DMX channels in any situation. Additionally, the newly added Timo Two Bluetooth module allows for high-level control, making it the most reliable module in the wireless DMX market.

Included in box
1x LED Mat
1x X-Mount Bracket
1x Controller
1x Power Supply
1x Kit Bag
1x Clamp Shoe
1x Power Cord
1x Output Cable
1x Extension Cable
1x Diffuser

About the Fomex FC-1200 LED Light Kit
Flexcolor, with an advanced approach to color mixing, targets white lighting points and combines carefully selected LED light sources with multiple channels to create a complete spectrum of precisely controllable light, including millions of saturated colors, pastels, and high-quality white light.

Fomex’s advanced technical ability leads Film & Video light source technology

From the highest quality of pure white light to the most delicare colour expressions, Fomex achieves perfection in the world of media lighting

Light distribution curve

Instead of using the existing PWM method, we applied the design of the Constant Current Control method to provide the best light quality without flicker or colour change. Fomex’s skilled craftsmanship results in the development and manifacture of high-quality design products, without compromising through cost reduction.

Lighting Mode

Available control mode – CCT/RGB/HUE/GEL/X-Y Coordinate

Only the Fomex FC RGBWW Mat can perfectly fulfill the conditions require dofr variouslighting directions through excellent light quality and colour reproduction. The FC RGBWW LED lighting mat surpasses the limits of traditional lgihting sources and provides CCT Functionality that enables the tuning of broadband light sources randing from 2000k to 10000k. Also, the industry-standard colour gel rpeset mode and HUE, RGB, and X/Y coordinate mdoes and provided to maximze convenience sensitively respond to various user needs.

Wireless Control

CRMX (DMX & RDM)

Lumen Radio CRMX Wireless Control System

The Lumen Radio CRMX, which has established itself as the industry standard for wireless lighting control systems, automatically detects signal transmissions and is capable of wirelessly controlling DMX Channels with high relaiability in any situation. In addition, a newly added Bluetooth module called Timo Two enables high level control. Timo Two Bluetooth module is considered the most relaible module in the wireless DMX market, due to its easy and quick implementation of lighting system set ups and the capability to control through multiple portable devices using shared Bluetooth control technology.

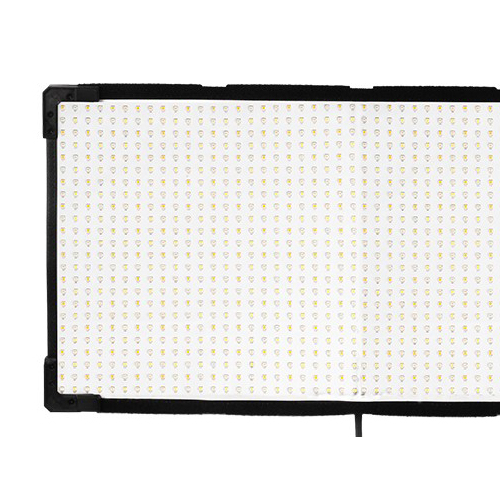

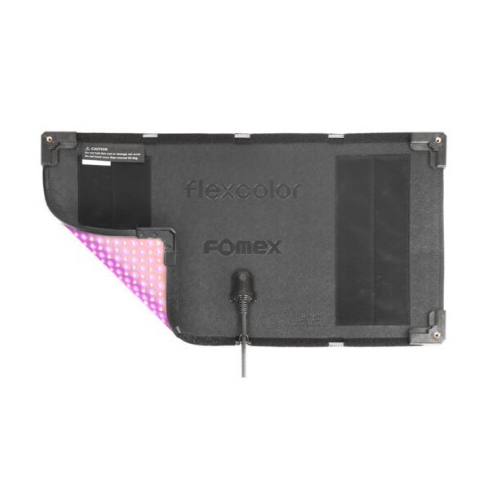

FC1200 MAT
Light Output 3690Lux, 342FC (@1m, 2700K) / 3840Lux, 357FC (@1m, 6500K)
Power Consumption 120W
CRI/TLCI CRI Average > 95 / TLCI Average > 98
Colour Temperature 2000K ~ 10000K
Coloured Light Full RGB + WW Colour
Input Connector (Waterproof) 8 Pin x 1
IP Rating (Mat Only) IP64
Beam Angle 120 Degrees
LEDs 1152
Dimensions (cm) 20 x 58
Weight (g) 760

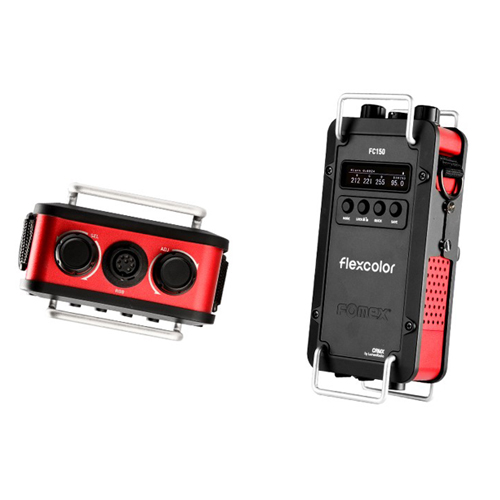

Controller
Light Output 19v DC
Power Consumption 5v DC (USB for WDMX)
CRI/TLCI 8Pin x 1
Colour Temperature Continuously Adjustable
Coloured Light Supported
Input Connector (Waterproof) Mono OLED
IP Rating (Mat Only) 2000K ~ 10000K
Beam Angle 0~100%
LEDs V-Mount/Gold Mount
Dimensions (cm) 23.5 x 11 x 8
Weight (g) 935
Certification CE, KC
Power Supply
Input AC100-240V 50/60Hz
Output 19v 11.58A, 220W
