Hollyland Pyro 7 Dual Wireless Monitor Kit

£773.00 Ex VAT

9806 KIT

Category:

Overview
Pyro 7 is a 7-inch wireless monitor that combines the functionalities of a transmitter, receiver, and monitor into one device. It uses Auto Dual-Band Hopping technology for stable transmission up to 1,300ft (400m) and a low latency of only 60ms. It supports 2.4GHz/5GHz dual-band transmission and can connect one transmitter to four receivers at the same time. The upgraded HollyOS system provides enhanced image analysis capabilities and allows for video file export via an external SD card. Pyro 7 is compatible with Pyro H and Pyro S, providing flexibility and scalability for various monitoring needs.

Pyro 7 also features Auto Frequency Hopping technology and dual-band transmission to ensure reliable and uninterrupted wireless video transmission. It offers two modes, Smooth and HD, for different application needs. With omnidirectional high-gain antennas, Pyro 7 eliminates signal interference and provides stable transmission in all directions. Additionally, it supports extended mp4 video recording and has customizable shortcut keys for quick access to image analysis functions. Pyro 7 is a versatile and efficient wireless monitor that enhances your monitoring experience.

Summary
Screen Size: 7 Inch
Resolution: 1920 x 1200
Aspect Ratio: 16:9
Inputs:
3G-SDI
HDMI
Outputs:
3G-SDI
HDMI

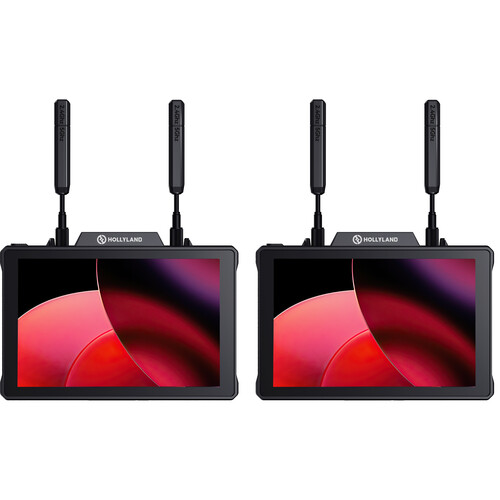

Included in box
2x Pyro 7 Wireless Transceiving Monitor
5x Paddle Antenna (2.4 GHz & 5 GHz)
1x User Manual*1Warranty Card
2x D-Tap to Locking DC Power Adapter Cable
2x Secure Digital Memory Card (32G)
1x USB-C OTG Adapter

About the Hollyland Pyro 7 Dual Wireless Monitor Kit
Pyro 7 is a 7-inch wireless monitor that integrates the functionalities of TX, RX, and monitor, all in one. It utilizes Auto Dual-Band Hopping (ADH) technology. With 1,300ft (400m) and an incredibly low latency of only 60ms, Pyro 7 supports 2.4GHz/5GHz dual-band transmission and automatic frequency hopping. Its exceptional hardware design enables Pyro 7 to simultaneously connect one transmitter to four receivers, and the convenience of dual-camera monitoring is achieved through customizable shortcut keys. Additionally, the upgraded HollyOS system provides enhanced image analysis capabilities and allows for video file export via an external SD card. Pyro 7 is compatible with Pyro H and Pyro S, which means you can easily pair Pyro 7 with either Pyro H or Pyro S. This provides you with greater flexibility and scalability to meet various monitoring needs.

4 Receivers. Not an Issue.

Pyro 7s Wifi Broadcast technology enables one transmitter to connect to four receivers with stable signals, offering more flexibility when additional monitoring needs emerge on set.

*When Broadcast mode is activated, the transmitter can transmit signals to a max of four receivers. When Broadcast mode is deactivated, the transmitter can transmit signals to at most two receivers and two mobile devices.

Quick Monitoring Switch. See Real-time Footage.

Pyro 7 enables seamless connection with Pyro series video transmission solution after grouping preset. You can swiftly switch between dual camera views for monitoring within 1 second by utilizing two customizable buttons.

Faster. Longer. Stronger.

With self-developed 2.4 GHz & 5 GHz Dual-Band technology, Pyro 7 features a stable transmission range of up to 1,300ft (400m). It achieves a minimal transmission latency of 60ms thanks to upgraded chips and optimized video encoding/decoding algorithms.

Dual Boost: Less latency and More Stability

Compared to traditional video transmission systems whose range extends at the cost of image quality and latency, Pyro 7 excel with increased transmission distance while preserving video quality and minimizing latency.

You can select these two modes according to your application needs:

– Smooth Mode: The bitrate dynamically adjusts in this mode to achieve the lowest 60ms latency for ultra-long-distance transmission.

– HD Mode: Optimal for superior image quality. HD Mode guarantees clear visuals, maintaining a stable bitrate of 8-12 Mbps bitrat even at a range of 1,300ft (400m).

*The transmission range is LOS (line-of-sight) range based on interference-free laboratory measurements. When Broadcast mode is activated, the LOS range reaches up to 650ft (200m). When Broadcast mode is

deactivated, the LOS range extends up to 1,300ft (400m).

Auto Dual-Band Hopping (ADH)

Auto Dual-Band Hopping (ADH) With our developed Auto Dual-Band Hopping (ADH) technology, Pyro 7 operates on both 2.4 GHz and 5 GHz dual-bands and features intelligent Auto Frequency Hopping, so it can

automatically choose the clearest channel. This feature guarantees reliable and uninterrupted wireless video transmission.

2.4 GHz & 5 GHz Dual Band

Pyro 7 offers a dual-band transmission solution that addresses common issues such as signal interference, low transmission efficiency, and frequency congestion. And the omnidirectional high-gain antennas will also ensure stable signals in all directions. This provides better signal transmission performance and efficiency. With Pyro 7, you won’t have to worry about video drop issues any more.

Auto Frequency Hopping

Pyro 7 is equipped with Auto Frequency Hopping technology, which constantly scans and monitors the strength of

the signal and interference across various frequency ranges to find the best wireless channel to use, resulting in a

more reliable connection.

Leap Forward – HollyOS Image Analysis

Precise Image Analysis, Enhanced Your Experience Pyro 7 offers a convenient custom shortcut key feature that can be used for dual-view monitoring and can also be used to quickly launch Waveform, Recording, Focus Assist and other image analysis functions.

Expanding functionality, Enhanced Features

Pyro 7 supports extended mp4 video recording of up to 40 minutes in a single session using an external standard SD card, allowing for convenient on-site monitoring and increased work efficiency. Additionally, it offers the option to apply LUT during video export. Furthermore, Pyro 7 enables efficient export and organization of available videos into specific folders, catering to your needs for streamlined editing workflow. It also supports importing external devices or taking on-set screenshots, overlaying them with the current recording screen for scene restoration or replication purposes.

7 Inch, We Got What You Need

The 7-inch screen provides a more comfortable monitoring experience. With a brightness of 1200 nits, whether indoors or outdoors, in bright sunlight or dim environments, you can adjust the screen brightness for optimal visual performance. HDMI and SDI Input/Output/LoopoutPyro 7 is the perfect solution for professional shooting and smaller commercial projects. The transmitter features one HDMI input, one SDI input, and one HDMI loopout, while the receiver provides one SDI output, one HDMI output, and one SDI loopout.

Smart Channel Scan.

Upon startup, Pyro 7 automatically chooses a high-quality frequency channel, optimizing the user experience from the outset. Additionally, users can activate the smart channel scan function on the device to view real-time feedback on the frequency status, thus ensuring an uninterrupted and reliable experience.

Easy Setup. Ready to Go.

Pyro 7 supports preset grouping and pairing, obviating the need for users to repetitively and manually set up the transmitter and receivers. Time really matters to crew members.

RTMP Streaming

With RTMP (Real-Time Messaging Protocol), just input your wireless key and connect your wireless network card to easily stream video to popular live broadcasting or conferencing platforms like Zoom, YouTube Live, Twitch, TikTok Live, and others. Pyro 7 will offer you a straightforward and convenient live streaming experience.

Lighter, Stronger, Stiffer: Pyro 7 with Magnesium-aluminium Alloy Shell

The shell of Pyro 7 is made of aerospace-grade magnesium-aluminium alloy, which is more robust, rigid, 30%

lighter, and better at heat dissipation than aluminium-only models.

Input Port HDMI 1.4b + 3G SDI
Output Port HDMI 1.4b + 3G SDI
Antenna RP-SMA Male*2
Power Input DC Input (2.0mm core socket)
Headphone Jack 3.5mm
Upgrade Port USB-C (USB 2.0 OTG)
Screen Size 7″ Touchscreen
Screen Resolution 1920 × 1200 pixels
Pixel Density 323 PPI
Aspect Ratio 16:9
Screen Brightness 1200 nits
Contrast Ratio 1000:1
Power Input Voltage 10 – 18V/2.5A DC Input (nominal 12V)
Power Consumption < 22W Net Weight 545g (19.2oz) with battery plate included and external antennas excluded Dimensions (L × W × H) 180 × 127 × 31.8mm (7.1" × 5" × 1.25") with battery plate and external antennas excluded Operating Frequency 5.1 - 5.8 GHz; 2.412 - 2.484 GHz Transmit Power ≤ 23 dBm Receiver Sensitivity -80 dBm Display Latency < 50ms Transmission Latency 60ms (test data when 1080p60 signals are transmitted in a laboratory) LOS Range 1,300ft (400m)* (Connection to the monitoring app may affect the range); 650ft (200m)* (in Broadcast mode) Bandwidth 20 MHz; 40 MHz (in Broadcast mode) Audio Format HDMI 1.4b 8-Channel Operating Temperature -10°C - 45°C Storage Temperature -40°C - 60°C 1TX And 4RX 1300ft (400m) & 0.06s Latency 2.4GHz & 5GHz Dual Band Auto Frequency Hopping TX, RX, and Monitor – All in One Dual-View Quick Monitoring Switch 7 Inch & 1200 nits Precise Image Analysis (icon HollyOS) SDI And HDMI Loopout RTMP Streaming
