The Lilliput K2 Touchscreen PTZ Camera Controller is the late 2024 revision of Lilliput’s multi-featured PTZ Controller line, Designed to work with a host of control schemas and protocols, the new controls and features which the K2 system sports are numerous.
5-inch touch screen controls, and a 4D joystick make the K2 easy to operate
Supports real-time preview camera in 5″ screen
Supports Visca, Visca Over IP, Pelco P&D and Onvif protocols
Control the system via IP, RS-422, RS-485 and RS-232 interface
Automatically assigns IP addresses to devices for quick setup
Manage up to 100x independent IP cameras on a single network
6 user-assignable buttons for quick access to functions
Quickly control exposure, iris, focus, pan, tilt and other functions
Can support PoE (Power over Ethernet) and 12V DC Power Supply inputs
Optional NDI version available
K2 – Overview
Lilliput Electronics

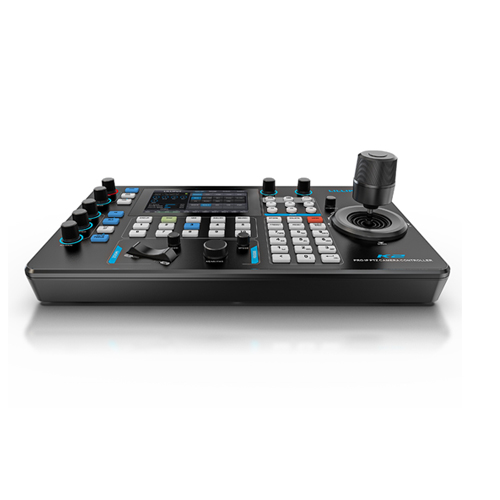

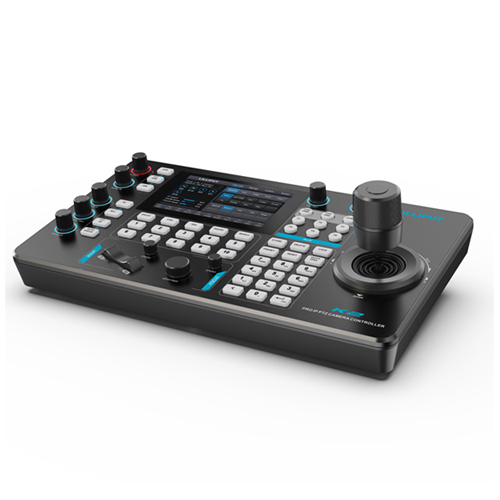

The K2 Touchscreen PTZ Camera Controller is the latest revision of Lilliput’s multi-featured PTZ Controller line. Designed to work with a host of control schemas and protocols, the new controls and features which the K2 system sports are numerous.
The K2 is perfect for use in houses of worship, concerts, educations, interviews, and live broadcasting of sporting events and more.
Camera Menu Control
The PTZ camera keyboard controller features a 5″ touchscreen that enables direct on-screen configuration of common camera menu parameters as well as monitoring camera status in real time.
Real-time Preview of Your Camera
The controller supports decoding under RTSP and ONVIF protocol, which allows simultaneous real-time preview of the camera video streams on the 5″ screen and the ability to adjust your control accordingly.
Camera Control Protocol
The controller has a variety of control interfaces including IP, RS-422, RS-485, and RS-232. The rich control interface makes it easy to match camera connections of different interfaces. It offers cross protocol mix control on one controller operating Protocol by VISCA, VISCA-IP, Pelco P&D and ONVIF.
Track Recording and Playback
This PTZ camera controller supports track loop functionality, which allows you to record a camera path (pan, tilt, and/or zoom), and replay it whenever required without having to manually control the camera.
Sync Controller with Switcher via Tally GPIO
Equipped with GPIO, the controller can seamlessly integrate with switchers and tally systems, enabling synchronized camera and video selection, simplyfying your operations.
One RS-232 and Four RS-485/422 Control Intefaces
RS-232, RS-422, and RS-485 communication support protocols such as PELCO-D, PELCO-P, and VISCA. Each serial port can connect up to 7 cameras under the Visca protocol.
IP Control Interface
IP control is a very intelligent and convenient control mode. With IP control, you can automatically serach available IP cameras on the network and assign IP addresses to each one easily.
IP control supports ONVIF and Visca-IP. The K2 enables the user to easily control up to one hundred IP cameras.
Ergonomic Bracket for Optimal Control
The controller is equipped with an ergonimoically designed bracket that enhances your control experience and viewing angle of the screen.
Features:
5″ touch screen controls, and a 4D joystick make the K2 easy to operate
Supports real-time preview camera in 5″ screen
Supports Visca, Visca Over IP, Pelco P&D and Onvif protocols
Control the system via IP, RS-422, RS-485 and RS-232 interface
Automatically assigns IP addresses to devices for quick setup
Manage up to 100x independent IP cameras on a single network
6 user-assignable buttons for quick access to functions
Quickly control exposure, iris, focus, pan, tilt and other functions
Can support PoE (Power over Ethernet) and 12V DC Power Supply inputs
Specifications:

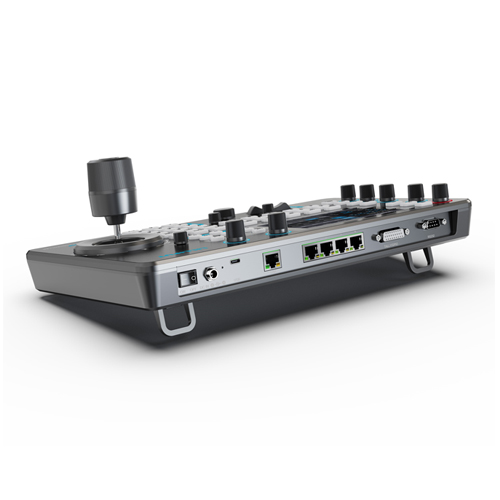

Connections
Interfaces:
– 1x IP (RJ45)
– 1x RS-232
– 4x RS-485/RS-422
– 1x TALLY
– USB-C (For upgrade)
Control Protocol: ONVIF, VISCA-IP
Sertial Protocol: PELCO-D, PELCO-P, VISCA
Serial Baud Rate: 2400, 4800, 9600, 19200, 38400, 115200 bps
LAN Port Standard: 1x 100M (PoE/PoE+: IEEE802.3 af/at)
User
Display: 5″ touch screen
Interfaces
Knob: Quickly control iris, shutter speed, gain, auto exposure, white balance, etc.
Joystick: Pan/Tilt/Zoom
Camera Groups: 10 (Each group connect up to 10 cameras)
Camera Addresses: Up to 100
Camera Presets: Up to 255
Power
Power: PoE+/DC 7V – 24V
Power Consumption:
– PoE+: < 8W
- DC: < 8W
Environmental
Operating Temperature: -4°F - 140°F (-20°C - 60°C)
Storage Temperature: -4°F - 158°F (-20°C - 70°C)
Physical

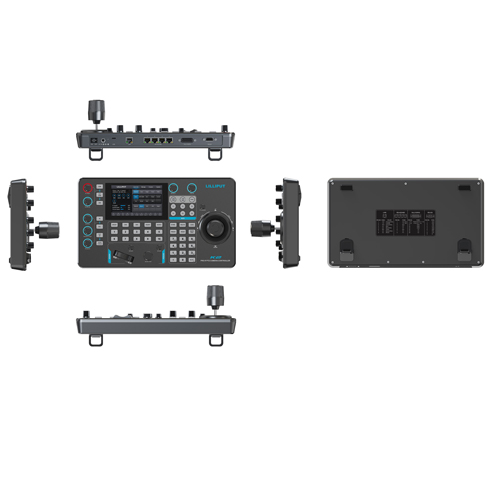

Dimensions with Joystick: 13.39" x 7.68" x 4.34" (340mm x 195mm x 110.2mm)
Dimensions without Joystick: 13.39" x 7.68" x 1.95" (340mm x 195mm x 49.5mm)
Net Weight: 3.81lbs (1.73kg)
Gross Weight: 5.20lbs (2.36kg)
