Overview

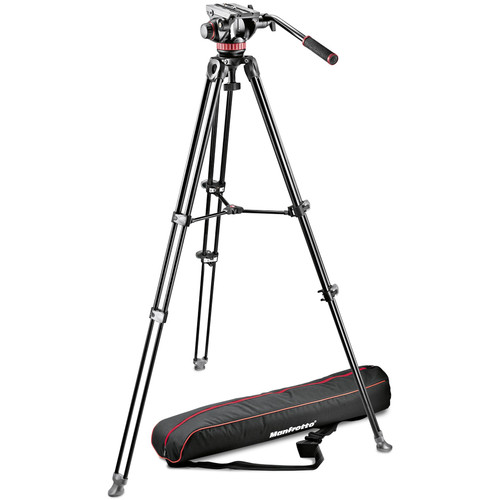

The Manfrotto MVK502AM-1 video system is designed for professional videographers seeking smooth and precise movements. The 502 fluid video head features a variable fluid drag system on both pan and tilt movements, allowing for ultimate control and smoothness. The tilt movement also includes a 4kg pre-set counterbalance system, providing stability and support for up to 7kg of gear. The system also includes a sliding plate, making camera connection quick and easy, and a levelling bubble for simple set-up.
The MVK502AM-1 system also includes the MVT502AM professional aluminium twin leg tripod, which features a telescopic twin-leg structure made of elliptical aluminium tubes. This design helps reduce torsion and provides a firm foundation for the system. The tripod also includes a fixed mid-level spreader for increased rigidity and faster set-up. The 75mm bowl on the tripod is perfectly designed to fit the 502 fluid video head, making this system a complete and efficient solution for professional videography needs.
Summary
Tripod Head Type: Fluid Head
Max Payload: 5-10kg
Leg Section: 3 Section
Spreader Type: Mid-Level
Head Fitting: 75mm
Material: Aluminium
Included in box
1x MVH502A fluid head
1x MVT502AM telescopic twin leg tripod
1x padded bag
About the Manfrotto 502 Fluid Video Head & MVT502AM Tripod
The MVK502AM-1 Manfrotto video system features the 502 fluid video head with incorporated 75mm half ball, the MVT502AM professional aluminium twin leg tripod with middle spreader, and padded carry bag.
The head features a variable fluid drag system in both pan and tilt movements and fixed counterbalance system of 4kg and can support up to 7kg. Easy link connectors gives you the freedom to connect gear like an external monitor in a jiffy.
The Manfrotto MVT502AM is a lightweight video tripod that features telescopic twin-leg structure made of elliptical aluminium tubes that help reduce torsion and it includes a fixed mid-level spreader for increased rigidity and faster set-up. The 2-stage/3-section MVT502AM has a 75mm bowl that perfectly fit the head.
Weight 3800 g
Collection/Series 502
Material Aluminium
Safety Payload Weight 7 kg
Min Height 70.5 cm
Maximum Height 156 cm
Head Type Video/Fluid Head
Leg Sections 3
Legs Tube Diameter 15.2, 18.3, 21.7 mm
Quick Release Yes
Counterbalanced Weight 4 kg
Center of gravity 55 mm
Spreader mid level – fixed arm length
Closed Length 75 cm
Ball Flat 75 Ball
Accessory Compatibility 502HLV;509HLV
Top Attachment 1/4″ screw, 3/8″ screw
Bubble Spirit Level (No.) 1
Carrying Bag Included 110125
Center Column no centre column
Colour Black
Easy Link Yes
Front Tilt -80° / +90°
Leg Type Twin
Leg Angles 19°
Leg Lock Type Flip Lock
Maximum Working Temperature 60 C
Minimum Working Temperature -20 C
Pan Bar Included Yes
Pan Drag continuously adjustable from 0 to max level
Panoramic Rotation 360
Plate Type 504PLONG
Tilt Drag continuously adjustable from 0 to max level
Variable Fluid Drag System on PAN and TILT movements
4kg pre-set counterbalance system on tilt movement
Sliding plate for the fastest camera connection
Levelling bubble makes setup simple
Aluminium telescopic twin leg tripod keeps your system firm
