Overview
The Manfrotto 504X Fluid Video Head is an innovative video system that offers maximum versatility and stability. With a 4-step counterbalance system, it can support up to 6.5 kg and features a flat base for a wide range of shooting options. The head also includes two 3/8 easy link connectors for accessories and a side lock plate for quick and safe camera attachment. The accompanying MVTTWINGC carbon fiber twin leg tripod adds even more rigidity and stability with its adjustable ground spreader and compatibility with various dollies. This professional-quality tripod is a must-have for creating high-quality videos and films.
The Manfrotto 504X Fluid Video Head and MVTTWINGC carbon fiber twin leg tripod are designed for maximum performance and ease of use. The heads new fluid technology allows for smooth pan and tilt movements, while the tripods aluminum casting and spiked feet provide a secure and stable base. With its compact design and padded carrying bag, this video system is perfect for any assignment. Whether youre a professional filmmaker or just starting out, this system has everything you need to capture stunning footage with ease.
Summary
Tripod Head Type: Fluid Head
Max Payload: 10-15kg
Leg Section: 3 Section
Spreader Type: Ground
Head Fitting: 100mm
Material: Carbon Fibre
Included in box
1x 504X Video Head
1x Leveling ball
1x MVTTWINGC tripod
1x Ground spreader
1x Bag
About the Manfrotto 504X CF Twin GS Tripod System
This innovative video system includes the Manfrotto 504X Fluid Video Head and the MVTTWINGC carbon fiber twin leg with ground spreader tripod.

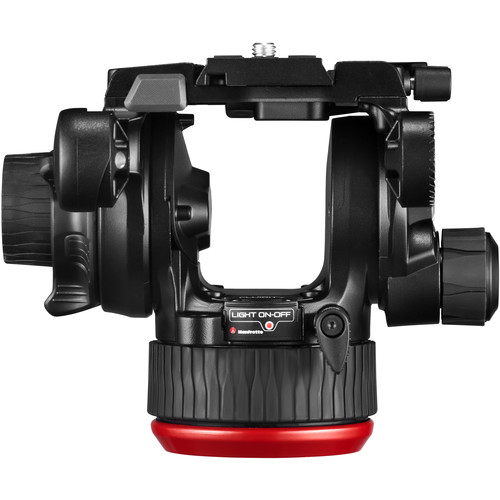

The Manfrotto 504X fluid video head with flat base features the new Manfrotto fluid technology which allows smoother operation and unrivalled stability in both pan and tilt movements. It presents a 4-step counterbalance system that can take loads of up to 6.5 kg at 55 mm C.O.G.
The head is made from a brand-new catching aluminium design and has a maximum payload of 12 kg.

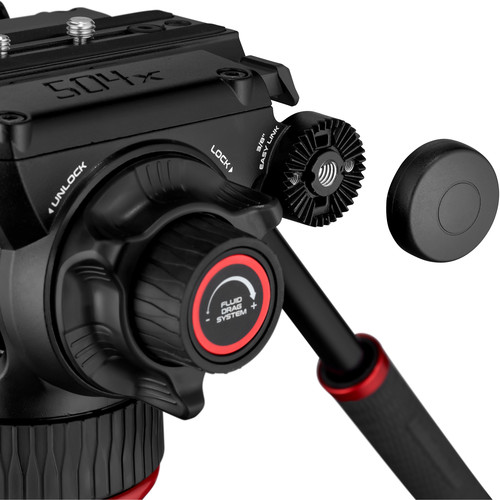

It is a compact and light head with a flat base (base diameter 75 mm), that lets you choose from a wide variety of different shooting options. It also features two 3/8” Easy Link connectors, equipped with an anti-rotation function that enables the fitting of external monitors or other accessories. A cap fits over the easy link, to avoid cutting during use. The sliding plate attachment and side-lock mechanism allows safe, quick and easy camera attachment.
The head attaches to the tripod via a dedicated 75mm half ball.

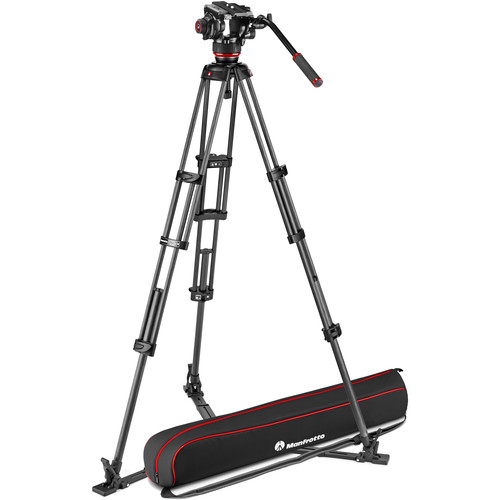

The MVTTWINGC carbon fiber twin leg with ground spreader video tripod is a professional-quality tripod with a two-stage, extremely rigid and stable design making it ideal for all kinds of assignments. If you want to create professional level videos or films, then this is the must-have tripod. It features an aluminum casting 100mm bowl, and it comes with an aluminum adapter that converts the bowl into a 75mm.
The tripod has ground level spreader with telescopic arms that helps you to set leg angles accurately.
Leg locks are secure and reliable and twin spiked feet are provided for external use, e.g. in the grass. For maximum versatility, the tripod can be used with various dollies (114MV and 181B).
With its combination of robust construction and compatibility options, this tripod definitely has it all.
Supplied with its own padded carrying bag.
Weight 5.57 kg
Safety Payload UNI/PdR 105:2021 12 kg
Counterbalance System Variable Steps
Counterbalance Weight 2.2, 4.4, 6.5 kg
Maximum Height 175 cm
Min Height 49 cm
Base Diameter 75 mm
Bubble Spirit Level (No.) 1
Center Of Gravity 55 mm
Carrying Bag Included yes
Center Column no centre column
Closed Length 85 cm
Colour Black
Top Attachment 1/4″ screw, 3/8″ screw
Ball Flat Flat
Powered By (Batteries) Lithium
Easy Link Yes (with antirotation)
Front Tilt -70° / +90°
Head Type Video/Fluid Head
Leg Type Twin
Leg Lock Type Flip Lock
Leg Sections 3
Material Carbon Fiber
Maximum Working Temperature 60 °C
Minimum Working Temperature -30 °C
Pan Bar Included Yes
Pan Drag continuously adjustable from 0 to max level
Panoramic Rotation 360 °
Plate Type 504PLONGR-1
Quick Release Yes
Spreader low level – variable arm length
Tilt Drag continuously adjustable from 0 to max level
Fluid video head with 4-step counterbalance system up to 6.5 kg.
Maximum versatility thanks to flat base
Carbon Fiber twin leg tripod for greater rigidity
Side lock plate & two 3/8”easy link connectors for accessories
Adjustable ground spreader for extra stability and versatility.
