Miller 3720 CX6 System

£1,537.63 Ex VAT

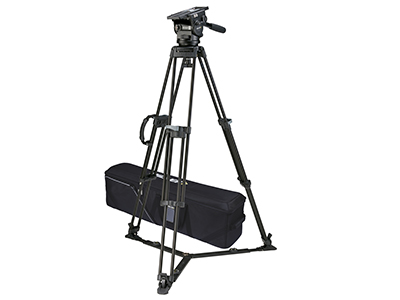

The Miller 3720 CX6 (1092) Toggle 2-Stage Alloy Tripod (420G) System with Ground Spreader is a powerful, light, and multifunctional product perfect for a variety of shooting needs. With a 75mm ball leveling system and the ability to support payloads up to 12kg (26.4lbs), this tripod is designed to adapt to your camera rigs.

The CX6 fluid head features 15+0 CB Plus selectable counterbalance positions and a conveniently located CB Plus switch, allowing for quick and precise adjustments. It also offers 3+0 selectable positions of fluid pan and tilt drag, as well as positive selection radial ring controls for smooth and precise movements.

The tripod itself is made of durable black anodized alloy tubing and comes with an on ground spreader and rubber feet for added stability. Additionally, it includes a 2-stage fast toggle adjustment legs and a 2-stage tripod bag for easy transportation. With a 3 year warranty, you can trust in the quality and reliability of this product.

Whether you’re shooting ENG, soft news, documentary, or filmmaking, the Miller CX6 is a versatile and powerful head that delivers outstanding performance. Its advanced fluid drag, radial control rings, and quick release side loading platform make it fast to set up and easy to use.

Experience the benefits of Miller’s CB Plus technology with 16 positions of counterbalance and 3+0 levels of fluid drag, allowing for 60mm of camera plate travel. Paired with the 2-stage Toggle (alloy) tripod and on ground spreader, this system offers a height range of 560-1730mm (22-68″) and the stability you need for any shooting situation.

Tripod Head Type: Fluid Head
Max Payload: 12kg
Max Height Group: 65-70 inch
Min Height Group: 20-30 inch
Leg Section: 3 Section
Spreader Type: Ground
Head Fitting: 75mm
Material: Aluminium
Type: Video
1x 1092 CX6 fluid head
1x 420G Toggle 75 2-stage tripod (alloy)
1x 411 On ground spreader
1x 679 Pan handle – fixed with clamp
1x 554 Shoulder strap (padded)
1x 3514 Softcase 2-stage

About The Miller 3720 CX6 System
The 3702 CX6 Toggle 2-stage (alloy) tripod system combines the CX6 fluid head and cost-effective yet extremely stable 420G Toggle tripod with ground spreader. Designed to adapt to your shooting needs for camera rigs from 0kg to 12kg. Whether it’s ENG, soft news, documentary or filmmaking, the CX6 is a versatile, powerful head with outstanding performance. With advanced fluid drag, radial control rings and quick release side loading platform the CX6 is fast to set up, smooth and precise.

The CX6 employs CB PlusTM technology providing 16 positions of counterbalance and, with 3+0 levels of Miller’s unrivalled fluid drag, 60mm of camera plate travel, you can quickly tune to your tripod configuration for perfect camera control.

The CX6 is matched with the 2-stage Toggle (alloy) tripod and on ground spreader to yield a height range 560-1730mm (22-68″), offer positive toggle leg locks and the stability of a ground spreader.

Payload Range 0-12.0kg (0-26.4lbs)
Weight 6.7kg (14.8lbs)
Height Range 560-1730mm (22-68.1″)
Transport Length 860mm (33.9″)
Counterbalance Positions 16 selectable positions (15+0)
Pan Tilt Drag 3 selectable fluid drag positions + 0
Pan Tilt Locks Positive lock calliper brake system
Tilt Range + 90°/ -75°
Pan Range 360°
Camera Platform Quick release, side load camera plate
Sliding Range 60mm (2.4″)
Mounting Base Ø75mm (2.9″) ball levelling
Height Above Bowl 167mm (6.6″)
Illuminated Controls Bubble level
Pan Handle Fixed length 390mm (15.4″)
Temperature Range -40° to +65°C (-40° to +149°F)
Leg Extension 2-stage
Lock Type Toggle
Leg Materia l Alloy
1092 CX6 fluid head
420G Toggle 75 2-stage tripod (alloy)
411 On ground spreader
679 Pan handle – fixed with clamp
554 Shoulder strap (padded)
3514 Softcase 2-stage
Powerful, light and multifunctional.
75mm ball levelling.
Perfect for payloads to 0-12kg (26.4bs).
15+0 CB Plus selectable counterbalance positions.
Ergonomically located CB Plus switch.
3+0 selectable positions of fluid pan and tilt drag.
Positive selection radial ring controls.
2-stage fast toggle adjustment legs.
Durable black anodised alloy tubing.
Comes with on ground spreader and rubber feet.
Comes with 2-stage tripod bag.
3 year warranty.
