Miller 3726 CX6 System

OVERVIEW
The 3726 CX6 Solo 75 2-stage (alloy) tripod system combines the innovative 1630 Solo tripod and CX6 fluid is designed to adapt to your shooting needs for camera rigs from 0kg to 12kg. Whether it’s ENG, soft news, documentary or filmmaking, the CX6 is a versatile, powerful head with outstanding performance. With advanced fluid drag, radial control rings and quick release side loading platform the CX6 is fast to set up, smooth and precise.
The CX6 employs CB PlusTM technology providing 16 positions of counterbalance and, with 3+0 levels of Miller’s unrivalled fluid drag, 60mm of camera plate travel, you can quickly tune to your tripod configuration for perfect camera control.
The CX6 is matched with the 2-stage Solo (alloy) tripod to yield a height range of 404-1795mm (15.9-70.7″), offer rapid action twist locks and the versatility of the 3 position leg angles.
SUMMARY
Tripod Head Type: Fluid Head
Max Payload: 12kg
Max Height Group: 70+inch
Min Height Group: 10-20 inch
Leg Section: 3 Section
Spreader Type: No Spreader
Head Fitting: 75mm
Material: Aluminium
Type: Video
INCLUDED IN BOX
1x 1092 CX6 fluid head
1x 1630 Solo 75 2-stage tripod (alloy)
1x 679 Pan handle – fixed with clamp
1x 1520 Solo shoulder strap (Aircell)
1x 3514 Softcase 2-stage

About The Miller 3726 CX6 System
The 3726 CX6 Solo 75 2-stage (alloy) tripod system combines the innovative 1630 Solo tripod and CX6 fluid is designed to adapt to your shooting needs for camera rigs from 0kg to 12kg. Whether it’s ENG, soft news, documentary or filmmaking, the CX6 is a versatile, powerful head with outstanding performance. With advanced fluid drag, radial control rings and quick release side loading platform the CX6 is fast to set up, smooth and precise.

The CX6 employs CB PlusTM technology providing 16 positions of counterbalance and, with 3+0 levels of Miller’s unrivalled fluid drag, 60mm of camera plate travel, you can quickly tune to your tripod configuration for perfect camera control.

The CX6 is matched with the 2-stage Solo (alloy) tripod to yield a height range of 404-1795mm (15.9-70.7″), offer rapid action twist locks and the versatility of the 3 position leg angles.

Payload Range 0-12.0kg (0-26.4lbs)
Weight 5.8kg (12.8lbs)
Height Range 404-1795mm (15.9-70.7″)
Transport Length 870mm (34.3″)
Counterbalance Positions 16 selectable positions (15+0)
Pan Tilt Drag 3 selectable fluid drag positions + 0
Pan Tilt Locks Positive lock calliper brake system
Tilt Range + 90°/ -75°
Pan Range 360°
Camera Platform Quick release, side load camera plate
Sliding Range 60mm (2.4″)
Mounting Base Ø75mm (2.9″) ball levelling
Height Above Bowl 167mm (6.6″)
Illuminated Controls Bubble level
Pan Handle Fixed length 390mm (15.4″)
Temperature Range -40° to +65°C (-40° to +149°F)
Leg Extension 2-stage telescopic
Lock Type Concentric Rapid Lock
Leg Material Alloy
Components

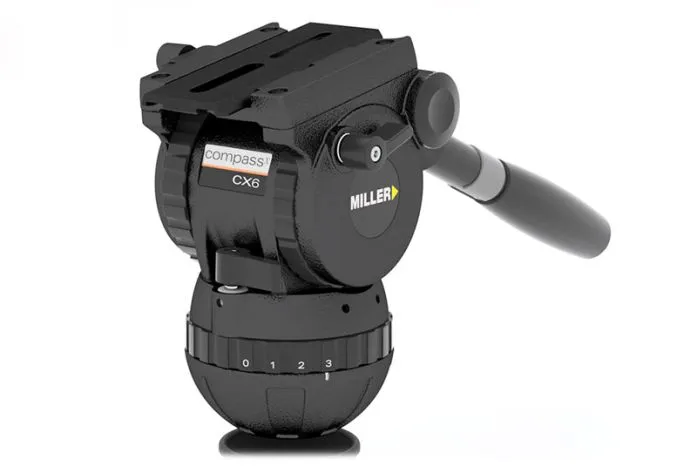

1092 CX6 fluid head
1630 Solo 75 2-stage tripod (alloy)
679 Pan handle – fixed with clamp
1520 Solo shoulder strap (Aircell)
3514 Softcase 2-stage
Powerful, light and multifunctional.
75mm ball levelling.
Perfect for payloads to 0-12kg (26.4bs).
15+0 CB Plus selectable counterbalance positions.
Ergonomically located CB Plus switch.
3+0 selectable positions of fluid pan and tilt drag.
Positive selection radial ring controls.
2-stage rapid leg lock extension.
Durable black anodised alloy tubing.
Comes with 2-stage tripod bag.
3 year warranty.
