Overview

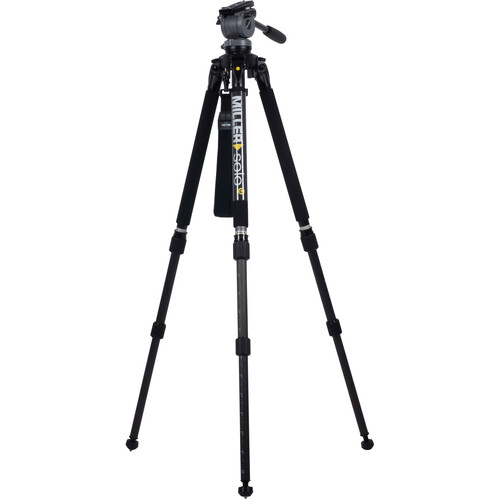

The SOLO DV 20 is a compact, lightweight and dependable tripod that offers consistent fluid drag performance even in extreme environments. It has 2 selectable positions of counterbalance and is perfect for camera payloads weighing 5-10kg. The tripod also features an integrated 75mm bowl, lightweight carbon fibre legs, and 2-stage rapid leg lock extension. With a 3 year warranty, the SOLO DV 20 is a great option for those looking for high quality and affordable tripod.
The tripod is designed around the popular Miller DS20 with flick-of-a-switch selectable counterbalance. It offers a choice of 1/4″ & 3/8″ screws or 1/4″ & pin for attaching MiniDV or tripod adaptor plates. The DS20 fluid head has adjustable pan and tilt drags for flexible applications and can tilt balance larger camcorders ranging from 5kg to 10kg. The SOLO DV 2-Stage Carbon tripod is lightweight and offers true fluid drag support for a wide range of camcorders. It also comes with accessories such as a pan handle, carry straps, and a softcase for easy transportation.
Summary
Tripod Head Type: Fluid Head
Max Payload: 5-10kg
Leg Section: 3 Section
Spreader Type: No Spreader
Head Fitting: 75mm
Material: Carbon Fibre
Included in box
1x DS20 Fluid Head
1x Solo 75 2-stage tripod (carbon fibre)
1x Pan Handle – fixed with clamp
1x Solo Shoulder Strap (Aircell)
1x Solo 75 2-stage tripod bag
About the Miller DS20 Solo-Q System
The SOLO DV 20 offers incredible price-performance and ultra-light carbon support for payloads up to 10kg.
Designed around the popular Miller DS20 with ‘flick-of-a-switch’ selectable counterbalance, SOLO DV 20 features a choice of 1/4″ & pin or 1/4″ & 3/8″ screw mounts with sliding quick release mount for lens and battery changes.
The SOLO DV 2-Stage Carbon tripod compliments this lightweight, true fluid drag support for masive range of camcorders.
DS20 Fluid Head (184)
As the superior fluid head of the DV range, the DS20 fluid head offers two attachments choice: 1/4″ & 3/8″ screws or 1/4″ & pin, to attach MiniDV or tripod adaptor plates. Adjustable pan and tilt drags provide continuous friction for your flexible applications, while ‘flick-of-a-switch’ selectable counterbalance lets you tilt balance larger camcorders ranging from 5kg to 10kg.
Solo DV 2 Stage 75mm carbon fibre tripod (1501)
The 2-Stage telescoping SOLO DV carbon fibre tripod is designed for the single operator: quickly and securely setting up to 63″ (161cm), packing down to a compact 27″ (70cm) for transport; and hitting a low 9″ (23cm). Selectable leg angle locks ensure rapid stabilisation at any height, while the 75mm diecast alloy bowl and fluid head bubble level offers quick levelling, optimum torsional rigidity and durability under extreme field conditions.
Pan Handle (680)
Fixed length pan handle supplied with grey handle carrier to suit DS5, DS10 and DS20 Fluid Heads.
Carry Straps (1520)
The ergonomic and air-cell padded 1520 SOLO Shoulder Strap can be fitted to all tripods and softcases in the Miller SOLO range. Made from weatherproof cordura and nylon materials, with anti-corrosive buckles and safety spring latches that can attach to all 75mm and 100mm SOLO tripods.
Solo DV Softcase (1518)
The Solo DV Softcase is a compact and comfortable carrying solution made from weatherproof cordura construction. Weighing only 0.65kg and a transport length of 850mm this softcase is the perfect travelling companion.
Material: Carbon Fibre
Construction: 2-Stage
Maximum Height: 1751 mm (68.9 in)
Minimum Height: 371 mm (14.6 in)
Mounting Standard:: 75mm ball levelling
Payload Capacity:: 10.00 kg (22 lbs)
Payload Range: 5 to 10 kg
Transport Length: 831 mm (32.7 in)
Weight: 4.5 kg (10.0 lbs)
Compact, lightweight, dependable.
Consistent fluid drag performance in extreme environments.
2 selectable positions of counterbalance.
Perfect for camera payloads to 5-10kg (11-22lbs).
Integrated 75mm bowl.
Lightweight carbon fibre legs.
2-stage rapid leg lock extension.
3 year warranty.
