Overview
7 Inch Display 3000 nits Brightness 1920×1200 Resolution 1200:1 Contrast Ratio 16.7 Million Colours 160 Degree Viewing Angle Ultra Bright Screen With Excellent Image Quality With the super 3000 nits brightness, you may not even need a sun hood when shooting under strong daylight. Plus, all G7 monitors are calibrated before shipping and have full manual calibration controls built in software for user adjustment.
Accurate Video Assisting Tools G7 has a full set of image assisting tools to help you nail framing, exposure, focus and audio. It also supports realtime LUT preview for shooting LOG, you can add your favourite custom LUT via SD card. Great Portability and Sturdiness 7 inch is a great solution for satisfying the need for portability and detail viewing. The G7 weighs only 450g without battery, reducing the overall burden for your camera setup. Meanwhile, with a built in aluminium sheet and metal screw holes, it’s also steady and robust. The kit also includes a hard case that can protect the monitor and all accessories very well.
Summary
Screen Size: 7 Inch
Resolution: 1920 x 1200
Aspect Ratio: 16:10
Inputs:
HDMI
SDI
Outputs:
HDMI
SDI

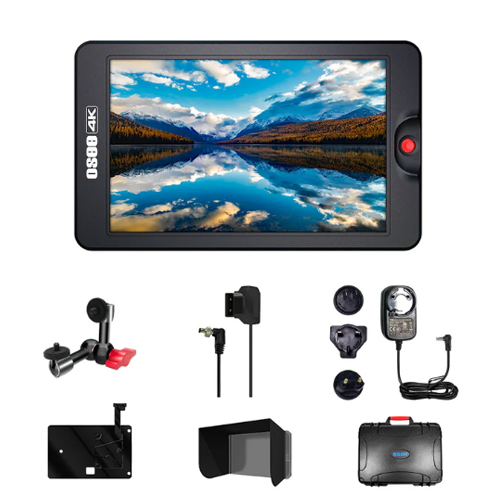

Included in box
1x G7 Monitor
1x Screw Articulating Arm Trestle
1x D-tap to Lockable Pole DC Cable
1x AC-DC Power Adaptor
1x V mount Battery Plate
1x Sunhood
1x Carrying Case
About the Osee G7 7in Field Monitor Kit
Ultra Bright Screen With Excellent Image Quality
With the super 3000 nits brightness, you may not even need a sun hood when shooting under strong daylight. Plus, all G7 monitors are calibrated before shipping and have full manual calibration controls built in software for user adjustment.
Accurate Video Assisting Tools
G7 has a full set of image assisting tools to help you nail framing, exposure, focus and audio. It also supports realtime LUT preview for shooting LOG, you can add your favourite custom LUT via SD card.
Great Portability and Sturdiness
7 inch is a great solution for satisfying the need for portability and detail viewing. The G7 weighs only 450g without battery, reducing the overall burden for your camera setup. Meanwhile, with a built in aluminium sheet and metal screw holes, it’s also steady and robust. The kit also includes a hard case that can protect the monitor and all accessories very well.
Flexible Power Solution
G7 has both Sony NP-F battery slot and DC IN port, with the AC to DC power adapter, V-Mount battery plate and D-Tap to lockable pole DC Cable, you can power G7 through small/large capacity battery and AC power.
Convenient and Clean Operation
G7s scene style UI allows user building up to 8 scenes containing different tools for various monitoring situation, after presetting these scene, all you need to do on set is switch scenes. G7 uses one single joystick to navigate through menus, so you will have a clean screen, no need to constantly wipe fingerprints anymore.
MONITOR BODY
Weight (Bare Monitor) 450 g
Dimensions (W x H x D) 192.0 mm × 116.3 mm × 24.7 mm

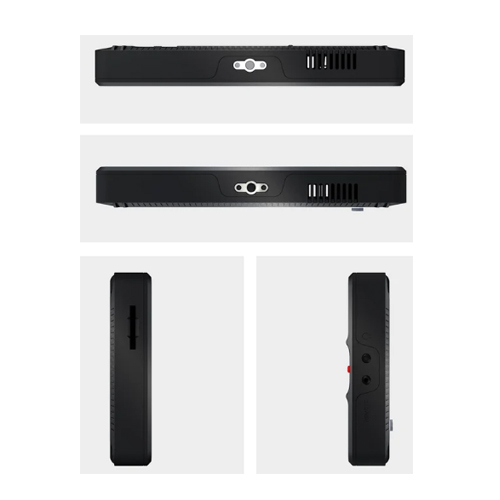

Mounting Points 1/4’’ Thread Points (1 × Top & 1 × Bottom)
Fan Fan speed adjustable
DISPLAY
Panel Size 7 inch
Resolution 1920 × 1200
Aspect Ratio 16:10
Colour Depth 1.06G
Brightness 3000 nits
Contrast 1200:1
Anamorphic De-squeeze 1x, 1.33x, 1.5x, 1.66x, 1.8x, 2x, 2xMAG
DSLR Scale Canon 5D Mark 2, Canon 7D
Zoom 2x, 4x Zoom and Pan
Screen Rotate Auto / 0° / 180°
POWER
Input Voltage DC IN 11–17 V, Battery 6–8.4 V
Battery Plate SONY NP-F
Power Consumption 16.2 W
DATA I/O
SD Card Slot 3D LUTs upload and Firmware Upgrade (SD card under 16G and formatted to FAT32 is recommended)
Input/Output Signal HDMI (1.4)
3840x2160p (30/29.97/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/23.98)
1080i (60/59.94/50)
720p (60/59.94/50)
480i/576i/480p/576p
SDI 2K P60/59.94/50
1080P 60/59.94/50/30/29.97/25/24/23.98
1080i 60/59.94/50
1080SF 30/29.97/25/24/23.98
1035I 60/59.94
Audio 3.5 mm Headphone Jack
SOFTWARE
Control Volume Level 0–31 Adjustable
Backlight Level 0–10 Adjustable
Display Rotate Screen Rotate Auto/0/180 & Image Rotate 0/180
Anamorphic 1X/1.33X/1.5X/1.66X/1.8X/2X/2XMAG/Off
DSLR Scale None / CANON 5D MARK II / CANON 7D
FRAME TOOLS
Aspect 4:3 / 1.85:1 / 2.39:1 / 16:9 / Custom Ratio, Matte/Line Mode
Safe 16:9 / 14:9 / 4:3, Action & Title Selectable
Center On/Off
CrossHatch 2×2, 3×3 … 9×9
EXPOSURE TOOLS
False Colour 17 Curves
Zebra Level 1–100 Adjustable
Waveform LUMA / RGB / Parade Mode, Size & Location & Opacity Adjustable
Vector Scope Location & Opacity Adjustable
FOCUS TOOLS
Focus Assist White / Red / Green / Blue Mode, B&W Background, Sensitivity Level 1–10 Adjustable
Peaking Intensity Level 0–10 Adjustable
LOOK TOOLS
Look Built-in 33 De-log 3D LUTs / Support 16 User 3DLUTs Import by SD Card
Audio Meter Location & Opacity Adjustable
SCALE TOOL
Image Scale Location Adjustable
7 Inch Display
3000 nits Brightness
1920×1200 Resolution
1200:1 Contrast Ratio
16.7 Million Colours
160 Degree Viewing Angle
