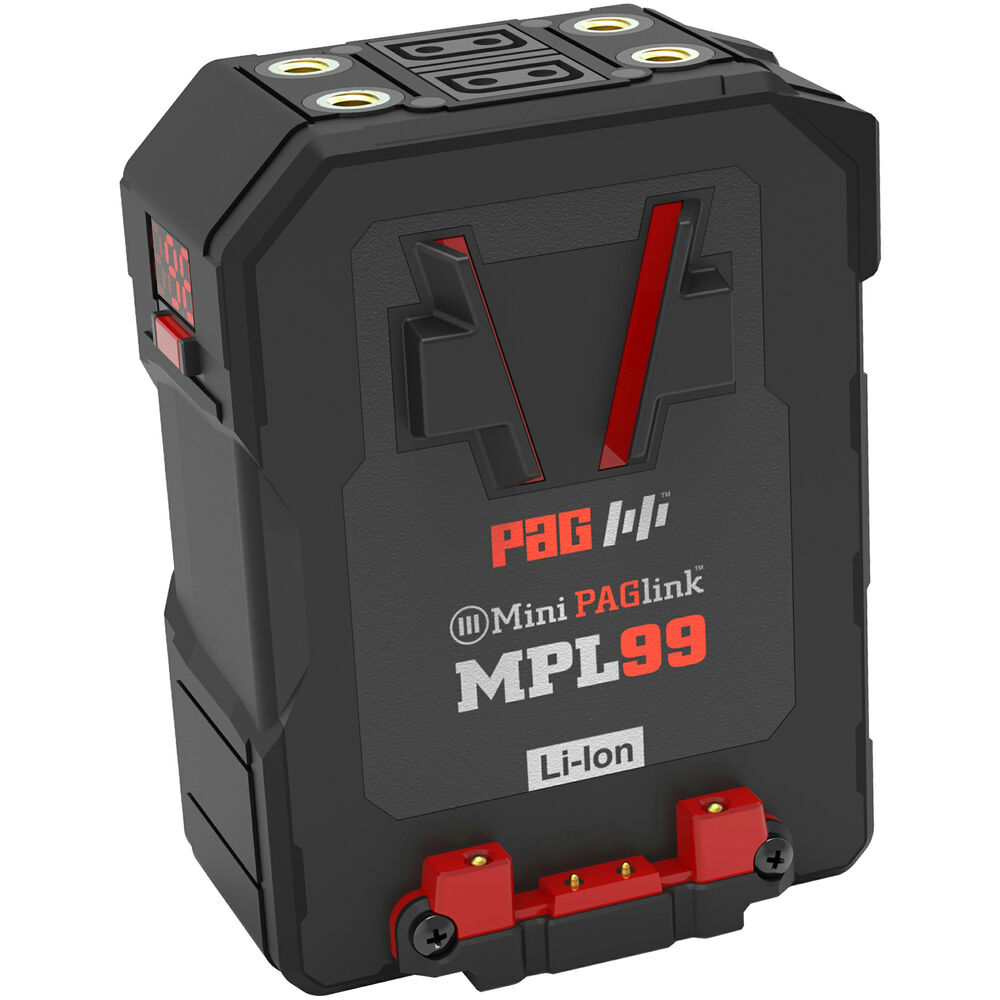

PAG Mini MPL99 Battery – VM

£282.00 Ex VAT

Category:
OVERVIEW
Huge savings on the PAG PAG-8241 (8241) Mini PAGlink MPL99 99Wh Battery – V Mount pag-mini-pag-8241-paglink-mpl99v-battery-vm / PAG-8241. The MPL99V is a 99Wh battery, designed tocomplement the dimensions of smaller cameras, butequally desirable for larger cameras. It will powercameras in combination with accessories such aslights and monitors. It provides a single, superiorpower source for your camera set-up.The MPL99V features built-in outputs that thecameras lack: 2 fixed D-Taps for 12V accessories anda USB unit (5V 2A), which can be swapped easilyby the user for a plug-in Lemo, Hirose or D-Tapconnector unit.
Less Weight or More Power
With intelligent battery linking, you can control the capacity and weight of your power source to suit the application: 1 battery for handheld applications, 2 to 3 batteries for more current or longer run-time. Linking two 99Wh MPL99V batteries doubles the capacity to 198Wh; 3 batteries provide 297Wh.

NASA Approved Cells
PAG’s Mini PAGlink batteries feature the highest-quality Li-Ion cells, selected by the NASA for their mission…

SUMMARY
Battery Capacity: 99Wh
Battery Capacity: 99-150Wh
Battery Indicator: Yes
Battery Mount / Type: V Mount
Battery Technology: Li-ion
Voltage: 14.8v
INCLUDED IN BOX
  • 1 x MPL99 V-Mount Battery

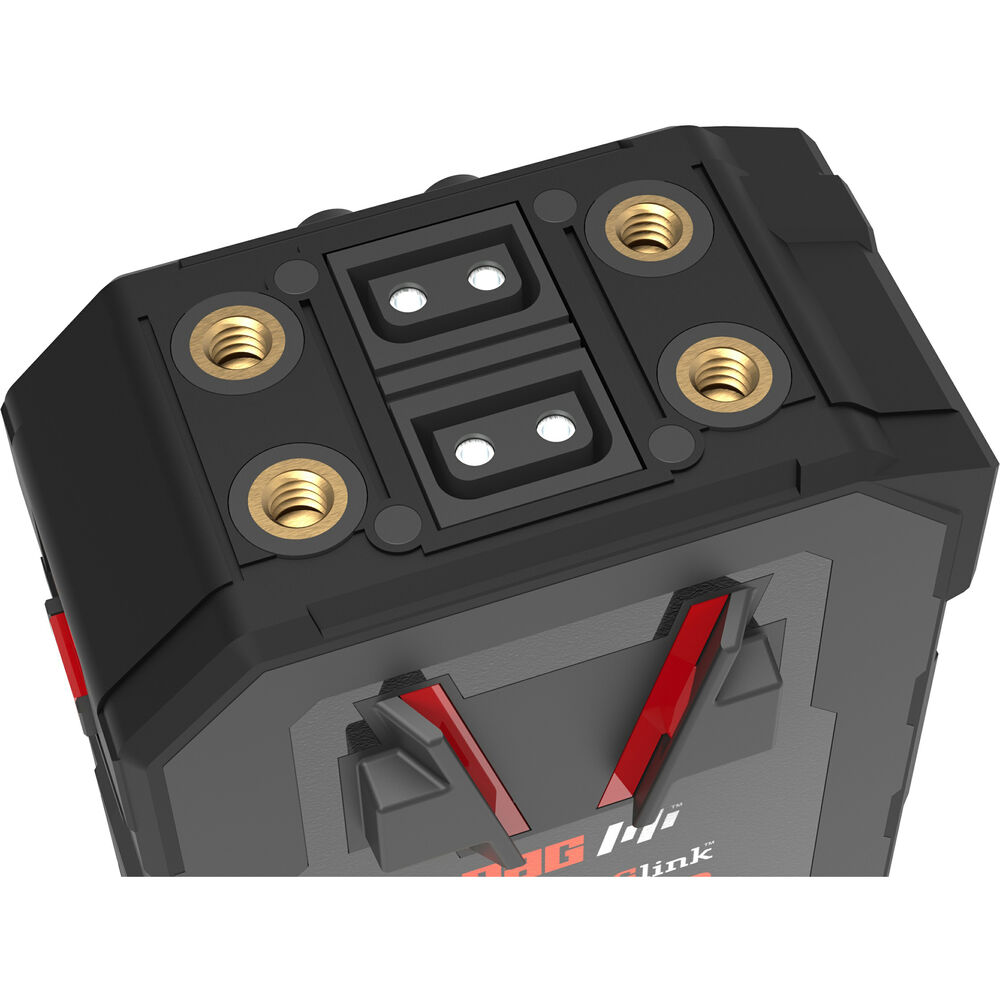

  • 2 x built-in D-Tap outputs

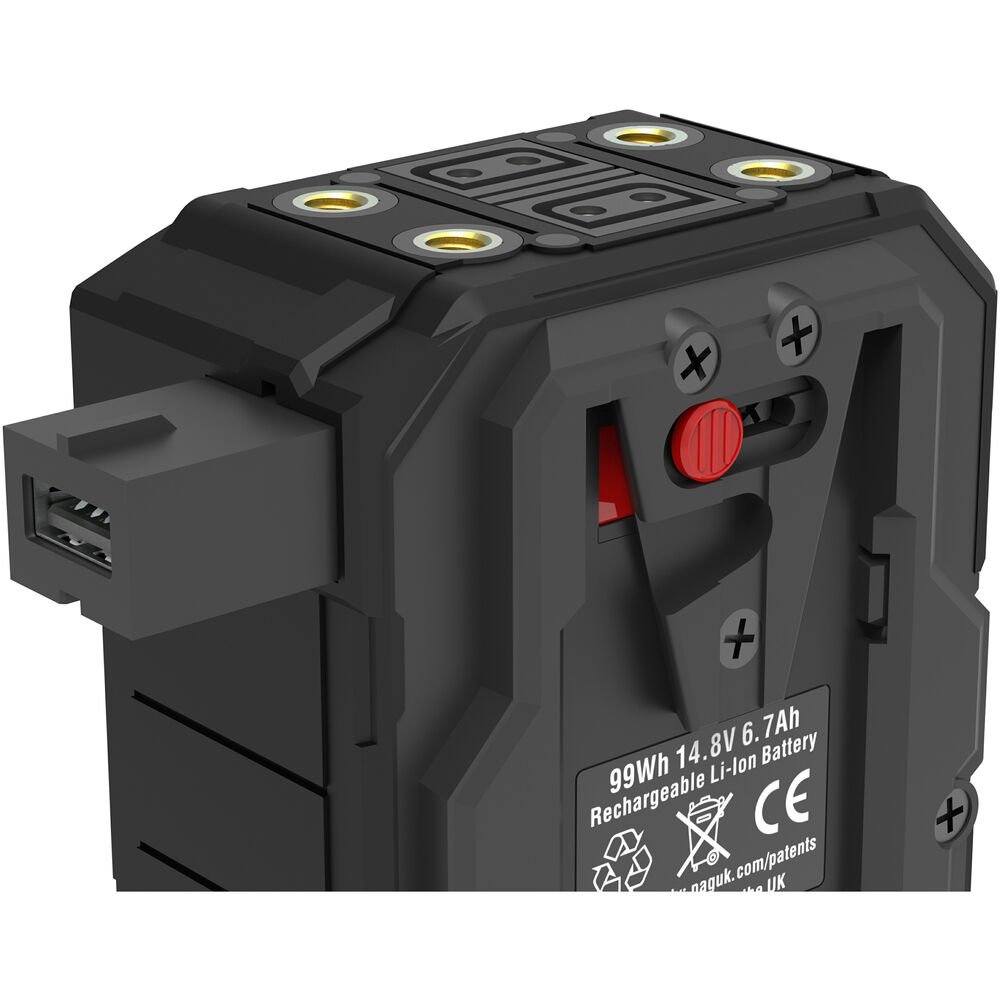

  • 1 x swappable USB (5V 2A) Output Unit

    About The PAG Mini MPL99 Battery – VM

    The MPL99V is a 99Wh battery, designed tocomplement the dimensions of smaller cameras, butequally desirable for larger cameras. It will powercameras in combination with accessories such aslights and monitors. It provides a single, superiorpower source for your camera set-up.The MPL99V features built-in outputs that thecameras lack: 2 fixed D-Taps for 12V accessories anda USB unit (5V 2A), which can be swapped easilyby the user for a plug-in Lemo, Hirose or D-Tapconnector unit.

    Less Weight or More Power

    With intelligent battery linking, you can control the capacity and weight of your power source to suit the application: 1 battery for handheld applications, 2 to 3 batteries for more current or longer run-time. Linking two 99Wh MPL99V batteries doubles the capacity to 198Wh; 3 batteries provide 297Wh.

    NASA Approved Cells

    PAG’s Mini PAGlink batteries feature the highest-quality Li-Ion cells, selected by the NASA for their mission to Europa, one of Jupiter’s moons. The NASA Battery Workshop found they offered ‘the most favourable combination of energy and cycling stability and high rate capability up to 10A’. They also demonstrated the best capacity retention after 500 cycles.

    More Current & Better ROI

    When batteries are linked and in similar state of charge, the current-draw capability increases from 10A to 12A. This is ideal for camera set-ups that require power for multiple accessories. Sharing the current load between batteries contributes to an extended overall battery life and a better return on investment. PAG guarantees the MPL99V for 2 years, with no limit on the number of cycles during that period.

    Hot-Swap or Add

    PAGlink allows seamless hot-swapping for continuous power, or the ability to add another battery just to keep shooting; putting an end to time-consuming camera reboots.

    No Dead Weight

    Simultaneous rather than sequential discharge means that there are no unused batteries adding dead weight to the camera.

    Intelligent Linking

    When linked, the batteries form a network that enables them to communicate with each other, managing the output safely, and preventing the transfer of charge between batteries. A fully-charged battery can be linked safely to one that is fully-discharged.

    Compatibility & Integration

    The MPL99V is compatible with full-size V-Mount camera plates. It can be linked to any Mini PAGlink V-Mount battery for discharging or charging, regardless of rated capacity. It can be charged using PAGlink or other manufacturer’s V-Mount chargers, for maximum versatility and economic integration.

    More Mounting Positions

    Each battery features four 1/4” bush inserts. These can be used for mounting camera accessories to individual or linked batteries.

    Run-Time, Capacity & Data

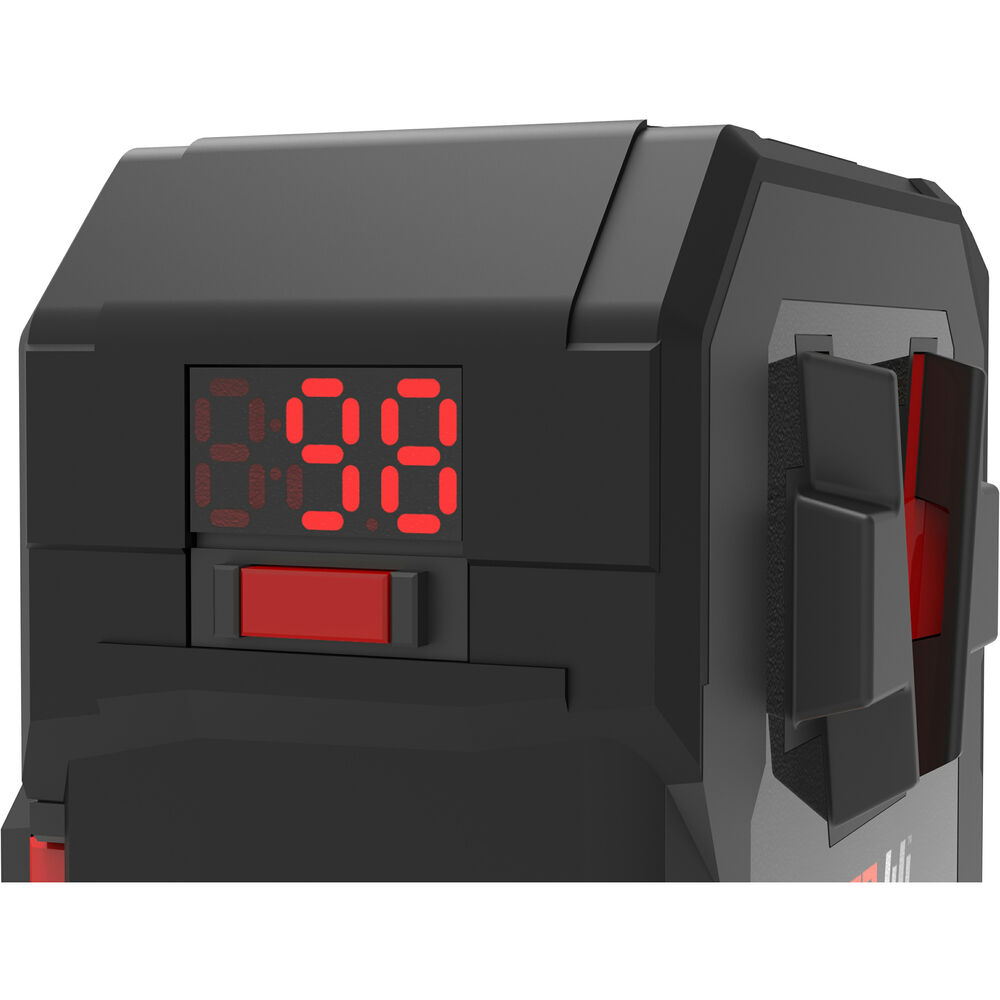

    PAG’s unique battery display shows remaining run-time, on-load, in hours and minutes. When batteries are linked, the run-time figure is for the entire stack. A single button press shows individual battery capacity as a percentage of full, in 1% increments. 3 button presses – hold, provides access to the data menu where amongst other useful information, the number of cycles can be displayed. This data is designed to assist with battery management.

    In-Viewfinder Information

    MPL99V batteries communicate automatically with multiple camera data systems, to display their remaining capacity in the viewfinder and LCD.

    Flight Friendly

    The MPL99V is a 99Wh battery and included in your personal allowance of 20 units of 100Wh or below, when you fly. All PAG Li-Ion batteries are tested to UN standards by an independent authority and certified to comply with air transport safety regulations. They are labelled with their UN Test number and air travel quantity allowance, based on their capacity.

    Linked Battery Charging

    Linked charging allows more batteries to be charged using fewer chargers, and with less user-intervention.
    Up to 10 MPL99V batteries, in any state of charge, can be linked for charging with any PAGlink charger. The batteries control their own charge regime which means that other manufacturer’s Li-Ion chargers can be used (dependent on the model and firmware version).
    The 2-position PAG PL16 Charger will fully-charge one fully-discharged MPL50 in 1hr 15mins, and 16 in 12hrs. State of charge as a percentage is indicated on the battery’s individual display.
    PAG also offers a low-cost, ultra-compact, Micro Charger, which is the ideal travel partner. It can be powered form a variety of 5-20V DC power sources, which is ideal for location use.

    Ergonomic & Durable

    The MPL99V features an ergonomic design and a ‘soft-touch’ coated outer band for safer handling and increased durability. The battery case is manufactured from high-impact, injection-moulded ABS which is inherently very strong and flexible. The MPL99V has been designed to withstand the harshest working conditions.

    Modular Construction

    Mini PAGlink batteries are the first to feature a new, fully-serviceable, modular construction that allows authorised replacement of the cell-pack whilst maintaining conformity with UN standards and IATA air transport regulations.

    Future-Proof Batteries

    PAGlink battery firmware can be updated in the field by the user, in a matter of seconds, without opening the battery case. Updates enable you to benefit from the technological advances that PAG introduces to accommodate developments in camera technology.

    • 99 Watt-hours, 14.8V 6.7Ah
    • Intelligent linking technology that allows capacities to be combined (2 linked = 198Wh, 3 = 297Wh)
    • Current draw capability of 12A when linked, 10A individually
    • Hot-swap batteries for continuous power
    • 2 x Built-in D-Tap outputs (12V 80W)
    • 1 x USB output unit (5V 2A), which can be swapped for other unit types: Hirose, Lemo and D-Tap
    • Ideal for powering smaller 4K cameras and accessories simultaneously
    • The best Li-Ion cell for high-current capability and capacity retention above 500 cycles, according to NASA Battery Workshop
    • 4 x 1/4” bushes for mounting accessories
    • Numeric Run-Time, Capacity & Data Display
    • Intelligent battery that communicates and manages its own charge and discharge safely
    • Up to 10 Mini PAGlink V-Mount batteries can be linked for charge or discharge, regardless of rated capacity or state of charge.
    • Compatible with PAGlink and other V-Mount Li-Ion chargers
    • Compatible with camera data systems that display capacity in the viewfinder/LCD (Sony & Red)
    • Ergonomic design and ‘soft-touch’ outer-band for secure handling
    • Durable case construction to withstand the toughest conditions
    • New modular design that allows easier servicing and authorised cell-pack replacement for greater sustainability
    • Battery firmware can be updated externally
    • Independently UN tested to meet passenger aircraft regulations
    • 2 year guarantee with no restrictive conditions

Brand

Pag
