1xUSB (Manual, 3D LUTs, Firmware Inside

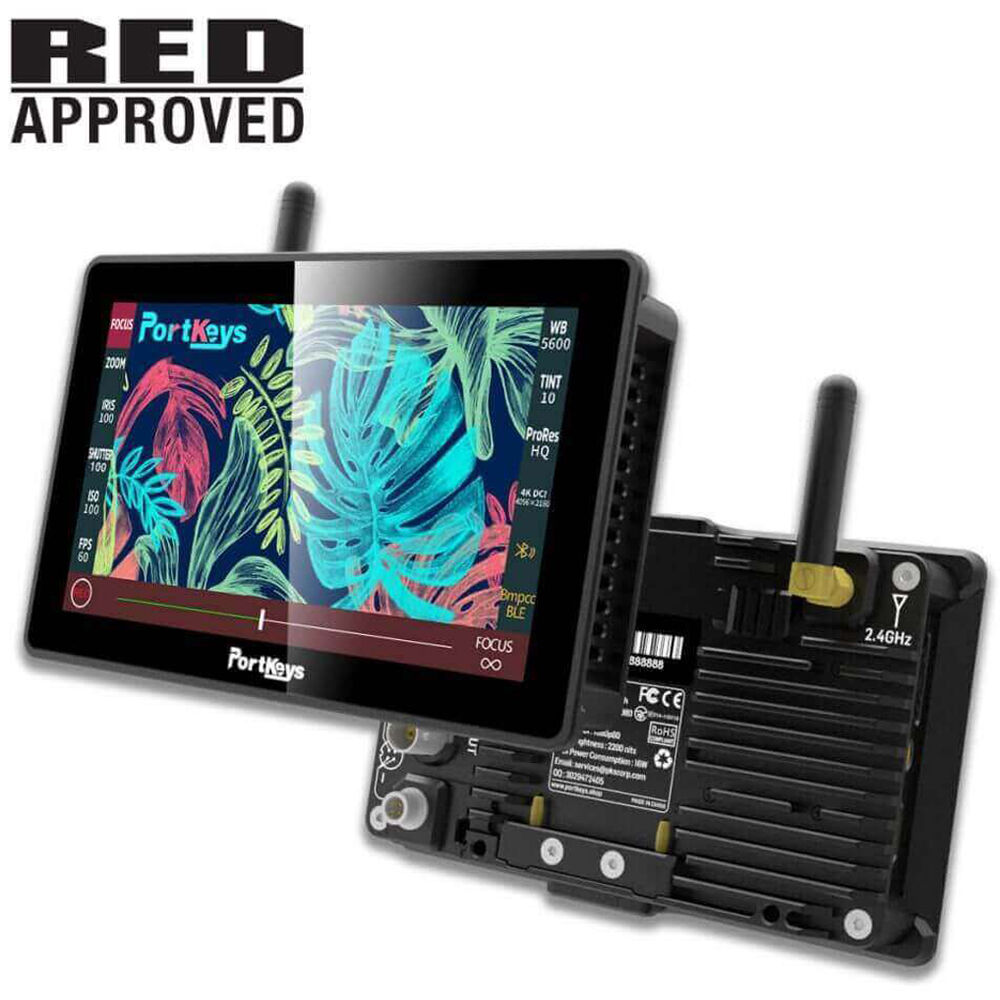

Portkeys BM5 III WR comes with a wireless control module specially designed to connect with RED Komodo wirelessly. The BM5 III WR with Camera Control maintains the same reliable BM5 clarity, vivid colour details, and dynamic touch screen camera control.
Support touch screen control focus on KOMODO, BGH1, E2
When you touch the screen of the monitor, it draws highlights around the edge of the focus, so you can focus quickly and accurately in real-time without any other tools.
Rugged aluminium alloy shell design, durable and lightweight. BM5 WR uses a sturdy aluminium alloy shell and weighs only 376g, which can withstand heavy daily operations, so it is easy to carry when shooting.
2200nits Super Bright, Sees Everything Clearly in Daylight
Portkeys BM5 WR offers a 2200nits ultra-high brightness 5.5-inch display with a clear resolution, excellent colour, and contrast, and precise image control.
HDMI/SDI Loop Out
The SDI input provides real-time monitoring. SDI OUT can output an image superimposed with 3DLUT and a new peak.
Each BM5 WR has passed strict hardware colour calibration before shipping to ensure the widest colour gamut and the most accurate colours.
10-bit (8+2 FRC)
The 10-bit colour depth makes the display colour reproduction more accurate, the image quality is more delicate, and the level is richer.
ARRI false colour mode
When you use the user mode, you can freely set the IRE.
The optimized new peaking algorithm can accurately capture the subtle facial focus.
The high-precision full-screen waveform can accurately capture 1920X1080 pixels frame by frame.
Semi-Transparent Superimposable Frozen Frame Image
The freeze-frame can be semi-transparently superimposed on the HDMI or SDI video so that the photographer can correct the displacement.
TILTA Cursor Display
The BM5 III-WR can display the position of the iron head wireless follow the focus scale. All in all, it can provide professional content creators with reliable tools for various scenari
- 3D LUT
- Image Capture
- Osd Flip
- Image and Video Overlay
- New Peaking
- False Colour
- Fan Adjustable
- H/V Delay
- BMD SDI TALLY
- 3D LUT SDI Output
- Custom RGB
- HDMI to SDI Output
- Check Field
- Touch Switch(EXIT)
- High Precision Waveform
- Audio Meters
- Battery Voltage Checking
- Wired/Wireless Camera Control
- Image Flip Automatically/Manually
- Cross Hair
- 1080p Refresh Rate
- Reduced to 1080i
