Overview
The Portkeys LH7P 7″ High Brightness Touchscreen Monitor is a lightweight and portable device with a 1000nit brightness level. It comes with built-in heat dissipation and supports 4K HDMI 30p input and 1080 HDMI 60P output. The monitor also features new peaking technology and can be controlled wirelessly for cameras such as BMPCC 4K/6K/6K Pro and Sony cameras. It also has the ability to customize JPG pictures and freeze frames, as well as provide supersampling for 4K cameras. Additionally, it supports anamorphic lens correction, vertical shooting, and 3D LUT output for movie-style reproduction.
The Portkeys LH7P also has built-in WiFi and Bluetooth modules for wireless control of cameras, although it still requires a video signal cable for transmission. Other features include customizable peaking range, brightness and RGB signal detection, and the ability to monitor camera parameters on the video screen. With its versatile and advanced capabilities, the Portkeys LH7P is a must-have for professional filmmakers and photographers.
Summary
Screen Size: 7 Inch
Resolution: 1920 x 1080
Inputs: HDMI
Outputs: HDMI
Included in box
1x LH7P Monitor
1x Safety Box
1x Micro USB Flash Drive
1x HDMI to HDMI Cable
1x Screen Cleaning Wipe
About the Portkeys LH7P Monitor – 7inch
Portkeys LH7P 7″ High Brightness Touchscreen Monitor – Support Wireless Control Camera
Wireless Control BMPCC 4K/6K/6K Pro, Sony Cameras.
Custom JPG Picture Custom Freeze Frame.
Make All 4K Cameras Have Supersample.
Brightness and RGB Signal Detection Before/After Loading 3D LUT.
Custom Rectangular Image Crop, Customized Peaking Range(Peaking Frame) Anamorphic Lens Correction 1080P60 HDMI Output, Vertical Shooting Stretches Legs and HDMI Output, 3D LUT Output.
WIFI Wireless Touch Control Cameras
Built-in Wireless Module, Video Real-Time Eyes Focus
*wireless control does not mean wireless video transmission, a video signal cable still needs to be connected during video transmission
Bluetooth Wireless Control of the Camera
Wireless Control of BMPCC cameras
*wireless control does not mean wireless video transmission, a video signal cable still needs to be connected during video transmission
Custom JPG Picture Custom Freeze Frame
After capturing an image, it can be compared with real-time video by semi-transparent image superposition Note: Must be a 16:9 1920×1080 jpg image
3D LUT Output
Customized 3D LUT，reproduce the movie style
Vertical Shooting Stretches Legs and HDMI Output
Controllable stretching of the images, Real-time monitoring the stretch effects, Stretched legs can be loaded with 3DLUT output from HDMI at 1080P60
Make All 4K Cameras Have Supersample
Supports 4K oversampling to 1080p, resulting in high resolution, high detail 1080p video
Anamorphic Lens Correction 1080P60 HDMI Output
Supported Ratio: 1.00X/1.33X/1.42X/1.50X/1.60X/1.66X/1.85X/2.00X/2.35X
User-defined adjustment range: 0.25X-4.00X
Brightness and RGB Signal Detection Before/After Loading 3D LUT
Loading 3D LUTs for better picture quality and more intuitive monitoring
Custom Rectangular Image Crop
Easily and clearly monitor the details of your images
Brightness and RGB Signal Detection Before/After Loading 3D LUT
Loading 3D LUTs for better picture quality and more intuitive monitoring
Customized Peaking Range(Peaking Frame)
New Peaking New Algorithm More intuitive More accurate
Video Screen Showing Camera Parameters
Perfect solution to the problem that some camera video screens have no camera parameters
Basic Parameters
Screen Size 7inch
Colour Gamut Rec.709
Resolution 1920X1080
Dimension 176.2 x 103.8 x 18.4 mm
Viewing Angle 85/85 /85 /85
Brightness 1000nit
Contrast Ratio 1000:1
Weight 245g
Material PC+ABS
Input Voltage 7-24V
Maximum Power 9W
Fan Yes
Software Function *3D LUT
New Peaking
Peaking Frame
RGB Waveform
Anamorphic
Luma Waveform
Peaking
Luma Histogram
ARRI False Colour
Guides
False Colour
Zebra
Cross Hair
Check Field
HDR(HLG)
Grids
Touch Screen
Custom RGB
Audio Meters
Backlight
Battery Voltage Checking
Brightness
Tint
Contrast
Colour Temperature
Chroma
Display Flip
Sharpness
Rectangle Crop
Wireless Control Camera
3D LUT Output
Custom Fan
Camera Recording
Vertical Extension
*Monitor does not have 3D LUT Storage, 3D LUT must be stored and loaded via USB stick

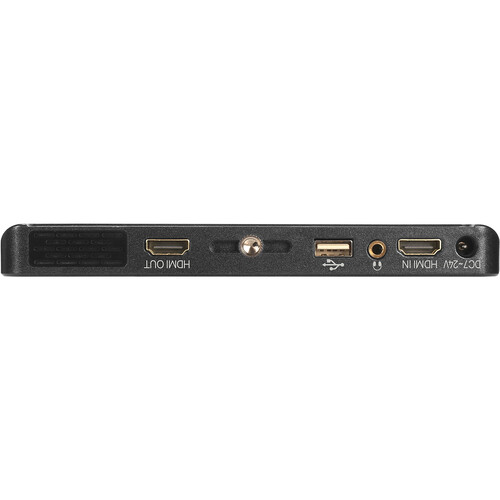

Interface
Video Input/Output Input Interface: 4K30p HDMI
Output Interface: 1080p60 HDMI
Support Battery Model Sony NP-F970/F960/F750/F550
Power Input 7-24V
USB-A Upgrade Firmware / Load 3D LUT / 5V2A Charger
Input Power Supply
Audio Output 3.5mm Headphone Jack
HDMI Output Function 3D LUT Output
Anamorphic lens calibration Output
UI Output
Image Brightness, tone, Contrast, Adjustment
Output
HDMI Input Signal 4096x2160p@24Hz
3840x2160p@23.97Hz, 24Hz, 25Hz, 29.97Hz, 30Hz
1920x1080p@23.97Hz, 24Hz, 25Hz, 29.97Hz, 30Hz, 50Hz, 59.94Hz, 60Hz
1920x1080psf@23.97Hz, 24Hz, 25Hz, 29.97Hz, 30Hz
1920x1080i@50Hz, 59.94Hz, 60Hz
1280x720p@50Hz, 59.94Hz, 60Hz
720x576p@50Hz
720x576i@50Hz
720x480p@50Hz, 59.94Hz, 60Hz
720x480i@50Hz, 59.94Hz, 60Hz
HDMI Output Signal 1920x1080p@60Hz
Lightweight and Portable
1000nit
Built-in Heat Dissipation
4K HDMI 30p Input
1080 HDMI 60P Output
New Peaking
