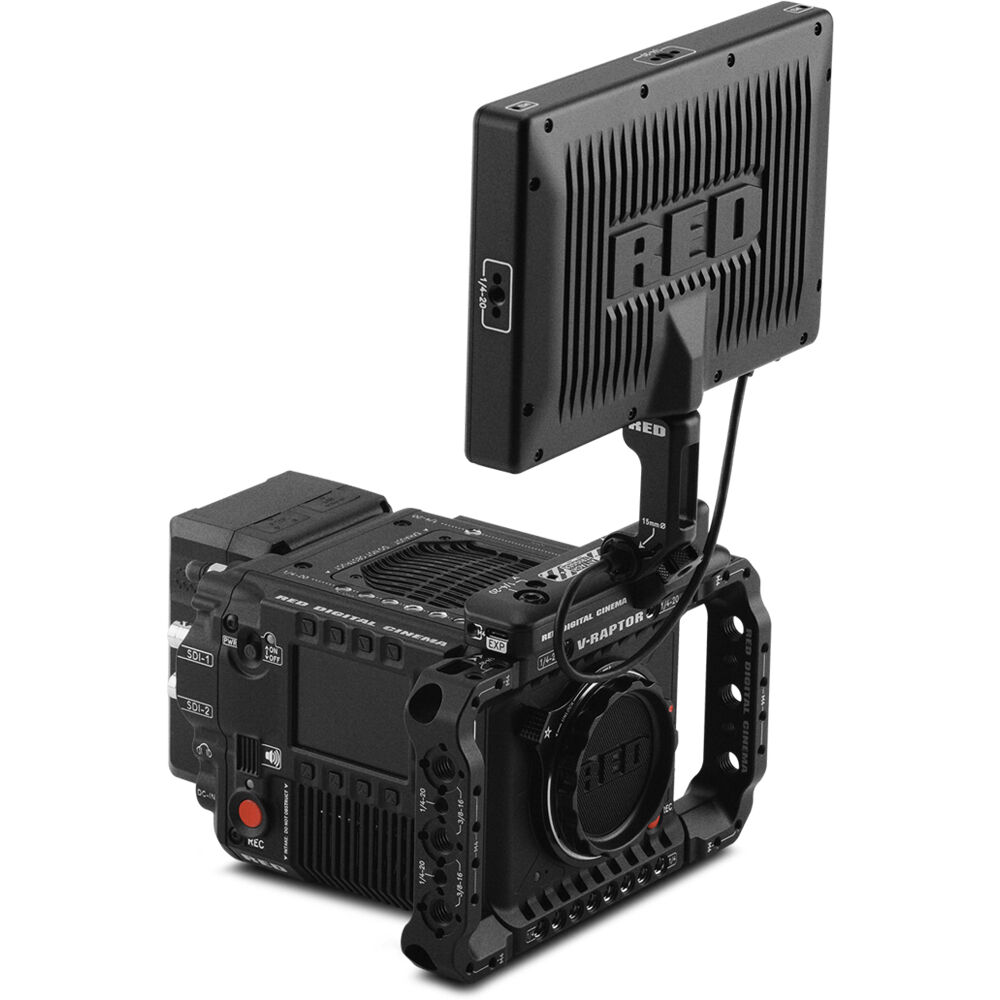

RED V-RAPTOR 8K S35 Starter Pack

OVERVIEW
The V-RAPTOR™ 8K S35 is a revolutionary addition to the RED® DSMC3™ generation of cameras. With the option of either the multi-format 8K VV + 6K S35 sensor or the all-new 8K S35 sensor, this camera offers filmmakers unparalleled versatility and performance.

Measuring only 6” x 4.25” x 4.25” and weighing just over 4 lbs, the V-RAPTOR 8K S35 boasts a compact and lightweight body, making it easy to handle and transport on any shoot.

Designed with ruggedness in mind, this camera is both dust and water resistant, ensuring durability and reliability in any shooting environment.

The V-RAPTOR 8K S35 also features a robust professional I/O array, including 2x 12G SDI outputs and dual channel audio input with phantom power, allowing for seamless integration with other equipment.

With an integrated and easy-to-navigate control display, as well as a USB-C interface for remote control, ethernet offload, and more, the V-RAPTOR 8K S35 offers filmmakers a user-friendly and efficient shooting experience.

Compatible with the RED Control app, the V-RAPTOR 8K S35 allows for even more control and customization, making it the perfect choice for any professional filmmaker.

Featuring advanced connectivity solutions, such as RED Connect for 8K R3D cinematic live streaming and remote record, as well as in-camera Frame.io integration and AWS direct upload, the V-RAPTOR 8K S35 is a versatile and powerful camera that can handle any production needs.

With its 8K S35 sensor, the V-RAPTOR offers filmmakers the ability to use a wide range of Super35mm lenses while still capturing in stunning 8K resolution. With over 16.5 stops of dynamic range and the ability to shoot at up to 600 fps at 2K, this camera is ready to capture breathtaking imagery in any environment.

Whether you’re a wildlife filmmaker, a broadcaster, or a traditional motion picture producer, the V-RAPTOR 8K S35 is the perfect starter pack for capturing cinematic-quality footage. Don’t settle for anything less than the best – choose the V-RAPTOR 8K S35 for your next project.

SUMMARY
Dynamic Range: 16.5+ stops
Lens Mount: Integrated Locking RF Mount
Recording Formats: REDCODE RAW
Audio Inputs: 1x 5-pin Audio Port
Battery Mount / Type: V-Lock
Media Type: CFexpress
Resolution and Frame Rate: 8192 x 4320
Sensor: V- RAPTOR 8K S35 35.4 Megapixel CMOS
Video Outputs: 2x 12G SDI
Weight: 0-2kg
Wi-Fi: Yes

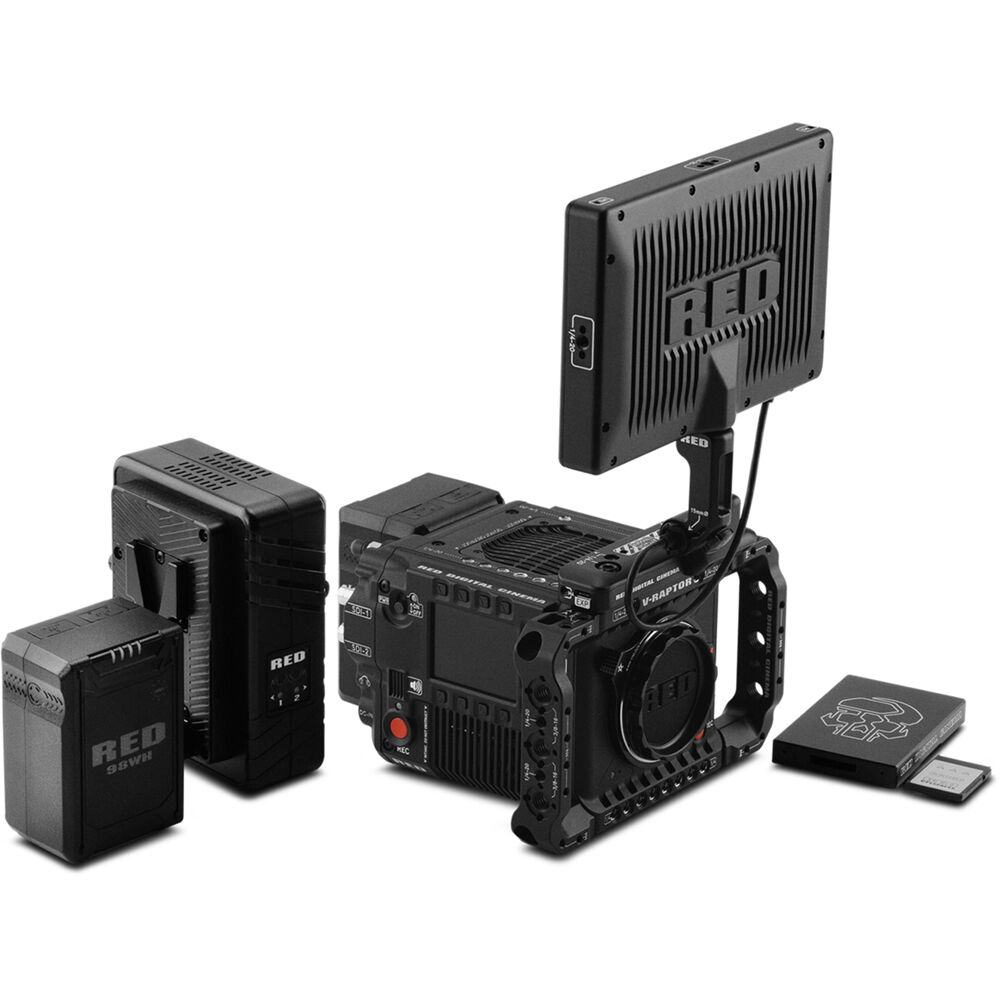

INCLUDED IN BOX
1x V-RAPTOR 8K S35
1x RED Pro CFexpress 2TB
1x RED CFexpress Card Reader
2x REDVOLT MICRO-V
1x RED Compact Dual V-Lock Charger
1x DSMC3 RED Touch 7.0″ LCD
1x RED EXT-to-Timecode cable 3ft
2x V-RAPTOR Wing Grip
About The RED V-RAPTOR 8K S35 Starter Pack
V-RAPTOR™ 8K S35 is another addition into the RED® DSMC3™ generation of cameras. Building on the same architecture of the V-RAPTOR™ 8K VV, the V-RAPTOR 8K S35 offers a new shooting format while leveraging the improvements in color science and performance of its larger 8K VV predecessor.

Featuring an 8K sensor optimized for Super35mm lenses, V-RAPTOR 8K S35 offers filmmakers a unique benefit of using the versatile range of Super35mm lenses while still capturing in the smooth true-to-life detail that 8K resolution provides. Create stunning slow-motion imagery at 120 fps using the full 8K Super35mm field of view, or up to 600 fps at 2K. With over 16.5 stops of dynamic range, V-RAPTOR 8K S35 is ready to capture stunning imagery in all types of environments. V-RAPTOR™ 8K S35 will also continue to feature RED’s proprietary REDCODE® RAW codec, allowing users to capture 16-bit RAW, and leverage RED’s latest IPP2 workflow and color management.

The 8K S35 sensor sits inside the same camera body as V-RAPTOR 8K VV, offering the same horsepower and flexibility filmmakers have come to rely on. The V-RAPTOR features a modernized platform in an amazingly compact package weighing in at barely over 4 lbs. With two 4K 12G-SDI outputs, XLR audio and phantom power via breakout adapter, and 1080p livestream, this system can handle most anything a shooter can throw at it.

Additionally, the V-RAPTOR/V-RAPTOR™ XL and the DSMC3 platform features advanced connectivity solutions which enable applications such as RED Connect for 8K R3D cinematic live streaming and remote record, remote control and monitoring, in-camera Frame.io integration, AWS direct upload, and more.

The new and advanced V-RAPTOR and V-RAPTOR XL systems now feature a brand-new, 8K S35 sensor option. Featuring 16.5+ stops of dynamic range, fast cinema-quality sensor scan time, and unmatched low-light performance. The Super 35mm format is still ideal for many markets, such as wildlife, broadcast, and traditional motion picture productions that prefer S35 lenses.

Why S35?

The Super35mm format is still ideal for many markets over Large Format. While traditional motion picture productions may prefer the aesthetic of the “Large Format Look,” for many applications large format may not be as practical.

Wildlife

Wildlife Filmmakers are often hundreds of feet from their subjects and in remote or barely accessible locations. This requires a compact kit and ability to shoot in Super35mm format, allowing for wide range zoom lenses, like the Canon 50-1000mm, with the size and weight to remain flexible for any scenario or environment. The V-RAPTOR 8K S35 unlocks all of this, along with capturing archival-quality 8K resolution inside of the compact and powerful V-RAPTOR camera body, so filmmakers can capture breathtaking images anywhere on the globe.

Broadcasting

Live event broadcasting continues its trend of blending cinematic imagery into its final delivery. Whether these productions are looking to highlight shallower depth of field, slow motion playback, or higher resolution, the V-RAPTOR 8K S35 provides all of the power of RED’s cinematic image quality in a format that supports the wide range of lenses required for live event coverage. Live 8K workflows using RED Connect unleashes the power of 8K in these environments, allowing for different framing to be pulled from a single camera position and controlled downstream for a more immersive production.

Traditional Cinema

Lenses are as critical of a decision for a cinematographer as the camera itself. When the lenses that are needed to tell the story do not cover large format, filmmakers have the choice of either using V-RAPTOR 8K VV at 6K Super35mm, or now V-RAPTOR 8K S35 for when the full 8K resolution is needed. By capturing the full 35 megapixels of 8K compared to the 20 megapixels of 6K, filmmakers maintain the full flexibility of 8K image capture while in the Super35mm format.

Sensor V- RAPTOR 8K S35 35.4 Megapixel CMOS
EFFECTIVE PIXELS 8192 (h) x 4320 (v)
SENSOR SIZE 26.21 mm x 13.82 mm (Diagonal: 29.63 mm)
DYNAMIC RANGE 16.5+ Stops
Mount Type Integrated Locking RF Mount
Supports /i PL Lenses with RED RF to PL Adapters
Supports Canon RF lenses or Canon EF lenses via compatible Canon RF to EF mount adapter
Battery Type Integrated V-Lock battery interface optimized for Micro V-Lock Batteries
Recording
MAX DATA RATES Up to 800 MB/s using RED branded or other qualified CFexpress media cards (1)
REDCODE RAW MAX FRAME RATES 120 fps at 8K 17:9 (8192 x 4320), 150 fps at 8K 2.4:1 (8192 x 3456)
140 fps at 7K 17:9 (7168 x 3780), 175 fps at 7K 2.4:1 (7168 x 3024)
160 fps at 6K 17:9 (6144 x 3240), 200 fps at 6K 2.4:1 (6144 x 2592)
192 fps at 5K 17:9 (5120 x 2700), 240 fps at 5K 2.4:1 (5120 x 2160)
240 fps at 4K 17:9 (4096 x 2160), 300 fps at 4K 2.4:1 (4096 x 1728)
320 fps at 3K 17:9 (3072 x 1620), 400 fps at 3K 2.4:1 (3072 x 1296)
480 fps at 2K 17:9 (2048 x 1080), 600 fps at 2K 2.4:1 (2048 x 864)
PLAYBACK FRAME RATES (PROJECT TIME BASE) 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps, all resolutions
BEST AVAILABLE REDCODE SETTINGS REDCODE HQ, MQ and LQ at 8K 17:9 (8192 x 4320) up to 60 fps
REDCODE LQ at 8K 17:9 (8192 x 4320) up to 120 fps
REDCODE HQ, MQ and LQ at 6K 17:9 (6144 x 3240) up to 96 fps
REDCODE MQ and LQ at 6K 17:9 (6144 x 3240) up to 160 fps
REDCODE HQ, MQ and LQ at 4K 17:9 (4096 x 2160) up to 240 fps
REDCODE HQ, MQ and LQ at 2K 17:9 (2048 x 1080) up to 480 fps
REDCODE RAW ACQUISITION FORMATS 8K 17:9 (8192 x 4320), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x
7K 17:9 (7168 x 3780), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x
6K 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 1.5x, 1.3x, 1.25x
5K 17:9 (5120 x 2700), 2:1, 2.4:1, 16:9, 1:1
4K 17:9 (4096 x 2160), 2:1, 2.4:1, 16:9, 1:1
3K 17:9 (3072 x 1620), 2:1, 2.4:1, 16:9, 1:1
2K 17:9 (2048 x 1080), 2:1, 2.4:1, 16:9, 1:1
Apple ProRes Dedicated recording in ProRes 4444 XQ, ProRes 4444, ProRes 422 HQ, ProRes 422, and ProRes 422 LT.
4K (4096 x 2160) and 2K (2048 x 1080) up to 120 fps
Proxy recording available up to ProRes 422 HQ in 2K (2048 x 1080) 60 fps.
General
CONSTRUCTION Aluminium Alloy
WEIGHT 4.03 lbs (without body cap and CFexpress card)
DC POWER INPUT 11-17 V via 6-Pin DC-IN
OPERATING TEMPERATURE 0°C to 40°C (32°F to 104°F)
STORAGE TEMPERATURE -20°C to 50° C (-4°F to 122°F)
STORAGE RELATIVE HUMIDITY 0% to 85% non-condensing
Features
COLOR MANAGEMENT Image Processing Pipeline 2 (IPP2)
Supports multiple simultaneous 33x33x33 3D LUT viewing
Supports multiple simultaneous CDL viewing and adjustment
AUDIO Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz
Integrated dual channel mic/line/+48V input via 5-Pin Audio Port, uncompressed, 24-bit 48 kHz
AUTOFOCUS Phase Detect and Contrast
REMOTE CONTROL Wi-Fi for camera control via interchangeable dual band (2.4 GHz/5 GHz) antenna mounted to a female RP-SMA connector
Genlock, Timecode-in, GPIO and Ctrl (RS- 232) via the integrated 9-pin EXT Port
Wired control via USB-C or Gigabit Ethernet (compatible USB-C to Ethernet adapter required) allowing
remote camera control, live MJPEG preview video feed and remote media offload
Compatible with RED Control and RED Control Pro
POWER OUTPUTS Power output options available via compatible accessories
MONITOR OUTPUTS Proprietary top accessory port for monitoring and control
Integrated dual 12G-SDI with 6G-SDI, 3G- SDI and 1.5G-SDI modes
12G-SDI: Up to 4096 x 2160 4:2:2 for 60p
6G-SDI: Up to 4096 x 2160 4:2:2 for 30p, 25p, 24p
3G-SDI: Up to 2048 x 1080 4:2:2 for 60p
1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 25p, 24p
SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio
MONITOR OPTIONS DSMC3 RED® Touch 7.0” LCD
Wireless 1080p live preview video feed via 2.4Ghz/5Ghz Wi-Fi for framing
Integrated 2.4” LCD for camera control (no preview video
CAMERA SYNC OPTIONS Tri-Level Genlock through 9-Pin EXT Port
Linear Timecode (LTC) through 9-Pin EXT Port
SOFTWARE
RED CONTROL AND RED CONTROL PRO Access full camera controls and live preview from iOS or Android devices.
Pro App:Operate one or multiple V-RAPTOR’s over an IP connection to synchronize settings, manage media files locally or upload directly to
FrameIO, develop custom looks with advanced CDL and LUT controls, and more. Ideal for control of multi-camera arrays, multi-cam shoots, and
live events, all from one central location.
Standard app available from the Apple App Store and Google Play Store.
RED Control Pro available via Apple App store only and requires additional purchase.
RED Control works wirelessly or wired via USB-C
Available with the multi-format 8K VV + 6K S35 sensor or all-new 8K S35.
Compact body measuring only 6” x 4.25” x 4.25” and just over 4 lbs
Rugged dust and water resistant design
Robust professional I/O array including 2x 12G SDI outputs and dual channel audio input w/phantom power
Integrated and easy-to-navigate control display
USB-C interface for remote control, ethernet offload, and more
Compatibility with RED Control app
