Overview
V-RAPTOR XE brings the uncompromised image quality of REDs flagship large format global shutter sensor to a whole new segment of filmmakers. Leveraging the V-RAPTOR [X] platform, V-RAPTOR XE includes the essential features for modern filmmaking, including R3D recording at up to 8K VV 60P, 4K 120P, and 2K 240P.
With its advanced capabilities, V-RAPTOR XE is designed to meet the demands of professional filmmakers looking for high-quality image capture in a compact and versatile camera. Whether shooting in 8K or slow-motion, the V-RAPTOR XE provides filmmakers with the tools they need to bring their creative vision to life on the big screen.
Summary
Dynamic Range: 17+ stops
Lens Mount: Canon RF
Recording Formats: REDCODE RAW
Internal ND: No
Audio Inputs: Internal Mic
Shutter: Global
Battery Mount / Type: V-Lock
Media Type: CFexpress Type B
Video Outputs:
12G-SDI
3G-SDI
6G-SDI
Weight: 0-2kg
Wi-Fi: Yes
Included in box
1x V-RAPTOR XE Camera System
1x RED Logo Sticker
1x DSMC AC Power Adaptor 150W – NOTE: Power cord NOT included – must purchase separately.
V-RAPTOR XE Information Card (incl. registration and support info)

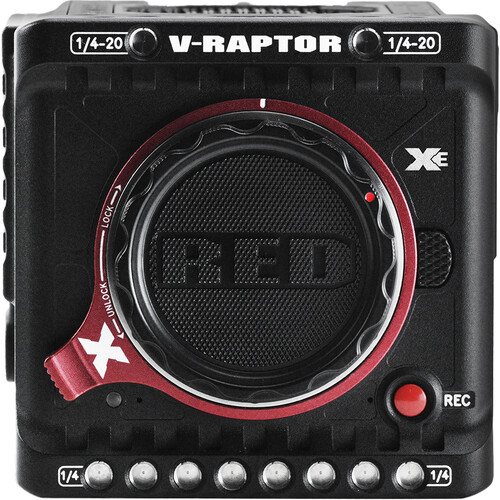

About the RED V-RAPTOR XE RF Mount
ESSENTIALS OF FILMMAKING
V-RAPTOR® XE RF Mount brings the uncompromised image quality of RED’s flagship large format global shutter sensor to a whole new segment of filmmakers. Leveraging the V-RAPTOR [X] platform, V-RAPTOR XE includes the essential features for modern filmmaking, including R3D recording at 8K VV 60P, 4K 120P, and 2K 240P.
V-RAPTOR XE features 2x 12G SDI’s capable of unique monitoring views, a locking Canon RF style lens mount for secure and flexible lens selection, CFexpress Type B media for up to 800MB/s recording, as well as pre-record and simultaneous proxy record capabilities.
SEE IN VV
V-RAPTOR XE offers the next level in image quality, I/O, and workflow to filmmakers looking to expand on the features of KOMODO-X. The 8K VV sensor has over 50% more pixels and overall size when compared to KOMODO-X’s 6K S35, resulting in more creative control over depth of field, stabilization, and detail capture. Along with a tightly managed thermal system, V-RAPTOR XE offers best in class lowlight performance and post-latitude when paired with the R3D recording format.
IP CONNECTED
V-RAPTOR XE features the same in-camera cloud upload integration with Frame.io or AWS, as well as compatibility with RED Control™ and RED Control Pro™ via wireless or wired configuration for complete remote control in any environment.
V-RAPTOR [X] 8K VV
An industry first combination of large format, global shutter, high frame rate, lowlight performance, and high dynamic range creates an all-in-one tool for creatives.
Global Shutter Benefits
Faithfully capture the motion of your action no matter how fast your subject is moving, with no distortion or jello-effect.
Dynamic Range
With 17+ stops of dynamic range in standard modes and up to 20+ with Extended Highlights, V-RAPTOR [X] delivers both smooth highlight roll-off and unmatched low-light performance.
The Devil is in the Details
Explore the depths of cinematic storytelling. Not only do the 17+ stops and 8K VV sensor allow for seeing deeper into the shadows, but it also creates natural noise and colour fidelity that reproduces the most organic images possible.
Dynamic Range Extended
Global Vision’s Extended Highlights offers over 3 stops of additional dynamic range to maintain colour and detail even in extreme highlights.
Extended Highlights
Capture more detail and colour into highlights than ever before, while providing an even softer and more subtle highlight roll-off when in uncontrollable environments.
Phantom Track Benefits
Capture final pixel and green screen simultaneously from a single V-RAPTOR [X]. Streamline the on-set workflow by distinctly monitoring each Phantom Track independently.
Frame Rates
Every camera in the red lineup offers powerful frame rate performance. Shooters can add unique elements like timelapse or speed-ramping to narrative work, pull sharp stills to capture any moment, or replace their specialty-cam shots.
Advanced Connectivity
Unlock the capabilities of V-RAPTOR [X] through multiple next generation remote connectivity options, including the RED Control Pro App and the all-new RED CONNECT technology.
Form Factor Comparison
The size and features of the V-RAPTOR [X] and V-RAPTOR XL [X] systems offer the perfect tool for the filmmakers no matter the project or job.
SENSOR SPECS
SENSOR READOUT GLOBAL SHUTTER
SENSOR TYPE V-RAPTOR® XE 8K VV 35.4MP Global Shutter CMOS
SENSOR SIZE 8192 x 4320 / 40.96 mm x 21.60 mm (Diagonal: 46.31 mm)
DYNAMIC RANGE 17+ stops
KEY FEATURES
RED GLOBAL VISION Not Available
RED CONNECT Compatible with USB-C 250MB/s RED Connect for live R3D video over IP
ND FILTER RED PL Adapter w/ Electronic ND Filter Pack Available
MOUNT TYPE Integrated locking Nikon Z Mount or
Canon RF Mount with electronic communication
Supports /i PL lenses with RED PL Adapters
Support for other adapters based on the Nikon Z Mount or Canon RF Mount
RECORDING
MAX DATA RATES Up to 800 MB/s using RED branded or other qualified CFexpress media cards
REDCODE® RAW MAX FRAME RATES 60 fps at 8K 17:9 (8192 x 4320), 75 fps at 8K 2.4:1 (8192 x 3456)
70 fps at 7K 17:9 (7168 x 3780), 87 fps at 7K 2.4:1 (7168 x 3024)
80 fps at 6K 17:9 (6144 x 3240), 100 fps at 6K 2.4:1 (6144 x 2592)
96 fps at 5K 17:9 (5120 x 2700), 120 fps at 5K 2.4:1 (5120 x 2160)
120 fps at 4K 17:9 (4096 x 2160), 150 fps at 4K 2.4:1 (4096 x 1728)
160 fps at 3K 17:9 (3072 x 1620), 200 fps at 3K 2.4:1 (3072 x 1296)
240 fps at 2K 17:9 (2048 x 1080), 300 fps at 2K 2.4:1 (2048 x 864)
PLAYBACK FRAME RATES (PROJECT TIME BASE) 23.98, 24, 25, 29.97,
30, 50, 59.94, 60 fps, all resolutions
BEST AVAILABLE REDCODE® SETTINGS REDCODE HQ, MQ, LQ,
and ELQ at 8K 17:9 (8192 x 4320) up to 60 fps
REDCODE HQ, MQ, LQ, and ELQ at 6K 17:9 (6144 x 3240) up to 80 fps
REDCODE HQ, MQ, LQ, and ELQ at 4K 17:9 (4096 x 2160) up to 120 fps
REDCODE HQ, MQ, LQ, and ELQ at 2K 17:9 (2048 x 1080) up to 240 fps
REDCODE® RAW ACQUISITION FORMATS 8K 17:9 (8192 x 4320),
2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x
7K 17:9 (7168 x 3780), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x
6K 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 1.5x, 1.3x, 1.25x
5K 17:9 (5120 x 2700), 2:1, 2.4:1, 16:9, 1:1
4K 17:9 (4096 x 2160), 2:1, 2.4:1, 16:9, 1:1
3K 17:9 (3072 x 1620), 2:1, 2.4:1, 16:9, 1:1
2K 17:9 (2048 x 1080), 2:1, 2.4:1, 16:9, 1:1
Apple ProRes Dedicated 2K and 4K recording in ProRes 4444 XQ,
ProRes 4444, ProRes 422 HQ, ProRes 422, and ProRes 422 LT
up to 120 fps in select formats.
Simultaneous Proxy recording available in ProRes Proxy to
ProRes 422 HQ in 2K (2048 x 1080) up to 60 fps.
GENERAL
CONSTRUCTION Aluminium Alloy
MAX. DIMENSIONS 150 x 116 x 108 mm / 5.9 x 4.5 x 4.3 in
WEIGHT 4.03 lbs (without body cap and CFexpress card)
MEDIA TYPE CFexpress Type B
BATTERY TYPE Integrated V-Lock battery interface optimized for Micro V-Lock Batteries
DC POWER INPUT 11-17 V via 6-pin DC-IN
FEATURES
COLOR MANAGEMENT Image Processing Pipeline 2 (IPP2)
Supports multiple simultaneous 33x33x33 3D LUT viewing
Supports multiple simultaneous CDL viewing and adjustment
AUDIO Integrated dual channel digital mono microphones, uncompressed,
24-bit 48 kHz Integrated dual channel (mic/line/+48V)
input via 5-Pin 00B Audio Port, uncompressed, 24-bit 48 kHz
3.5mm stereo headphone port
AUTOFOCUS Sensor-based Phase Detect with Face Detection
REMOTE CONTROL Wi-Fi for camera control via interchangeable dual band
(2.4 GHz/5 GHz) antenna mounted to a female RP-SMA connector
Wired control via USB-C (compatible adapters required 1)
allowing remote camera control, live MJPEG preview video feed and
remote media offload Genlock, Timecode-in, GPIO and Ctrl (RS-232) via the integrated 9-pin EXT Port
POWER OUTPUTS Power output options available via compatible accessories
MONITOR OUTPUTS Proprietary Top Accessory Port for LCD or EVF with Control
Integrated dual 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes
SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio
ADDITIONAL I/O Tri-Level Genlock through 9-Pin EXT Port
Linear Timecode (LTC) through 9-Pin EXT Port
GPIO through 9-Pin EXT Port
SOFTWARE
RED CONTROL RED Control Access full camera controls and live preview from iOS or Android devices.
RED Control Pro Operate one or multiple Cameras over an
IP connection to synchronize settings, manage media files locally or
upload directly to FrameIO, develop custom looks with advanced CDL and
LUT controls, and more. Ideal for control of multi-camera arrays,
multi-cam shoots, and live events, all from one central location.
RED Control Pro available via Apple App store only and requires additional purchase.
8K VV GLOBAL SHUTTER SENSOR
Groundbreaking new image-capture technology and the first of its kind in a cinema camera.
GLOBAL VISION
Extended Highlights protection for unmatched colour and detail in the highlights, and Phantom Track dual-capture mode for maximum flexibility and potential in virtual production workflows.
17+ STOPS OF DYNAMIC RANGE
Leverage the industry-best low-light performance of the 8K VV sensor and unlock even more dynamic range with Extended Highlights mode.
INTELLIGENT FOCUS
In-camera processing and on-sensor enhanced phase detect autofocus, plus all-new face-detection offers versatility and confidence for users across all levels of filmmaking.
UP TO 120FPS @ 8K
With unmatched frame-rate performance in a cinema camera, shooters can leverage elements like timelapse, speed-ramping, or pull ultra-sharp stills.

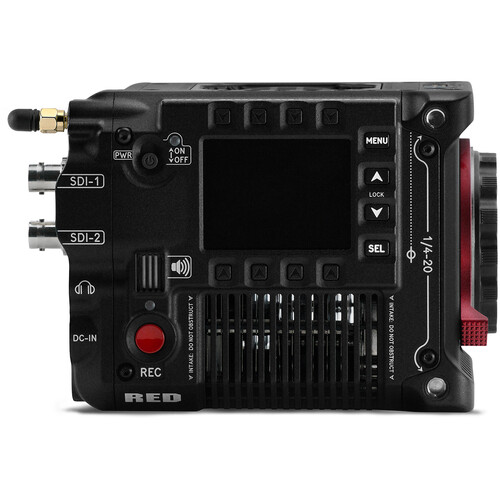

INTEGRATED CONTROL DISPLAY
Easy to navigate and intuitive. Allowing for comprehensive controls, including in-camera format selections, customized buttons, and more.

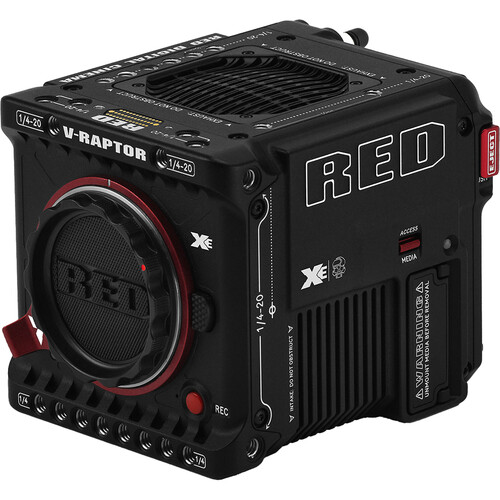

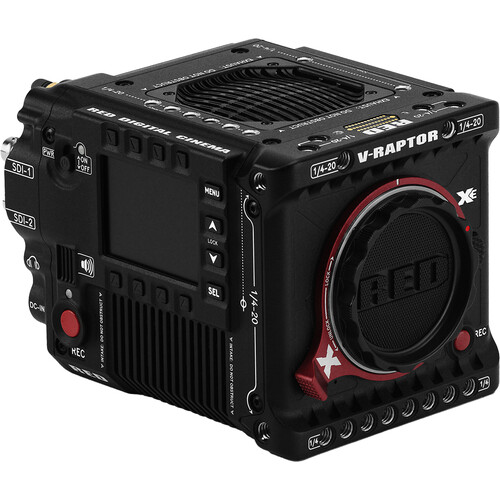

SMALL FORM FACTOR
At 6” x 4.25” x 4.25” and just over 4 lbs, the standard V-RAPTOR body allows for tremendous flexibility and usability in any shooting environment.
All-New Audio Architecture
Newly engineered audio hardware provides cleaner and clearer audio when connecting external microphones.
