Rode VideoMic-R Microphone

OVERVIEW

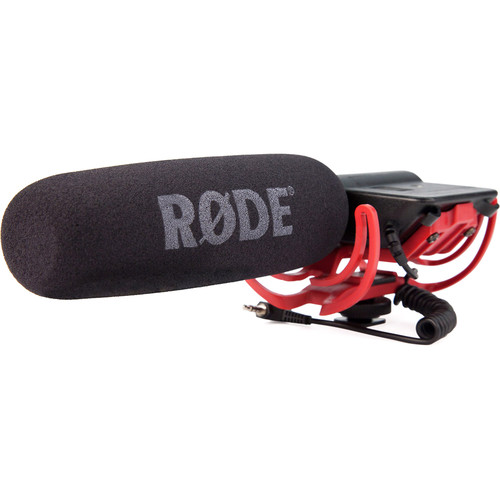

The RODE VideoMic is a professional grade shotgun microphone. Based on the latest Film industry technology, the VideoMic is designed specifically for use with high quality Digital Video Cameras.
The microphone exhibits low noise and an unusually wide bandwidth for its size. It is ultra lightweight, yet rugged due to its ABS construction. The VideoMic is powered by a standard 9 V battery and offers a Low Battery LED status indicator and a switchable high pass filter to reduce unwanted low frequency rumble.

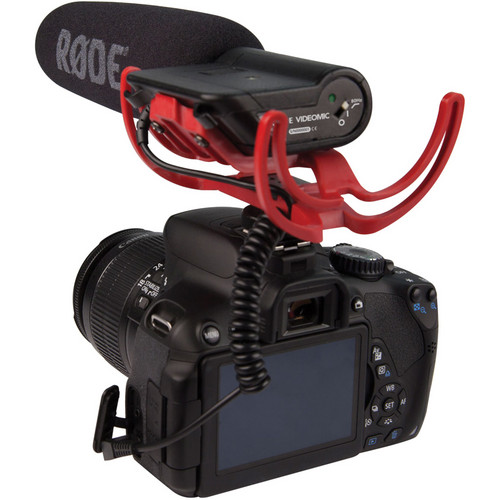

The VideoMic attaches to any Camcorder that has the standard hot-shoe fitting and utilises a stereo mini jack for audio output.
Comes with a Rycote suspension mount.
SUMMARY
Connectivity: 3.5mm Mini Jack
Direction: Super-Cardoid
INCLUDED IN BOX
1x Short Shotgun Mic with super-cardioid response & HPF. Battery powered.
1x Rycote Suspension mount
1x Hot shoe fitting
1x 3.5mm stereo jack
1x Windshield

About The Rode VideoMic-R Microphone
The RODE VideoMic is a professional grade shotgun microphone. Based on the latest Film industry technology, the VideoMic is designed specifically for use with high quality Digital Video Cameras.

The microphone exhibits low noise and an unusually wide bandwidth for its size. It is ultra lightweight, yet rugged due to its ABS construction. The VideoMic is powered by a standard 9 V battery and offers a Low Battery LED status indicator and a switchable high pass filter to reduce unwanted low frequency rumble.

The VideoMic attaches to any Camcorder that has the standard hot-shoe fitting and utilises a stereo mini jack for audio output.

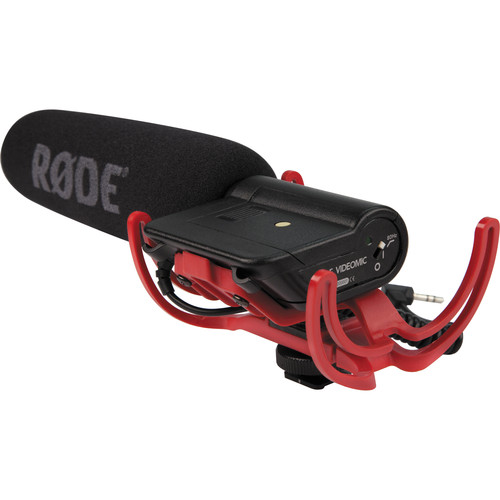

Comes with a Rycote suspension mount.

Operation power: The VideoMic is designed to operate from a 9 V battery (ANSI:1604A or IEC:6LR61). The battery is conveniently located within the support arm of the microphone. A fully removable access cover and a 1-way insertion mechanism ensure ease of loading. The battery will provide more than 100 hrs. of continuous use due to a low consumption of only 5.0 mA.
Operation output impedance: The microphone will operate satisfactorily into a load impedance as low as 1 kΩ. If a load below this is used, the output signal level will be reduced.

Acoustic principle: Line plus Gradient
Directional pattern: Super-Cardioid
Frequency range: 40 Hz ~ 20 000 Hz selectable HPF @ 80 Hz/12 dB/octave

Output impedance: 200 Ω
Signal noise ratio din iec 651: 74 dB (1 kHz rel 1 Pa; per IEC651, IEC268-15)

Equivalent noise: 20 dB SPL (per IEC651, IEC268-15)
Maximum spl: 134 dB (@ 1% THD into 1 kΩ)
Sensitivity: -3 dB re 1 Volt/Pascal (15 mV @ 94 dB SPL) +/- 2 dB (at 1 kHz in free field into open circuit)
Dynamic range din iec 651: 114 dB (per IEC651, IEC268-15)

Power supply voltage:
9 V DC Alkaline Battery (ANSI:1604A or IEC:6LR61)
Current consumption: 5 mA
Battery life: >100 hours
Output connection: Stereo mini jack plug – ?3.5 mm.
Weight without battery: 176 grm. (6.21 oz.)
Dimensions width: 250mm
Dimensions depth: 65mm
Dimensions height: 102mm

Studio recording quality.
Rugged fibre-reinforced ABS construction.
9 V battery operation.
Custom designed integral wind shield.
Condenser Microphone.
Low noise circuitry.
Low handling noise.
Integral hot shoe mount.
Designed & manufactured in Australia.
Full 2 year guarantee.
