Roland VR-6HD Direct Streaming AV Mixer

OVERVIEW
The Roland VR-6HD Direct Streaming AV Mixer is the ultimate all-in-one solution for delivering engaging presentations more efficiently. With its rich video input/output and composition functions, this mixer provides professional production quality for video and distribution production in business settings such as conferences and seminars.

Featuring multiple HDMI inputs, the VR-6HD allows you to connect multiple cameras and PCs to create a variety of video productions with just one unit. And when paired with a PTZ camera, you can easily change the camera angle with the push of a button. Additionally, you can seamlessly switch between still images and video, making it perfect for online and real-time presentations.

In addition to its HDMI inputs, the VR-6HD also offers versatile connectivity options for audio and video sources. This compact mixer is equipped with advanced features and Roland’s innovative AV technologies, making it ideal for corporate meetings, online sales presentations, worship services, and other professional streaming and video capture applications.

With all the necessary functions for video distribution and production integrated into a single streamlined unit, the VR-6HD eliminates the hassle and frustration of connecting multiple devices. Its smart interface, deep automation tools, one-touch macro sequencing, PTZ camera control, and more make it easy for one operator to handle all production tasks with minimal study.

Whether you’re looking to enhance your corporate communication activities or produce high-quality streaming and video content, the Roland VR-6HD Direct Streaming AV Mixer is the perfect solution. Its compact size, high connectivity, and advanced features make it a versatile and efficient tool for all your business live streaming events.

INCLUDED IN BOX
1x Mixer
1x Startup Guide
1x Leaflet “USING THE UNIT SAFELY”
1x AC adaptor
1x Power cord

About The Roland VR-6HD Direct Streaming AV Mixer

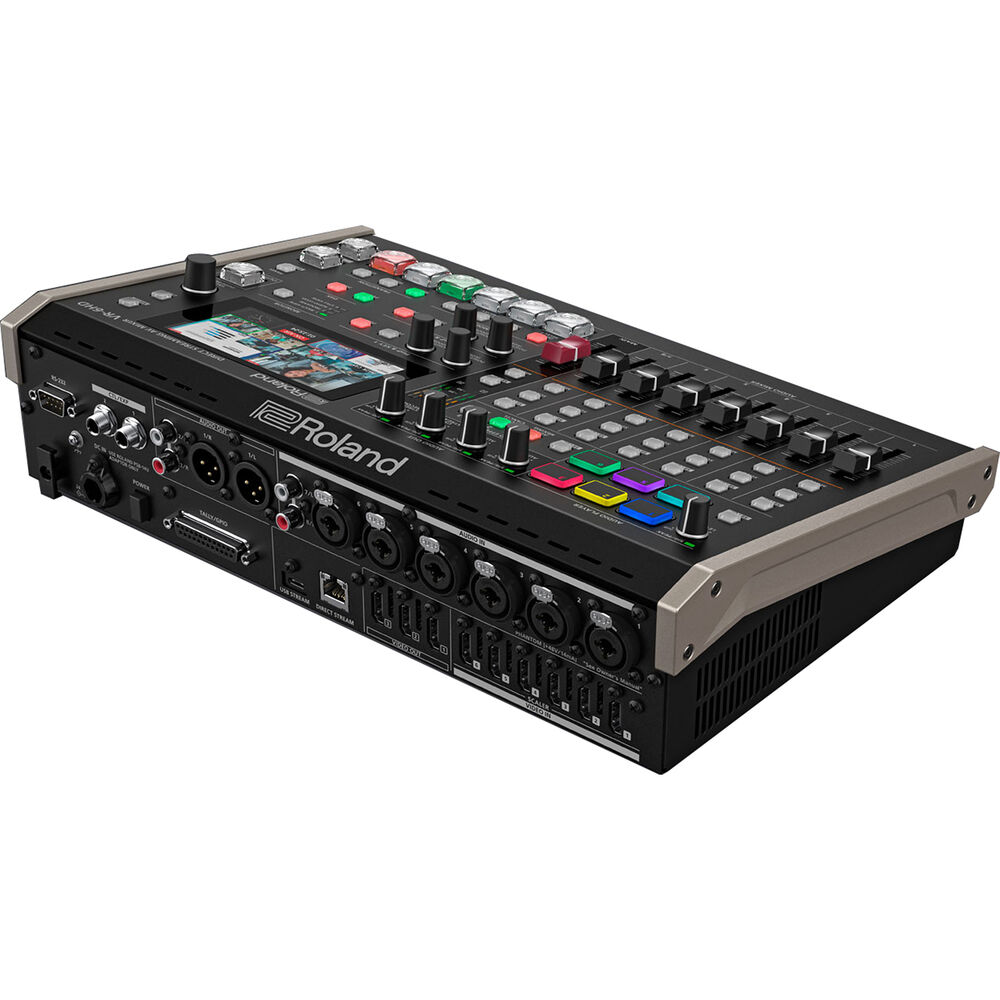

Ultra-compact and filled with innovative Roland AV technologies, the VR-6HD is the ultimate all-in-one solution for everyday business livestreaming events.

Offering advanced features and versatile connectivity in a portable, go-everywhere format, the VR-6HD is ideal for corporate meetings, online sales presentations, worship services, and other professional streaming and video capture applications.

Video switching, audio mixing, and LAN/USB streaming encoders are integrated into a single streamlined unit, eliminating the hassle and frustration that comes with connecting multiple devices. And one operator can easily handle all production tasks with minimal study, thanks to the smart interface, deep automation tools, one-touch macro sequencing, PTZ camera control, and more.
A Compact AV Mixer That Supports Corporate Communication Activities
The direct streaming AV mixer VR-6HD is equipped with Roland’s video and audio processing technology that has been supported behind the scenes at events and stages such as conferences and hybrid events, making it the perfect all-in-one for everyday business and live distribution events.・Solutions. The VR-6HD promotes various communication activities with its compactness that can be used anywhere and high connectivity. For example, it is ideal for high-quality streaming and video content production such as corporate meetings, webinars, and e-learning production.

All necessary functions for video distribution and production, from video/audio switching to composition and distribution management, can be integrated into one unit, eliminating the hassle and stress of connecting multiple devices. An intuitive interface, automation functions that support complex operations, macros that enable one-touch video and audio production, sequencer functions, PTZ camera control, etc. reduce the burden on operators and facilitate daily production and transmission work. Support.

video processing 4:2:2 (Y/Pb/Pr), 8-bit
Number of video channels 6 channels
Input video format VIDEO IN 1-6:
480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p
1080/30p *1 576/50i,
576 /50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2
1080/23.98p, 1080/24p
VGA (640 x 480/60Hz), SVGA (800 x 600/60Hz), XGA (1024 x 768/60Hz)
WXGA (1280×800/60Hz), SXGA (1280×1024/60Hz) FWXGA (
1366×768/60Hz), SXGA+ (1400×1050/60Hz)
UXGA (1600×1200/60Hz), WUXGA (1920) ×1200/60Hz)
*The refresh rate is the maximum value for each resolution.
*Compliant with CEA-861-E, VESA DMT Version 1.0 Revision 11
*1920 x 1200/60Hz: Reduced blanking
*Interlaced video is converted to progressive by internal processing.
*1 When frame rate is set to 59.94Hz, 60Hz
*2 When frame rate is set to 50Hz
Output video format VIDEO OUT 1-3:
720/59.94p *1, *4
720/60p *1, *5
720/50p *1, *8
1080/59.94i *2, *4
1080/60i *2, *5
1080/ 50i *2, *8
1080/59.94p *3, *4
1080/60p *3, *5
1080/29.97p *3, *6 1080
/30p *3, *7
1080/50p *3, *8
1080/ 25p *3, *9
1080/23.98p *3, *10
1080/24p *3, *11 *
1 When output format is set to 720p
*2 When output format is set to 1080i
*3 When output format is set to 1080p
*4 When frame rate is set to 59.94Hz
*5 When frame rate is set to 60Hz
*6 When frame rate is set to 29.97Hz
*7 When frame rate is set to 30Hz
*8 When frame rate is set to 50Hz
*9 When frame rate is set to 25Hz
*10 When frame rate is set to 23.98Hz
*11 When frame rate is set to 24Hz
USB STREAM:
1080/59.94p, 720/59.94p, 640×480/59.94p *1
1080/60p, 720/60p, 640×480/60p *2
1080/29.97p, 720/29.97p, 640×480/ 29.97p *3
1080/30p, 720/30p, 640×480/30p *4
1080/50p, 720/50p, 640×480/50p *5
1080/25p, 720/25p, 640×480/25p *6
1080 /23.98p, 720/23.98p, 640×480/23.98p *7
1080/24p, 720/24p, 640×480/24p *8
*Supports uncompressed (YUY2) and compressed (Motion JPEG)
*1 Rate (USB Out) 59.94Hz
*2 Frame rate (USB Out) 60Hz
*3 Frame rate (USB Out) 29.97Hz
*4 Frame rate (USB Out) 30Hz
*5 Frame rate Rate (USB Out) set to 50 Hz
*6 Frame rate (USB Out) set to 25 Hz
*7 Frame rate (USB Out) set to 23.98 Hz
*8 Frame rate (USB Out) set to 24 Hz
Distribution, recording format 720/59.94p *1, *3
720/60p *1, *4
720/29.97p *1, *5
720/30p *1, *6
720/50p *1, *7
720/25p *1, *8
1080/59.94p *2, *3
1080/60p *2, *4
1080/29.97p *2, *5
1080/30p *2, *6
1080/50p *2, *7
1080/25p *2, *8
1080/23.98p *2, *9
1080/24p *2, *10
*1 When output format is set to 720p *
2 When output format is set to 1080p *
3 When frame rate (Stream/Record) is set to 59.94 Hz
* 4 When the frame rate (Stream/Record) is set to 60 Hz
*5 When the frame rate (Stream/Record) is set to 29.97 Hz
*6 When the frame rate (Stream/Record) is set to 30 Hz
*7 When the frame rate (Stream/Record) is set to 50 Hz When set
*8 When the frame rate (Stream/Record) is set to 25 Hz
*9 When the frame rate (Stream/Record) is set to 23.98 Hz
*10 Frame rate (Stream/Record) set to 24Hz
File format: MP4
Codec:
H.264, target bitrate max. 20,000kbps
AAC LC, 16bit, 48kHz, stereo, target bitrate max. 384kbps
File format: WAV
Codec:
Linear PCM, 16bit, 48kHz, Stereo
*If any of the streaming, recording formats, or files played on the video player
exceeds 1080/30p, the streaming, recording and video player functions cannot be used at
the same time.
*If the total bitrate of the streaming/recording bitrate setting and the
file played on the video player exceeds 20,000 kbps, the streaming/recording
function and the video player function cannot be used at the same time
video player File format: MP4 (H.264, AAC), average bitrate 20,000kbps or less, maximum 1080/
60p Recording function and video player function cannot be used at the same time.
*If the total bitrate of the streaming/recording bitrate setting and the file
played on the video player exceeds 20,000 kbps, the streaming/recording function and
the video player function cannot be used at the same time.
Still Image Bitmap File (.bmp) Max 1920 x 1080, 24-bit color, Uncompressed
PNG File (.png) Max 1920 x 1080, 24-bit color
JPEG File (.jpg .jpeg) Max 1920 x 1080, 24-bit color
*Max 16 Can be stored in internal non-volatile memory
* Can be exported to SD card and USB memory
* Supports PNG alpha channel
video effect Switching: Cut, Mix (Dissolve/Fam/Nam), Wipe (8 types), Split (2 types)
Composition: Picture-in-picture x 2 (square, circle, diamond)
key x 2 (luminance/ Key, Chroma Key), DSK (Luminance Key, Chroma Key, Alpha Key, External Key)
Others: Multi View (3 types), Horizontal Flip
Vertical Flip, Still Image Capture, Still Image Playback, Output・Fade
(audio, video: white or black), test pattern output, delivery delay
Audio
audio processing Sample rate: 24bit, 48kHz
Number of audio channels 28 channels
audio format USB STREAM (input/output): Linear PCM, 24 bits, 48 ​​kHz, 2 ch
Bluetooth (input): Linear PCM, 24 bits, 48 ​​kHz, 2 ch
VIDEO IN: Linear PCM, 24 bits, 48 ​​kHz, 2 ch
VIDEO OUT: Linear PCM, 24 bit, 48kHz, 8ch
audio player File format: WAV (linear PCM, 16bit, 48kHz/44.1kHz, stereo)
*Up to 16 songs can be stored in the internal non-volatile memory
audio effects Channel Effects: High Pass Filter, Echo Canceller, Anti-Feedback, Noise Gate
De-Esser, Compressor, 4-Band Equalizer, Voice Changer, Delay, Auto Mixing Master Effects
Reverb, 4-Band Equalizer, Compressor
/ Limiter, Loudness Auto Gain Control, Adaptive Noise Reduction, Low Frequency Cut
15-Band GEQ, Delay Others
: Output Fade, Test Tone Output
Common part
External recording media SDHC/SDXC card (sold separately)
USB memory (sold separately)
* An SDXC card is required for video recording.
Other functions Scene memory (32)
Macro control (100)
Sequencer control (1000)
Panel lock function
EDID emulator
Auto switching Auto
input detect
Smart tally Remote
camera control (up to 6 units)
External REC control

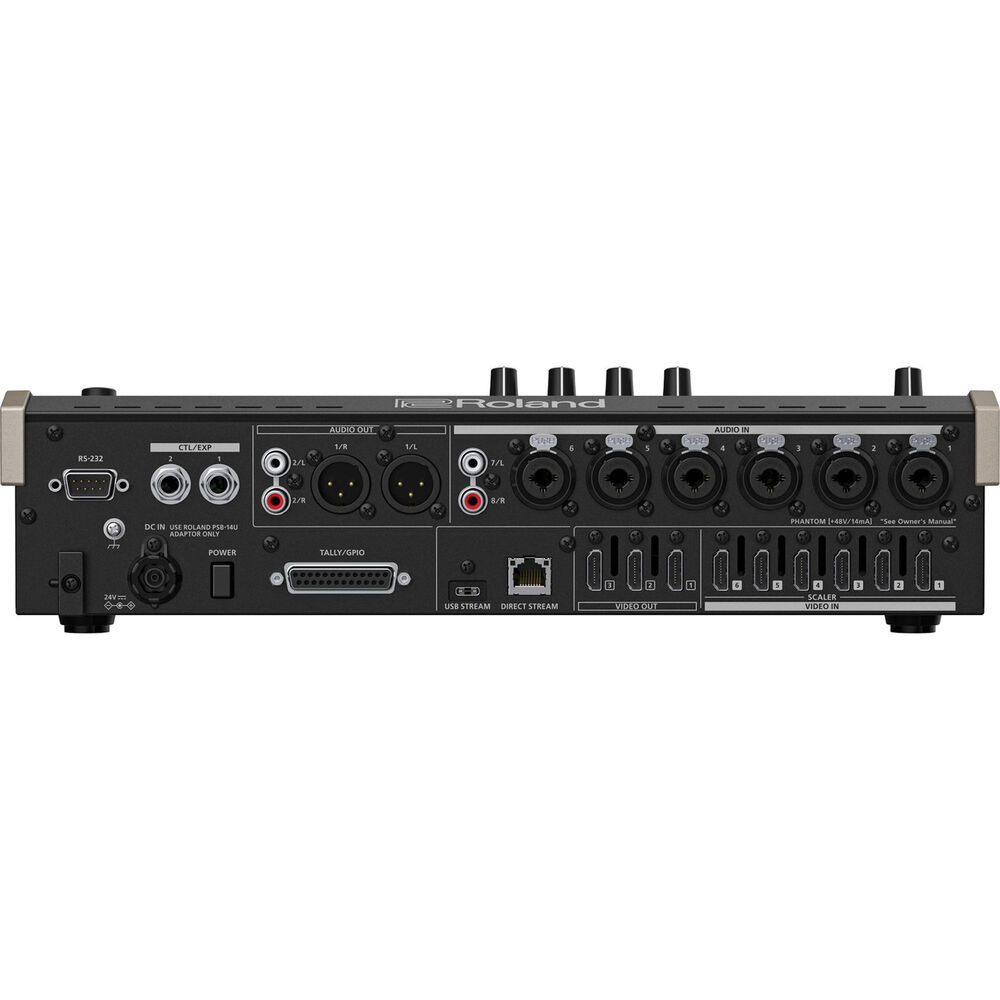

Connecting terminal
Video input terminal VIDEO IN 1-6: HDMI type A x 6
*HDCP compatible
*Multi-format compatible
Video output terminal VIDEO OUT 1-3: HDMI type A x 3
* HDCP compatible
USB STREAM: USB Type-C™
audio input terminal Analog:
AUDIO IN 1-6: Combo type (XLR, TRS standard), Phantom power (DC 48V, 14mA Max)
AUDIO IN 7/L, 8/R: RCA pin type
Digital:
USB STREAM: USB Type-C ™ Bluetooth® VIDEO IN 1-6: HDMI type A x 6
Audio output terminal Analog:
AUDIO OUT 1/L, 2/R: XLR type
AUDIO OUT 3/L, 4/R: RCA pin type
PHONES: Stereo mini type
Digital:
USB STREAM: USB Type-C™
VIDEO OUT 1-3 : HDMI type A x 3
Other terminals USB HOST: USB A type (for USB memory)
USB STREAM: USB Type-C™ (for remote control by connecting a computer or iPad)
Bluetooth: For remote control by connecting an iPad
CTL/EXP 1, 2: TRS standard Type (for remote connection with footswitch
or expression pedal)
TALLY/GPIO: 25-pin D-sub type (female) (TALLY/GPO: 16, GPI: 8)
RS-232: 9-pin D-sub type (male) (for external control)
DIRECT STREAM: RJ-45, 1000BASE-T (for distribution and external control)
Audio input/output standard
Nominal input level AUDIO IN 1-6: -64 to +4dBu (maximum input level: +24dBu)
AUDIO IN 7/L, 8/R: -10dBu (maximum input level: +10dBu)
input impedance AUDIO IN 1-6: 8.4kΩ
AUDIO IN 7/L, 8/R: 10kΩ
Specified output level AUDIO OUT 1/L, 2/R (XLR): 4dBu
(maximum output level: +24dBu)
AUDIO OUT 3/L, 4/R (RCA): -10dBu (maximum output level: +10dBu)
PHONES: 92mW + 92mW (32Ω load)
output impedance AUDIO OUT 1/L, 2/R (XLR): 600Ω
AUDIO OUT 3/L, 4/R (RCA): 1kΩ
PHONES: 33Ω
others
Bluetooth Standard Ver 5.0
compatible Profile: A2DP (audio), GATT (MIDI over Bluetooth Low Energy)
compatible Codec: SBC (supports content protection by SCMS-T method)
display 4.3 inch graphic color LCD (WQVGA 480×272dots) touch screen
power supply AC adapter
current consumption 2.3A
power consumption 55W
operating temperature 0 to +40°C
External dimensions 370 (width) x 242 (depth) x 100 (height) mm
mass 3.4kg (excluding AC adapter)
accessories Warranty
Startup Guide
“Safety Precautions” Leaflet
AC Adapter
Power Cord
Options Footswitch: BOSS FS-5U, FS-6, FS-7
Expression Pedal: EV-5, EV-30, BOSS FV-500L, FV-500H

Deliver more engaging presentations more efficiently

The rich video input/output and composition functions of the VR-6HD provide professional production quality for video and distribution production for business purposes such as conferences and seminars. Multiple cameras and PCs can be connected via HDMI to create a variety of video productions with a single unit. And when paired with a PTZ camera, you can change the camera angle with the push of a button. In addition to these HDMI inputs, you can instantly switch between still images and video. In addition, screen configurations can be set and operated individually for online and real venues.

6 HDMI inputs for versatile device compatibility

The VR-6HD is equipped with 6 HDMI video inputs used in general AV equipment. It seamlessly combines with the frame rate and color space of broadcasting and movies, and expands the range of video production based on a wide range of 6 inputs. In addition, the built-in scaler that supports EDID and HDCP supports a wide range of connections with devices with various resolutions and aspect ratios, such as PCs, tablets, smartphones, and game consoles.

Still image and video content playback function

Equipped with a playback function for still images and video content to make events and live distribution more exciting. Still images and video content can be displayed in a variety of situations, such as changing speakers and notifying the time of breaks. By using the built-in video player, there is no need to prepare a separate external playback device, and video content can be played directly from an SDXC card.

Video composition with up to 5 layers and various video effects

Video synthesis and effect functions are important elements in order to realize production that attracts the audience and viewers at the production site. The VR-6HD can synthesize video with up to 5 layers. Using up to two PinP & KEY (picture-in-picture & key) and DSK (downstream key) that supports alpha channel and external key, it can flexibly respond to various client needs.

Layers 1-2 : 2 background video inputs
Layers 3-4 : PinP or chroma key, 2 luminance keys
Layer 5 : Add DSK with fill key input

Freely assignable output system

The VR-6HD is equipped with 5 output systems (HDMI x 3, USB-C x 1, LAN x 1) that can be freely assigned video and audio outputs, allowing screen settings according to the output destination. For example, PROGRAM OUT is for live distribution, SUB PROGRAM OUT is for sending out to the venue, output to AUX for confirming the speakers, multi-view for confirmation, distribution monitoring, and SDXC card recording and all output to VR-6HD You can manage with one unit.

Professional quality digital audio mixer

The 28-channel digital audio mixer built into the VR-6HD follows the audio mixing functions cultivated by Roland so far, and achieves high-quality mixing. In addition to EQ and dynamics processing for all channels, you can easily set the audio presets according to the purpose, such as scenes such as meetings and interviews, and de-essing that makes it easier to hear talks. It solves audio problems such as audio synchronization adjustment and noise suppression, and supports the creation of easy-to-hear sounds. In addition, the audio player function enhances presentations by producing background music and sound effects during distribution.

Audio input and Bluetooth functionality

The VR-6HD’s audio input includes six XLR/TRS combo jacks that support high-quality mic preamps and 48V phantom power, allowing connection to a wide range of professional analog equipment. The RCA pin jacks (stereo) are compatible with a wide range of line-level devices such as audio players and electronic musical instruments. You can even mix embedded audio from HDMI and USB inputs. You can also use audio for live streaming from mobile devices with Bluetooth connectivity.

Advanced audio mixing features

Input channels can be assigned to the seven faders on the VR-6HD, allowing you to intuitively adjust the sound. By using the mixing function, the operator’s load is reduced and the sound level balance of each microphone is adjusted. You can also prioritize voices starting to speak into specific mic inputs, automatically lowering the audio levels of other mics as needed.

Free sound routing for hybrid events

Two audio aux buses allow you to set individual mixes for your application. For example, you can send out a mix for monitoring the performer and a mix different from the sound output at the real venue to the live distribution. Flexible routing allows you to freely assign the main and aux buses to two XLR outputs, RCA stereo outputs, USB or outputs for streaming/recording, or HDMI outputs.

Easy-to-hear sound

The digital audio mixer built into the VR-6HD is loaded with Roland’s audio processing technology and effects. 4-band EQ and dynamics processing for all inputs and outputs. High-quality reverb can be used in scenes such as talks and live music. In addition, anti-feedback to prevent howling and adaptive noise reduction to suppress background noise and hum noise solve voice problems and support sophisticated sound creation.

audio player

If you use an audio player equipped with the VR-6HD, you can immediately play back a sound source that has been registered on the pad in advance. Play event announcements, e-sports countdowns, or background music for presentations with sound effects registered to six pads to add excitement to events and live streams.

Streaming and recording function using LAN/USB

The VR-6HD is equipped with functions for smooth distribution to major distribution platforms. In addition to streaming from LAN, streaming to PC via USB is also supported. With the adaptive bitrate feature, you can provide your viewers with a stable delivery. You can also record to your SDXC card at the same time as distribution, so it can be used not only for live distribution but also for archiving and distribution of recorded content.

Streaming via LAN that can operate live distribution without a PC

The VR-6HD has a LAN terminal on the main unit, so you can send live broadcasts directly to Twitch, Facebook, and other platforms without going through a PC. The adaptive bitrate feature constantly monitors your network connection in the background and automatically adjusts the output streaming data to reduce interruptions in your live stream. Also, if you use the safety delay function that can set the video and audio buffer, you can set the buffer time up to 60 seconds. If an accident occurs during this time, a single button can switch to a still image and mute the audio, preventing inappropriate content from being delivered.

Encoder capable of outputting 2 streams

A built-in encoder allows you to reach a wider audience by broadcasting live to two different channels. Furthermore, by connecting a 4G or 5G compatible smartphone via USB, it can be used as the main line for distribution or as a redundant line.

Streaming over USB up to 60 FPS

VR-6HD is output in full HD quality to a USB-C connected PC and can be transmitted from major distribution platforms such as Zoom and Microsoft Teams. It is recognized as a device equivalent to a web camera from the distribution PC, and no driver is required.

* Compliant with UVC (USB Video Class) and UAC (USB Audio Class).
**Supports YUY2 (uncompressed) and Motion JPEG (compressed) formats.

Recording function to SDXC card

The VR-6HD can record to an SDXC card in MP4 (H.264) format, and can also handle editing and distribution of recorded files according to the client’s request. Stereo recording in WAV format is also possible for podcasts and audio content. It is also possible to export still images captured in the main unit from any video input/output to an SDXC card.

* The recording bitrate is the same as the live stream encoding bitrate.

Operability for smooth operation

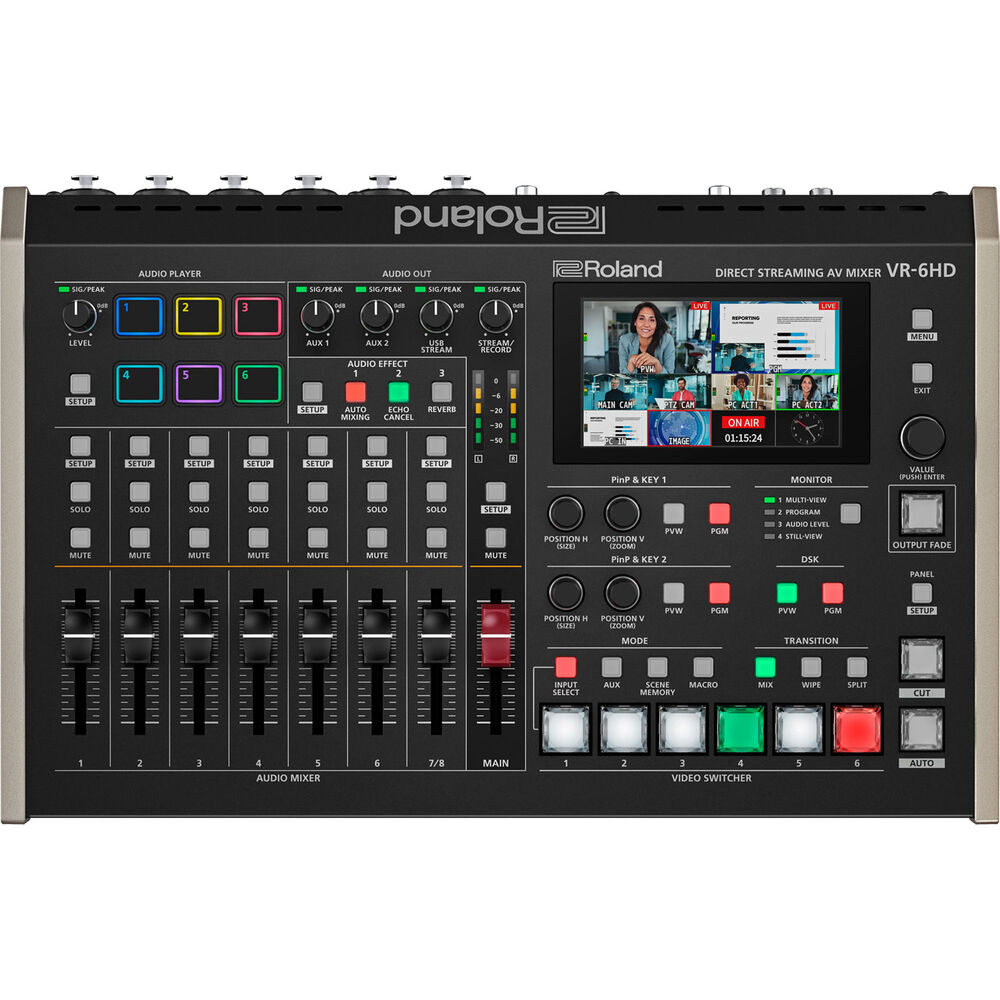

The VR-6HD has a panel design that allows you to operate the necessary functions immediately and an intuitive workflow, so you can operate it with confidence even if you do not have expertise in video or distribution production. The physical interface, such as faders and knobs, provides instant access to basic functions, while the 4.3-inch touchscreen provides smooth operation for more detailed settings. The scene memory, macro, and sequencer functions simplify complex screen configurations and operations, allowing seminars and live streaming to proceed smoothly.

Scene memories and macros that can be recalled immediately

To facilitate events and live streaming, scene memories and macros in which screen configurations and operation settings have been registered in advance can be instantly recalled with the buttons on the main unit.Up to 32 screen configuration settings, such as the position and size of PinP child screens and title composition ON/OFF, can be registered in the scene memory. You can seamlessly switch and call according to the progress of the event or live distribution.A series of operations such as video switching, DSK ON/OFF, PTZ camera operation, and audio mixing can be constructed, recorded, and executed in one macro, up to 10 times. Up to 100 macros can be registered.

Sequencer function that simplifies operation

The sequencer function installed in the VR-6HD combines scene memory and macros, allowing you to easily configure screens and produce effects as they progress. The sequencer can have up to 1,000 steps, and each step can contain both scene memories and macros. By setting the sequence in advance and pressing the NEXT button according to the trigger, you can automate the operation.

Auto switching and auto mixing

If there are many speakers using microphones, the auto-switching and auto-mixing functions built into the VR-6HD, such as following the speaker’s vocalizations and switching the video in response to the voice, make such a workflow easy. It becomes operational.

Versatile PTZ camera control function

Remotely operable PTZ (Pan-Tilt-Zoom) cameras are useful when multiple camera footage is desired in areas with limited space or where it is difficult to locate a camera operator. The VR-6HD can control up to 6 Canon, JVC, Panasonic, Sony, PTZOptics, Avonic and select VISCA compatible PTZ cameras connected via LAN. Also, when connecting multiple PTZs, it is possible to control even if PTZ cameras and protocols from different manufacturers are mixed, so even when building a studio where the latest PTZ cameras are added to existing facilities, a dedicated control system can be prepared. No need to.

High scalability by external control

The VR-6HD expands operability with a dedicated remote application and various external control devices.
VR-6HD Remote*, a remote control application exclusively for the iPad that enables intuitive touch operations on a graphical screen
Remote control software VR-6HD RCS* compatible with macOS/Windows
Connect a foot controller and execute over 100 operation commands with your feet
Manages REC control/REC status of compatible external devices connected via HDMI
Smart tally or tally control using the tally terminal on the back of the main unit is possible
Compatible with conventional system construction such as RS-232, Tally/GPIO, and D-sub terminals
* Scheduled to be supported around winter 2023
