Overview

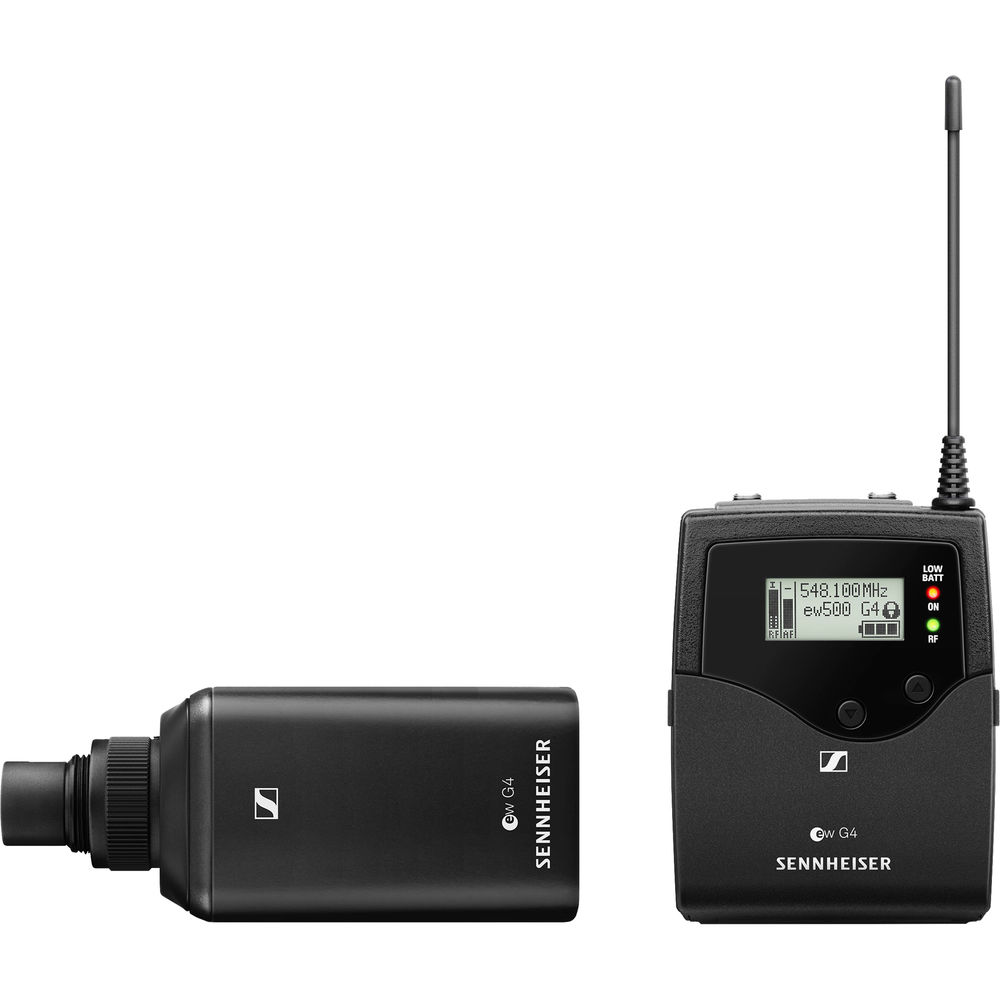

The EW 500 Boom G4 is a highly versatile solution for professional film sound, offering a rugged all-in-one wireless system for interviews and recording. Its professional sound and excellent construction quality make it a top choice for video sound and field recording applications. With an easy and flexible wireless synchronisation via infrared and an increased RF output power, this system is not only easy to use but also fast to set up. It also boasts a wide transmission range of up to 100 meters and up to 32 compatible channels, making it a reliable choice for any professional setting.
Equipped with 48 V phantom powering and offering up to 8 hours of operation time, the EW 500 Boom G4 is a reliable and efficient tool for any sound professional. Please note that this product supports the UK frequency range, so be sure to check your frequency range before purchasing. The SKP 500 plug-on transmitter, with its phantom power capabilities, allows for a wide range of wireless applications, from field interviews to off-camera boom work. With its impressive features and capabilities, the EW 500 Boom G4 is a top choice for any professional looking for high-quality, flexible, and easy-to-use wireless sound solutions.
Included in box
1x EK 500 G4 camera receiver
1x SKP 500 G4 pro plug-on transmitter
4x AA batteries
1x CL 1 3.5 mm jack cable
1x CL 500 XLR to 3.5 mm jack adapter cable
1x CA 2 camera adapter
1x quick guide
1x safety guide
1x manufacturer declaration sheet
About the Sennheiser Portable Plug-on Wireless G4 Set
Please Note: This product supports UK Frequency Range. Please check your frequency range before purchasing.
Providing the highest flexibility for your video sound and field recording applications. A robust wireless microphone system that offers ultimate sound quality, simple mounting and ease of use.
The phantom power-equipped SKP 500 plug-on transmitter adapts any wired shotgun or handheld microphone for a wide range of wireless applications, from field interviews to off-camera boom work.
With an easy and flexible wireless synchronisation between transmitter and receiver via infrared and an increased RF output power, the EW 500 Boom G4 is easy to use and fast to set up. It also has a transmission range of 100 metres, 88 MHz bandwidth with 32 compatible channels and up to 8 hours of operation time.
EK 500 G4
Frequency Range 606-678 MHz
Dimensions Approx. 82 x 64 x 24 mm
Compander Sennheiser HDX
THD (Total Harmonic Distortion) ≤ 0.9 %
Weight (incl. batteries) approx. 130 g
Audio Output 3.5 mm jack socket: +17 dBu (mono, unbalanced)
Signal-to-noise Ratio Line: ≥ 110 dBA
Phones: approx. 90 dBA
Switching Bandwidth up to 88 MHz
Peak Deviation ±48 kHz
Nominal Deviation ±24 kHz
Operating Time Typically 8 h
Modulation Wideband FM
Power Supply 2 AA batteries, 1.5 V or BA 2015 accupack
Current Consumption at nominal voltage: typ. 140 mA
with receiver switched off: ≤ 25 µA
Adjacent Channel Rejection Typically ≥ 65 dB
Intermodulation Attenuation Typically ≥ 65 dB
Powering 3 V battery / 2.4 V rechargeable battery
Receiving Frequency Max. 3520 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks,
each with up to 32 factory-preset channels, no intermodulation 6 frequency banks with up to 32 programmable channels
RF Sensitivity < 1.6 μV for 52 dBA eff S/N
Squelch low: 5 dBµV middle: 15 dBµV high: 25 dBμV
Temperature Range -10 °C to +55 °C
Receiver Principle Adaptive diversity
Blocking ≥ 70 dB

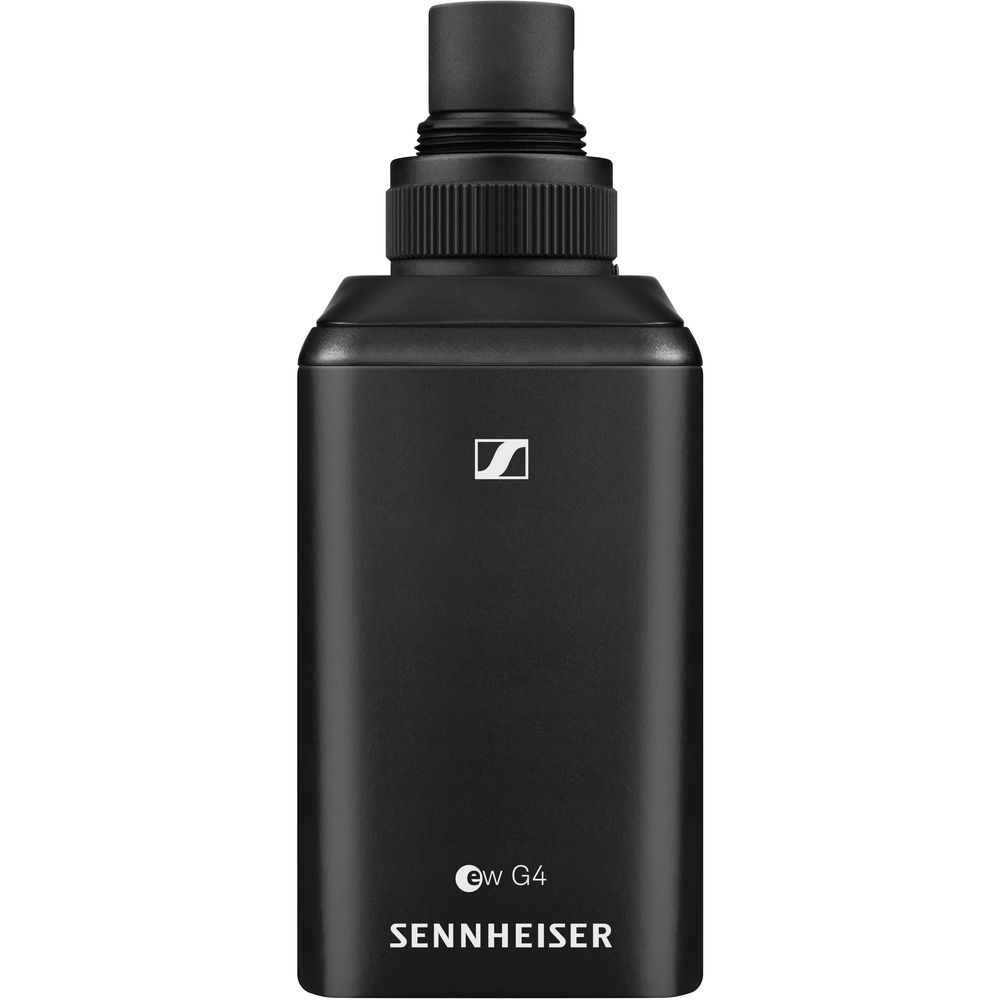

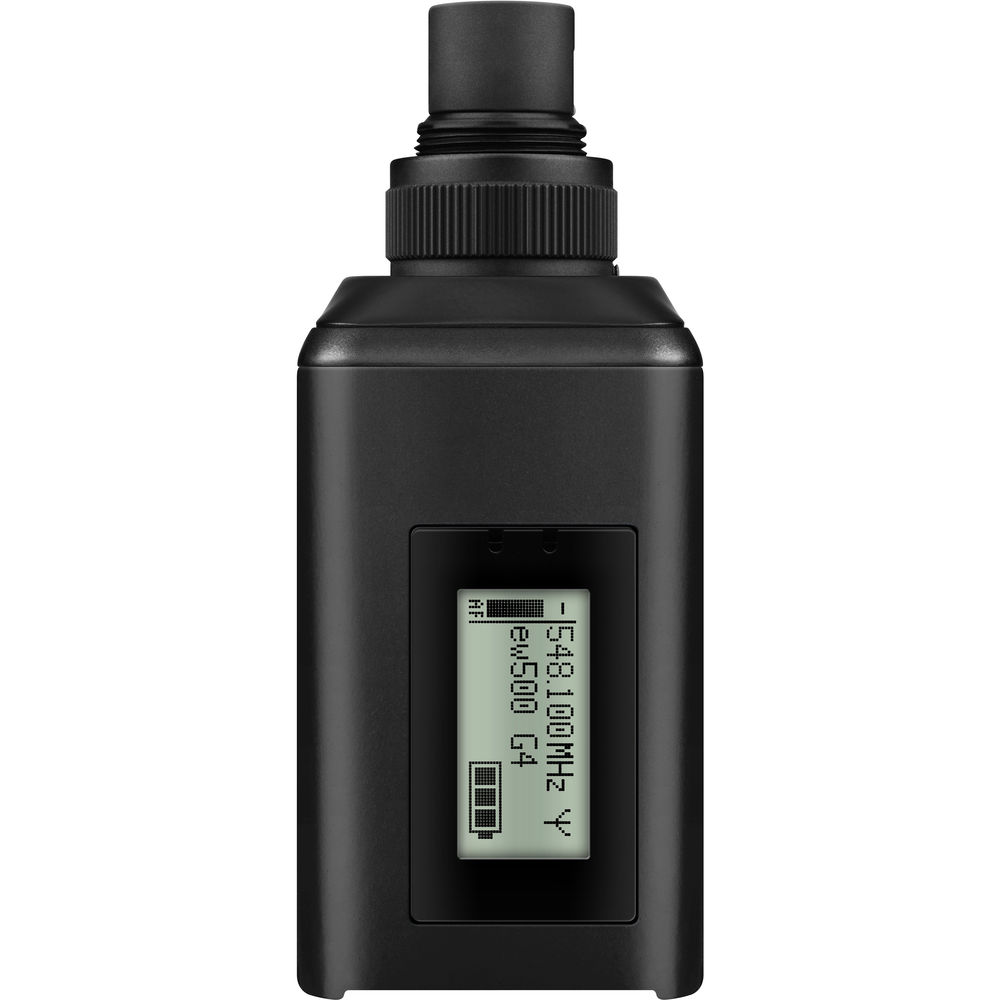

SKP 500 G4
Dimensions Approx. 105 x 43 x 43 mm
Compander Sennheiser HDX
THD (Total Harmonic Distortion) ≤ 0.9 %
Weight (incl. batteries) approx. 195 g
Signal-to-noise Ratio ≥ 120 dBA
RF Output Power switchable: Low: typ. 10 mW Standard: typ. 30 mW High: typ. 50 mW
Switching Bandwidth up to 88 MHz
Peak Deviation ±48 kHz
Nominal Deviation ±24 kHz
Operating Time Typically 8 h
Modulation Wideband FM
Power Supply 2 AA batteries, 1.5 V or BA 2015 accupack
Current Consumption at nominal voltage: typ. 210 mA
with transmitter switched off: ≤ 25 µA
Input Impedance 68 kΩ, unbalanced
Max. Input Voltage 6 Veff
Powering 3 V battery / 2.4 V rechargeable battery
Transmission Frequency Max. 3520 frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to
32 factory-preset channels, no intermodulation 6 frequency banks with up to 32 programmable channels
AF Frequency Response 80 – 18,000 Hz
Temperature Range -10 °C to +55 °C
Frequency Stability ≤ ±15 ppm
