Sennheiser Spectera Base Station

Overview

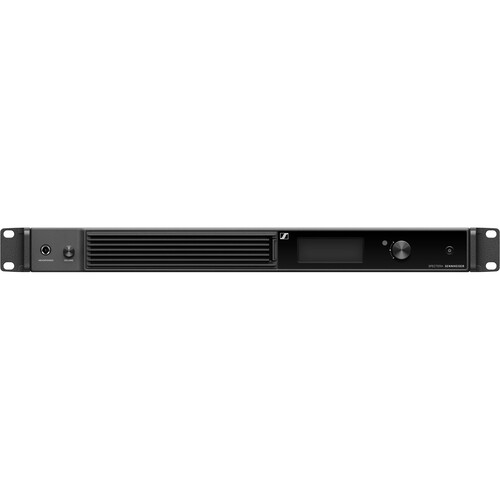

The Spectera Base Station is a powerful 1RU hardware device that offers a variety of features for your audio needs. It comes equipped with redundant power supplies and can support up to 64 channels, with 32 inputs and 32 outputs. It also allows for up to two wideband RF carriers, making it versatile for use in UHF or 1G4 (6 or 8 MHz) frequencies, depending on the specific license for your region.

In addition to its impressive capabilities, the Spectera Base Station also offers 4 ethernet antenna ports for redundancy, extended zone coverage, and additional spectrum usage. It also has a redundant Dante audio interface and optional slots for redundant MADI, ensuring seamless integration into your audio network. With features like adjustable RF power, secure transmission, and future expansion options, the Spectera Base Station is a reliable and versatile choice for all your audio needs.

Included in box
1 x Spectera Base Station
3 x Mains Cable (EU, UK and US plug)

About the Sennheiser Spectera Base Station
The Spectera Base Station is a 1RU hardware device that provides up to 64 channels (32 in/32 out) and utilises up to two wideband RF carriers to accommodate all of the unit’s wireless transmission.

It features redundant Dante and optional redundant Madi, assuring seamless integration into your audio network. Additional antennas can be added for redundancy, extended zone coverage, or additional spectrum capacity.

The Spectera Base Station supports sample rates of 48 kHz and 96 kHz and features individual sample rate converters for all audio interfaces and wordclock I/O. Base Station must be activated with license per region.

19” 1 RU Base Station with redundant power supplies Provides up to 64 channels (32 in/32 out) and allows for up to two independent wideband RF carriers in UHF or 1G4 (6 or 8 MHz), country specific per region license
4 ethernet antenna ports for redundancy, extended zone coverage and additional spectrum usage
Redundant Dante audio interface
Two optional slots for redundant MADI (OM or BNC)
Sample rates of 48 kHz and 96 kHz
Individual sample rate converters for all audio interfaces
Wordclock I/O BNC
Synchronized clock for all audio over RF allows 3D recordings and playback
Adjustable RF power from 10–100 mW (country specific)
RJ45 network interface for full remote control with secured interface
11 Audio Link modes with selectable audio codecs (OPUS, SeDAC) or PCM
Secure transmission of confidential content using AES 256 encryption
Future expansion via Cascade port
Selective headphone output with volume control on front panel
OLED display, jog wheel navigation, and rugged metal housing
Base Station activation via LinkDesk: Spectera license defines respective frequency spectrum per region (license sold separately)
