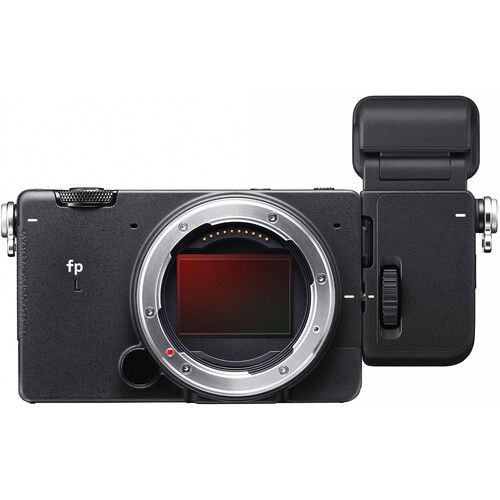

Sigma fp L Camera with fp L Kit and EVF-11

Overview
The SIGMA fp is a powerful camera that offers ultra-high resolution and exceptional image quality. It features a back-illuminated 35mm full-frame Bayer sensor with 61MP and Hybrid AF for both phase and contrast autofocus. The camera also offers 15 Colour Modes to choose from, a Crop Zoom function, and the option to use an external Electronic Viewfinder EVF-11. Some features are scheduled to be available via firmware update at a later date.

Not only is the SIGMA fp great for still photography, but it also functions as a webcam right out of the box. With just a USB-C cable, users can turn the camera into a webcam and enjoy full functionality. The camera supports USB charging while in use, Hybrid AF for smooth tracking and focus, and the ability to change camera settings while connected. It also offers 15 Colour Modes for streaming, with some features scheduled to be available via firmware update.

Summary
Dynamic Range: 10.3 Stops
Native ISO: ISO 400
Lens Mount: L Mount
Audio Inputs: 1 x 3.5mm Mic Input
Image Stabilisation: Yes
Battery Mount / Type: Sigma BP
Media Type: SD
Photo Resolution: 61 megapixels
Sensor: CMOS
Video Outputs: HDMI
Weight: 0-2kg
Wi-Fi: No
Included in box
1x Sigma fp L Full-frame Camera Body
1x EVF-11
1x Li-ion Battery Pack BP-51
1x Strap
1x Strap Holder SH-11
1x USB AC Adapter UAC-21
1x USB Cable (C-C) SUC-41
1x Hot Shoe Unit HU-11
1x Body Cap
1x Instruction Manual
1x Limited Warranty

About the Sigma fp L Camera with fp L Kit and EVF-11
SIGMA is pleased to announce the launch of the SIGMA fp L, a new member of the SIGMA fp series of the world’s smallest and lightest* full-frame mirrorless cameras. It is equipped with a full-frame Bayer sensor with approximately 61 megapixels, making it one of the highest resolution full-frame bodies ever built. This outstanding resolving power in such a compact body is unmatched by any other camera, making the fp L a unique, powerful and portable tool that will unlock new creative possibilities.

As well as the 61MP resolution, the fp L comes with an array of new features and accessories, which will make shooting more user-friendly, including hybrid autofocus (AF) that combines contrast- and phase-detection, a new optional external electronic viewfinder EVF-11, two new Colour Modes, and digital crop functionality. The new fp L is truly a photographer’s camera, with all of the most important stills and video features you need at your fingertips for creating professional, striking imagery.

SIGMA fp line-up development concept

The core concept of the fp series has been to create user-orientated and modular cameras for imagemakers who need adaptable gear to suit their specific style and needs. As such, the camera is pocketable, which makes it convenient to use anywhere and any time; scalable, which means users can also customise the camera into a full professional movie set-up; and versatile, so that users can switch seamlessly between stills and video literally with the flick of a switch.

New to the fp family is the fp L, a back-illuminated 61MP full-frame camera with a similar form factor to the fp but with an enhanced feature-set. Key new features include:

1. 61MP back-illuminated full-frame Bayer sensor

SIGMA’s extensive experience of developing image processing technology from its work on its Foveon sensors, the fp L is able to offer superb image quality that displays exceptionally fine detail and beautifully rendered colours. Thanks to the sensor’s very high resolution – the highest ever on a SIGMA camera – the decision was taken to add a low-pass filter, which makes a further contribution to optical performance by reducing the effects of moiré.

2. Crop Zoom

The 61MP sensor means that users can crop in to an image and still have more than enough resolution for their needs. For this reason SIGMA has introduced a new Crop Zoom feature to the fp L that works in both the STILL and CINE modes, allowing users to digitally zoom into their image as they shoot. This means the focal length of lenses can be effectively increased if the need arises. For video, the fp L can record in full HD quality, even at its maximum 5x zoom, without downgrading the image quality. Crop Zoom is intuitive to use too; it’s possible to simply pinch and zoom on the LCD touch screen. This feature makes the camera a much more flexible tool, especially if shooting with a limited number of prime lenses.

3. Hybrid Autofocus

In addition to high-precision contrast AF the SIGMA fp L features fast image area phase-detection AF. This hybrid AF allows users to enjoy smooth autofocus that is smooth, fast and excellent at tracking a moving subject, whether shooting stills or video.

4. Unlimited power supply

The SIGMA fp L supports USB charging while the camera is in use. This means you can connect the camera to a computer via USB if using it as a webcam, or connect it to an external power source when on location to shoot without interruption. Either way, if you’re using the camera for a long period of time, you won’t have to worry about battery life.

New features and accessories available for fp series cameras*

*Some features will be added in a future firmware update

1. External electronic viewfinder

An external electronic viewfinder EVF-11 (optional) has been designed exclusively for use with the SIGMA fp series. With its 0.5in, 3.68 million-dot organic EL panel, this high-resolution, high-luminance viewfinder makes it easier to shoot in very bright conditions and helps users feel more immersed in their photography. The EVF tilts up 90 degrees to become a top-down viewfinder.

2. Save and share camera settings

On the fp L, you can now save a set of custom camera settings. These can be kept as QR code* image data, so you can load them very quickly. This allows for a new way for users to share their own custom settings with other users by exchanging QR codes directly or by sharing them on forums or social media.

* QR Code is a registered trademark of Denso Wave Inc.

3. Powder Blue and Duotone Colour Modes

Powder Blue is a Colour Mode with a bright and clear feel, featuring a refreshing blue colour, while Duotone create a striking two-colour image. With the addition of these two new additions to SIGMA’s already wide choice of Colour Modes originally featured on the fp series, there are now a total of 15 modes to choose from. These modes can be used in stills or video, allowing users to create a fully-processed look as they shoot.

Sigma Viewfinder EVF-11

The SIGMA ELECTRONIC VIEWFINDER EVF-11 is an external EVF designed exclusively for use with the SIGMA fp series. With its 0.5-inch, 3.68 million dot organic electro-luminescent panel, this high resolution, high-luminance viewfinder will help users feel more deeply immersed in their photography and make creating photos a more enjoyable experience.

SIGMA’s attention to detail is evident in the EVF-11’s tilting mechanism so that it can be used as a top down viewfinder, expandability with external accessories, and highly functional user interface, which is designed to ensure convenience and comfort during use. Together with the SIGMA LCD VIEWFINDER LVF-11 that is already available, the launch of the SIGMA ELECTRONIC VIEWFINDER EVF-11 offers SIGMA fp series users two external viewfinder options as dedicated accessories. As the SIGMA fp series remains true to its concept of being the world’s smallest and lightest full-frame mirrorless camera*

Product name SIGMA fp L
Type Interchangeable-lens Mirrorless Type Digital Camera
Memory Media SD, SDHC, SDXC memory card (UHS-Ⅱ supported) , Portable SSD (USB 3.0 connection, USB bus power supported)
Lens Mount L-Mount
Image Sensor Type 35 mm full-frame (36.0 mm x 24.0 mm) Back-illuminated Bayer CMOS sensor
Camera Effective Pixels Total Pixels Approx. 61 MP / Approx. 62.4
Aspect Ratio 3:2
Colour Filter System RGB Primary colour filter
Still Image Format Lossless compression RAW(DNG) data 12 bit,14 bit / JPEG(Exif2.3), RAW(DNG)+JPEG:recording is possible
Image Aspect Ratio [21:9] / [16:9] / [3:2] / [A Size (√2:1) ] / [4:3] / [7:6] / [1:1]
File Size RAW
9.5K 9,520 x 6,328
6.2K 6,240 x 4,144
4.8K 4,768 x 3,168
FHD 1,920 x 1,280
JPEG
[21:9]
9.5K 9,520 x 4,080
6.2K 6,240 x 2,672
4.8K 4,768 x 2,040
UHD 3,840 x 1,648
FHD 1,920 x 824
[16:9]
9.5K 9,520 x 5,352
6.2K 6,240 x 3,512
4.8K 4,768 x 2,680
UHD 3,840 x 2,160
FHD 1,920 x 1,080
[3:2]
9.5K 9,520 x 6,328
6.2K 6,240 x 4,144
4.8K 4,768 x 3,168
UHD 3,840 x 2,552
FHD 1,920 x 1,280
[A Size (√2:1)]
9.5K 8,944 x 6,328
6.2K 5,856 x 4,144
4.8K 4,480 x 3,168
UHD 3,616 x 2,552
FHD 1,808 x 1,280
[4:3]
9.5K 8,432 x 6,328
6.2K 5,520 x 4,144
4.8K 4,224 x 3,168
UHD 3,408 x 2,552
FHD 1,696 x 1,280
[7:6]
9.5K 7,856 x 6,328
6.2K 5,152 x 4,144
4.8K 3,920 x 3,168
UHD 3,168 x 2,552
FHD 1,584 x 1,280
[1:1]
9.5K 6,328 x 6,328
6.2K 4,144 x 4,144
4.8K 3,168 x 3,168
UHD 2,552 x 2,552
FHD 1,280 x 1,280
* When a DC lens is attached, it can be used with a recording pixel count of 6.2K or less.
Crop Equivalent to approx.1.5 to 5 times the focal length of the lens (for 35 mm cameras)
Equivalent to approx.1.5times the focal length of the lens (for 35 mm cameras)
Colour Space sRGB, Adobe RGB
Movie Recording Format Camera Internal Record
Movie Format
Cinema DNG（8 bit, 10 bit, 12 bit）/ MOV：H.264 （ALL-I, GOP)
Audio Format
Linear PCM (2 ch 48 kHz / 16 bit)
Record Format / Frame rate 3,840 x 2,160 (UHD 4K) / 23.98 p, 24 p, 25 p, 29.97 p
1,920 x 1,080 (FHD) / 23.98 p, 24 p, 25 p, 29.97 p, 48 p, 50 p, 59.94 p, 100 p*, 119.88 p*
* Automatic crop zoom setting is x1.67
Continuous Shooting Enable Time: Up to 2 hours
Cinema DNG Memory: Media Limitation
SD Card (UHS-II) : UHD 8 bit 25 p or less, FHD 12 bit 59.94 p or less
Portable SSD : UHD 12 bit 29.97 p or less, FHD 12 bit 100 p or less, FHD 8 bit 119.88 p or less
HDMI External Output Movie Format 4:2:2 8 bit
12 bit RAW :External recorder record : ATOMOS Ninja V, Blackmagic Video Assist 12G supported Audio Format
Linear PCM (2 ch 48 kHz/16 bit)
Record Format / Frame Rate 4,096 x 2,160 (DCI 4K) / 24 p　※Only for RAW output
3,840 x 2,160 (UHD 4K) / 23.98 p, 24 p, 25 p, 29.97 p
1,920 x 1,080 (FHD) / 23.98 p, 24 p, 25 p, 29.97 p, 48 p, 50 p, 59.94 p, 100 p*, 119.88 p*
* Automatic crop zoom setting is x1.67
Focus
AF System / Focus Mode Image plane phase-difference AF + Contrast detection system, Single
AF, Continuous AF (with moving object prediction function), Manual Focus
Contrast detection system, Single AF, Continuous AF (with moving object prediction function), Manual Focus AF Sensitivity Range / AF Mode -5 to 18 EV (F1.4:ISO 100) / Auto, 49-point selection mode, Free Move mode, Face/Eye Detection AF mode, Tracking AF mode
AF Lock Half-press the shutter button, or press the AEL button (setting change required) Other Focus Functions AF+MF, MF Assist, MF Guide, Focus Peaking, Release Focus
Function, AF-ON, Quick AF, Pre-AF, AF during Image Magnification
Exposure Control
Metering System Evaluative, Spot, Center Weighted Average
Metering Range -5 to 18 EV (50 mm F1.4:ISO 100) -5 to 18 EV (50 mm F1.4:ISO 100)
Still Image Shooting Mode (P) Program AE (Program Shift capable), (S) Shutter Speed Priority AE, (A) Aperture Priority AE, (M) Manual Movie Shooting Mode (P) Program AE, (S) Shutter Angle Priority AE, (A) Aperture Priority AE, (M) Manual
ISO Sensitivity (Recommended exposure value)
Base ISO
[Still]
ISO 100,400
[Cine]
CinemaDNG 12 bit / HDMI RAW:ISO 100, 1250
MOV / CinemaDNG 10 bit, 8 bit, HDMI 4:2:2 8 bit:ISO 100, 250
Settable Range ISO 100-25600 / Expanded sensitivity ISO 6, 12, 25, 50, 51200, 102400
Exposure Compensation ±5 EV (in 1/3 stop increments) : ±3 EV at movie recording
AE Lock Half-press the shutter button, or press the AEL button (setting change required)
Exposure Bracket 3 shots / 5 shots stage exposure 3EV (1/3 Step, Standard→Underexposure→Overexposure) (Sequence changeable)
Image Stabilisation System Electronic system * Applicable only when shooting movies with MOV 59.94 p or less Electronic system
White Balance 12 types
(Auto, Auto[Lighting Source Priority], Daylight, Shade, Overcast, Incandescent, Fluorescent, Flash, Colour Temperature[50K steps], Custom 1,
Custom 2, Custom 3 ) Shutter
Shutter Type Electronic shutter
Shutter Speed 30 to 1/8,000 sec., Bulb up to 300 sec. 30 to 1/8,000 sec., Bulb up to 300 sec.
* Up to 1/4,000 sec. when using electronic image stabilization Self Timer 2 sec. / 10 sec.
Drive
Drive Modes Single Capture, Continuous, Self Timer (2sec. / 10sec.), Interval Timer
Continuous Drive Speed High Speed:approx. 10 shots/ sec., Medium Speed:approx. 5 shots/sec., Low Speed:approx. 3 shots/ sec.
Number of Recordable Frames DNG+J (14 bit) / 9.5K:12 frames, 6.2K:12 frames, 4.8K or less:12
frames DNG+J (12 bit) , DNG (14 bit/12 bit) / 9.5K:12 frames, 6.2K:28
frames, 4.8K or less:50 frames
JPEG / 9.5K:14 frames, 6.2K:35 frames, 4.8K or less:57 frames
Monitor Type / Coverage: TFT colour LCD, Aspect Ratio 3:2, 3.15 type, Approx. 2.1M dots , Electrostatic capacitance system touch panel / Approx. 100%
Flash (when to use external flash)
Built-in Flash –
Flash Mode S-TTL automatic light control, Manual, Wireless flash, Multi-emission
Optional Functions Red-eye Reduction / Slow Synchronization, Rear Curtain Synchronization
Flash Exposure Compensation Max. ±3 EV in 1/3EV step increments
Flash Sync. Speed Max. 1/15 sec. * 1/10 sec. or less at 14 bit RAW Max. 1/30 sec. * 1/15 sec. or less at 14 bit RAW
External Flash Support Available when the HOT SHOE UNIT HU-11 (supplied with this product) is mounted. * S-TTL, Wireless support, X-sync.
Colour Mode 15 types
(Standard, Vivid, Neutral, Portrait, Landscape, Cinema, Teal and Orange, Sunset Red, Forest Green, Powder Blue, FOV Classic Blue, FOV Classic Yellow, Duotone, Monochrome, Off )
Director’s Viewfinder
Supported cameras ARRI: ARRICAM / ARRIFLEX, ALEXA LF/ ALEXA Mini LF, ALEXA SXT, ALEXA Mini, AMIRA, ALEXA65, ALEXA XT
SONY: VENICE
RED: MONSTRO 8K, HELIUM 8K, DRAGON 6K, EPIC MX 5K, GEMINI 5K, KOMODO 6K
Frame Guide 1.33:1, 1.85:1, 2.39:1, Custom 1, Custom 2
Custom Frame Input (Sensor Area / Aspect Ratio) , Offset, Style (4 styles) , Line (1 to 10 px) , Color (White, Black, Red, Yellow, Green, Cyan, Blue, Magenta), Shading
Other Functions Save / Load Settings via QR code, Screenshot, Webcam, In-camera RAW development, Still image capture from recorded movie files, Cinemagraph, Fill Light, HDR shooting (Still / Cine) , Still image shooting during movie shooting
Built-in Microphone / Speaker Stereo microphone, Monaural speaker
Display Language English / Japanese / German / French / Spanish / Italian / Simplified Chinese / Traditional Chinese / Korean / Russian / Dutch / Polish / Portuguese / Danish / Swedish / Norwegian / Finnish
Interface
USB Terminal USB3.1 GEN1 Type-C (supports Mass Stroage, Video Class(UVC), Camera Control)
HDMI Terminal Type D（Ver.1.4）
Remote Also used as an external microphone terminal
Timecode Input Also used as an external microphone terminal
External Microphone Terminal Φ3.5 mm stereo mini jack (Plug-in power support)
Headphone Output Terminal Φ3.5 mm stereo mini jack (can be connected when using the dedicated ELECTRONIC VIEWFINDER EVF-11)
Flash-synchro Terminal Dedicated terminal (with HOT SHOE UNIT HU-11 (supplied with this product) mounted)
Dust and Splash Proof Structure Provided
Power Power
Li-ion Battery Pack BP-51
*Internal battery charge via USB terminal available.
*USB power supply available.
Number of Recordable Still Images Approx. 240 images Approx. 280 images Minutes of Recordable Continuous Shooting Approx. 60 min. Approx. 70 min.
Dimensions (W x H x D) 112.6 x 69.9 x 45.3 mm / 4.4 x 2.8 x 1.8 in.
Weight 427 g / 15.1 oz.(including battery and SD card), 375 g / 13.2 oz.
(Camera body only)
422 g / 14.9 oz.(including battery and SD card), 370 g / 13.0 oz.
(Camera body only)
Operating Temperature 32 – 104 °F / 0 – +40 °C Operating Humidity 85 % or less (non-condensing)
Viewfinder EVF-11
Product Name SIGMA ELECTRONIC VIEWFINDER EVF-11
Panel 0.5 inch OLED panel, approx. 3.68 M dots (Viewfinder Coverage : approx. 100%)
Magnification 0.83x (50 mm lens at infinity, −1 dpt)
Eye Point Approx. 21 mm (from the back of the eyepiece lens)
Diopter Adjustment −4.0 to +3.0 dpt
Angle Adjustment 0 to 90°
USB Terminal USB Type-C x2 : Input and output (for portable SSD only)
Video Input Terminal Dedicated terminal
EVF Detection Terminal Dedicated terminal Headphone Output Terminal Φ3.5 mm stereo mini jack
Dimensions (W x H x D) 44.6 x 91.7 x 56.1 mm / 1.8 x 3.6 x 2.2 in. (including EYECUP EC-31)
Weight 114 g / 4.0 oz. (including EYECUP EC-31)

1. FOR STILLS: Ultra-high resolution and all-round superb image quality

Back-illuminated 35mm full-frame Bayer sensor with 61MP
Hybrid AF: phase and contrast AF
15 Colour Modes to choose from: Two additional modes newly available*
Save/Load Settings*
Crop Zoom function in stills and video
External Electronic Viewfinder EVF-11 (optional)*
*Scheduled to be available on SIGMA fp via firmware update scheduled at a later date.

2. AS A WEBCAM: full functionality right out of the box

Turn the SIGMA fp into a webcam with just a USB-C cable.
Supports USB charging while the camera is in use for unlimited streaming duration*.
*Dependent on the PC’s supply capacity

Hybrid AF: tracks the subject smoothly and keeps them in focus even when streaming.
Save/Load Settings: loads a webcam setting fast using a QR code*
Change camera settings even when connected: exposure compensation, shutter speed, ISO sensitivity,Colour Mode, white balance
15 Colour Modes to choose from while streaming.
*Scheduled to be available on SIGMA fp via firmware update scheduled at a later date.

3. FOR CINE: powerful specs and professional functionality

Supports 3 RAW file formats: see attached specifications sheet for full specs
Supports camera control with a gimbal. See website for a list of compatible models
Hybrid AF: supports recording using a gimbal and one-person operation
Supports frame rates commonly used in film making*
Save/Load Settings: perfect for sharing camera settings in a multi-camera shoot*
*Scheduled to be available on SIGMA fp via firmware update scheduled at a later date.

4. AS A DIRECTOR’S VIEWFINDER: an essential film director’s tool for simulating different looks

Director’s viewfinder: simulates shooting ranges of cinema cameras by major manufacturers*
Frame guide: Supports custom frame lines*
Selection of external viewfinders: Choice of electronic and optical viewfinders*
Screenshot: Capture what’s on your screen in a single image*
Save/Load Settings: batch save complicated settings using QR code to store or load them*
*Scheduled to be available on SIGMA fp via firmware update scheduled at a later date.

Viewfinder EVF-11

90-degree upward tilting mechanism

The tilting mechanism of the EVF-11, which angles upwards to 90 degrees, enables users to shoot from alow angle more comfortably.

User interface designed for superb visibility and convenience

The EVF-11 has an eyepoint set at 21mm to ensure a full field-of-view without a dark vignette around the viewfinder. This helps photographers see the entire scene with complete clarity, even when wearing glasses. It has a wide diopter adjustment of-4.0 to +3.0 dpt, and comes with two different-sized eyecups.

Audio monitoring during video capture

A 3.5mm stereo mini jack on the EVF-11 allows users to monitor audio using headphones while shooting video. It is designed so as not to block the camera’s microphone input, meaning users can connect an external mic and monitor audio at the same time.

External recording to portable SSD

Users can record to an external SSD drive via the dedicated USB plug (Type-C) on the side of the EVF-11.
