SmallHD Indie 7 RED RCP2 Kit

OVERVIEW
This kit includes everything you need to control your RED® ​​KOMODO® or RED® V-RAPTOR™ (DSMC3™) camera with the Indie 7. The monitor features hyper-responsive touchscreen technology with 1000nits of brightness for daylight visibility. With the included software license (QR Code Card), you can unlock access to camera control for RED® ​​KOMODO® and DSMC3™ cameras and easily adjust internal camera settings using the intuitive touchscreen configuration tools. The kit also includes a RED® EXT 9-pin to SmallHD 5-pin USB Camera-Control Cable (18in/45cm) and a Micro USB to 5-pin Lemo Adapter for full tethering and camera accessibility. Please note that the camera and SDI cable are not included.

If you already own Komodo Control, you can expand your control capabilities by downloading the latest firmware for your monitor at https://downloads.smallhd.com. The monitor also features PageOS 4 Software Toolset, which allows you to access all camera features available through RED Camera Protocol (RCP2). You can also use user page presets, Focus Assist, frame guides, 4K HDR (PQ) waveforms, improved false colour, Colour Pipe log conversion, and more. Additionally, you can monitor camera metadata, timecode, and start/stop flags. The monitor has a full HD 7-inch IPS LCD with 1920×1200 resolution and 10-bit colour processing in 100% Rec 709. It is 4K and HDR compatible with a 160-degree viewing angle. The versatile I/O includes 1x 3G-SDI, 1x 3G-SDI In/Out, 1x HDMI 2.0, and 1x Micro USB input, and 1x 3G-SDI and 1x HDMI 2.0 output. The monitor can be powered using the 2mm barrel connector port, the included Sony L-Series dual battery bracket, or optional Gold Mount and V-Mount battery plate attachments (sold separately). The monitor is housed in a rugged and lightweight anodised aluminium chassis with a featherlight weight of 1.1lbs (.53kg) and an ultrathin body width of 1.2in (3.35cm).

SUMMARY
Screen Size: 7 Inch
Resolution: 1920 x 1200
Inputs:
3G-SDI
HD-SDI
HDMI
SD-SDI
Outputs:
3G-SDI
HD-SDI
HDMI
SD-SDI

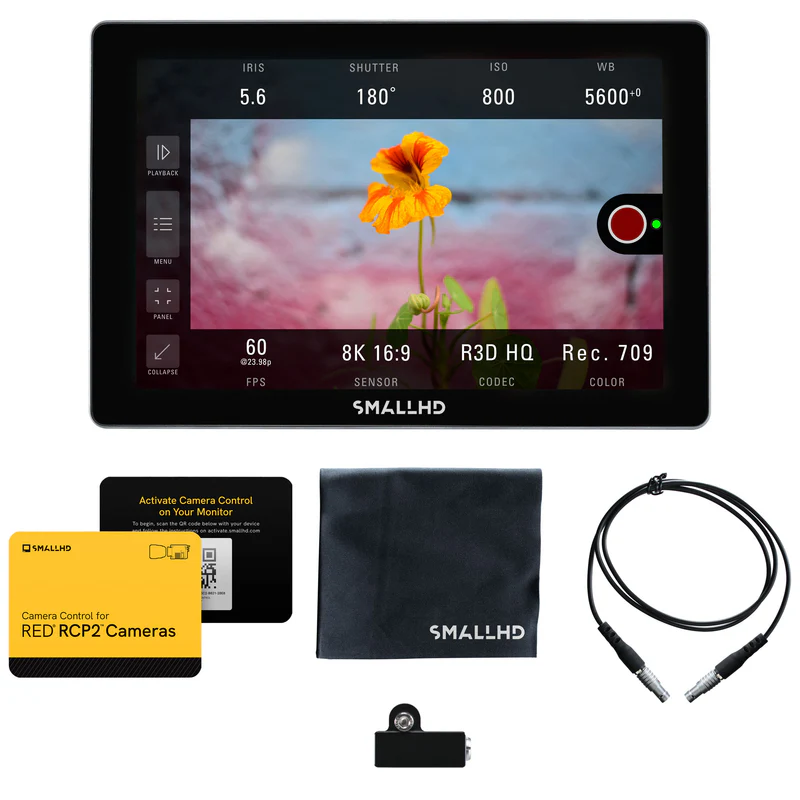

INCLUDED IN BOX
1x Indie 7 Monitor
1x RED EXT 9-Pin to SmallHD 5-Pin USB Camera- Control Cable (18 inch)
1x SmallHD Cleaning Cloth
1x Micro USB to 5pin Lemo Adapter
1x Camera Control for RED RCP2 Cameras (Software Only, Komodo, DSMC3)

About The SmallHD Indie 7 RED RCP2 Kit
This kit includes everything you need to control your RED® ​​KOMODO® or RED® V-RAPTOR™ (DSMC3™) camera with the Indie 7Featuring hyper-responsive touchscreen technology, backed. by 1000nits of brightness for daylight visibility.Unlock access to camera control for RED® ​​KOMODO® and DSMC3™ cameras with the included software license (QR Code Card) and tap into the internal camera settings with intuitive touchscreen configuration tools. Includes RED® EXT 9-pin to SmallHD 5-pin USB Camera-Control Cable (18in/45cm) and Micro USB to 5-pin Lemo Adapter for full tethering and camera accessibility. *Camera and SDI Cable are not included.

Special Note: If you already own Komodo Control, unlock the expanded RCP2 Control by downloading the latest firmware for your monitor at https://downloads.smallhd.com.

Camera Control for RED® KOMODO™

Access all camera features available through RED Camera Protocol (RCP2)

PageOS 4 Software Toolset

User page presets, Focus Assist, frame guides, 4K HDR (PQ) waveforms, improved false colour, Colour Pipe log conversion, etc. Monitor camera metadata, timecode, and start/stop flags.

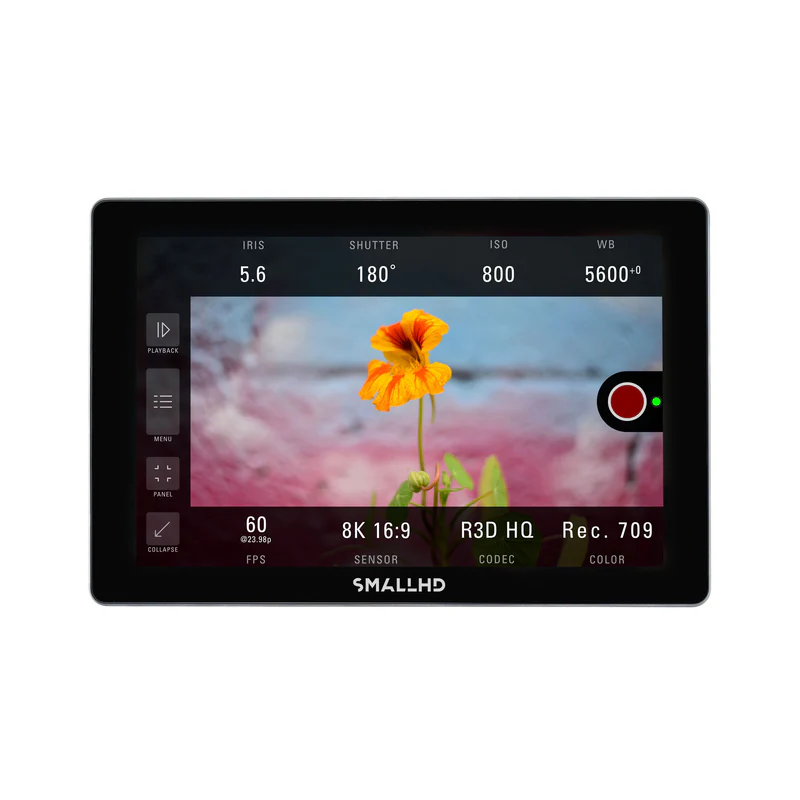

Responsive Touchscreen with Daylight Visibility

Full HD 7-inch IPS LCD with 1920×1200 resolution
10-bit colour processing in 100% Rec 709
1000nits of brightness
4K & HDR compatible
160-degree viewing angle

Versatile I/O

Input: 1x 3G-SDI, 1x 3G-SDI In/Out, 1x HDMI 2.0, 1x Micro USB
Output: 1x 3G-SDI, 1x HDMI 2.0
Power Input Options

2mm barrel connector port
Included Sony L-Series dual battery bracket
Optional Gold Mount & V-Mount battery plate attachments (sold separately)

Rugged Lightweight Housing

Anodised aluminium chassis
Featherlight weight: 1.1lbs (.53kg)
Ultrathin body width: 1.2in (3.35cm)

Environmental
Item Weight (oz) 18.9
Package Weight (oz) 26
Height (in) 4.67
Width (in) 1.32
Length/Depth (in) 7.09
Compliance FCC, IC, CE, RoHS
Operating Temperature 30F to 100F
Storage Temperature 0F to 120F
Mount Points Four ¼-20 Mount Points (Left, Right, Bottom, and Back)
Construction Anodized aluminium chassis
Display
Panel Type IPS LCD Touchscreen
Diagonal Size 7.02
Resolution 1920×1200
Pixel Density 323
Aspect Ratio 0.6736111111111112
Active Area 5.95 x 3.72
Brightness 1000 Nits
Contrast 1000:1
Gamut 100% rec709
Colour Depth 10-bit Processing (8-bit panel)
Viewing Angle 160
Backlight Type LED
Adjustable Backlight Yes
Input Signal
3G-SDI Input Types YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94,
1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI Input Types YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97,
1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97,
1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94,
1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97,
720p25, 720p24, 720p23.98
SD-SDI Input Types YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI Input Types YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color
in RGB & YCC 4:4:4: 3840×2160 30p, 1080p60, 1080p59.94,
1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,
720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50,
720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76,
480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100,
576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94,
576i200, 576i100, 576i50
Audio Input Types HDMI & SDI – Monitor through Speakers in Front Bezel
or Through Headphone Jack – Metering up to 8 channels
Output Signal
3G-SDI Output Types YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94,
1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI Output Types YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97,
1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25,
1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60,
720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Output Types YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI Output Types YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4:
2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120,
1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60,
1080i59.94, 1080i50, 720p240, 720p239.76, 720p200
Audio Output Types HDMI & SDI – Incoming Audio Stream is sent
downstream via HDMI or SDI connection
Connector Type
SDI 1x BNC 3G input and 1x BNC 3G selectable input/output
HDMI 1 input and 1 output: HDMI Type-D Receptacles (full size)
Audio 1x 3.5mm 3-pin Stereo Headphone Jack
Power In Barrel, 2.0mm ID, 5.5mm OD (center pin positive)
USB 1x USB 2.0 Micro-B receptacle
Controls
Primary Touch Screen
Record Capture Image Capture Tool
Power
Connector Barrel, 2.0mm ID, 5.5mm OD (center pin positive)
Voltage DC in – 10V minimum to 34V maximum, Battery terminals –
6.0V minimum to 16.8V max
Consumption 17.3 watts (2160p30, 100% bright, tools enabled),
(2.4A @7.2V battery, 1.4A @12V barrel, 0.7A at 24V barrel)
Batter Plate Included L-Series standard (V Mount or Gold Mount
optional accessories)
Power Supply Recommend DC 12~15V at ~2.5 amp or greater
Battery Types L-Series, V Mount, Gold Mount
Overload Protection DC input: Reverse polarity
Battery Chemistry Li-ion
Battery Charging Time Monitor does not support the charging of batteries
Software
Pixel Zoom 1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom
Frame Guides Preset Aspect Ratios & Customizable
DSLR Scale Canon 5DMkii & Canon 7D
Custom Scale Yes (Underscan Only)
Anamorphic De-Squeeze 0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x
Image Rotate Automatic or Manual Control
Image Flip Automatic or Manual Control
Cross Conversion Yes: HDMI → SDI & SDI → HDMI
Focus Assist User Adjustable Color Style and Intensity
Peaking User Adjustable Intensity
False Colour Rainbow, Arri Style, Custom with up to 10 nodes
Zebra Dual – User Configurable
Waveform Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope Yes
RGB Parade Fully User Customizable
Histogram Luma & RGB Style
Image Capture Yes
Custom LUTS Loadable as Looks on Pages or as Systemwide Colour
Calibration via the settings menu
LUT Downstream Available on SDI or HDMI Out. Applied on Output Preview Page.
LUT Import via SD Card or USB Storage Device
Overlay With Opacity Slider and Blink Setting
Audio Meters HDMI & SDI up to 8 channel
