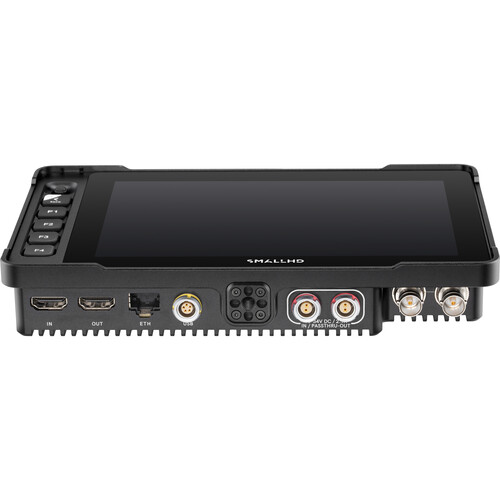

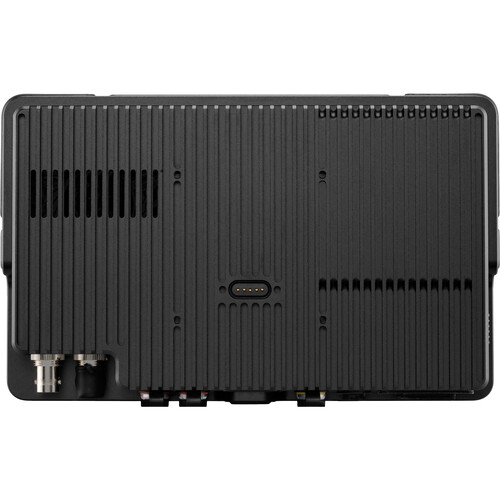

SmallHD Ultra 7

£2,434.17 Ex VAT

16-0727

Category:

OVERVIEW
The Ultra 7 monitor from SmallHD boasts a stunning 2300nits brightness and is equipped with large front-facing custom-function buttons for maximum control in any situation. It is also dust and water resistant with an IP53 rating, making it durable and adaptable to all production environments. The monitor is capable of ingesting a 4K signal with 6G-SDI and is compatible with all current SmallHD licenses for camera control.

In addition to its powerful features, the Ultra 7 is also designed for convenience and versatility. It has optional battery plates for a compact power solution, an Ethernet port for camera control, and a USB port for RED® Camera Control. The Ultra 7 Bolt 6 RX model even integrates a Teradek Bolt 6 Receiver for wireless transmission of camera images. With its QD-LED Edge-Lit LCD Panel Technology and rugged construction, the Ultra 7 is truly a top-of-the-line field monitor for professional filmmakers.

INCLUDED IN BOX
1 x Ultra 7 16-0727
1 x D-Tap to 2pin Power Cable 36in 17-3000

About The SmallHD Ultra 7
Powerful, bright, and durable, the Ultra 7 offers a stunning 2300nits brightness and a full suite oflarge front-facing custom-function buttons for maximum control in all conditions. Experience all yourfavorite PageOS tools and functions on a fully loaded 7-inch touchscreen field monitor powerfulenough to ingest a 4K signal with 6G-SDI.

Ultra 7 is adaptable to all situations and conditions, including optional Gold or V-Mount Micro Battery Plates for a compact power solution, an Ethernet port to enable ARRI and Sony VENICE CameraControl, and a 5-Pin USB port for RED® Camera Control (Camera Control license and cable soldseparately).

We brought together SmallHD’s Ultra 7 monitor with Teradek’s wireless transmission technology.Ultra 7 Bolt 6 RX integrates a Bolt 6 Receiver directly inside an Ultra 7 monitor, allowing you towirelessly send the image from your camera up with the new internal V-Antenna. The Ultra 7 Bolt 6 RX is available as a Gold Mount or V-Mount option in either the 750 or 1500range.

Designed to withstand the extremes of any production environment, Ultra 7 has the processing power of our 4K Production monitors, customizable function buttons, and shock absorbing bumpers.

Rugged, powerful, and feature-rich, the Ultra 7 offers 2300nits of brightness, 6G-SDI that allow you to ingest4K signal, a 2-Pin power passthrough for cleaner builds, an Ethernet port for camera control, plus ajoystick and tactile physical buttons for control in any conditions. Utilize all your favorite PageOS tools, functions, and settings pages on a fully-loaded 7-inch touchscreen monitor.

QD-LED Edge-Lit LCD Panel Technology

SmallHD LEDs for Ultra 7 panels have the highest tolerance for colour uniformity. These LEDs are built into an edge-lit panel stack that diffuses and focuses the light through a quantum-dot film,ensuring the purest colour accuracy on our panels. The result is an extremely bright monitor with excellent image fidelity.

Built to Withstand the Harshest Production Environments

With an IP53 rating and ultra-durable water, dirt, heat, cold, and drop- resistant chassis, Ultra 7 was designed to withstand all the rigors and elements that professional filmmakers endure.

Environmental
Item Weight (oz) 32
Height (in) 1.36
Width (in) 5.12
Length/Depth (in) 8.23
Display
Panel Type IPS LCD
Diagonal Size 7.02″
Max Brightness 2300nits
Contrast 1000:1
Gamut 95% DCI-P3 Coverage / 98% REC 709
Colour Depth 10-bit Processing (8-bit panel)
Backlight Type LED Edgelit
EVF
Resolution 1920×1200
Input Signal
3G-SDI Input Types YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i102
6G-SDI Input Types YCC 4:2:2 @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p24,
2160p23.98 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60,
1080p59.94, 1080p50, 1080p48, 1080p47.95 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48,
DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95
HD-SDI Input Types YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25,
1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.100
SD-SDI Input Types YCC 4:2:2 @ 10-bits: 480i59.94, 576i52
HDMI Input Types YCC 4:2:2 @ 12 bits, 8/10/12/16 bit colour in RGB & YCC 4:4:4: 3840×2160 30p, 1080p60, 1080p59.94, 1080p50, 1080p30,
1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25,
720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76,
480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i52
Output Signal
3G-SDI Output Types YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i102
HD-SDI Output Types YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25,
1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.100
SD-SDI Output Types YCC 4:2:2 @ 10-bits: 480i59.94, 576i52
HDMI Output Types YCC 4:2:2 @ 12 bits, 8 bit colour in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120,
1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12
bits, 8/10/12/16 bit colour in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,
720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76,
480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94,
576i200, 576i100, 576i51
Audio Output Types HDMI & SDI – Incoming Audio Stream is sent downstream via HDMI or SDI connection

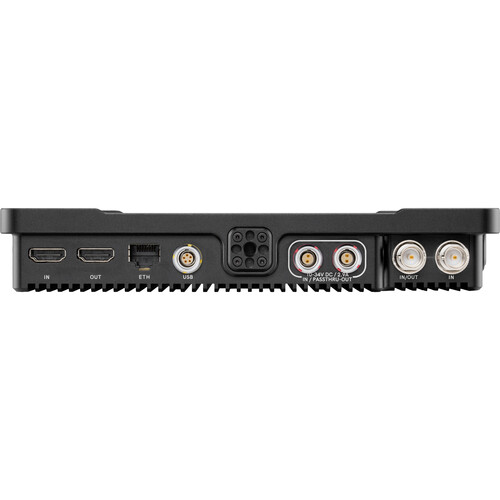

Data I/O
SDI 1x BNC 6G input and 1x BNC 6G input/output (12G BNC compatible)
HDMI 1 input and 1 output: HDMI Type-A Receptacles (full size)

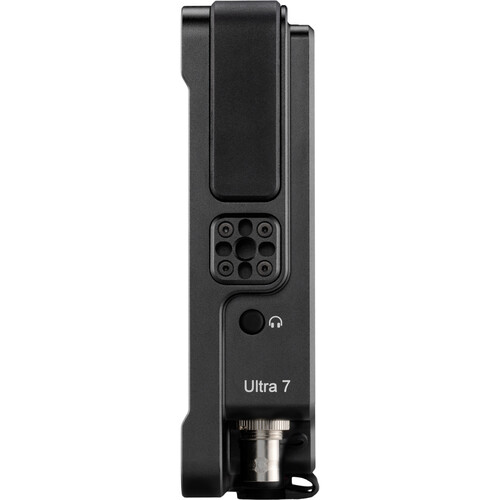

Audio 1x 3.5mm 3-pin Stereo Headphone Jack
Ethernet RJ45
Power
Connector 2-Pin Locking Connector
Voltage DC in – 10V minimum to 34V maximum, Battery terminals – 6.0V minimum to 16.8V max
Power Supply Recommend DC 12~15V at ~2.5 amp or greater
Battery Types V Mount, Gold Mount Micro Battery Plates
Overload Protection DC input: Reverse polarity
Software
Pixel Zoom 1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom
Frame Guides Preset Aspect Ratios & Customizable
DSLR Scale Canon 5DMkii & Canon 7D
Custom Scale Yes (Underscan Only)
Anamorphic De-Squeeze 0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x
Image Rotate Automatic or Manual Control
Image Flip Automatic or Manual Control
Cross Conversion Yes: HDMI → SDI & SDI → HDMI
Focus Assist User Adjustable Colour Style and Intensity
Peaking User Adjustable Intensity
False Colour Rainbow, Arri Style, Custom with up to 10 nodes
Zebra Dual – User Configurable
Waveform Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope Yes
RGB Parade Fully User Customizable
Histogram Luma & RGB Style
Image Capture Yes
LUTS – 33pt User LUT instead of 17pt – 33pt Cal LUT instead of 17pt – LUT tool continues to work after removable media containing the LUT has
been removed
Custom LUTS – Loadable as Looks on Pages or as Systemwide Colour Calibration via the settings menu – LUT Downstream: Available on SDI or
HDMI Out. Applied on Output Preview Page – LUT Import: via SD Card or USB Storage Device
Colour Pipe – Unique Calibrations may be saved to each Colour Pipe – Accurate colour processing
Overlay With Opacity Slider and Blink Setting
Audio Meters HDMI & SDI up to 8 channel
Multi-View 2 camera feeds simultaneously while filling vertical 9×16 screen with two 16:9 images on its vertical axis (Coming Soon)

Ultra Bright (2300nits)
Dust and water resistant with an IP53 rating
6G-SDI for modern 4K end-to-end workflows
Camera Control compatible with all current SmallHD licenses
Function Buttons for tactile control

Brand

SmallHD
