Overview
The SmallRig Lightweight Video Tripod Kit AD-50 Lite 4684 is a perfect choice for video shooting due to its lightweight design. Made of aluminum alloy, the tripod legs are arranged in a 2-1-1 pattern to ensure stability and reduce weight, making the kit only 2.8kg (6.2lb) in total. This makes it easy to carry around for on-site video shooting. The tripod also features a center quick lift rope design, allowing the center connector to be lifted quickly by connecting the pull rings. This reduces the space occupied by the tripod, making it more convenient to use. The tripod can be adjusted to a working height range of 75~158cm (29.5~62.2in) and has a folded length of 79cm (31.1in) through the knob locking method.
The video head of the tripod has a fixed damping system and fixed counterbalance system, providing smooth pan and tilt movements for the camera. It has a load capacity of 5kg (11lb), making it suitable for use with small cameras. The tripod also comes with an anti-dislodgement foot spiked design, and the spiked feet mode can be switched by rotating the feet pads, making it adaptable to different shooting scenarios. Additionally, the tripod has an anti-deflection 1/4″-20 threaded hole, allowing for the expansion of external devices such as a magic arm, microphone, monitor, or image transmitter.
Summary
Tripod Head Type: Fluid Head
Max Payload: 0-5kg
Leg Section: 3 Section
Spreader Type: Ground
Head Fitting: 65mm
Material: Aluminium
Included in box
1x Tripod
1x Allen Wrench
1x Smartphone Holder
1x Storage Bag
1x Guarantee Card
About the SmallRig Lightweight CF Tripod AD-50
SmallRig Lightweight Video Tripod Kit AD-50 Lite 4684 is a lightweight video tripod kit to facilitate video shooting. The tripod legs are made of aluminum alloy, through the 2-1-1 arrangement, to provide stable performance and reduce weight, the weight of the kit is only 2.8kg (6.2lb); suitable for site mobility of the video shooting scene; the tripod comes with a center quick lift rope design, by connecting the center connector pull ring and the bottom of the bowl seat pull ring, you can quickly lift the center connector, reduce the space occupied by the tripod; the tripod through the knob locking method locking legs, the kit system working height range of 75~158cm (29.5~62.2in), folder length of 79cm (31.1in). The video head has a fixed damping system and fixed counterbalance system to provide smooth pan and tilt camera movements.
The video head load capacity is 5kg (11lb), which can meet the use of a small camera; the tripod is equipped with an anti-dislodgement foot spiked design, and the spiked feet mode can be switched through the rotating feet pads, which can meet the needs of different scenarios. The tripod comes with an anti-deflection 1/4″-20 threaded hole for the expansion of external devices such as a magic arm, microphone, monitor, or image transmitter.
Work With:
Manfrotto 501PL Quick Release Plate
65mm / 2.56in Bowl Adapter
Note:
1. Not sand dust resistant.
2. Max load capacity: 6kg (13.2lb).
3. Please lock the mid-level spreader and ground spreader before using this tripod.
Product Dimensions 790.0 x 145.0 x 145.0 mm / 31.1 x 5.7 x 5.7 in
Package Dimensions 815.0 x 150.0 x 150.0 mm / 32.1 x 5.9 x 5.9 in
Product Weight 2.80 ± 0.1kg / 6.16 ± 0.02lb
Package Weight 3.77 ± 0.1kg / 8.30 ± 0.02lb

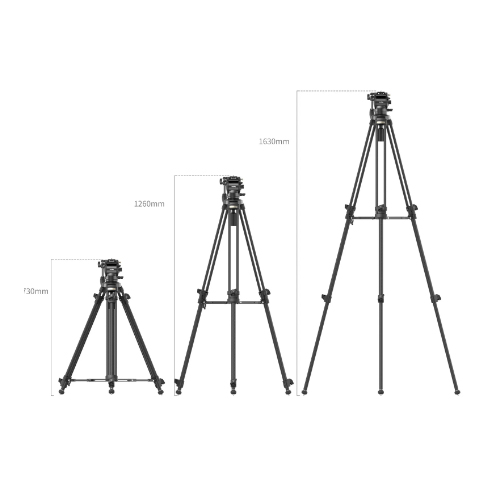

Adjustable Height 75cm~158cm / 29.5in~62.2in
Closed Length 79cm / 31.1in
Leg Sections 3
Leg Diameter 14mm/24mm/20mm / 0.55in/0.94in/0.79in
Bowl Adapter Diameter: 65mm / 2.56in
Tilt Range 90° / -75°
Tilt Drag Fixed
Pan Drag Fixed
Counterbalance System Fixed
Pan Bar Length 28cm / 11in
Quick Release Plate Length 10.5cm / 4.1in
Material(s) Aluminium Alloy, ABS, Stainless Steel, Silicone
