Overview

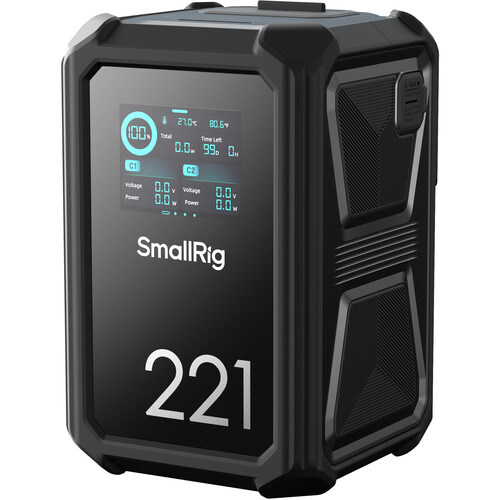

SmallRig X-Touch Smart Triple-Proof V-Mount Battery X221 5417 offers triple-proof durability with a 1.5m drop-proof design, IP54 waterproof and dustproof rating, and reinforced construction for reliability in harsh shooting conditions. It features multiple ports including BP, D-Tap, USB-C, USB-A, and DC ports, allowing simultaneous power delivery to multiple devices and streamlining on-set power management. The battery also offers smart app control for monitoring battery levels, controlling ports, locating the battery, and updating firmware remotely via the SmallRig SmallGoGo App.
The battery supports 140W PD 3.1 fast charging, fully charging in 2.5 hours for uninterrupted shooting. It also includes a 2.0-inch large touchscreen with anti-glare coating for clear visibility and intuitive control. With premium LG cells and BMS smart chip, the battery ensures stable power delivery, extended lifespan, and comprehensive eight-layer protection against over-current, over-temperature, and over-load conditions. The X221 is designed for professional use, providing all-weather power security and allowing filmmakers to focus on content production without worrying about power issues.
Summary
Battery Capacity: 221Wh
Battery Capacity: 150-300Wh
Battery Indicator: Yes
Battery Mount / Type: V Mount
Battery Technology: Li-ion
Voltage: 14.76
Included in box
1x X221 V-Mount Battery
1x 240W USB-C Cable
1x Operating Instruction
1x User Manual
About the SmallRig X221 V-Mount Battery
SmallRig X-Touch Smart Triple-Proof V-Mount Battery X221 5417 sets a new standard for professional power solutions by integrating smart technology, rugged protection, high-power fast charging and multi-port versatility, making it ideal for demanding shooting environments.
Designed to withstand the rigors of professional use, the X221 incorporates triple-proof protection: a 1.5m (4.9ft) drop-resistant housing with eight silicone-protected corners, silicone-covered metal side panels, and fully reinforced internal circuitry. With an IP54 rating, it ensures reliable operation against water splashes, rain, or dust, making it perfect for outdoor productions.
The battery features eight strategically placed ports: one BP port, two D-Tap ports, two USB-C ports (supporting 140W PD fast charging), one USB-A port, and two DC ports. Each port operates on an independent circuit, allowing multiple devices to charge simultaneously. It can safely fast-charge itself in just 2.5 hours while providing stable power output.
The battery’s smart management system is centred around a 2.0-inch HD colour touchscreen with a frosted anti-glare surface, providing optimal visibility in all lighting conditions. A dedicated mobile app enhances on-set workflow efficiency by offering remote control features, including battery level monitoring, port management, battery location tracking, and over-the-air updates.
Utilizing premium imported LG cells and BMS smart chips, the battery offers comprehensive eight-layer protection, including safeguards against over-current, over-temperature, and over-load conditions, ensuring a long cycle life and operational safety. With accurate power level indication, users can charge and discharge with complete peace of mind.
Mounting options include 1/4″”-20 and 3/8″”-16 threaded holes, complemented by a backlight indicator for quick and precise installation, even in dim lighting. These professional-grade features make the X221 an ideal power companion for on-site filming, providing filmmakers with all-weather power security and allowing creators to focus entirely on content production without worrying about power issues.
BATTERY PACK
Material(s) Flame-retardant PC, Silicone, Aluminium Alloy
Battery Type Lithium-ion Battery
Rated Battery Parameters 14.76V / 15,000mAh / 221.4Wh
Total Rated Output 221W
INPUT
USB-C1 / USB-C2 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A, 28V⎓5A; 140W (Max)
BP / D-Tap1 / D-Tap2 16.8V⎓12A (Max)
OUTPUT
USB-C1 / USB-C2 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A, 28V⎓5A; 140W (Max)
USB-A 5V⎓3A, 9V⎓3A, 12V⎓2.5A; 30W (Max)
BP 11.2-16.8V⎓15A
D-Tap1 / D-Tap2 11.2-16.8V⎓10A
8V-OUT 8V⎓3A (Max)
12V-OUT 12V⎓3A (Max)
SUPPORTED PROTOCOLS
USB-C1 / USB-C2 PD3.1, PD3.0, QC2.0, QC3.0, AFC, DCP-1.5A, PPS, APPLE-2.4A
USB-A QC3.0, QC2.0, AFC, FCP, SCP, DCP-1.5A, APPLE-2.4A
SAFETY & ENVIRONMENT
Discharge Cut-off Voltage 11.2V
Charging Temperature 0°C to 45°C / 32°F to 113°F
Discharging Temperature -15°C to 60°C / 5°F to 140°F
CHARGING
Charging Ports BP, D-Tap, USB-C
RATINGS
Drop Resistance Rating 1.5m (4.9ft)
Ingress Protection Rating IP54
CERTIFICATIONS
FCC,CE,RoHS,ISED,PSE,KC,RCM
Triple-Proof Durability: 1.5m (4.9ft) drop-proof, IP54 waterproof / dustproof, and reinforced construction for reliability in harsh shooting conditions
Multi-Port Power Hub: Features one BP port, two D-Tap ports, two USB-C ports, one USB-A port, and two DC ports, enabling simultaneous power delivery to multiple devices and streamlining on-set power management
Smart App Control: Monitor battery levels, control ports, locate the battery, and update firmware remotely via SmallRig SmallGoGo App for seamless operation
140W PD 3.1 Fast Charging: Fully charges in 2.5 hours, delivering rapid power to devices for uninterrupted shooting
2.0″” Large Touchscreen: High-definition colour screen with anti-glare coating for clear visibility and intuitive control
Premium LG Cells + BMS Smart Chip: High-performance, long-lasting cells with multi-layer circuit protection ensure stable power delivery and an extended lifespan
