Overview
The AVN-DIO19 is a fully Dante compliant device that converts up to eight digital stereo AES3 inputs and eight digital stereo AES3 outputs to and from the Dante Audio-over-IP networking standard. It features dual redundant primary and secondary Dante network ports, powered via PoE with dual redundancy. The device is also AES67 compatible and Dante Domain Manager compliant.
Each input can accept sample rates from 32kHz to 192kHz, which will be sample rate converted to the Dante system sample rate. The AVN-DIO19 also supports all available Dante sample rates and is supplied with a belt-clip, shoulder strap hooks, and an under desk mounting plate. Up to three units can be rackmounted in the 1U AVN-DIORK.
Included in box
1x Sonifex Dante to AES3 16 Channel I/O Converter
1x Belt-clip
1x Shoulder strap hooks (but not the strap)
1x Under desk mounting plate
About the Sonifex Dante to AES3 16 channel I/O
AVN-DIO19 Dante® to AES3 16 Channel I/O Converter
The AVN-DIO19 audio converter and interface converts up to eight digital stereo AES3 inputs and eight digital stereo AES3 outputs to and from the Dante Audio-over-IP networking standard. Each input can accept sample rates from 32kHz to 192kHz, which will be sample rate converted to the Dante system sample rate. All outputs follow the Dante system sample rate.
It’s powered using Power over Ethernet (PoE), using Neutrik EtherCON® connectors, with primary and secondary ports for power and data redundancy. The AVN-DIO19 uses the latest Audinate Dante® chipsets so is AES67 and Dante Domain Manager® compliant.
There are front panel LEDs to indicate network clock status, AoIP Primary and AoIP Secondary link status, PoE Primary power and PoE Secondary power active. In addition to these there are 8 AES3 input lock status LEDs.
A web interface is available for firmware updates, status information, network and device settings.The AVN-DIO19 is supplied with a belt-clip, shoulder strap hooks (but not the strap) and an under desk mounting plate. Up to 3 of the AVN-DIO19 units can be rackmount in the 1U AVN-DIORK.
AES3 I/O
Input & Output Impedance 110Ω Balanced
Sample Rates 32 – 192kHz
Dante
Sample Rates 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Encoding PCM16, PCM24, PCM32
PoE Power
Standard 802.3at Type 1
Class 0
PD Power Range 0.44W to 12.94W
Typical PSE Power Usage TBD
Max PSE Power Usage 15.4W
Equipment Type
AVN-DIO19 Dante to AES3 16 channel I/O converter
Physical Specification
Dimensions (Raw) 14.0cm (W) x 13.6cm (D) x 4.2cm (H)
5.5” (W) x 5.4” (D) x 1.7” (H)
Dimensions (Boxed) 17.8cm (W) x 17cm (D) x 5.6cm (H)
7.0” (W) x 6.7” (D) x 2.2” (H)
Weight TBD
Accessories
AVN-DIORK AVN-DIO 1U 19” rack kit (5 x small DIO or 3 x large DIO)
CBL-D25-4XI4XO AES3 balanced cable, DB25 to 4 x XLR3M and 4 x XLR3F, 3m
CBL-D25-D25 AES3 balanced cable, DB25 to DB25, 3m

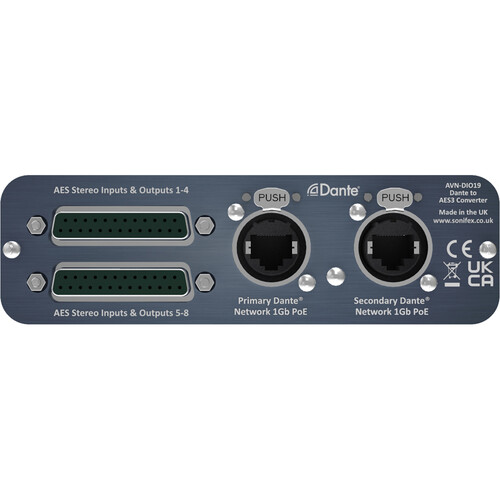

8 x balanced digital stereo AES3 inputs and outputs on 2 x 25-way D-types
Sample rate conversion of physical inputs to Dante system sample rate
Physical output sample rate matches Dante system sample rate
Dual redundant Primary and Secondary Dante network ports using Neutrik EtherCON® Ethernet connectors
Powered via PoE (Power over Ethernet) with PoE dual redundancy
Fully Dante compliant device
AES67 compatible
Dante Domain Manager compliant
Web interface for configuration
Clock, PoE, Network link and AES3 input lock LEDs
All available Dante sample rates supported
Supplied with belt-clip, shoulder strap hooks (but not the strap) and under desk mounting plate
3 x units rackmount in the AVN-DIORK
