Overview
The RB-DA6 is a 1U rack-mount distribution amplifier that is designed for high performance and can split a source into multiple outputs. It has 1 stereo input and 6 stereo outputs, but can also be configured to distribute 1 mono input to 12 outputs with the use of a recessed switch on the front panel to prevent accidental changes.
The XLR-3 inputs and outputs of the RB-DA6 are electronically balanced and can be wired unbalanced. Each output is individually buffered, ensuring that a short circuit on one output will not affect the others. The front panel also features pre-set potentiometers for left and right input gain control, as well as the ability to adjust output gain from -8dB to 18dB. This is particularly useful for normalizing consumer and professional signals to achieve outputs of -15dBu and 0dBu respectively.
Inputs: 2 x XLR 3 pin female
Outputs: 12 x XLR 3 pin male
About the Sonifex RB-DA6 Amplifier
The RB-DA6 is a 1U rack-mount high performance 6 way stereo distribution amplifier for splitting a source into a number of different outputs.The RB-DA6 has 1 stereo input and 6 stereo outputs. It can also be configured so that 1 mono input can be distributed to 12 outputs by use of a switch which is recessed on the front panel to prevent it being accidentally knocked.The XLR-3 inputs and outputs are electronically balanced and can be wired unbalanced. Each output is individually buffered so that a short circuit on one output won’t affect the others.The left and right input gain controls (normalising) are pre-set potentiometers accessible through the front panel.The output gain may be varied from -8dB to 18dB which is useful for normalising consumer and professional signals to give outputs of -15dBu and 0dBu respectively.
Audio Specification
Maximum Input Level: +28dBu
Maximum Output Level: +28dBu
Frequency Response: 20Hz to 20kHz ±0.1dB (600Ω load, ref 1kHz)
Gain Range: Adjustable 8dB loss to 18dB gain (L & R adjust)
Common Mode Rejection: 66dB typically
Input impedance: 20kΩ bridging
Output impedance: 50Ω
Distortion: 0.01% THD @ 1kHz, ref +8dBu output
Noise: -100dB unity gain, ref +8dBu output

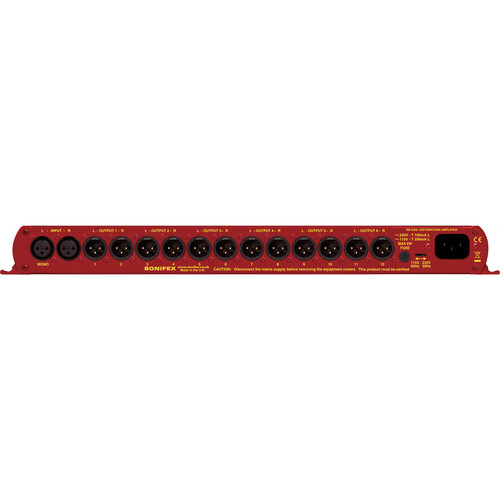

Connections
Inputs: 2 x XLR 3 pin female (balanced, can be unbalanced)
Outputs: 12 x XLR 3 pin male (balanced, can be unbalanced)
Mains Input: Filtered IEC, switchable 110-120V, or 220-240V, fused, 6W max
Fuse Rating: Anti-surge fuse 100mA 20 x 5mm (230VAC)
Anti-surge fuse 250mA 20 x 5mm (115VAC)
Equipment Type
RB-DA6: 6 way stereo distribution amplifier
Physical Specification
Dimensions (Raw): 48cm (W) x 10.8cm (D) x 4.2cm (H) (1U)
19” (W) x 4.3” (D) x 1.7” (H) (1U)
Dimensions (Boxed): 58.5cm (W) x 22.5cm (D) x 7cm (H)
23” (W) x 8.9” (D) x 2.8” (H)
Weight: Nett: 1.3kg Gross: 1.9kg
Nett: 2.9lbs Gross: 4.2lbs
