Overview
The RB-VHDA2x4 is a highly efficient and dependable digital video distribution amplifier that can handle up to two 3G, HD, or SD SDI sources. It has eight outputs and two input options, making it a versatile choice for various video distribution needs. By default, the unit operates as two independent amplifiers, with input 1 routed to outputs 1-4 and input 2 routed to outputs 5-8. However, users can also select to route either input to all outputs through the front panel switch or the built-in webserver. The webserver also provides status updates for the unit.
The RB-VHDA2x4 offers automatic input detection, re-clocking, and cable equalization for up to 100/350 meters of coaxial cable for HD/SD signals. It supports a wide range of 3G, SD, and HD standards, allowing for the distribution of PAL and NTSC signals up to 1080p 60Hz. Each output is individually buffered, ensuring reliable and stable distribution. Additionally, the unit has both AC and 12V DC power inputs, making it suitable for use in outside broadcast vehicles. The dual power inputs also provide a redundant power supply, with the unit automatically using the higher voltage input.
Included in box
1x Sonifex, Video Distribution Amplifier
About the Sonifex RB-VHDA2X4
The RB-VHDA2x4 is a high performance, reliable dual input and eight output digital video distribution amplifier for re-clocking and distributing up to two 3G, HD (high definition) or SD (standard definition) SDI sources.
By default, the RB-VHDA2x4 acts as two independent video distribution amplifiers, with input 1 routed to outputs 1-4 and input 2 routed to outputs 5-8. Either input can also be routed to all outputs if desired which can be selected by the Input Select switch on the front panel or via the built-in webserver. The webserver also provides status information for the unit.
The unit provides automatic input detection, re-clocking and cable equalisation of the input signals to 100/350 meters (HD/SD) of coax cable.
The full range of 3G, SD and HD standards are supported by the unit allowing PAL and NTSC signals up to 1080p 60Hz to be distributed.
Each output is individually buffered providing separately driven outputs for greater reliability.
As well as an AC power input, the unit also has a 12V DC input for use, for example, in outside broadcast vehicles. Both power inputs can be used to give a dual redundant power supply; whichever voltage is higher will be used.
Compatible Standards: SMPTE-424M (3G)
SMPTE-292M (HD-SDI)
SMPTE-259M-AC1 (SD-SDI)
SMPTE 344M
DVB-ASI at 270Mb/s
1. Other rates will be passed without reclocking.
Impedance: 75Ω terminating
Equalisation: Up to 100m of Belden 1694A at 1.485Gbps
Up to 350m of Belden 1694A at 270 Mbps
Data Rates : 143, 270, 1483.5,
Fully supported Passed but not reclocked: 1485, 2967 & 2970Mbps
177, 360 & 540Mbps
Reclocking & Equalisation: Automatic
Resolution: Automatic
Return Loss: >15dB at 1500MHz
Output Jitter: -0.2UI
Signal Level: 800mV ±10%
Front Panel Indicators
Power LED: Red indicates power is present
Input Status 1 & 2 LEDs: Green indicates signal is present, flashing red indicates signal is missing.

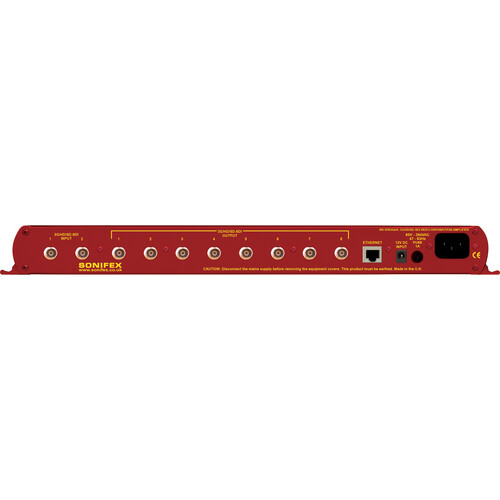

Rear Panel Connections
3G/HD/SD-SDI Video Input: 2 x BNC (Unbalanced)
3G/HD/SD-SDI Video Outputs: 8 x BNC (Unbalanced)
Ethernet Port: RJ45 with status LEDs
Power Supply
AC: Filtered IEC, continuously rated 85-264VAC, 47-63Hz, fused, max 10W Fuse Rating:
DC: Anti-surge fuse 1A 20 x 5mm 12V 300mA max, DC supply, 2.5mm socket fused
Equipment Type
RB-VHDA2x4: 3G/HD/SD-SDI 2 inputs, 8 output video distribution amplifier
Physical Specification
Dimensions (Raw): 48cm (W) x 10.8cm (D) x 4.3cm (H)
19” (W) x 4.3” (D) x 1.7” (H) (1U)
Dimensions (Boxed): 58.5cm (W) x 22.5cm (D) x 7cm (H)
23” (W) x 8.9” (D) x 2.8” (H)
Weight: Nett: 1.3kg Gross: 1.9kg
Nett: 2.9lbs Gross: 4.2lbs
Accessories
RB-RK3: 1U Rear panel rack kit for large Redboxes
