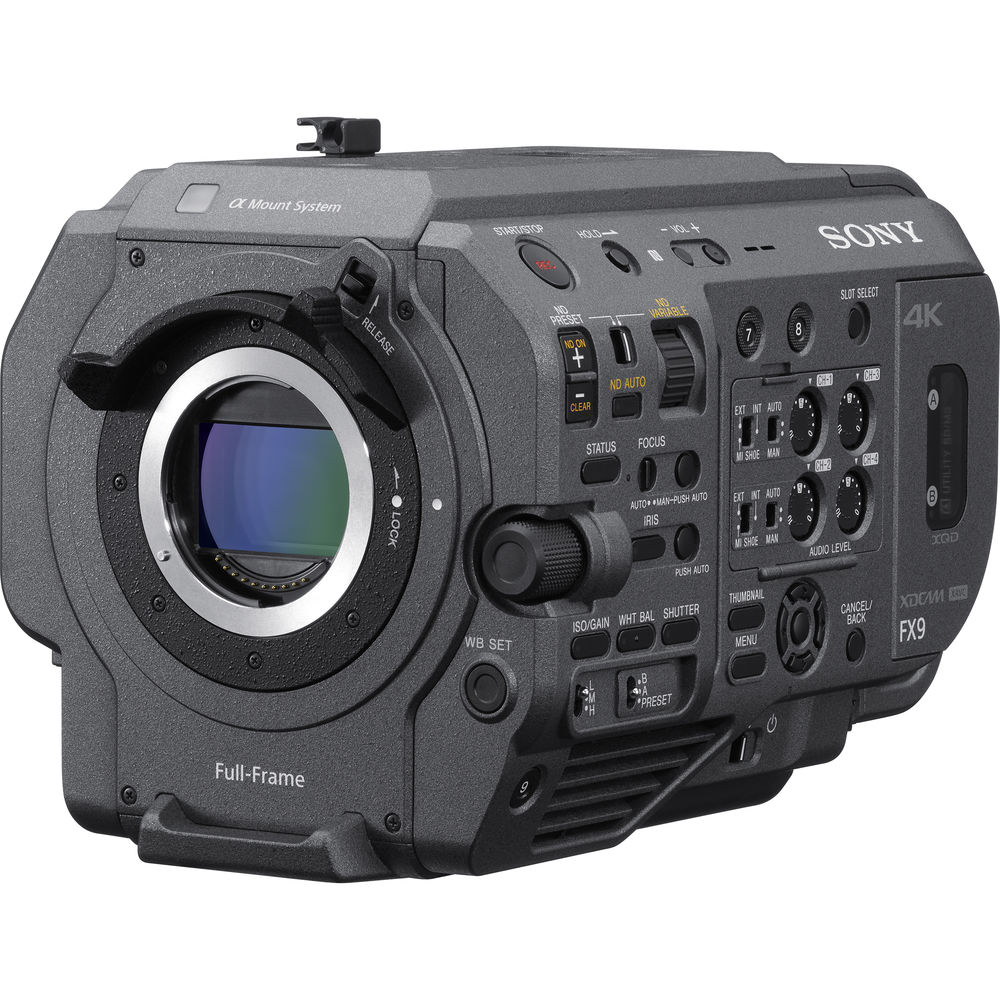

Sony PXW-FX9 Camera – Body Only

£8,749.00 Ex VAT

PXW-FX9V

Category:

OVERVIEW
The Sony PXW-FX9 Full Frame Camcorder is a highly anticipated successor to the PXW-FS7, featuring a range of fantastic upgrades. This camcorder boasts a Full Frame 6K dual native ISO sensor, VENICE colour science, upgraded auto-focus capabilities, built-in genlock and timecode, and much more.

The FX9 features a full frame 6K 35.7 by 18.8mm back-illuminated Exmor-R CMOS sensor with 15+ stops of dynamic range and a resolution of 6008 x 3168. It can shoot QFHD full frame up to 30fps, 1080p full frame at up to 120fps, and QFHD S35 up to 60fps and 1080p S35 at up to 120fps. Planned firmware updates will bring Full frame DCI 4K up to 60p, Full HD full frame up to 180fps, and QFHD in Super 35 mode at up to 120fps while using an external recorder.

The FX9 also offers customizable autofocus options, including AF transition and subject shift sensitivity. It can record up to four channels of audio with a range of input options, including an internal scratch mic, two XLR inputs, and compatibility with dual channel and DWX series wireless receivers via the new XDCA-FX9 back module.

The FX9 features SLOG3 with S-Gamut3 & S-Gamut3.Cine gamma curves, as well as the new S-Cinetone color profile, which brings the color science from the VENICE to the FX9. This allows for beautiful 4K imagery with a cinematic look, shallow depth of field, and stunning bokeh.

Additionally, the FX9 has a range of other features, such as a full-frame 17:9 mode, conventional front-illuminated sensor, dual base ISO of 800 & 4000, volume control buttons, LCD screen with 1280 x 720 resolution, and genlock and timecode built into the body.

Pair your Sony camera with UWP-D Wireless Audio for crisp, dependable audio. The UWP-D is light, compact, and easy to use, making it the perfect choice for all content creators. (Sold separately)

SUMMARY
Dynamic Range: 15+ Stops
Native ISO: 800/4000 (Cine El Mode)
Lens Mount: Sony E Mount
Recording Formats: MPEG HD422: 10-BIT 4:2:2
Internal ND: Yes
Audio Inputs: 2 x 3-Pin XLR Mic/Line
Shutter: Rolling
Battery Mount / Type: Sony BP-U
Media Type: SD
Resolution and Frame Rate: 4096×2160 @ 60fps Max (FF 5K/S35 4K Modes)
Sensor: Full Frame
Video Outputs: 1 x HDMI 2.0 Type A
Weight: 0-2kg
Wi-Fi: Yes
INCLUDED IN BOX
1x Camera Body
1x AC adaptor
1x Power cord
1x Battery charger – BC-U1A
1x Battery Pack – BP-U35
1x Handle
1x LCD monitor
1x Eyepiece
1x USB cable
1x Grip remote control
1x Lens mount cap
1x Handle connector protective cap
1x Grip attachment cover
1x Before Using This Unit
1x Operating Instructions (CD-ROM)
1x Warranty booklet

About The Sony PXW-FX9 Full Frame Camcorder
Please note: System Software Update V2.11 is now available – please check the support tab and Sony website for more details.

In rare cases, a part of the RAW output image was vertically shifted by 4 pixels. This is corrected.
In rare cases, when operating the assignable dial on the grip remote, the value jumped significantly even if it was moved by one step. This is corrected.

Please note: System Software Update V2.00 is now available

New Features & Improvements wth the new Firmware update:

Full-frame 4K 60p/50p recording with oversampling (image sensor scan size is around 5K)
FHD 180fps shooting
DCI 4K recording
16 bit RAW output (with XDCA-FX9)
Support DWX digital wireless audio receiver (with XDCA-FX9)
Eye-AF capability
Support 6G-SDI
Adds User 3D LUT function
Adds HDR shooting function with Hybrid Log Gamma
Support touch screen operation (regarding some status screen and some setting)
Increased upper limit of Gain setting
Support XLR-K3M with digital I/F
Image quality improvement at S35 2K mode

Combined Sony’s technology in Digital cinema camera Venice, FS series and a (Alpha) ILC cameras. Sony’s full-frame 6K sensor camera with Fast Hybrid AF, dual base ISO and cinematic colour science and S-Cinetone.

The Sony PXW-FX9 is the long awaited successor to the legendary PXW-FS7 and it brings some fantastic upgrades with it. The FX9 has a Full Frame 6K dual native ISO sensor, VENICE colour science, upgraded auto-focus capabilities, built in genlock and timecode and much more.

The FX9 features a full frame 6K 35.7 by 18.8mm back-illuminated Exmor-R CMOS sensor. This sensor is stated to have 15 plus stops of dynamic range and has a resolution of 6008 x 3168. You will be able to shoot QFHD full frame up to 30fps, 1080p full frame at up to 120 fps and QFHD S35 up to 60fps and 1080p S35 at up to 120fps. The planned firmware updates will bring Full frame DCI 4K up to 60p, Full HD full frame up to 180fps and QFHD in Super 35 mode at up to 120fps while using an external recorder.

You can also customise the autofocus, tweaking things like the AF transition between slow, for stuff like promo videos where you want slow smooth focus movements to fast which will be great for sports. You can also change the AF subject shift sensitivity which defines how easily the focus is switched to another subject. This goes from locked if you are wanting to do a walk and talk for example to responsive which you may need to keep better general focus.

You can record up to four channels of audio with a range of different input options, The FX9 has an internal scratch mic, two XLR’s, you can use a dual channel receiver with the MI shoe on the handle or you can now use the DWX series of drop in receivers and transmitters with the new XDCA -FX9 back module.

The FX9 does not feature SLOG2 only SLOG3 with S-Gamut3 & S-Gamut3. Cine, this is because the SLOG2 gamma curve is designed for 8-bit whereas all of the codecs on this camera are 10-bit. They have also added an S-Cinetone colour profile which is aimed to bring the colour science from the VENICE to the FX9.

Realise beautiful 4K imagery with the creative freedom made possible by oversampling a huge high resolution full-frame sensor. Capture every detail from the scene with shallow depth of field and stunning bokeh with a truly cinematic look. 15+ stops of dynamic range and Dual Base ISO enable capture of every nuance, from subtle shadow detail to specular highlights and with an immaculate colour palette.

Pair your Sony camera with UWP-D Wireless Audio

Light, compact and easy to use, UWP-D brings crisp, dependable audio to all content creators

*Sold separately

Capturing the Impossible

Make sure your story’s always clear with enhanced Fast Hybrid AF that tracks your subject with unprecedented speed, smoothness and precision. Its impact is transformative for premium documentary, commercials and event applications.

Shoot in Comfort, Expand your Horizons

FX9 revolutionises full-frame cinematography with peerless ergonomics and advanced technology for on-the-go shooting. The world’s first full-frame electronic variable ND filter* transforms possibilities for shooting in variable lighting conditions. Built-in Wi-Fi and 12G-SDI support advanced workflows while the optional XDCA-FX9 extension kit further expands the operational possibilities of the PXW-FX9.

6K Full-Frame “Exmor R” Sensor for Stunning Picture Quality

The camera’s full-frame 6K sensor provides superb recording in DCI 4K*, Ultra HD and HD resolutions. Powerful image processing with debayering and oversampling ensures image quality beyond the limits of conventional Super 35mm sensors. The back-illuminated CMOS image sensor also uses Sony’s Exmor R technology for improved sensitivity and noise reduction. Compared to a 4K Super 35mm sensor, the FX9’s 6K sensor has over twice the surface area while providing a wider angle of view and shallower depth of field.

*DCI 4K (4096 x 2160 at 17:9 recording) will be available with future firmware release.

Phenomenal 15+ Stops Dynamic Range for Limitless ExpressionFX9 offers an exceptional 15+ stops of dynamic range – beyond the normal range of human perception – allowing for unprecedented creative freedom in colour grading and post. Camera operators can concentrate on framing the scene they want while relying upon the FX9 to capture every nuance and detail using either 4K 4:2:2 10-bit internal recording or 16-bit RAW external recording.* In grading, colourists can find colour and detail beyond the normal viewing abilities of the camera operator to create a final image that exactly portrays the mood of the scene.

* RAW recording requires future firmware release and external recorder.

Dual Baso ISO for stunning images in any light

FX9 features a base sensitivity of ISO 800, providing the optimal dynamic range for typical documentary applications such as shooting outside or in brightly lit interiors. A secondary High Base sensitivity of ISO 4000 excels in low light conditions such as early morning and evening shoots while maintaining superb image quality. ISO 4000 is also ideal whenever you’re using slow lenses. Combining Dual Base ISO with the camera’s electronic variable ND Filter provides superb creative control in almost any shooting environment, with truly next generation responsiveness to changing conditions.

*ISO 800 and ISO 4000 are used in S-Log3, Cine EI mode.

Cinematic Colour Science with S-Cinetone

S-Cinetone is the default look of FX9 that’s tuned to meet the requirements of today’s content creators with rich mid-range colours, alluring facial tones and a softer tonal look – developed with the same expertise as Sony’s world-leading VENICE digital cinematography camera. S-Cinetone means that straight out of the camera your content looks fresh and vivid, with subjects that really stand out while retaining plenty of latitude in post production thanks to the high performance full-frame image sensor. The advanced default looks delivers alluring facial tones and a softer tonal look.

Selectable Frame Rates in Both Full-Frame & Super 35

Choose your desired frame-rate from 1fps up to 180fps* for impressive quick and slow-motion footage. FX9 creates an immersive image with a wide angle look and shallower depth of field provided by its full-frame sensor in combination with quick and slow-motion. Engage your audience with this new creative look. FX9 also offers a Quality priority setting* that maximises full HD slow motion image quality with advanced oversampling technology.

*Up to 120fps with Ver1.0. Full-HD 180fps will be supported with future firmware

**In Full-frame scanning mode: selectable at 1-30fps / In S35 scanning mode: selectable at 1-60fps

*Supported in future firmware update

**Supported in future firmware update. RAW output only

*** Supported in the future firmware update. Scanning area is cropped around 83% of full-frame and 122% larger than S35. (diagonal)

Catch the Action with Enhanced Fast Hybrid AF

Effortlessly track fast moving subjects with pin-sharp focus, even when using wide lens aperture settings to maintain a shallow depth of field with the camera’s full-frame sensor. Developed by Sony’s α camera engineers, enhanced Fast Hybrid AF combines phase detection AF for fast, accurate subject tracking with contrast AF for exceptional focus accuracy. In addition, Face Detection intelligently recognises and locks on to human faces.

The dedicated 561-point phase detection AF sensor covers approximately 94% of the whole image area width and 96% of height, allowing consistently accurate, responsive AF tracking, even with fast-moving subjects.

Customisable AF Settings

FX9’s comprehensive autofocus settings provide the creative flexibility to integrate with any project. Customisable AF settings can be used for a wide range of situations, depending on your requirements.

7-level AF transition speeds from Fast – switching between subjects as quickly as possible – to Slow, where speed is reduced to fit a more measured shooting style, such as a historical TV drama.

5-level AF subject shift sensitivity ranges from Locked-on – ignoring other moving subjects in the frame – to Responsive that switches focus from one subject to another – ideal for snapping between race cars as they speed by.

AF Assist

You can control MF ring during AF shooting if AF Assist is set to ON. You can adjust the focus manually even in AF shooting, you can manually operate the ring to focus the person behind.

One Push AF

While you are shooting in MF, pushing One Push AF button enables you to change to the focus mode to AF.

Autofocus with all E-Mount Lenses

Experience smooth, responsive autofocus with every E-mount lens, including Sony’s new Cinema Lens Series with premium optical performance and operability for demanding cinematography applications. Advanced E-mount lever lock operation allows quick, easy lens exchange in the field, plus added stability and security with large lenses.

World’s First Electronic Variable ND Filter for Full-Frame Sensor

Realise even greater creative control with Sony’s unique built-in electronic variable neutral density (ND) filter – a world first* for professional full-frame camcorders. Set to Auto, or adjust filter density manually in smooth increments from 1/4 to 1/128 as you shoot, for perfectly exposed images without affecting depth of field as lighting conditions change. Use higher density settings with a slower shutter speed for breath taking artistic effects.

The built-in variable ND filter, with no need to prepare multiple ND filters separately can be flexibly and immediately used for every exposure change situation; when you move from inside to outside, and when you shoot under the natural light condition where exposure changes moment by moment.

Proven Ergonomics & Accessories Compatibility

FX9 chassis is the latest refinement of the revolutionary FS7 design, so you can be sure it will feel great to shoot with from almost any position, while also offering compatibility with a large proportion of the countless FS7 accessories including U-Series batteries, chargers, E-Mount lenses, plus third-party rigs, arms and lens adapters.*

The control arm is easily adjusted without tools, so FX9 adapts effortlessly to your physique and preferred shooting style – handheld, at waist level or shoulder mounted.

The smart grip features an updated design, more compact than before while still holding all the key shooting controls, allowing you to concentrate on the scene without distractions. FX9 also introduces a micro USB interface for improved responsiveness and support for a wrist strap.

16-bit RAW Capability

16-bit RAW offers a phenomenal increase in post-production creative freedom to fully exploit FX9’s exceptional 15+ stops of dynamic range. FX9 supports export of 16-bit RAW at either 4K or 2K resolution using the optional XDCA-FX9 extension unit with a single BNC cable connection to compatible external RAW recorders.**

*RAW output will be enabled with a future firmware release. Limited to 10-bit recording during 120fps high frame rate shooting within Super35 image circle

Stable, Shake-Free Handheld Footage

Advanced image stabilisation information means even handheld footage can be transformed with Sony Catalyst Browse/Catalyst Prepare software* in post-production to look as smooth as if it were shot with a gimbal.Unlike in-camera or lens stabilisation, meta data generated by FX9’s built-in gyro allows you to creatively choose the balance between the level of shake-compensation and the resolution of trimmed 4K imagery. This feature is also compatible with any E-mount lens and allows for far faster processing than conventional NLE stabilisation workflows**.

* Catalyst Browse/Catalyst Prepare Ver.2019.2 is required.

** Resolution and angle of view reduced compared to native footage.

LCD

Approx 1.8x higher resolution than the FS7M, with enhanced LCD with HD resolution has superb accuracy, high contrast and resolution, bringing higher visibility for focusing.

Beautifully Matched Shooting Partners

Optimised for professional cinematography applications, the light, compact, SELP28135G powered zoom lens is an ideal complement for the full frame imaging possibilities of the FX9.

Circular aperture with full-frame image circle format
Motorised servo zoom for smooth, precise zoom moves
Independent three rings for focus, zoom and iris with smooth, silent drive
You have the choice of purchasing the FX9 on its own (PXW-FX9) or with SELP28135G lens (PXW-FX9K).

Cinema Lens Series

Explore new artistic possibilities and precise creative control with Sony’s Cinema Lens Series. Purpose-built for documentary production and digital cinematography with full-frame cameras such as the FX9 and VENICE.
The first lens in the series, the FE C 16-35mm T3.1 G full-frame wide angle zoom, is due in early 2020.

Adds Shoulder-Style Operation, Advanced Networking

Further extend the capabilities of the FX9 with the optional XDCA-FX9 extension unit that optimises camera weight distribution and ergonomics for comfortable shoulder-style shooting – ideal for ENG (Electronic News Gathering) and documentary applications. The extension unit also adds advanced networking for streaming/file transfers and Genlock/Timecode for multi-camera shoots.

4-Channel Audio Input and Recording

FX9 offers superb audio capabilities with independent control dials for each channel. In applications such as interview, 4-channel audio recording enables simultaneous use of an external microphone for recording ambient sounds, the built-in microphone for voice memos by the operator, and two optional UWP Series wireless microphones for voice of interviewer and interviewee. In addition, using the optional XLR-K3M, XLR-K2M or XLR-K1M XLR adapter – with two extra XLR inputs – allows even more devices to be connected.

Sony PXW-FX9

Sony unveils the PXW-FX9, their first XDCAM camcorder featuring an advanced 6K² Full-Frame sensor and Fast Hybrid Auto Focus (AF) system. The new flagship camcorder offers content creators greater creative capabilities to capture stunning images that truly resonate with audiences.

Building on the success of the PXW-FS7 and PXW-FS7M2, the FX9 uniquely combines high mobility with an advanced AF system, impressive bokeh and slow-motion capabilities thanks to its newly-developed sensor. The FX9 also inherits its colour science and Dual Base ISO 800/4000 from the VENICE digital motion picture camera and represents the ultimate tool of choice for documentaries, music videos, drama productions and all-round event shooting.

The FX9 was designed in close collaboration with the creative community and is another example of Sony continuously evolving its proposition to innovate with the customer and market needs. The camcorder benefits from the versatility, portability and performance expected of an FS7 series “Run & Gun” style camcorder, while also offering High Dynamic Range and Full Frame shooting features.

Features

Full-Frame 6K Sensor
Fast Hybrid AF
Dual Base ISO
Cinematic Colour Science with S-Cinetone
Electronic Variable ND Filter
4K 4:2:2 10bit Internal Recording
2 XQD Card Slots
XAVC Intra / Long, MPEG HD422 Format

The sensor has a dual base ISO of 800 and 4000. This is a welcomed addition as the native ISO for the FS7 was 2000 so having the option to switch between the two will make the camera much more versatile. To change the base ISO you have to do this manually in the menu. The FX9 does not feature SLOG2 only SLOG3 with S-Gamut3 & S-Gamut3.Cine, this is because the SLOG2 gamma curve is designed for 8-bit whereas all of the codecs on this camera are 10-bit. Sony have also added a S-Cinetone colour profile which is aimed to bring the colour science from the VENICE to the FX9.
Out of the gate, the camera will have restricted frame rate options but Sony already has several firmware updates planned. On release the camera will be able to shoot QFHD full frame up to 30fps, 1080p full frame at up to 120 fps and QFHD S35 up to 60fps and 1080p S35 at up to 120fps. The future firmware updates will bring Full frame DCI 4K up to 60p, Full HD full frame up to 180fps and QFHD in Super 35 mode at up to 120fps while using an external recorder.
One other improvement that the FX9 has over the FS7 is the implementation of the same autofocus system as the latest Alpha series cameras. This means that the old slow contrast-based AF from the FS7 has gone and the new snappy Phase & contrast-based AF is here.The autofocus has 561 points and covers 94% of the horizontal and 96% of the vertical frame. You can also customise the autofocus, tweaking things like the AF transition between slow, for stuff like promo videos where you want slow smooth focus movements to fast. You can also change the AF subject shift sensitivity which defines how easily the focus is switched to another subject. This goes from locked if you are wanting to do a walk and talk for example to responsive which you may need to keep better general focus. The FX9 allows you to record up to four channels of audio with a range of different input options. You have an internal scratch mic, two XLR’s in the same position as the FS7, you can use a dual channel receiver with the MI shoe on the handle or you can now use the DWX series of drop in receivers and transmitters with the new XDCA -FX9 back module.

Selectable frame rates in both full-frame & Super 35
Choose your desired frame-rate from 1fps up to 180fps* for impressive quick and slow-motion footage. FX9 creates an immersive image with a wide angle look and shallower depth of field provided by its full-frame sensor in combination with quick and slow-motion. Engage your audience with this new creative look. FX9 also offers a Quality priority setting** that maximises full HD slow motion image quality with advanced oversampling technology.

*Up to 120fps with Ver1.0. Full-HD 180fps will be supported with future firmware.
**In Full-frame scanning mode: selectable at 1-30fps / In S35 scanning mode: selectable at 1-60fps.

General
Important Note: FX9 is available from Sony as four SKUs. PXW-FX9V (without lens) and PXW-FX9VK (with lens) support both 5 Ghz and 2.4 Ghz Wi-Fi. PXW-FX9T (without lens) and PXW-FX9TK (with lens) support 2.4 GHz Wi-Fi. Availability is determined by country/regional regulations.
Mass Approx 4.41 lb (body only)
Approx. 10.58 lb (with Viewfinder, Eyepiece, Grip Remote Control, BP-U35 battery, SELP28135G LENS, an XQD memory card, handle, mic holder)
Dimensions (W x H x D) 5.75 × 5.61 × 9.02 in (body without protrusions)
Power Requirements DC 19.5V
Power Consumption Approx. 35.2 W (while recording XAVC-I QFHD 59.94p, SELP28135G Lens, Viewfinder ON, not using external device)
Operating Temperature 0°C to 40°C
32°F to 104°F
Storage Temperature -20°C to +60°C
-4°F to +140°F
Battery Operating Time Approx. 54 min. with BP-U35 battery
(while recording XAVC-I QFHD 59.94p, SELP28135G Lens, Viewfinder ON, not using external device)
Approx. 108 min. with BP-U70 battery
(while recording XAVC-I QFHD 59.94p, SELP28135G Lens, Viewfinder ON, not using external device)
Recording Format (Video)
[XAVC Intra] XAVC-I DCI4K 59.94p mode: VBR, MAX bit rate 600 Mbps, MPEG-4 AVC/H.264
XAVC-I DCI4K 50p mode: VBR, MAX bit rate 500 Mbps, MPEG-4 AVC/H.264
XAVC-I DCI4K 29.97p mode: VBR, MAX bit rate 300 Mbps, MPEG-4 AVC/H.264
XAVC-I DCI4K 25p mode: VBR, MAX bit rate 250 Mbps, MPEG-4 AVC/H.264
XAVC-I DCI4K 24p mode: VBR, MAX bit rate 240 Mbps, MPEG-4 AVC/H.264
XAVC-I DCI4K 23.98p mode: VBR, MAX bit rate 240 Mbps, MPEG-4 AVC/H.264
XAVC-I QFHD 59.94p mode: VBR, MAX bit rate 600 MBps, MPEG-4 AVC/H.264
XAVC-I QFHD 50p mode: VBR, MAX bit rate 500 MBps, MPEG-4 AVC/H.264
XAVC-I QFHD 29.97p mode: VBR, MAX bit rate 300 MBps, MPEG-4 AVC/H.264
XAVC-I QFHD 25p mode: VBR, MAX bit rate 250 MBps, MPEG-4 AVC/H.264
XAVC-I QFHD 23.98p mode: VBR, MAX bit rate 240 MBps, MPEG-4 AVC/H.264
XAVC-I HD 59.94p mode: CBG, MAX bit rate 222 MBps, MPEG-4 AVC/H.264
XAVC-I HD 50p mode: CBG, MAX bit rate 223 MBps, MPEG-4 AVC/H.264
XAVC-I HD 59.94i/29.97p mode: CBG, MAX bit rate 111 MBps, MPEG-4 AVC/H.264
XAVC-I HD 50i/25p mode: CBG, MAX bit rate 112MBps, MPEG-4 AVC/H.264
XAVC-I HD 23.98p mode: CBG, MAX bit rate 89MBps, MPEG-4 AVC/H.264
Recording Format (Video)
[XAVC Long] XAVC-L QFHD 29.97p/25p/23.98p mode: VBR, MAX bit rate 100 MBps, MPEG-4 H.264/AVC
XAVC-L QFHD 59.94p/50p mode: VBR, MAX bit rate 150 MBps, MPEG-4 H.264/AVC
XAVC-L HD 59.94i/29.97p/50i/25p/23.98p/59.94p/50p mode: VBR, MAX bit rate 50 MBps, MPEG-4 H.264/AVC
XAVC-L HD 59.94i/29.97p/50i/25p/23.98p/59.94p/50p mode: VBR, MAX bit rate 35 MBps, MPEG-4 H.264/AVC
XAVC-L HD 59.94i/50i mode: VBR, MAX bit rate 25 MBps, MPEG-4 H.264/AVC
Recording Format (Video) [MPEG-2 Long GOP] MPEG2 HD422 mode: CBR, MAX bit rate 50 MBps, MPEG-2 422P@HL
Recording Format (Audio) LPCM 24 bits, 48 kHz, 4 channels
Recording Frame Rate [XAVC Intra]
XAVC-I DCI4K mode: 4096 x 2160/59.94P, 50P, 29.97P, 23.98P, 25P, 24P
XAVC-I QFHD mode: 3840 x 2160/59.94P, 50P, 29.97P, 23.98P, 25P
XAVC-I HD mode: 1920 x 1080/59.94P, 59.94i, 50P, 50i, 29.97P, 23.98P, 25P
[XAVC Long]
XAVC-L QFHD mode: 3840 x 2160/59.94P, 50P, 29.97P, 23.98P, 25P
XAVC-L HD 50 mode: 1920 x 1080/59.94P, 50P, 59.94i, 50i, 29.97P, 23.98P, 25P
XAVC-L HD 35 mode: 1920 x 1080/59.94P, 50P, 59.94i, 50i, 29.97P, 23.98P, 25P
XAVC-L HD 25 mode: 1920 x 1080/59.94i, 50i
[MPEG-2 Long GOP]
MPEG HD422 mode: 1920 x 1080/59.94i, 50i, 29.97P, 23.98P, 25P
Recording/playback Time [XAVC Intra] XAVC-I DCI4K/QFHD 59.94p
When using QD-G128A (128 GB): Approx. 22 minutes
When using QD-G64A (64 GB): Approx. 10 minutes
XAVC-I DCI4K/QFHD 50p
When using QD-G128A (128 GB): Approx. 26 minutes
When using QD-G64A (64 GB): Approx. 13 minutes
XAVC-I DCI4K/QFHD 29.97p
When using QD-G128A (128 GB): Approx. 43 minutes
When using QD-G64A (64 GB): Approx. 21 minutes
XAVC-I DCI4K/QFHD 25p
When using QD-G128A (128 GB): Approx. 52 minutes
When using QD-G64A (64 GB): Approx. 25 minutes
XAVC-I DCI4K 24p
When using QD-G128A (128 GB): Approx. 54 minutes
When using QD-G64A (64 GB): Approx. 26 Minutes
XAVC-I DCI4K/QFHD 23.98p
When using QD-G128A (128 GB): Approx. 54 minutes
When using QD-G64A (64 GB): Approx. 26 Minutes
XAVC-I HD 59.94p
When using QD-G128A (128 GB): Approx. 57 minutes
When using QD-G64A (64 GB): Approx. 28 Minutes
XAVC-I HD 50p
When using QD-G128A (128 GB): Approx. 57 minutes
When using QD-G64A (64 GB): Approx. 27 minutes
XAVC-I HD 59.94i/29.97p
When using QD-G128A (128 GB): Approx. 105 minutes
When using QD-G64A (64 GB): Approx. 53 minutes
XAVC-I HD 50i/25p
When using QD-G128A (128 GB): Approx. 105 minutes
When using QD-G64A (64 GB): Approx. 53 minutes
XAVC-I HD 23.98p
When using QD-G128A (128 GB): Approx. 130 minutes
When using QD-G64A (64 GB): Approx. 65 minutes
Recording/playback Time [XAVC Long] XAVC-L QFHD 29.97p/25p/23.98p
When using QD-G128A (128 GB): Approx. 125 minutes
When using QD-G64A (64 GB): Approx. 62 minutes
XAVC-L QFHD 59.94p/50p
When using QD-G128A (128 GB): Approx. 86 minutes
When using QD-G64A (64 GB): Approx. 42 minutes
XAVC-L HD 50 59.94i/29.97p/50i/25p/23.98p/59.94p/50p
When using QD-G128A (128 GB): Approx. 225 minutes
When using QD-G64A (64 GB): Approx. 110 Minutes
XAVC-L HD 35 59.94i/29.97p/50i/25p/23.98p/59.94p/50p
When using QD-G128A (128 GB): Approx. 305 minutes
When using QD-G64A (64 GB): Approx. 150 minutes
XAVC-L HD 25 59.94i/50i
When using QD-G128A (128 GB): Approx. 410 minutes
When using QD-G64A (64 GB) approx. 200 minutes
Recording/playback Time[MPEG-2 Long GOP] MPEG HD422 59.94i, 50i, 29.97P, 23.98P, 25P
When using QD-G128A (128 GB): Approx. 220 minutes
When using QD-G64A (64 GB): Approx. 105 minutes
Recording Format (Proxy Audio) XAVC Proxy: AAC-LC, 128 kbps, 2 channels
Recording Format (Proxy Video) XAVC Proxy: AVC/H.264 Main Profile 4:2:0 Long GOP, VBR
1920 × 1080, 9 MBps
1280 × 720, 9 MBps
1280 × 720, 6 MBps
640 × 360, 3 MBps
Lens
Lens Mount E-mount
Camera Section
Imaging Device (Type) 1.38 in full-frame, single-chip CMOS image sensor
Imaging Device (Pixel Count) 20.5 M pixels (total)
Built-in Optical Filters Clear, linear variable ND (1/4ND to 1/128ND)
ISO Sensitivity ISO 800/4000 (Cine EI mode, D55 light source)
S/N Ratio 57 dB (Y) (typical)
Shutter Speed 64F to 1/8000 sec
Slow and Quick Motion Function FF 6K mode:
XAVC-I/L
4096 x 2160
1 to 30 frames (29.97/25/24/23.98)
3840 x 2160, 1920 x 1080
1 to 30 frames (29.97/25/23.98)
FFc 5K, S35 4K mode:
XAVC-I/L
4096 x 2160
1 to 60 frames (59.94p, 50p, 29.97/25/24/23.98)
3840 x 2160, 1920 x 1080
1 to 60 frames (59.94p, 50p, 29.97/25/23.98)
FF 2K, S16 2K mode:
XAVC-I
1920 x 1080
1 to 60, 100, 120, 150, 180 frames (59.94p, 29.97/23.98)
1 to 60, 100, 120, 150 frames (50p, 25)
FF 2K, S16 2K mode:
XAVC-L
1920 x 1080
1 to 60, 100, 120 frames (59.94p, 50p, 29.97/25/23.98)
S35 2K mode:
XAVC-I/L
1920 x 1080
1 to 60, 100, 120 frames (59.94p, 50p, 29.97/25/23.98)
White Balance Preset, Memory A, Memory B (2000K-15000K)/ATW
Gain -3 to 27 dB (every 1 dB), AGC
Gamma Curve SDR mode: S-Cinetone, STD1, STD2, STD3, STD4, STD5, STD6, HG1, HG2, HG3, HG4, HG7, HG8, S-Log3
HDR mode: HLG (Natural/Live)
Latitude 15+ stop
Input/Output
Genlock Input/REF Output BNC, Genlock IN/REF OUT Switchable
TC Input/TC Output BNC, TC IN/OUT Switchable
Audio Input XLR-type 3-pin (female) (×2), line/mic/mic +48 V selectable
Mic reference: -30 to -80 dBu
SDI Output SDI OUT1: BNC, 12G-SDI, 3G-SDI (Level A/B), HD-SDI
SDI OUT2: BNC, 3G-SDI (Level A/B), HD-SDI
USB USB device, micro-B (×1)
Headphone Output Stereo mini jack (×1) -16 dBu 16 Ω
Speaker Output Monaural
DC Input DC jack
Remote Stereo mini-minijack (Φ2.5 mm)
HDMI Output Type A (x1)
Monitoring
LCD 3.46 in (3.5 type) approx. 2.76 M dots
Built-in Microphone
Built-in Microphone Omni-directional monaural electret condenser microphone
Media
Type XQD card slot (×2)
SD/MS card slot (×1) for saving configuration data
SD card slot also can be used for proxy video recording
Wi-Fi/NFC
Supported Format IEEE 802.11 a/b/g/n/ac
Frequency Band 2.4 GHz bandwidth
5.2/5.3/5.6/5.8 GHz bandwidth*
*Depending on country/regional regulation and only on PXW-FX9V and PXW- FX9VK.
Security WEP/WPA-PSK/WPA2-PSK
NFC NFC Forum Type 3 Tag compliant
Supplied Accessories
Supplied Accessories Body Cap (1)
Viewfinder (1)
Eyepiece (1)
Grip Remote Control (1)
IS1293 Power Cord (2) **
AC Adapter
BC-U1A Battery Charger (1)
BP-U35 Battery Pack (1)
Power Cord (2)
USB Cable (1)
Operating Guide (2)
CD-ROM “Manuals for Solid State Memory Camcorder” (1)
** For India only. Not supplied in other countries/regions

Full-frame 17:9 mode with PXW-FX9
Conventional front-illuminated sensor as used in FS7 II
The sensor also has a dual base ISO of 800 & 4000.
They have also added volume control buttons, the ability to control 4 channels of audio, and a set of arrow keys to navigate the menu.
LCD screen which now has a resolution of 1280 x 720
genlock and timecode built into the body now, no more need for the XDCA for this.
Face Priority AF: Focuses on faces, when there are faces and objects.
Face Only AF: Focus only on a face, not on other objects
Face Registration: Camera can recognise multiple faces and remember a face once it is registered
Grip & LCD panel flexibility
Well balanced body design
Shoulder style operation
Wide range of exposure can be fine-tuned without changing DoF (without iris control)
Wide range of DoF (Depth of Field) expression under Auto Variable ND by adjusting lens IRISLCD
Built-in gyro records “shake” meta data in the clip
It allows to freely adjust the balance between shake-compensation and trimming area size
Furthermore, it shortens processing time drastically
Zoom/ iris/ focus control from your camera, remote or smartphone

Networked for High Mobility

Content Browser Mobile™** allows the PXW-FX9 to be controlled remotely from a smartphone or tablet computer via a Wi-Fi connection. Adjust the exposure level, zoom, Record/Stop and more via your mobile device – it’s ideal for single operator shoots. One-touch authentication is also possible with smartphones offering NFC connectivity.
FTP Transfer allows content files to be sent over the internet for remote storage on an FTP server even while shooting. In case of signal interruption, the system will automatically resume as soon as connection restored.
Trimming allows you to set start and end points in a clip, eliminating time-wasting transfers of unneeded content.
XDCAM air can upload proxy footage to the cloud from multiple camera operators in the field, so editing can start immediately. Uploaded content can be accessed securely from any location. News teams can even start logging clips while shooting is still going on, saving even more valuable time when a story’s breaking.
Wired LAN port with optional XDCA-FX9 allows connection of the FX9 to the Internet with a standard Ethernet cable, allowing files to be streamed or transferred by FTP.
Dual Link Cellular is enabled with optional XDCA-FX9 and uses two cellular networks in combination to provide an even more reliable network connection. FX9 is compatible with standard USB cellular dongles from most networks. (Please check for most appropriate service provider for your region. Standard network fees will apply.)
High quality Sony QoS Streaming to Network RX station (sold separately) and XDCAM air by Sony allows images to be streamed live for viewing at a remote location

Brand

Sony

Reviews

There are no reviews yet.

Be the first to review “Sony PXW-FX9 Camera – Body Only”

Your email address will not be published. Required fields are marked *
