Overview
The remote control panel for studio system cameras has been improved with a higher resolution LCD display and the addition of touch panel capability. This allows for easier navigation and control of the camera settings.
The number of assignable switches, indicators, and encoder controls has also been increased, providing more flexibility and customization options. Additionally, the LAN connection has been upgraded to 1000BASE-T, allowing for faster and more reliable communication.
Another new feature is the external I/O D-Sub 9pin connector, which has the capability of “Call Out” to add the “Call” indication externally. This makes it easier for operators to communicate with each other during a shoot.
The direct menu selection for CAM/CCU/BPU menus has been made even more convenient with the addition of an “Enter” control button, making it much easier than using the touch panel by moving a finger. And for even more convenience, the USB memory can now be used to save and copy settings, as well as for firmware upgrades, eliminating the need for a Memory Stick.
Included in box
1x Sony RCP-3500 Remote Control Panel
Size (W x D x H mm) 102 x 310 x 125 / 85
Weight 1.8kg
LCD Panel 640 x 480
Paint R / G / B
Master Black 3 digits
RCP Assign Yes (by LCD menu)
LAN Connection 1000Base-T
PoE Switch Connection Yes

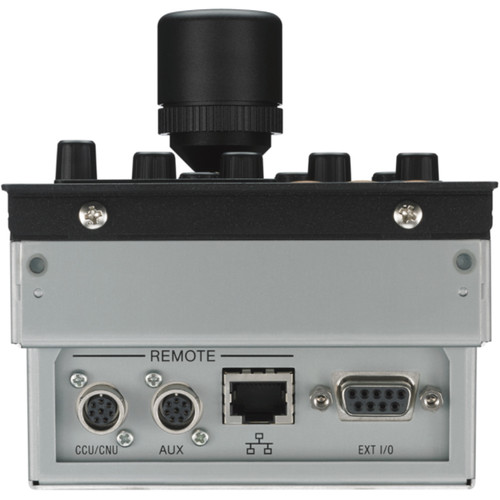

External I/O D-Sub 9pin Connector Yes (with Call Out)
Memory Interface USB Memory
Scene File 5 + Expand
32 by LCD Menu
Shutter Yes
Detail Yes
Assignable Button / Volume 4 / 2 (1 Encoder with Push)
Menu Selection and Enter Yes
Improved LCD visibility with higher resolution and touch panel capability
Increased number of Assignable Switch, Indicator, and Encoder Control
LAN connection by 1000BASE-T (Improved from 100BASE-TX)
External I/O D-Sub 9pin connector has a capability of “Call Out” to add the “Call” indication externally.
Direct menu selection for CAM/CCU/BPU menus with “Enter” control button (Much easier than touch panel by moving the finger)
USB Memory can be used to save and copy the settings and for firmware upgrade if needed. (Memory Stick is no longer used.)
