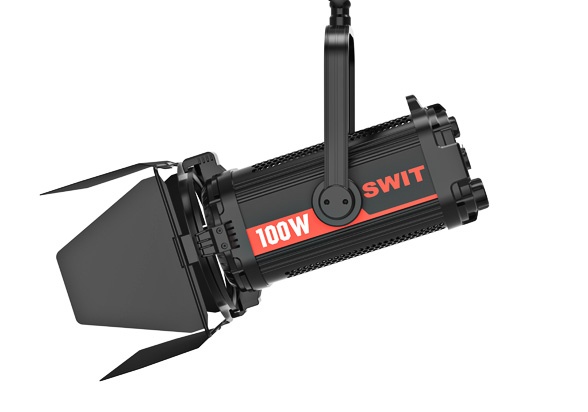

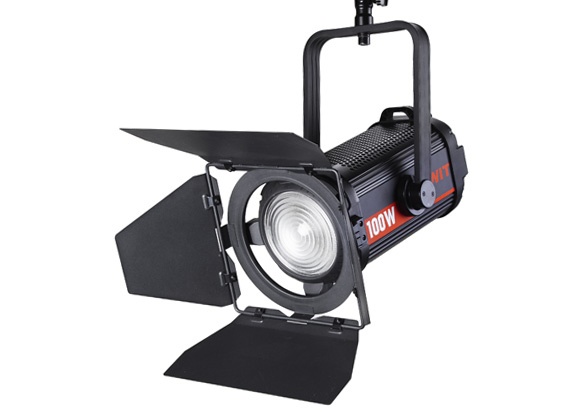

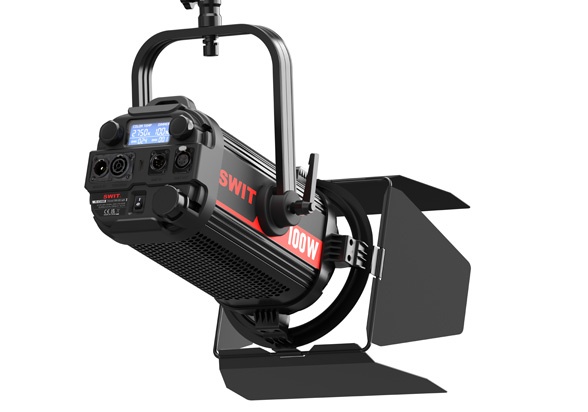

Swit FL-C100D 100W Bi-Colour Fresnel Light

£789.00 Ex VAT



The FL-C100D is a 100W bi-colour COB LED fresnel light that is perfect for broadcast studios, theatres, and film sets. It features a fanless design, making it completely silent, and has a 12-26° flood/spot angle adjust. With a high brightness of 55,000Lux @1m, this light provides a hard and bright light. It also has a wide colour temperature range of 2700K-6500K, allowing for continuous adjustment. The light also has flick-free dimming from 0-100%, ensuring a smooth and consistent light output. With a high CRI of 97 and TLCI of 99, this light accurately renders colours and will not distort the original colours of objects.

The FL-C100D also offers convenient features such as DMX512 in and out dimmer control, allowing for easy integration into existing lighting setups. It also has independent DMX addressing for dimmer and colour temperature, saving valuable DMX sliders on the console. The light also has a PowerCON TRUE1 AC in and loop out for easy installation in studios. Additionally, it comes with a 4-leaf metal barn doors and yoke bracket for added versatility. With its advanced features and high-quality performance, the FL-C100D is the perfect choice for any professional lighting application.

Colour temperature: 2700-6500k
1x Swit FL-C100D 100W Bi-colour Fresnel Light
1x PowerCON AC cable
1x Barn door kit
1x Black out cloth
Safety rope

About The Swit FL-C100D 100W Bi-Colour Fresnel Light
100W Fanless Fresnel Light
Brighter, harder, absolutely silent

FL-C100D is a 100W Bi-colour COB-LED fresnel light, 55,000Lux @1m high bright, with DMX control, high CRI/TLCI and accurate colour performance, and no fan, no noise at all, for broadcast studio, theatre, film set install applications.

12°-26° Spot/Flood Adjust

FL-C100D outputs 12°-26° beam angle by adjusting position of LED board internally, 0 to 100% PWM digital dimming, smoothly and non-flickering.

2700K-6500K Continuous

FL-C100D COB-LED includes100W 2700K and 100W 6500K LED, and can be continuously adjusted between 2700K and 6500K. The light outputs 100W at any colour temperature.

Accurate Colour Render
CRI 97; TLCI 99

CRI (Colour Rendering Index) is a measure of the ability of a light source to reveal the colours of various objects faithfully in comparison with a natural light source. And TLCI (Television Lighting Consistency Index) is special for the colour reveal ability by camera sensor. Max value 100.
The normal LED light has 80-85 CRI or TLCI, while FL-C100D offers the ultra high CRI at 97 and TLCI at 99, and will not lose the object original colours.


FL-C100D provides 5-pin XLR DMX512 in and out, with a 5V USB-A socket to power wireless DMX receiver.
For convenient studio installation, the FL-C100D provides PowerCON True 1 AC in and loop out sockets, which will loop through more than 25x FL-C100D lights under 220V AC voltage, and 13x FL-C100D lights under 110V voltage.

Independent DMX Addr Setting

The regular Bi-colour lights use N and N+1 to set Dimmer and Colour temp DMX addresses, which means 1x light occupy 2x DMX sliders on the console.
Now the FL-C100D can set independent DMX addresses for Dimmer and Colour temp. For example you can set Colour temp DMX 024 for every light, and Dimmer DMX 001, 002, 003… sequentially, to save sliders on the console.

LED COB Chip-on-board LED
Spot angle 12° – 26° adjust
Illuminance 55,000Lux@1m/Spot
Colour Temperature 2700K – 6500K
CRI 97
Power 100W
USB 5V USB-A power out
DMX DMX512, 5pin XLR IN & OUT
AC Power PowerCON TRUE1 AC 100-240V 50/60Hz input & output
Dimension 160×160×364mm
Weight 5.2kg

100W COB LED Fresnel studio light
Fanless, absolutely silent
12-26° Flood/Spot angle adjust
55,000Lux@1m high bright hard light
2700K-6500K continuously adjust
0-100% flick-free dimming
CRI Ra 97, TLCI 99
DMX512 In & out dimmer control
Dimmer/Colour Temp independent DMX addr
USB power out for wireless DMX receiver
LCD display colour, dimmer and DMX addr
PowerCON TRUE1 AC in and loop out
4-leaf metal barn doors and Yoke bracket
