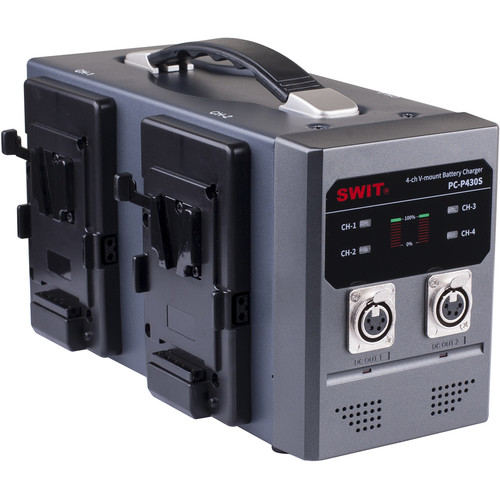

Swit PC-P430S 4-Channel Charger

Overview
The PC-P430S is a V-mount battery charger that has the capability to simultaneously charge up to 4 batteries at once. Each channel has a quick charging speed of 3A, ensuring a fast and efficient charging process. Additionally, the charger also has 2x 4-pin XLR DC outputs, providing even more versatility.

On the front panel of the PC-P430S, there are LED charging indicators for each channel. These indicators display the real-time capacity of each battery through different colours. Red indicates a charging battery with a capacity below 80%, yellow indicates a charging battery with a capacity above 80%, and green indicates a fully charged battery. The charger also has 2x 4-pin XLR female connectors, allowing it to be used as an AC-DC adaptor with the optional purchase of an S-7102 XLR female to male cable. However, it is important to note that the AC-DC output will not function while the batteries are charging.

Summary
Battery / Mount Compatibility: V-Mount
Charging Ports: 4
Included in box
1x PC-P430S 4-Channel Charger

About the Swit PC-P430S 4-Channel Charger
PC-P430S can charge 4pcs V-mount camera batteries simultaneously. The charging output is DC16.8V, 3A each channel.

The PC-P430S has LED charging indicators on the front panel, indicates the real time capacity of each channel by different colours:
Display Red: Battery is charging, capacity below 80%;
Display Yellow: Battery is charging, capacity above 80%;
Display Green: Charging finished.

PC-P430S has 2x 4-pin XLR female connector on the front panel. Connected with SWIT S-7102 XLR female to male cable (optional purchase), the PC-P430S can be used as AC-DC adaptor of 2-ch DC 15V, 6A, 90W simultaneous output.

Please note the AC-DC adapting output will not work when battery is charging.

Power Max276W
Input AC100V-240V 50/60Hz
Output DC 16.8V, 3A×4
Applicable battery V-mount battery
Dimension 285×144×173mm
Weight 3.27kg

V-mount battery charger
4-ch simultaneous charging
3A per channel quick charging
2x 4-pin XLR DC output
LED charging indicators for each channel
