Overview
The Tascam CA-XLR2d is a two-channel microphone adapter and preamplifier that allows external microphones to be used with mirrorless or other cameras for high-quality stereo sound recording. The audio signal is transferred directly to the camera, eliminating the need for post-production synchronisation. The device is powered by the cameras hot shoe, making it compact and easy to use.
The CA-XLR2d features high-performance A/D converters for pristine sound quality, and offers flexibility in microphone selection with two XLR/TRS input terminals and a 3.5-mm stereo mini input. It includes audio processing features such as auto-level, low-cut filter, and limiter, and can be used with a variety of cameras through analogue connections. The device also includes a cold shoe mount for additional accessories and is compatible with Canon, Fujifilm, and Nikon cameras.
Included in box
1x CA-XLR2d unit*
1x CA-AK1-N accessory shoe mount adapter (attached to unit)*
1x CA-AK1-AN cold shoe mount adapter*
1x Battery holder*
1x Mic holder (attached to unit)
1x Quick Guide (including warranty)
1x 3.5-mm stereo mini jack cable
*including connector cover
About the Tascam XLR Microphone Adapter – Nikon
Until now, Nikon cameras could only receive external audio signals via an analogue connection. Now, with the Nikon Kit CA-XLR2d-N, Tascam is introducing another version of its XLR microphone adapter that transmits professional-quality sound digitally to the mirrorless Nikon ZR via its accessory shoe.
A Flexible Concept for Recording Professional Audio With Virtually Any Camera
The CA-XLR2d is a two-channel microphone adapter and preamplifier that allows external microphones to be used to record high-quality professional stereo sound with a mirrorless or other camera. The audio signal is transferred directly to the camera – in digital or analogue form – and recorded along with the video signal, eliminating the need for subsequent synchronisation and reducing post-production time.
Choose the Most Suitable Microphone for Your Film Recording
Choose the appropriate microphone or input that matches your application. From a single shotgun mic for interviews or dialogue, to dual dynamic or condenser mics for stereo imaging, or the entire audio mix fed from the main mixer using a line-level connection – with the CA-XLR2d you are well prepared for whatever shooting and filming is ahead.
High-Performance A/D Converter for Pristine, Natural Sound
Thanks to Tascam’s long-standing expertise in audio technology and premium A/D converters, the CA-XLR2d stands for clean, noise-free, professional sound. By sending a digital audio signal directly to the camera via a compatible accessory shoe, there is no second conversion step which could add noise or distortion. And it frees you from the work of subsequently synchronising picture and sound in post-production.
The CA-XLR2d is powered by a compatible camera via its hot shoe which means you don’t need an additional power supply and your setup remains compact and clean (compatible manufacturers: Canon, Fujifilm, Nikon).
Use The Microphones And Other Equipment You Need for Your Session
The CA-XLR2d is so flexible that you can use it with the microphones and gear you need for your particular film session. The top-mount cold shoe, for example, is resistant to vibrations, noise-friendly and can hold your favourite mic or a wireless receiver or transmitter. Two XLR/TRS input terminals and one 3.5-mm stereo mini input are available for virtually any dynamic or condenser handheld, shotgun, lavalier or other microphone.
Built-In Processing With User-Friendly Control for Highest Recording Quality
The included audio processing features such as auto-level, low-cut filter and limiter can be accessed using convenient switches. The CA-XLR2d can also link two input channels, which allows you to control the input gain as well as the LEVEL and LIMITER settings simultaneously for the left and right channels when recording in stereo.
Premium sound quality is achieved by professional-grade electronics, 16-bit/24-bit resolution and sampling frequencies of 48 kHz or 96 kHz.
Achieve High Sound Quality With Your Current Camera
Don’t worry if your camera’s hot shoe cannot handle a digital audio signal nor power the Tascam mic adapter. The CA-XLR2d-AN analogue kit can be used with virtually any camera that has an analogue audio input. Attach the included battery box (two AA batteries) and connect the analogue output of the CA-XLR2d to the microphone input of the camera with the included stereo audio cable. This allows you to benefit from the high-quality microphone preamplifiers and audio processing functions and significantly improve the sound of your film recordings.
A/D CONVERSION
Sampling Frequency 48 kHz
96 kHz
Bit Width 16 bit
24 bit
(Fs and bit width are synchronised with the settings of the connected camera)
Number of Audio Channels 2
ANALOGUE AUDIO INPUTS
Mic Inputs 1, 2 (balanced) XLR-3-31 equivalent (1: GND, 2: HOT, 3: COLD)
Phantom power available
Input Impedance ≥2 kΩ
Maximum Input Level +6 dBu (ATT set to 46 dB)
Minimum Input Level –60 dBu (ATT set to 0 dB)
Gain Range 66 dB
Line Inputs 1, 2 (balanced) 6.3-mm standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
Phantom power not available
Input Impedance ≥10 kΩ
Maximum Input Level +24 dBu
Rated Input Level +4 dBu
Gain Range 66 dB
Mic Input 3 (unbalanced) 3.5-mm 3-pole mini jack (supports plug-in power)
Input Impedance ≥2 kΩ
Maximum Input Level +6 dBV (ATT set to 46 dB)
Minimum Input Level –60 dBV (ATT set to 0 dB)
Gain Range 66 dB
Plug-in Power 2.7 V
(0 dBu = 0.775 Vrms)
ANALOGUE AUDIO OUTPUTS
Headphones/Camera Output 3.5-mm stereo mini jack
Output Voltage 0.29 Vrms (fixed, when set to headphones)
0.5 Vrms (output volume max., when set to camera)
Headphones Impedance 16–250 Ω
AUDIO PERFORMANCE
Mic Preamp EIN (Equivalent Input Noise) ≤–120 dBu (150 Ω, GAIN at max., A-weighted)
Dynamic Range ≥95 dB (22-kHz LPF, A-weighted)
Frequency Response (XLR to digital input) 20 Hz to 20 kHz +0.5 dB / –1 dB (Fs = 48 kHz)
20 Hz to 40 kHz +0.5 dB / –1 dB (Fs = 96 kHz)
POWER SUPPLY AND OTHER SPECIFICATIONS
Power Supply 2 AA batteries (alkaline, NiMH or lithium-ion)
Power through accessory shoe of compatible camera
Power Consumption 2 W (maximum)
Dimensions (w × h × d, without protrusions) 88 mm × 119 mm × 110 mm
Weight CA-XLR2d-N: 341 g
Operating Temperature Range 0–40 °C
Two XLR/TRS input terminals to use the optimum microphone according to the set and environment
High-performance A/D converter transmits digital audio directly and without deterioration to the camera via the accessory shoe (compatible manufacturers: Canon, Fujifilm, Nikon)
Power can be supplied from the camera body via the corresponding accessory shoe (compatible manufacturers: Canon, Fujifilm, Nikon)
High-performance Tascam HDDA mic preamplifier for high sound quality, low noise and wide dynamic range (switchable mic/line level, switchable 48V phantom power supply)
Additional 3.5-mm stereo mini jack input for a lavalier mic or a microphone requiring plug-in power
Compatible with virtually all cameras that have an analogue input by using the included items (battery box, cold shoe mount adapter, detachable microphone holder with shock mount mechanism and analogue audio cable)
Cold shoe mount on top for extra adapters or accessories

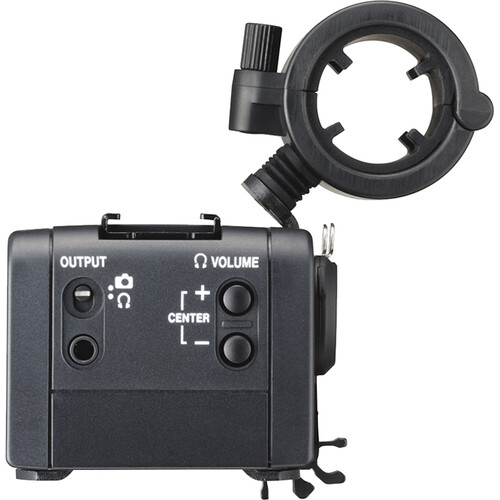

Analogue audio output that supports two modes:
Camera mode: Allows to transmit audio to the microphone input of the camera
Headphone mode: Allows direct monitoring with headphones
Replaceable shoe connection adapter
CA-AK1-C and CA-AK1-F available for use with Canon or Fujifilm cameras
One CA-XLR2d can be used with both Canon and Fujifilm cameras by replacing the shoe connection adapter
Switchable input level attenuation: 0 dB / 20 dB / 46 dB
Switchable low-cut filter: Off / 80 Hz / 220 Hz
Switchable limiter
Auto-level function
Overload indicator for each input
Input level, auto/manual setting and limiter of inputs 1 and 2 can be stereo-linked
Transparent protective cover to prevent unintentional changes of settings
Convenient cable holder
