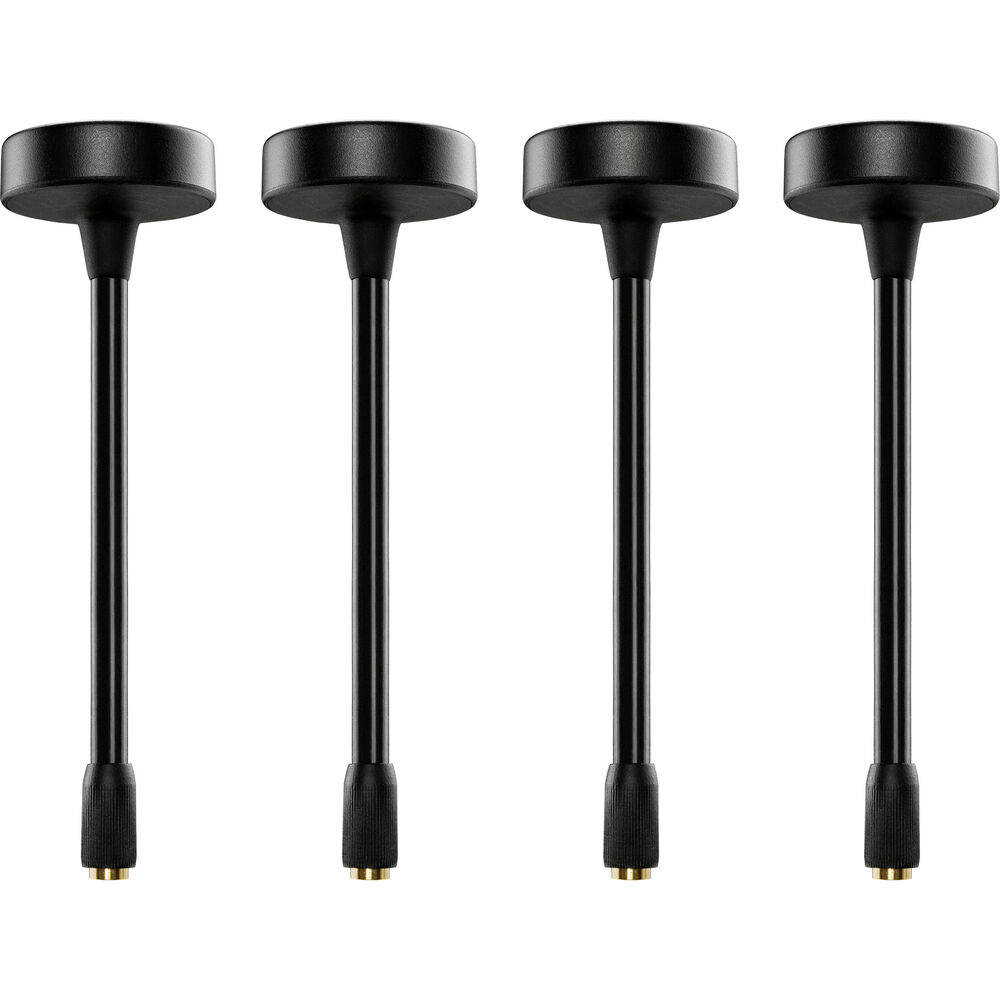

Teradek 6GHz H Antenna Kit – 4 Antenna

£311.00 Ex VAT

Category:
OVERVIEW
Teradek 11-0904 (110904) 6GHz Flexible H Antenna Kit (Bolt 6 / Bolt 4K) – 4 Antennas teradek-11-0904-6ghz-flexible-h-antenna / 11-0904. These are designed special horizontally polarized antennas for use with the V antennas. Using a pair of H and a pair of V antennas on the TX improves the diversity characteristics of the system by combining the two perpendicular polarizations. For this H+V antenna configuration, two H antennas should be used at the TX and two at the RX as pictured. This configuration should allow for better reception and better video quality in medium-range situations and/or when the environment will create a lot of reflections for the wireless signal.

The combination of H and V antenna signals achieves better diversity than V antennas alone, especially while shooting outdoors. H antennas cause the RF signal from the transmitter to propagate in a perpendicular manner compared to the vertical signal from the V antenna.

INCLUDED IN BOX
  • 4x Antenna Kit

    About The Teradek 6GHz H Antenna Kit – 4 Antenna

    These are designed special horizontally polarized antennas for use with the V antennas. Using a pair of H and a pair of V antennas on the TX improves the diversity characteristics of the system by combining the two perpendicular polarizations. For this H+V antenna configuration, two H antennas should be used at the TX and two at the RX as pictured. This configuration should allow for better reception and better video quality in medium-range situations and/or when the environment will create a lot of reflections for the wireless signal.

    The combination of H and V antenna signals achieves better diversity than V antennas alone, especially while shooting outdoors. H antennas cause the RF signal from the transmitter to propagate in a perpendicular manner compared to the vertical signal from the V antenna.

    • Output: 2dBi 4.9-7.3Ghz RP-SMA
    • Polarization: Mushroom Horizontal

Brand

Teradek
